Sayfa 2-20 - Isuzu EPC

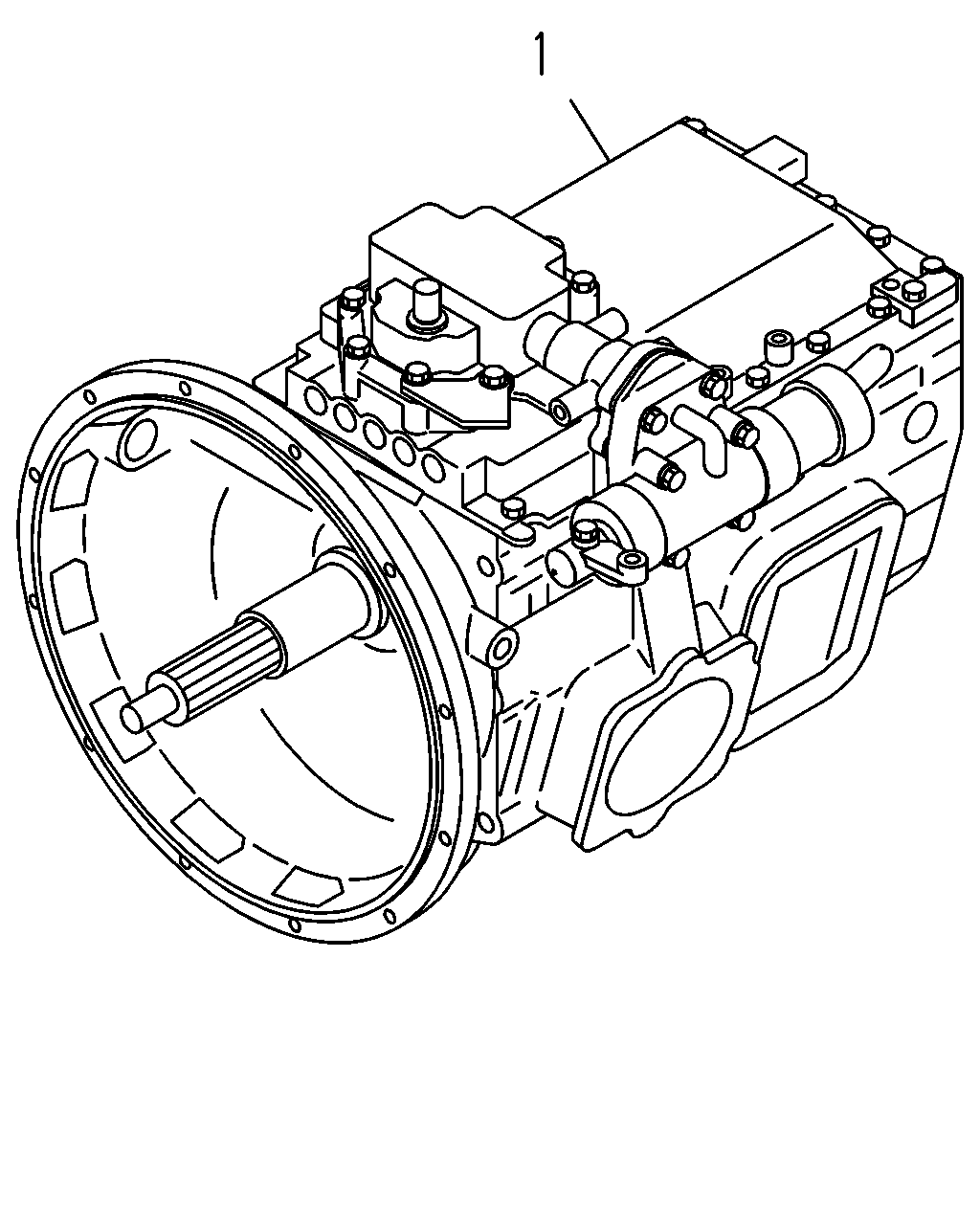

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	1-33043-979-0	01	1	0611-	●
1	TRANSMISSION ASM; MANUAL FRR MIDDLE CHASSIS(FR****)	1-33041-566-0	01	1	9811-9904		●
1	TRANSMISSION ASM; MANUAL FRR MIDDLE CHASSIS(FR****)	1-33042-829-0	01	1	9905-0610		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33043-971-0	01	1	0611-			●
1	TRANSMISSION ASM; MANUAL FVR MIDDLE CHASSIS(FV****)	1-33041-574-0	01	1	9811-0610		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33043-971-0	01	1	0611-			●

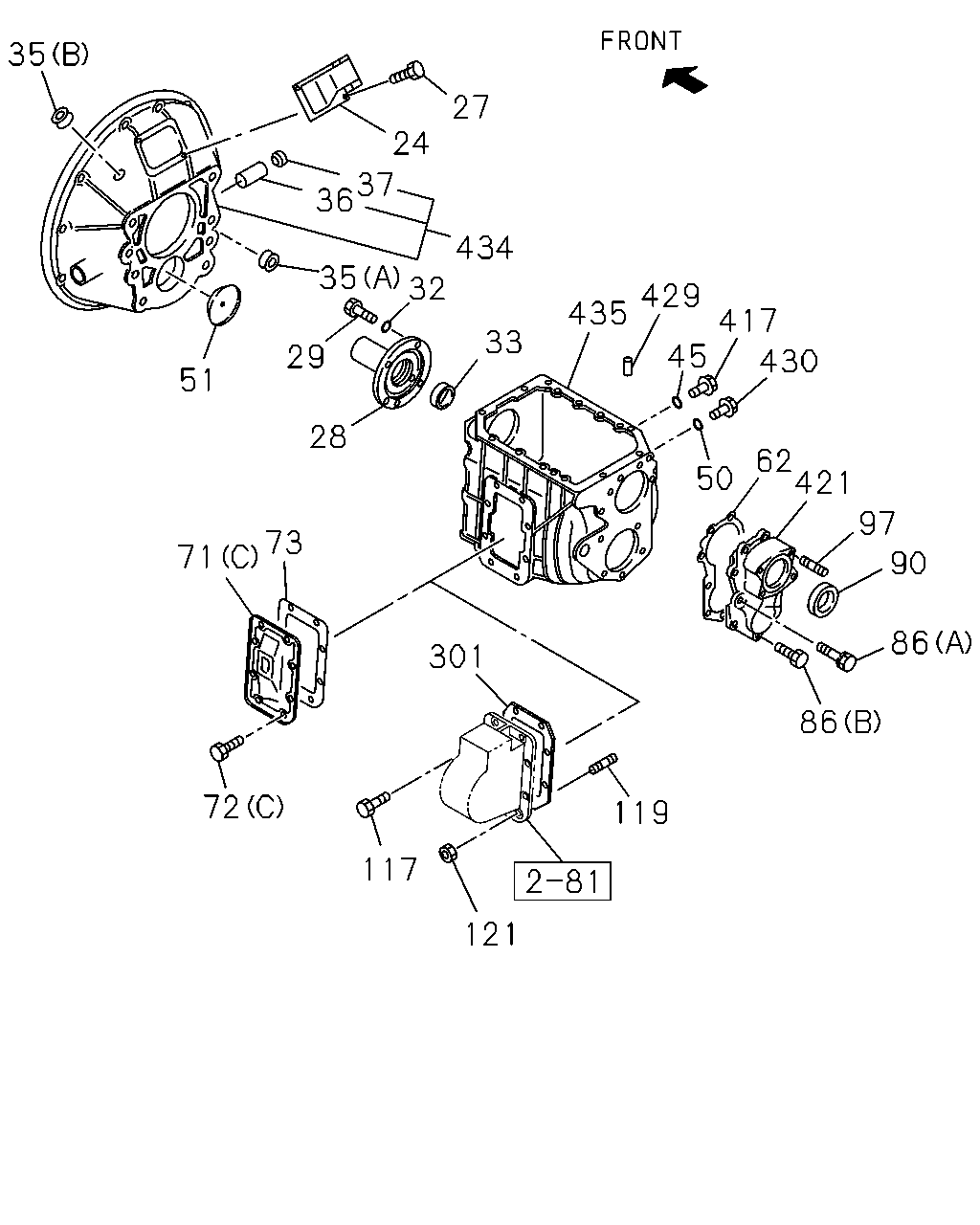

35 27 24 37 36 434 35 32 429 435 417 45 33 29 430 51 28 62 421 50 97 73 71 90 86 301 86 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-040-0	01	1	0611-	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9811-0610		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0611-			●
27	BOLT; COVER TO CLU HSG	1-31139-017-0	02	1	0611-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9811-0104		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-0610		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0611-			●
28	COVER; FRT,TRANS CASE	1-33121-143-0	01	1	0611-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9811-0610		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0611-			●
29	BOLT; FRT COVER W/SEAL	1-33549-259-0	02	1	0611-	●
29	BOLT; FRT COVER WO/SEAL	1-33549-262-0	04	1	0611-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9811-0610		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0611-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9811-0610		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0611-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-201-0	01	1	0611-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9811-0610		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0611-			●
35	GROMMET; CLU HSG (A) OD=15 T=6.6 TAI	8-97037-246-0	01	1	9811-0610		●
35	GROMMET; CLU HSG (A) OD=15 T=6.6 TAI	8-97037-246-0	01	1	0611-			●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9811-0610		●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	0611-			●
36	BEARING; NEEDLE,CLU HSG	1-31119-031-0	02	1	0611-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9811-0610		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0611-			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-31119-032-0	04	1	0611-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9811-0610		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0611-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-352-0	01	1	0611-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-0610		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-352-0	01	1	0611-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-0610		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-			●
51	COVER; SEAL,COUNTER,FRT	1-33319-156-0	01	1	0611-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9811-0610		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0611-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9811-0610		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0611-			●
71	COVER; SIDE,TRANS CASE (A)	1-33141-052-0	01	1	0611-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-053-0	01	1	0611-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-033-0	01	1	9811-0610		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-33141-033-0	01	1	0611-			●
72	BOLT; SIDE COVER (B)	1-33119-345-0	02	1	0611-	●
72	BOLT; SIDE COVER (A)	1-33119-350-0	08	1	0611-	●
72	BOLT; SIDE COVER (C) M10X16 FLANGE	0-28181-016-0	08	1	9811-0512		●
72	BOLT; SIDE COVER (C) M10X16 FLANGE	0-28151-016-0	08	1	0601-0610		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) M10X16 FLANGE	0-28151-016-0	08	1	0611-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9811-0610		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-036-0	01	1	0611-			●
86	BOLT; RR COVER (C)	1-33139-083-0	08	1	0611-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9811-0610		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0611-			●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9811-0610		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0611-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-084-0	01	1	0611-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9811-0610		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0611-			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9811-0610		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	0611-			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9811-0610		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	0611-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X28 FLANGE	0-28181-028-0	06	1	0611-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X30 L=45	0-44011-030-0	02	1	0611-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE	0-91180-210-0	02	1	0611-			●
121	NUT; PTO FIX	1-38119-049-0	04	1	0611-	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-38119-037-0	01	1	0611-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9811-0201		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-0610		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0611-			●
421	COVER; RR,TRANS	1-33139-115-0	01	1	0611-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9811-0610		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0611-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9811-0610		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0611-			●
430	PLUG; OIL DRAIN	1-33119-351-0	01	1	0611-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9811-0610		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0611-			●
434	HOUSING; CLU	1-31110-169-0	01	1	9811-0610		●
434	HOUSING; CLU	1-31110-169-0	01	1	0611-			●
435	CASE; TRANS	1-33111-274-0	01	1	0611-	●
435	CASE; TRANS	1-33111-235-0	01	1	9811-0201		●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303		●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406		●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0610		●
435	CASE; TRANS	8-97381-568-0	01	1	0611-			●

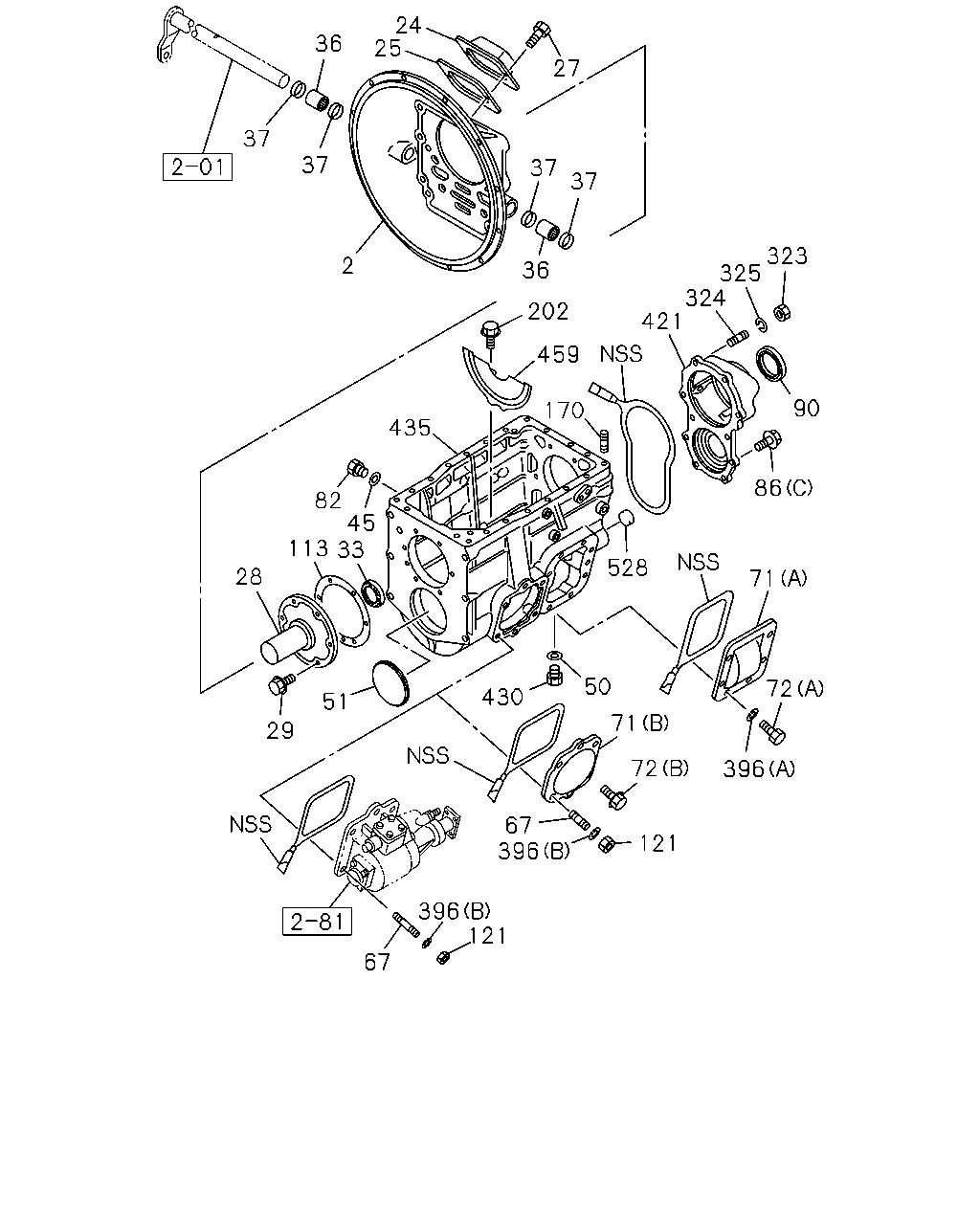

24 25 36 27 37 37 37 37 323 325 324 421 2 36 202 459 90 170 435 86 82 45 528 28 71 50 72 430 51 71 29 72 396 67 396 121 396 121 67 113 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; CLU	1-31111-188-0	01	1	0611-	●
24	COVER; CHECK HOLE,DUST	1-31131-040-0	01	1	0611-	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9811-0610		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0611-			●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-016-0	01	1	0611-	●
27	BOLT; COVER TO CLU HSG	1-31139-017-0	02	1	0611-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9811-0104		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-0610		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0611-			●
28	COVER; FRT,TRANS CASE	1-33121-143-0	01	1	0611-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9811-0610		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0611-			●
29	BOLT; FRT COVER W/SEAL	1-33549-259-0	02	1	0611-	●
29	BOLT; FRT COVER WO/SEAL	1-33549-262-0	04	1	0611-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9811-0610		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	0611-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-201-0	01	1	0611-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9811-0610		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0611-			●
36	BEARING; NEEDLE,CLU HSG	1-31119-031-0	02	1	0611-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9811-0610		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0611-			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-31119-032-0	04	1	0611-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9811-0610		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0611-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-352-0	01	1	0611-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-0610		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-352-0	01	1	0611-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9811-0610		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0611-			●
51	COVER; SEAL,COUNTER,FRT	1-33319-156-0	01	1	0611-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9811-0610		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0611-			●
67	STUD; CASE TRANS	1-33119-346-0	04	1	0611-	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-052-0	01	1	0611-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-053-0	01	1	0611-	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-033-0	01	1	9811-0610		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C)	1-33141-033-0	01	1	0611-			●
72	BOLT; SIDE COVER (B)	1-33119-345-0	02	1	0611-	●
72	BOLT; SIDE COVER (A)	1-33119-350-0	08	1	0611-	●
72	BOLT; SIDE COVER (C) M10X16 FLANGE	0-28181-016-0	08	1	9811-0512		●
72	BOLT; SIDE COVER (C) M10X16 FLANGE	0-28151-016-0	08	1	0601-0610		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) M10X16 FLANGE	0-28151-016-0	08	1	0611-			●
82	PLUG; SCREW,CASE	1-33119-347-0	01	1	0611-	●
86	BOLT; RR COVER (C)	1-33139-083-0	08	1	0611-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9811-0610		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	0611-			●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9811-0610		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	0611-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-084-0	01	1	0611-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9811-0610		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0611-			●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-021-0	01	1	0611-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE	0-91180-210-0	02	1	0611-			●
121	NUT; PTO FIX	1-38119-049-0	04	1	0611-	●
170	STUD; QUAD BOX	1-33139-086-0	02	1	0611-	●
202	BOLT; PLATE	1-33549-258-0	02	1	0611-	●
323	NUT; RR COVER	1-33139-081-0	02	1	0611-	●
324	STUD; RR COVER	1-33139-085-0	02	1	0611-	●
325	WASHER; LK,RR COVER	1-38119-050-0	02	1	0611-	●
396	WASHER; LK,SIDE COVER (B)	1-38119-050-0	04	1	0611-	●
396	WASHER; LK,SIDE COVER (A)	1-33119-344-0	08	1	0611-	●
421	COVER; RR,TRANS	1-33139-115-0	01	1	0611-	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9811-0610		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0611-			●
430	PLUG; OIL DRAIN	1-33119-351-0	01	1	0611-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9811-0610		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0611-			●
435	CASE; TRANS	1-33111-274-0	01	1	0611-	●
435	CASE; TRANS	1-33111-235-0	01	1	9811-0201		●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303		●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406		●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0610		●
435	CASE; TRANS	8-97381-568-0	01	1	0611-			●
459	PLATE; OIL	1-33119-349-0	01	1	0611-	●
528	PLUG; WELCH	1-33119-348-0	01	1	0611-	●

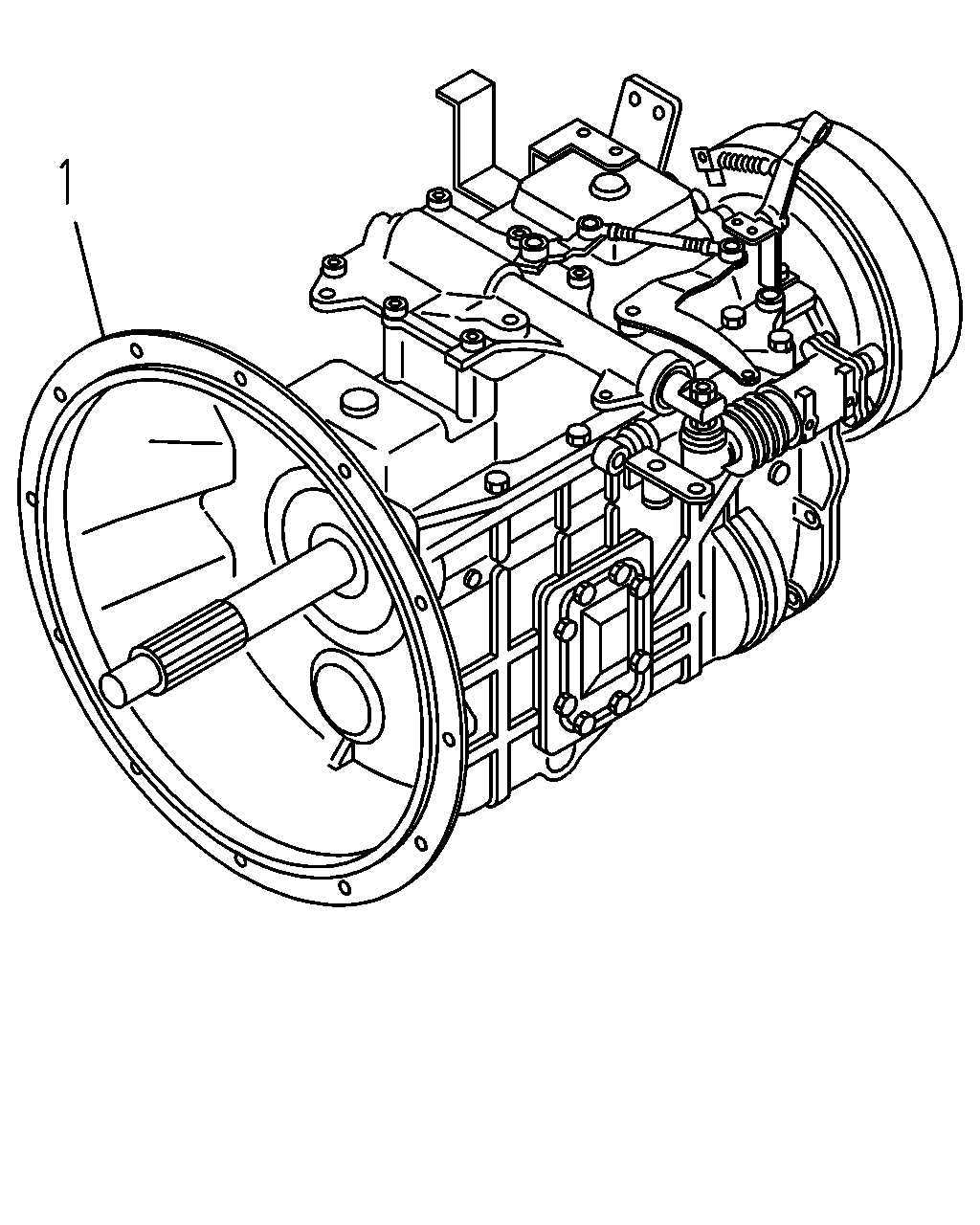

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	1-33043-979-0	01	1	0611-	●
1	TRANSMISSION ASM; MANUAL FRR MIDDLE CHASSIS(FR****)	1-33041-566-0	01	1	9811-9904		●
1	TRANSMISSION ASM; MANUAL FRR MIDDLE CHASSIS(FR****)	1-33042-829-0	01	1	9905-0610		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33043-971-0	01	1	0611-			●
1	TRANSMISSION ASM; MANUAL FVR MIDDLE CHASSIS(FV****)	1-33041-574-0	01	1	9811-0610		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33043-971-0	01	1	0611-			●
