◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#57137) — 22 parça

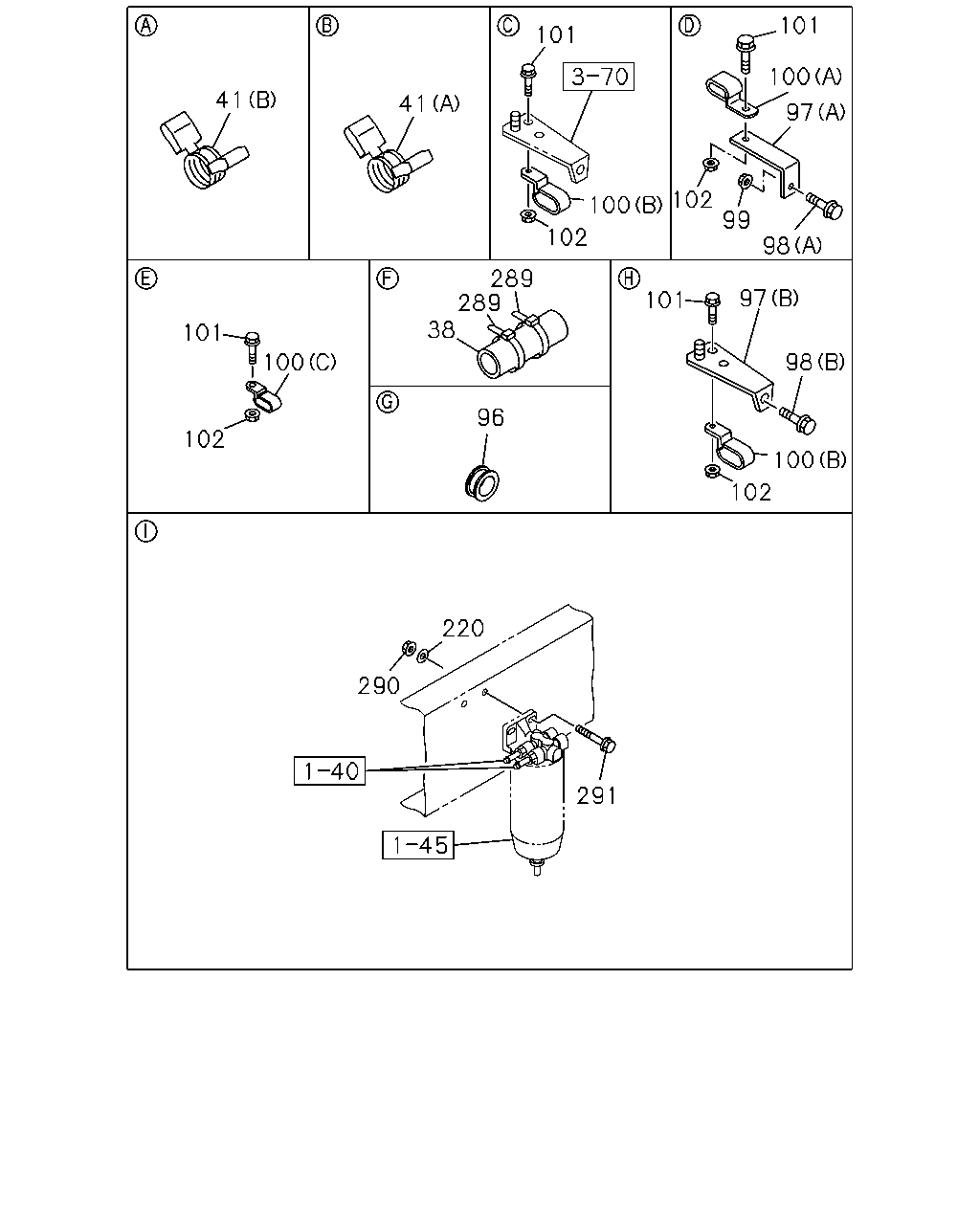

çizim 160816
101 101 100 41 41 97 102 100 99 102 98 289 289 38 97 101 101 98 100 96 102 100 102 220 290 291
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0801- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 0801- ● ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 0801- ● ● ● ●
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 0801- ● ● ● ●
97 BRACKET; CLIP
(A) 		1-47475-927-0 01 1 0801-1010 ● ● ● ●
97 BRACKET; CLIP
(A) L=68 		1-47475-525-0 01 1 1011- ● ● ● ●
97 BRACKET; CLIP
(B) 		8-97609-096-0 01 1 0801- ● ● ● ●
98 BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ● ● ●
98 BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ● ●
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ● ●
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0801- ● ● ● ●
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 04 1 0801- ● ● ● ●
100 CLIP; FUEL PIPE
(C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 0801- ● ● ● ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 0801- ● ● ● ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 06 1 0801- ● ● ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0801- ● ● ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 0801-1302 ● ● ● ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0801- ● ● ● ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0801- ● ● ● ●

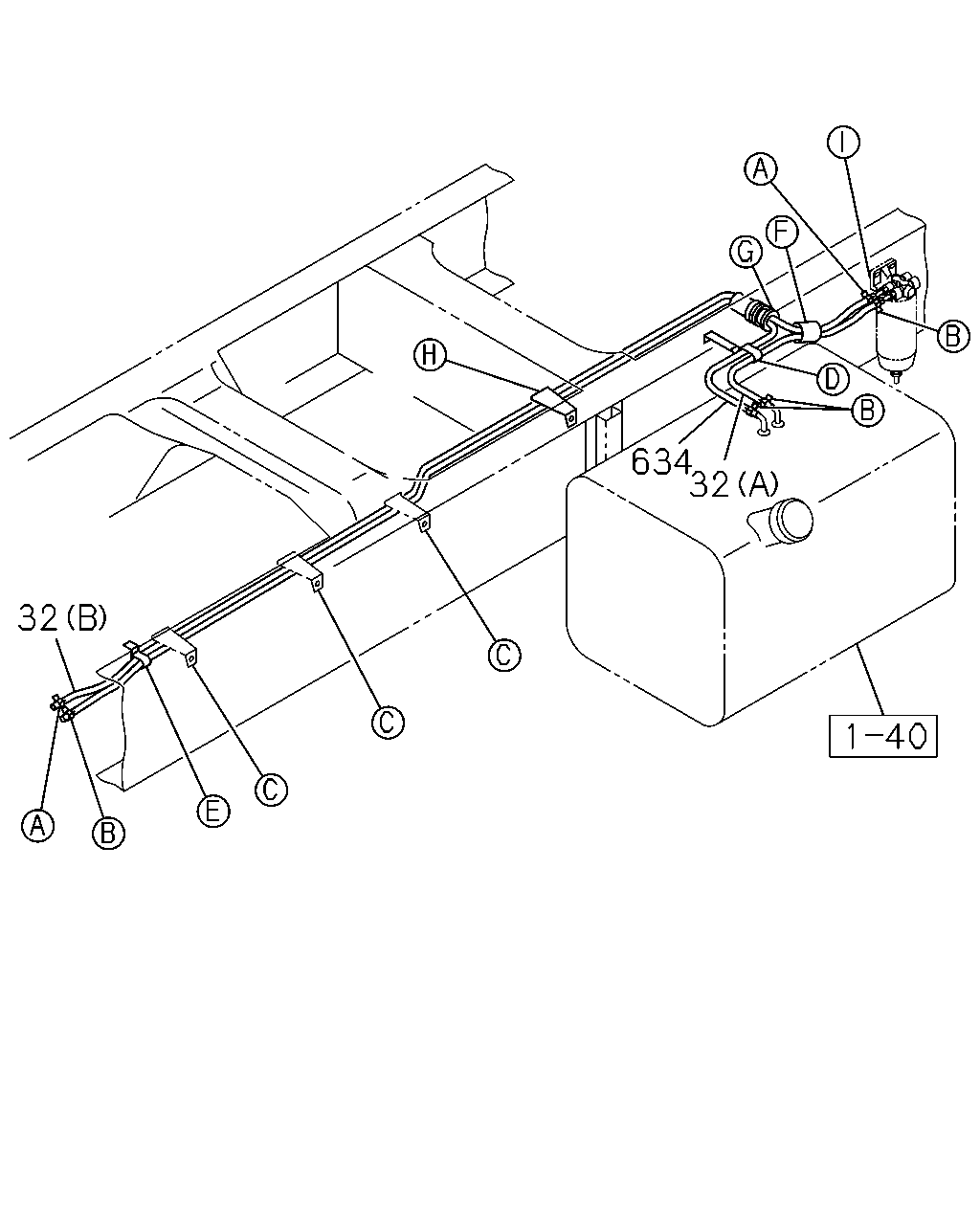

çizim 160823
634 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0801- ● ● ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 0801- ● ● ● ●
634 HOSE; RUBBER RETURN
L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 0801- ● ● ● ●
