◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#57133) — 15 parça

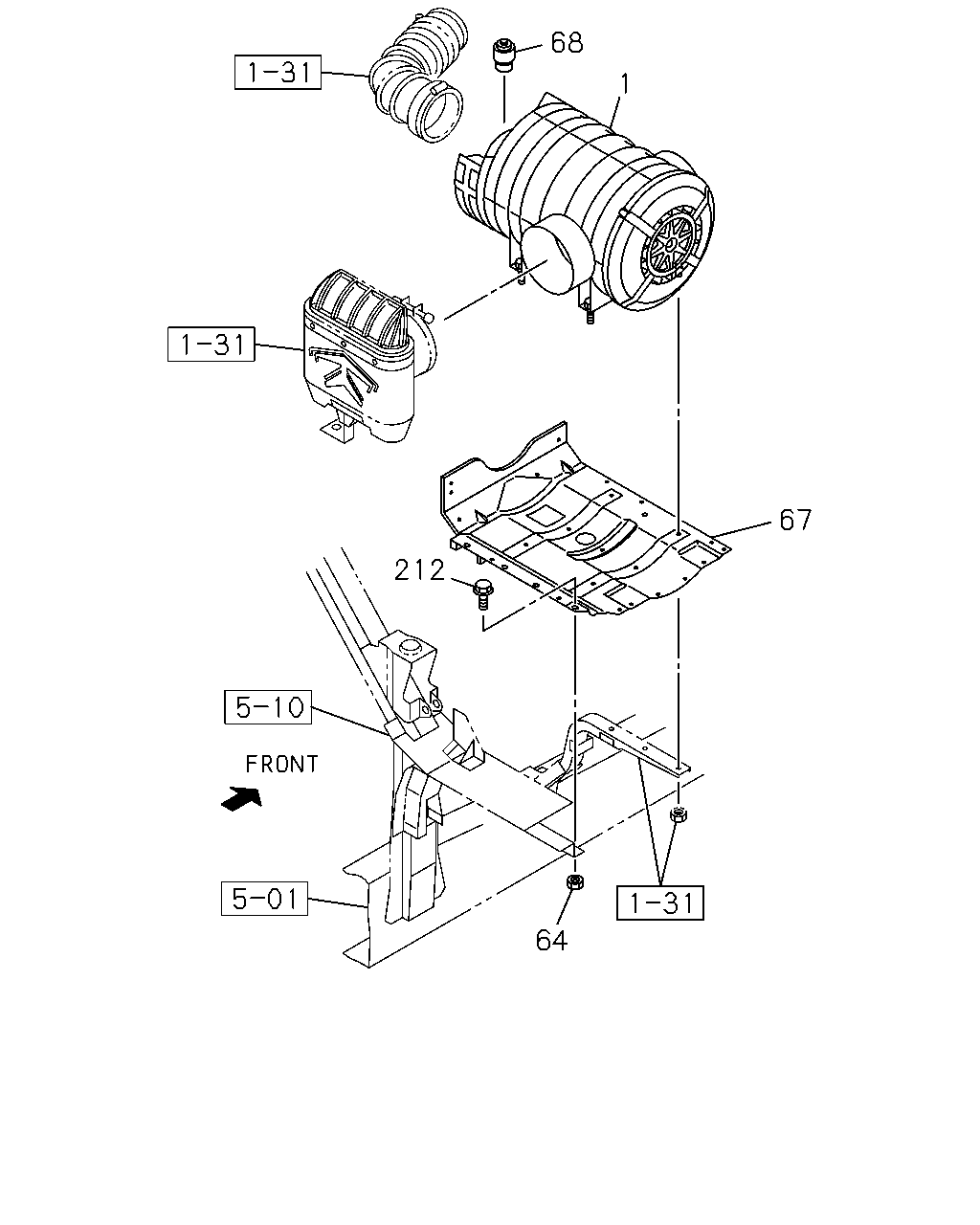

çizim 160775
68 1 67 212 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98110-629-0 01 1 0801- ● ●
1 CLEANER ASM; AIR
EURO3 SPECIFICATION<NJX> 		8-98110-633-0 01 1 0801- ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
67 COVER; ACL 8-98110-710-0 01 1 0801- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0801- ● ●
212 BOLT; MUD COVER
M10X30 FLANGE 		0-28651-030-0 02 1 0801- ● ●

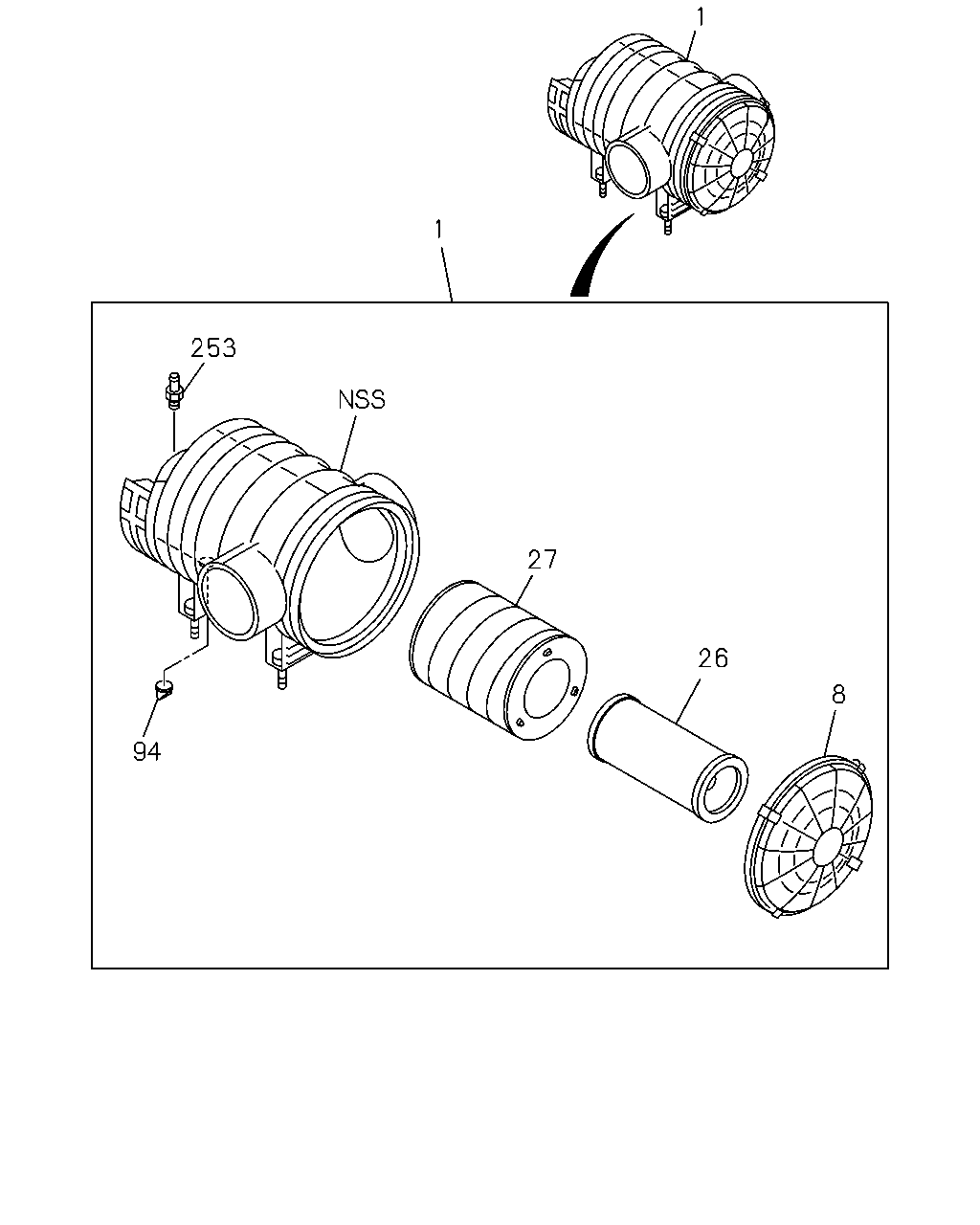

çizim 160804
1 1 253 27 26 8 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
EMISSION REGULATION NEW LONG TERM<JBG> 		8-98110-629-0 01 1 0801- ● ●
1 CLEANER ASM; AIR
EURO3 SPECIFICATION<NJX> 		8-98110-633-0 01 1 0801- ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0801- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-112-0 01 1 0801- ● ●
26 FILTER; ACL,INNER 1-14215-217-0 01 1 0801- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-111-0 01 1 0801- ● ●
27 FILTER; ACL,OUTER 1-14215-203-0 01 1 0801- ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0801- ● ●
253 NIPPLE 1-14219-252-0 01 1 0801- ● ●
