1-10 — RADIATOR (#57131) — 54 parça
çizim 160783
1 528 526 529 232 267 89 528 529 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-98060-764-4 01 1 0801- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0812- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0812- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0812- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0812- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0812- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0812- ● ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 0801- ● ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 0801- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98060-765-2 01 1 0801- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98060-766-2 01 1 0801- ● ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 0801- ● ●

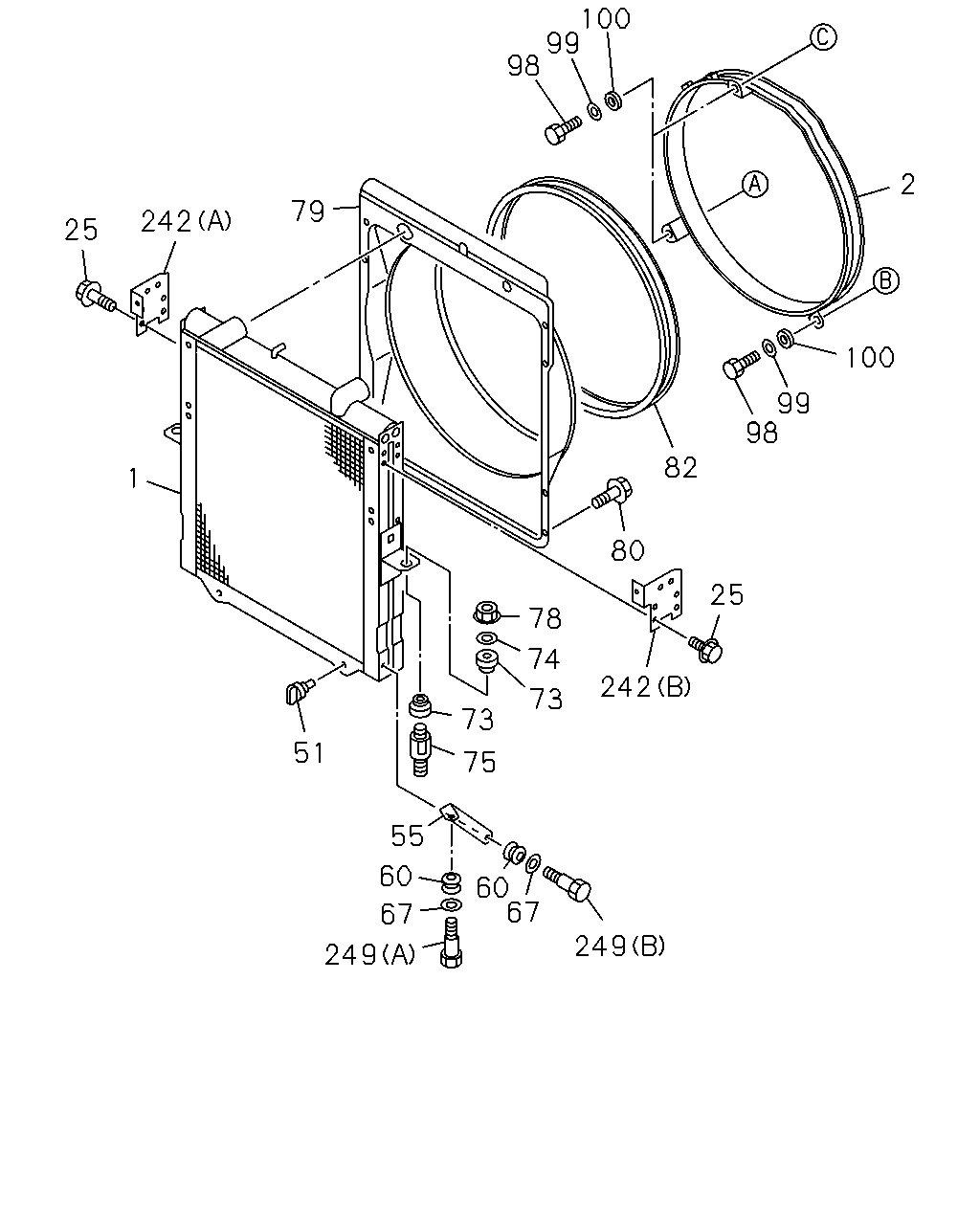

çizim 160784
100 99 98 2 79 242 25 100 99 98 82 1 80 25 78 74 242 73 73 51 75 55 60 60 67 67 249 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-98060-764-4 01 1 0801- ● ●
2 GUIDE; FAN 8-97615-753-1 01 1 0801- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0801-0811 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0812- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0801-0811 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0812- ● ●
55 STAY; RAD TO UPR MBR 8-98055-802-0 01 1 0801- ● ●
55 STAY; RAD TO UPR MBR 8-98055-805-0 01 1 0801- ● ●
60 GROMMET 1-09332-117-0 04 1 0801- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0801- ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0801- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0801- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0801- ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
79 GUIDE; FAN,RAD 1-21551-545-1 01 1 0801- ● ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28080-816-0 06 1 0801-0811 ● ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 0812- ● ●
82 COVER; FAN,RAD 1-21559-491-1 01 1 0801- ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 03 1 0801- ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0801- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0801- ● ●
242 BRACKET; RAD
(A) 		8-98089-511-1 01 1 0801- ● ●
242 BRACKET; RAD
(B) 		8-98089-512-1 01 1 0801- ● ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0801- ● ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0801- ● ●

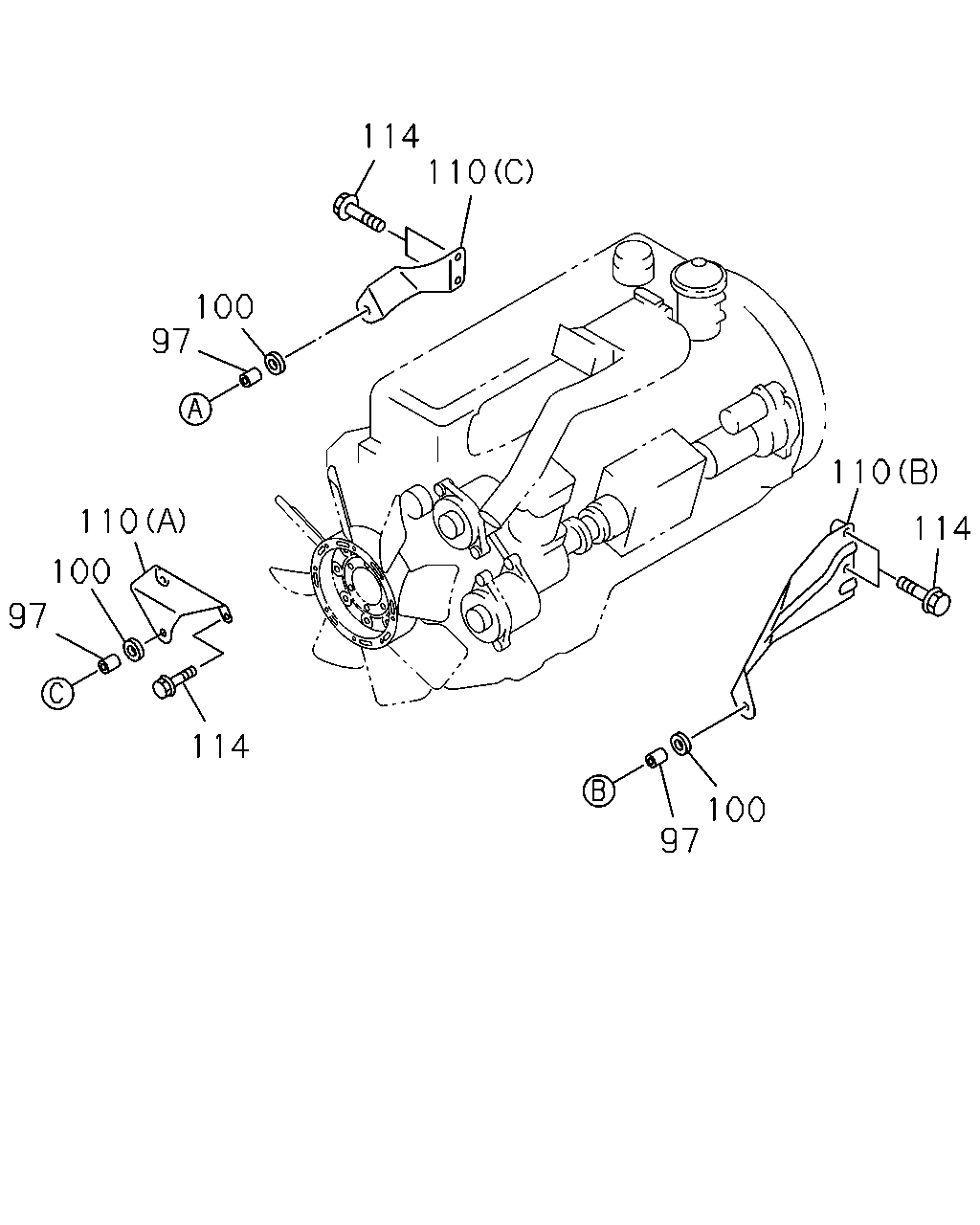

çizim 160847
114 110 100 97 110 110 114 100 97 114 100 97
BalonParca AdiParca NoAdetTipApplied Date A B
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 0801- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0801- ● ●
110 STAY; FAN GUIDE
HEATER & DEFROSTER(C41) (C) 		8-97607-500-0 01 1 0801-1302 ●
110 STAY; FAN GUIDE
(C) 		8-97607-500-0 01 1 0801-1302 ●
110 STAY; FAN GUIDE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-97607-500-0 01 1 1303- ●
110 STAY; FAN GUIDE
(A) 		8-97604-861-1 01 1 0801- ● ●
110 STAY; FAN GUIDE
(B) 		8-97607-503-0 01 1 0801- ● ●
110 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-97607-501-0 01 1 0801-0812 ●
110 STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (C) 		8-97607-501-0 01 1 0901- ● ●
114 BOLT; STAY
M10X40 FLANGE 		0-28151-040-0 02 1 0801-1302 ● ●
114 BOLT; STAY
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X40 FLANGE 		0-28151-040-0 02 1 0801-1302 ● ●
114 BOLT; STAY
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M10X40 FLANGE 		0-28151-040-0 02 1 1303- ● ●
114 BOLT; STAY
M10X40 FLANGE 		0-28151-040-0 02 1 1303- ● ●
114 BOLT; STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0801-1302 ● ●
114 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X20 FLANGE 		0-28151-020-0 02 1 0801-1302 ●
114 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER MANUAL CONT WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) M10X20 FLANGE 		0-28151-020-0 02 1 1303- ● ●
114 BOLT; STAY
M10X20 FLANGE 		0-28151-020-0 02 1 1303- ● ●
