0-87 — COUPLING; INJECTION PUMP (#57129) — 11 parça

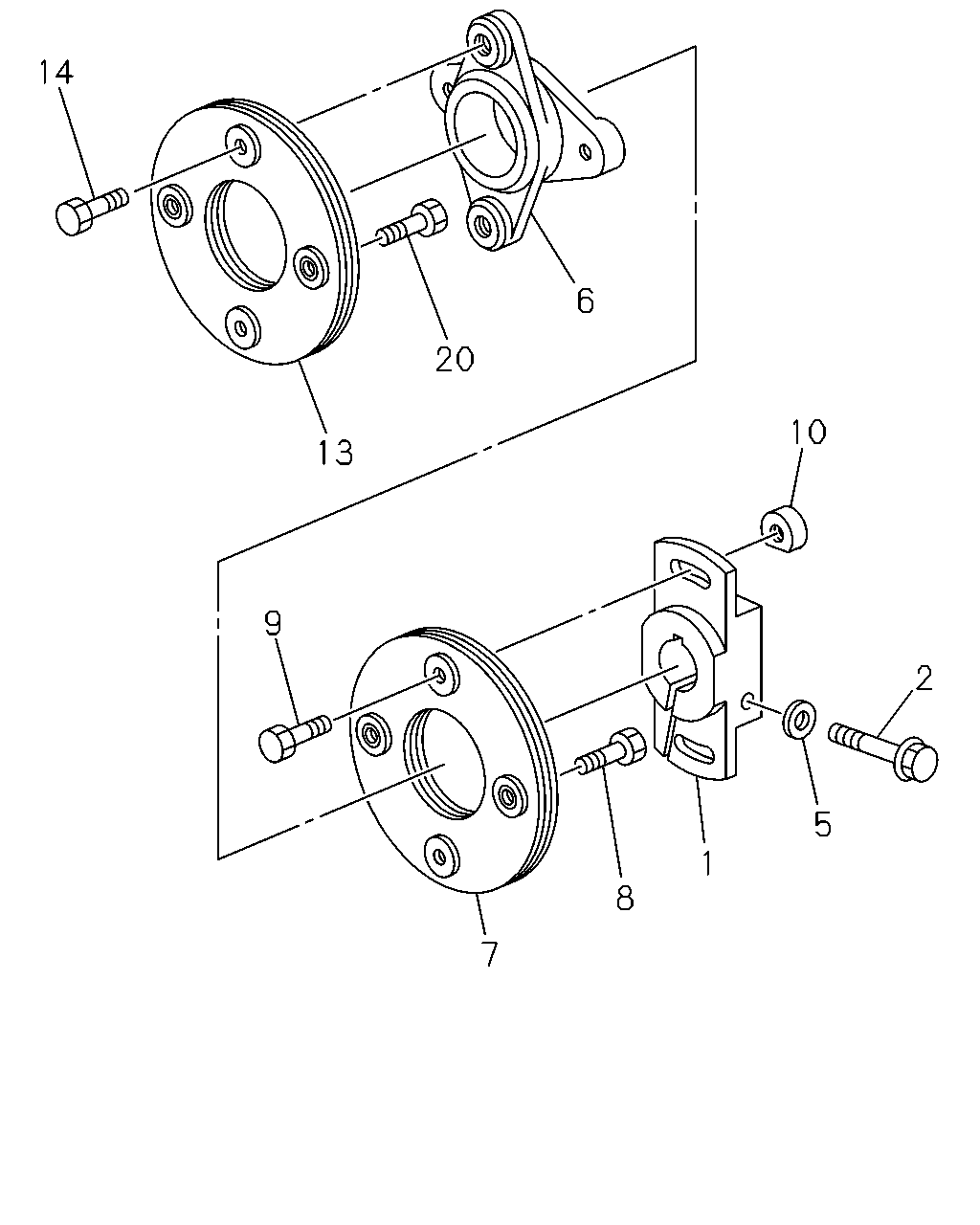

çizim 160932
14 6 20 10 13 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15781-048-0 01 1 0801- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0801- ● ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 0801- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-221-0 01 1 0801- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0801- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0801- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0801- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0801- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0801- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0801- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0801- ● ●
