◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#57125) — 85 parça

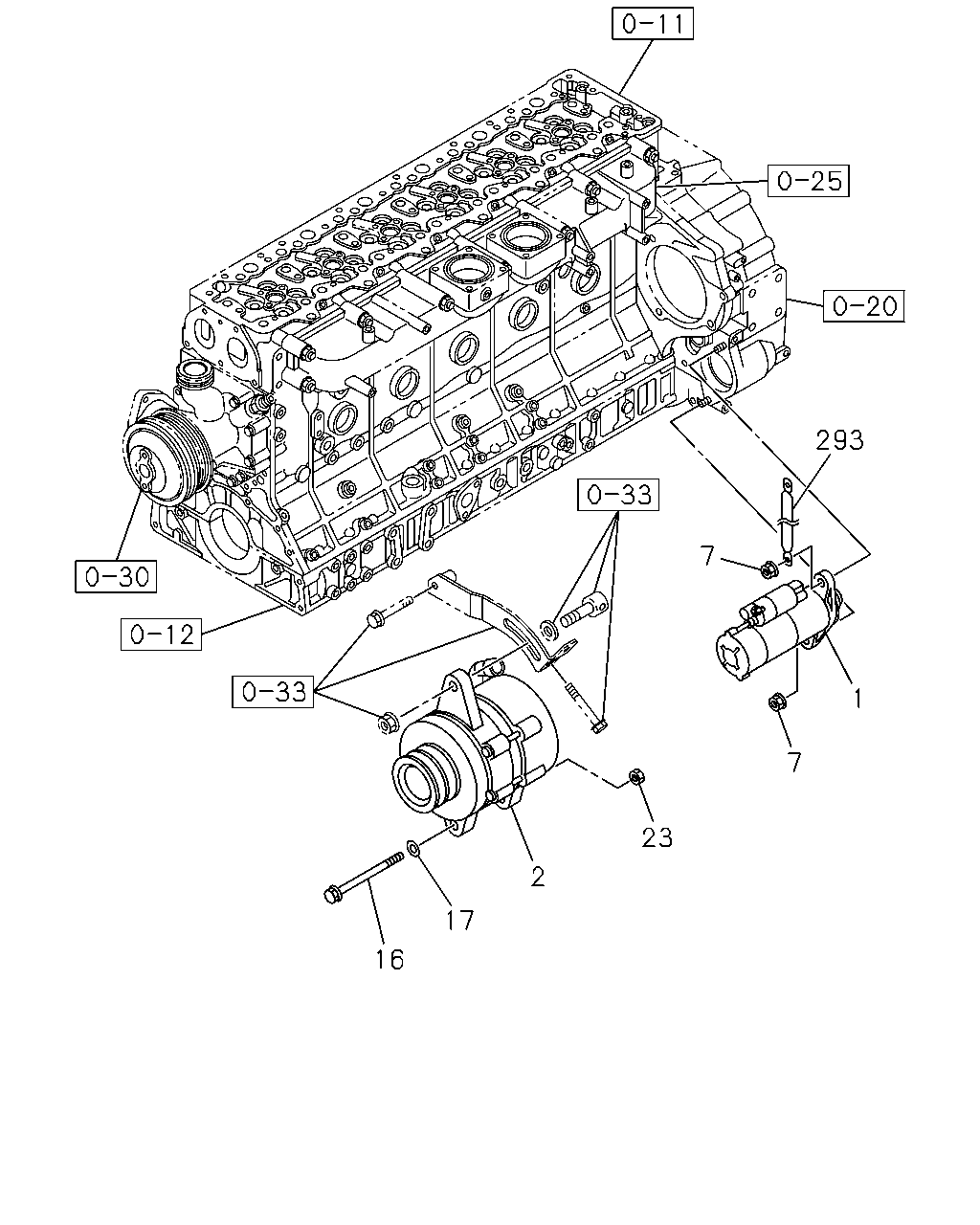

çizim 160743
293 7 1 7 23 2 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-432-2 01 1 0801-1209 ● ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-203-2 01 1 1210- ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A MITSUBISHI 		8-98013-616-5 01 1 0801- ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A MITSUBISHI 		8-98013-617-3 01 1 0801- ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A MITSUBISHI 		8-98013-615-3 01 1 0801-1112 ● ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A MITSUBISHI 		8-98200-161-0 01 1 1201- ● ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 0801- ● ● ● ●
16 BOLT; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M14X123 		9-09801-204-1 01 1 0801- ● ● ● ●
16 BOLT; GEN
GENERATOR 24V90A(K44) M14X157 		1-09040-106-0 01 1 0801- ● ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0801- ● ● ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0801- ● ● ● ●
293 CABLE; STARTER EARTH 1-82650-409-1 01 1 0801- ● ● ● ●

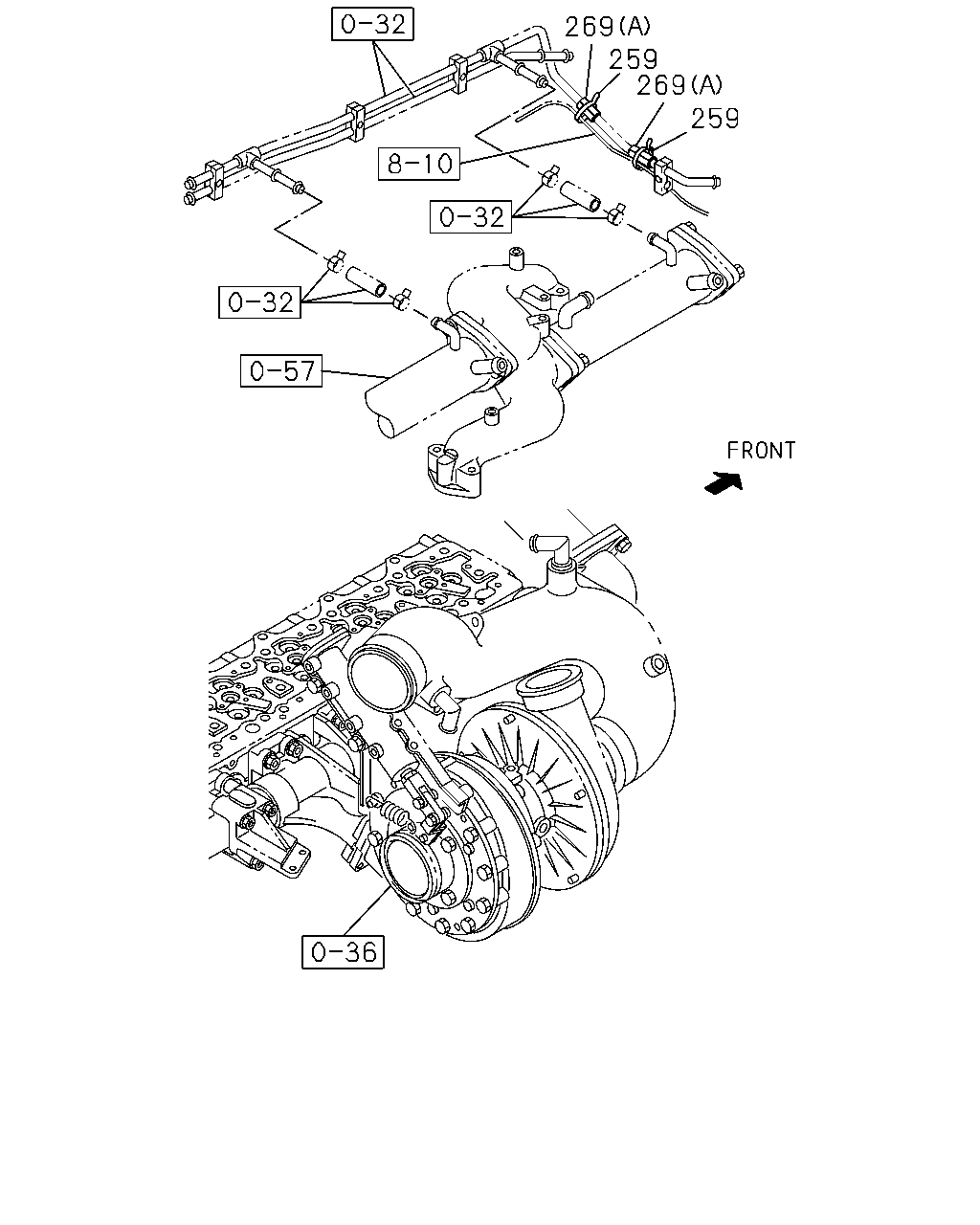

çizim 160759
269 259 269 259
BalonParca AdiParca NoAdetTipApplied Date A B C D
259 CLIP; BAND,HARNESS TO OIL PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=150 		8-97355-273-0 01 1 1009- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 10 1 0801-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=250 		8-98216-430-0 10 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 12 1 0801-1205 ● ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		8-98216-430-0 12 1 1206-1302 ● ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) L=250 		8-98216-430-0 12 1 1303- ● ● ●
269 SLEEVE; RUBBER,CABLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=32 OD=36 L=50 		1-09337-023-0 02 1 0801-1302 ● ● ●
269 SLEEVE; RUBBER,CABLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=32 OD=36 L=50 		1-09337-023-0 02 1 1303- ● ● ●
269 SLEEVE; RUBBER,CABLE
(B) ID=38.1 L=25 		1-09337-052-0 01 1 0801- ● ● ● ●
269 SLEEVE; RUBBER,CABLE
(A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 0801- ● ● ● ●

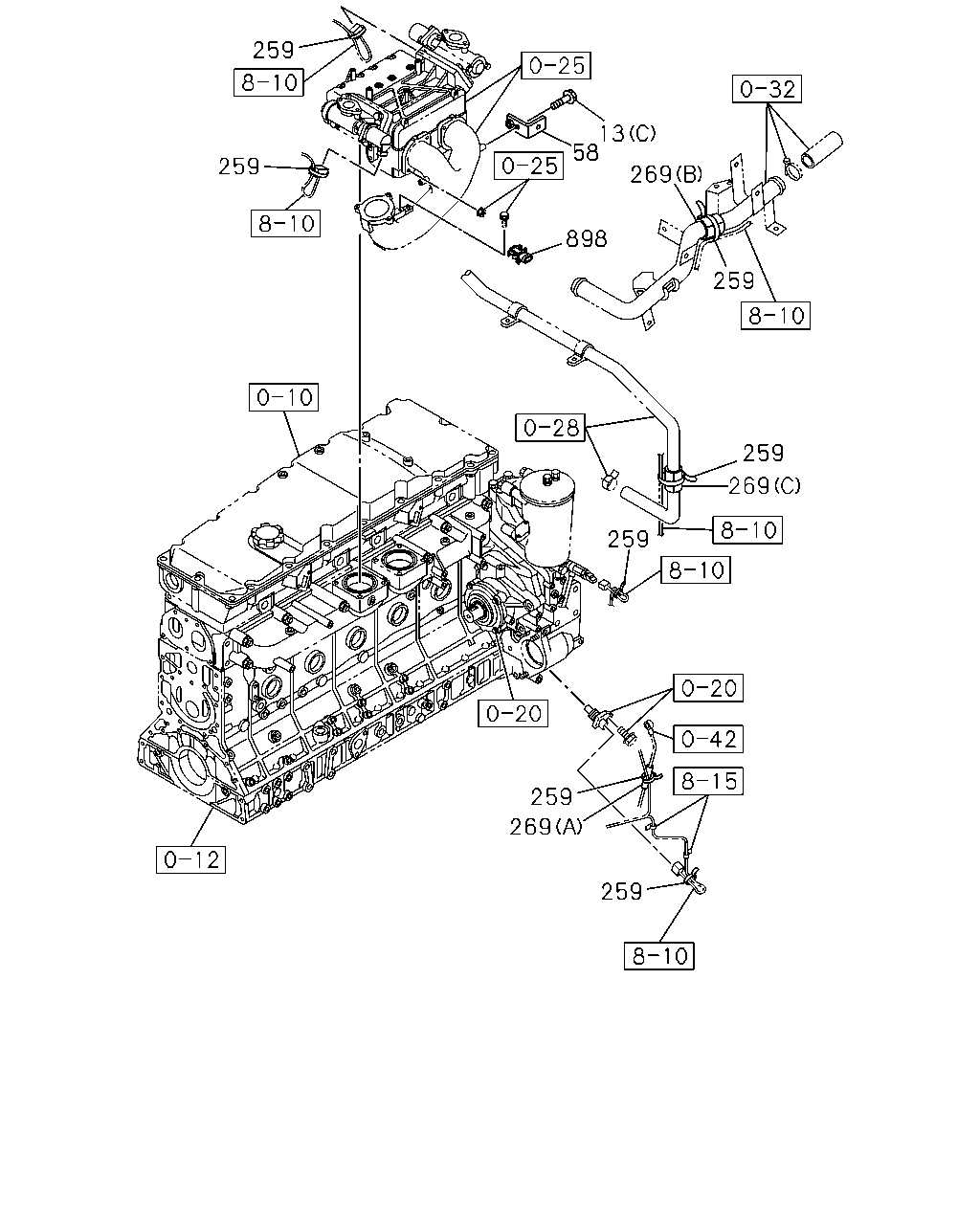

çizim 160760
259 259 269 259 259 269 259 898 269 13 58 259 259
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0801- ● ● ● ●
13 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0801- ● ● ● ●
13 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ● ● ●
58 BRACKET; CLIP 8-97612-496-0 01 1 0801- ● ● ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=150 		8-97355-273-0 01 1 1009- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 10 1 0801-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=250 		8-98216-430-0 10 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 12 1 0801-1205 ● ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		8-98216-430-0 12 1 1206-1302 ● ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) L=250 		8-98216-430-0 12 1 1303- ● ● ●
269 SLEEVE; RUBBER,CABLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=32 OD=36 L=50 		1-09337-023-0 02 1 0801-1302 ● ● ●
269 SLEEVE; RUBBER,CABLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=32 OD=36 L=50 		1-09337-023-0 02 1 1303- ● ● ●
269 SLEEVE; RUBBER,CABLE
(B) ID=38.1 L=25 		1-09337-052-0 01 1 0801- ● ● ● ●
269 SLEEVE; RUBBER,CABLE
(A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 0801- ● ● ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0801- ● ● ● ●
çizim 160763
441 428
BalonParca AdiParca NoAdetTipApplied Date A B C D
428 CLIP; HARNESS
ID=32 L=35 		1-09701-244-0 03 1 0801- ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X35 FLANGE 		0-28650-835-0 02 1 0803- ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28650-820-0 03 1 0801-0802 ● ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ● ● ●

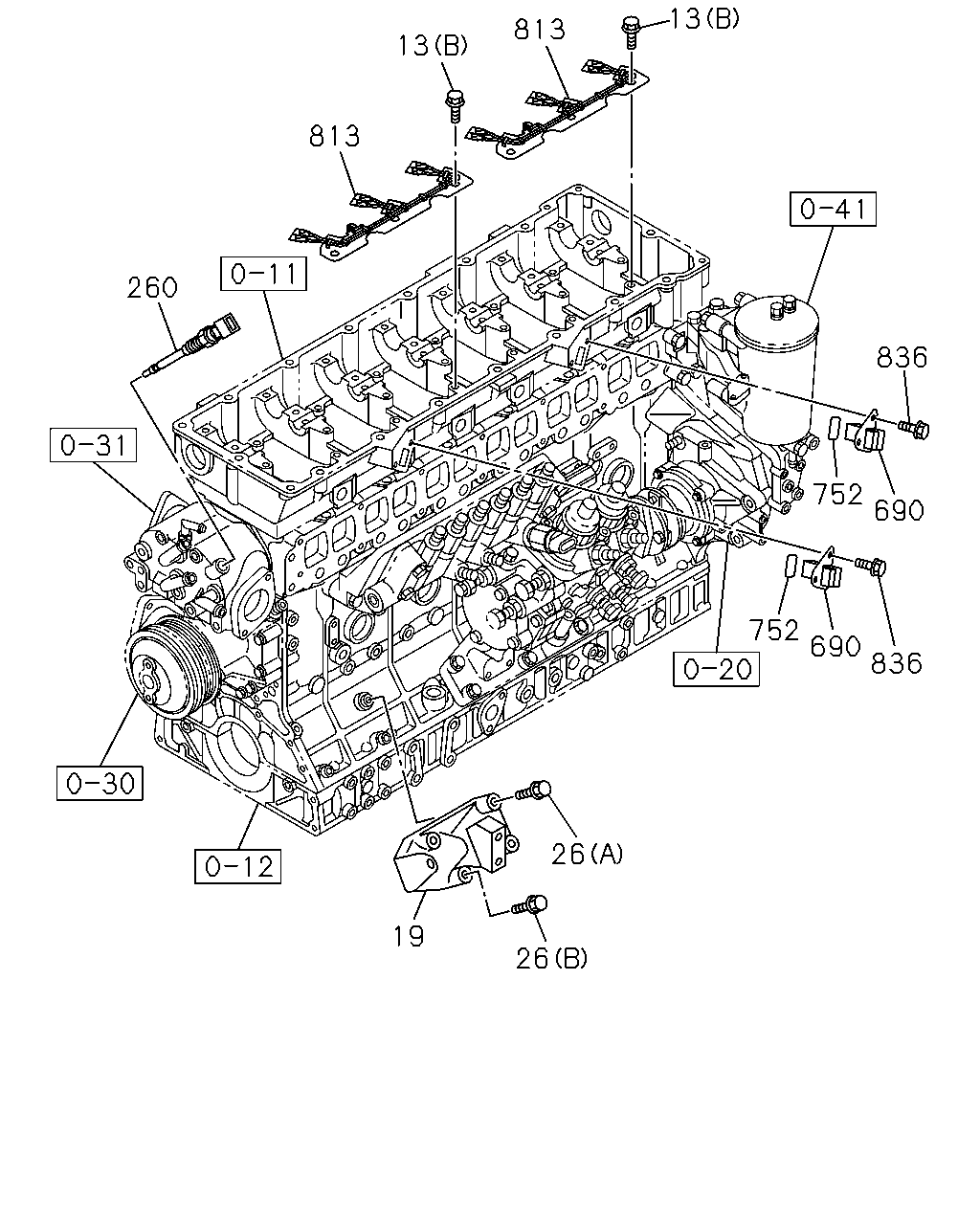

çizim 160773
26 26 752 690 836 690 752 836 19 260 813 13 813 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0801- ● ● ● ●
13 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0801- ● ● ● ●
13 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ● ● ●
19 BRACKET; GEN 8-97605-943-0 01 1 0801- ● ● ● ●
26 BOLT; GEN BRKT
(A) M12X50 FLANGE 		0-28151-250-0 03 1 0801- ● ● ● ●
26 BOLT; GEN BRKT
(B) M12X70 FLANGE 		0-28151-270-0 01 1 0801- ● ● ● ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0801- ● ● ● ●
690 CONNECTOR 8-94390-858-1 02 1 0801- ● ● ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0801- ● ● ● ●
813 HARNESS; INJECTOR 8-97603-762-1 02 1 0801- ● ● ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0801- ● ● ● ●

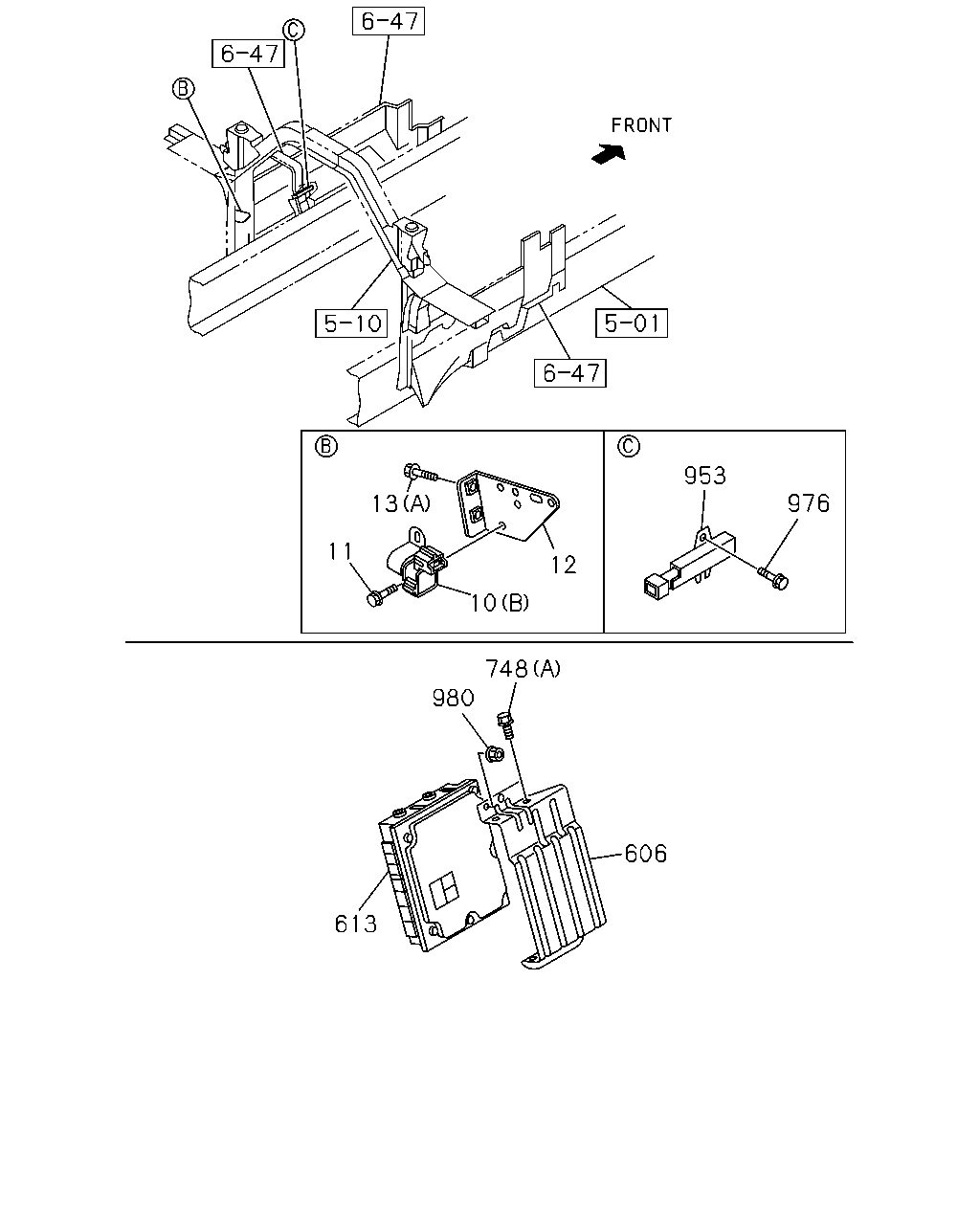

çizim 160778
953 976 13 11 12 10 748 980 606 613
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0801-1005 ● ● ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ● ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0801- ● ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ● ● ●
12 BRACKET; STARTER RELAY 8-97620-875-2 01 1 0801- ● ● ● ●
13 BOLT; BRKT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0801- ● ● ● ●
13 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0801- ● ● ● ●
13 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ● ● ●
606 BRACKET; CONT UNIT 8-98094-601-3 01 1 0801-1004 ● ● ● ●
606 BRACKET; CONT UNIT 8-98168-567-0 01 1 1005- ● ● ● ●
613 CONTROL UNIT; ENG
EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM(NMU) 		8-98110-990-0 01 1 0801-0801 ●
613 CONTROL UNIT; ENG
EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM(NMU) 		8-98113-845-0 01 1 0802-0912 ●
613 CONTROL UNIT; ENG
EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM(NMU) 		8-97634-922-0 01 1 1001- ●
613 CONTROL UNIT; ENG 8-98078-074-1 01 1 0801-0801 ● ●
613 CONTROL UNIT; ENG
EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM(NMU) 		8-98078-074-1 01 1 0801-0801 ●
613 CONTROL UNIT; ENG 8-98113-844-0 01 1 0802-0912 ● ●
613 CONTROL UNIT; ENG
EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM(NMU) 		8-98113-844-0 01 1 0802-0912 ●
613 CONTROL UNIT; ENG 8-97634-921-0 01 1 1001- ● ●
613 CONTROL UNIT; ENG
EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM(NMU) 		8-97634-921-0 01 1 1001- ●
613 CONTROL UNIT; ENG 8-97616-321-2 01 1 0801-0812 ●
613 CONTROL UNIT; ENG 8-98141-427-0 01 1 0901-1001 ●
613 CONTROL UNIT; ENG 8-97634-923-1 01 1 1002- ●
748 BOLT; CONT UNIT
(A) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0801- ● ● ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0801- ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 0801- ● ● ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0801-0907 ● ● ● ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0908- ● ● ●
980 NUT; CONT UNIT
M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ●
çizim 160779
10
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0801-1005 ● ● ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ● ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0801- ● ● ● ●

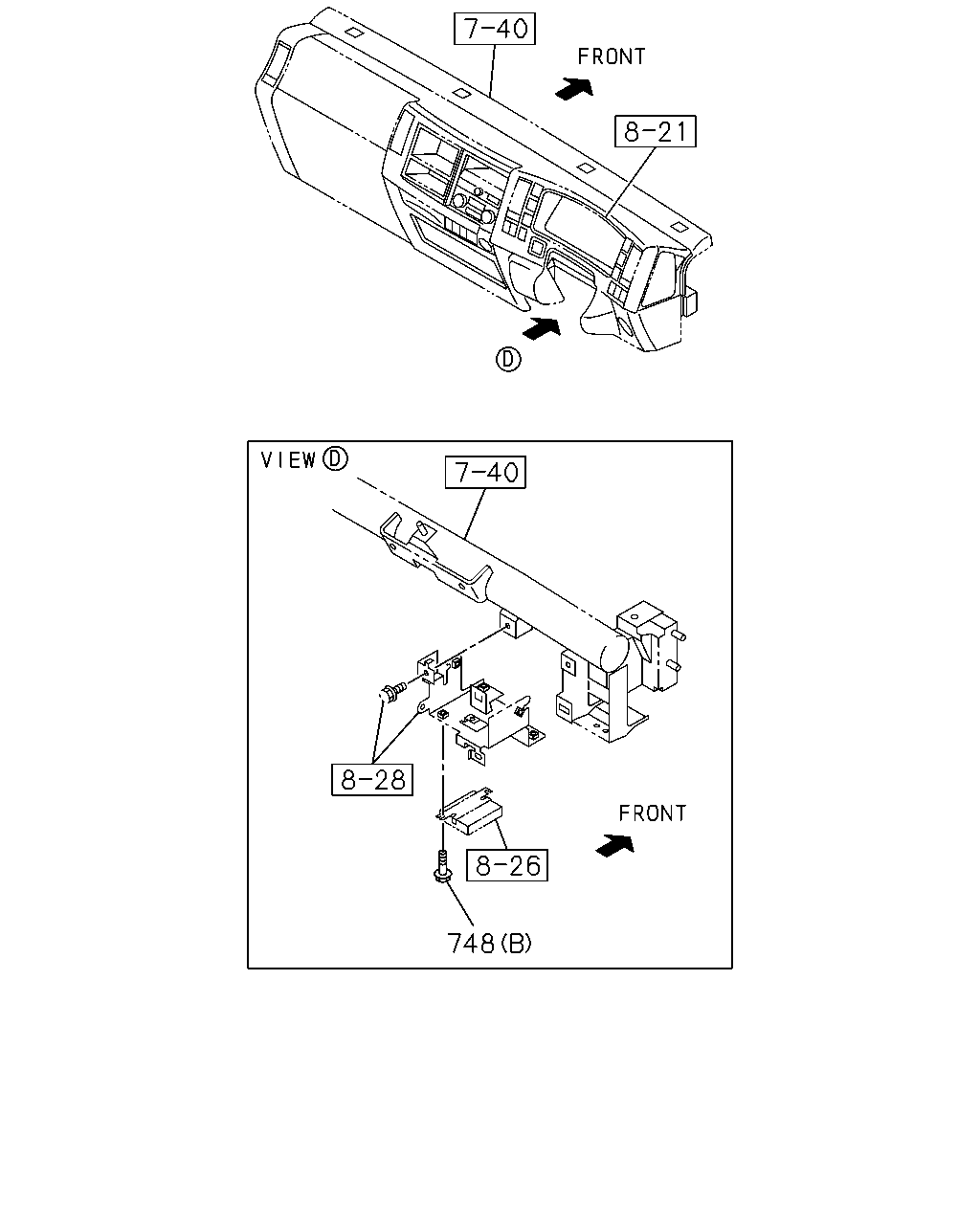

çizim 160788
748
BalonParca AdiParca NoAdetTipApplied Date A B C D
748 BOLT; CONT UNIT
(A) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0801- ● ● ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0801- ●
