◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#5712) — 18 parça

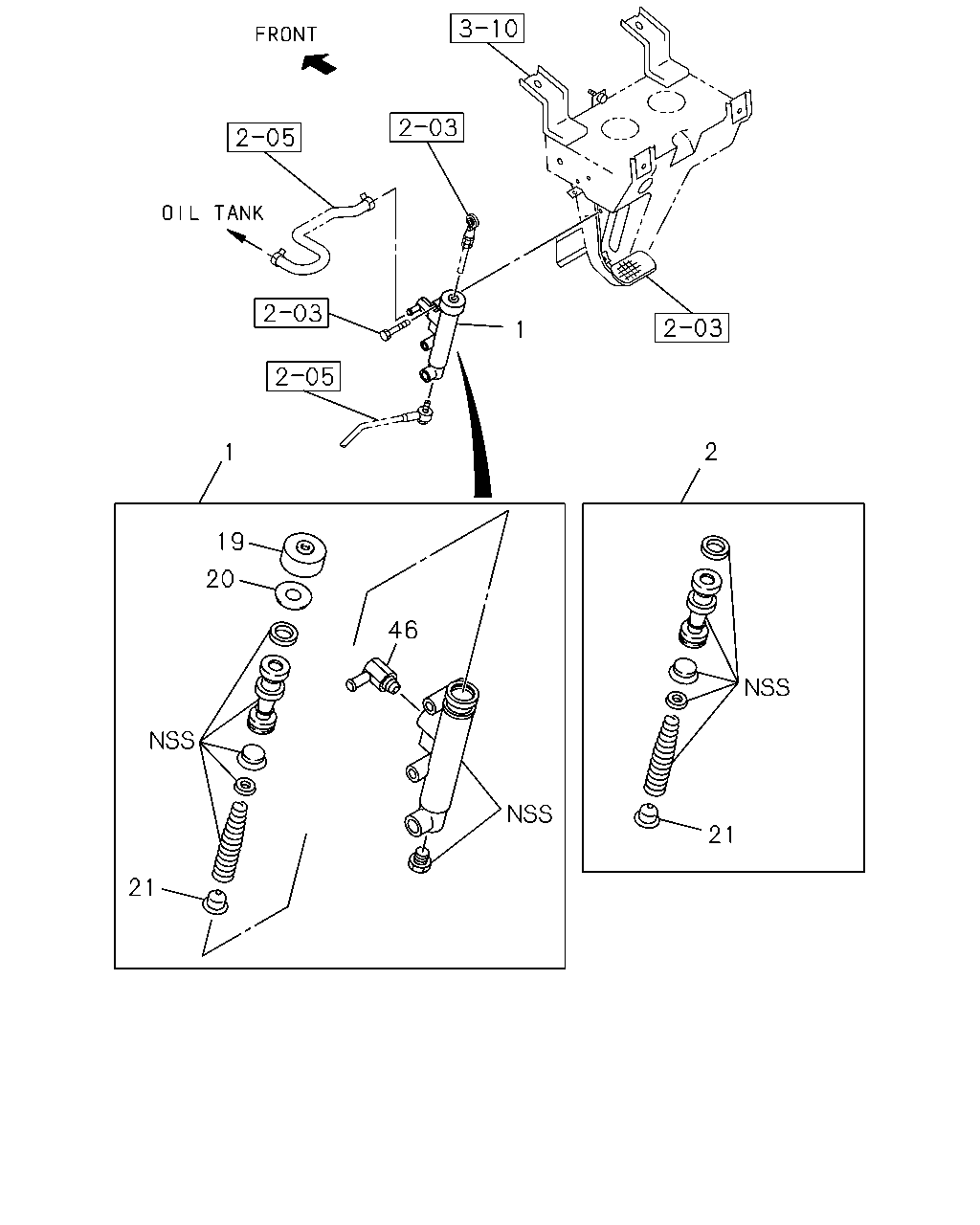

çizim 99458
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-1 01 1 9811-9906 ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 9907-0610 ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 0611- ● ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9811-9906 ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9907-0610 ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 0611- ● ●
19 BOOT; CLU M/CYL
TAI 		9-47545-032-0 01 1 9811-9906 ●
19 BOOT; CLU M/CYL
TAI 		9-47545-032-0 01 1 9907-0610 ●
19 BOOT; CLU M/CYL
TAI 		9-47545-032-0 01 1 0611- ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9811-9906 ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9907-0610 ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0611- ● ●
21 VALVE; CHECK
TAI 		1-47565-004-0 01 1 9811-9906 ●
21 VALVE; CHECK
TAI 		1-47565-004-0 01 1 9907-0610 ●
21 VALVE; CHECK
TAI 		1-47565-004-0 01 1 0611- ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9811-9906 ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9907-0610 ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 0611- ● ●
