Isuzu WW
▶
TRUCKS
▶
FXR
▶
11143 - FXR/GXR EXC.EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#57115) — 35 parça
Tümü
A - 6UZ1 TC-N
B - 6UZ1 TC-C
◀

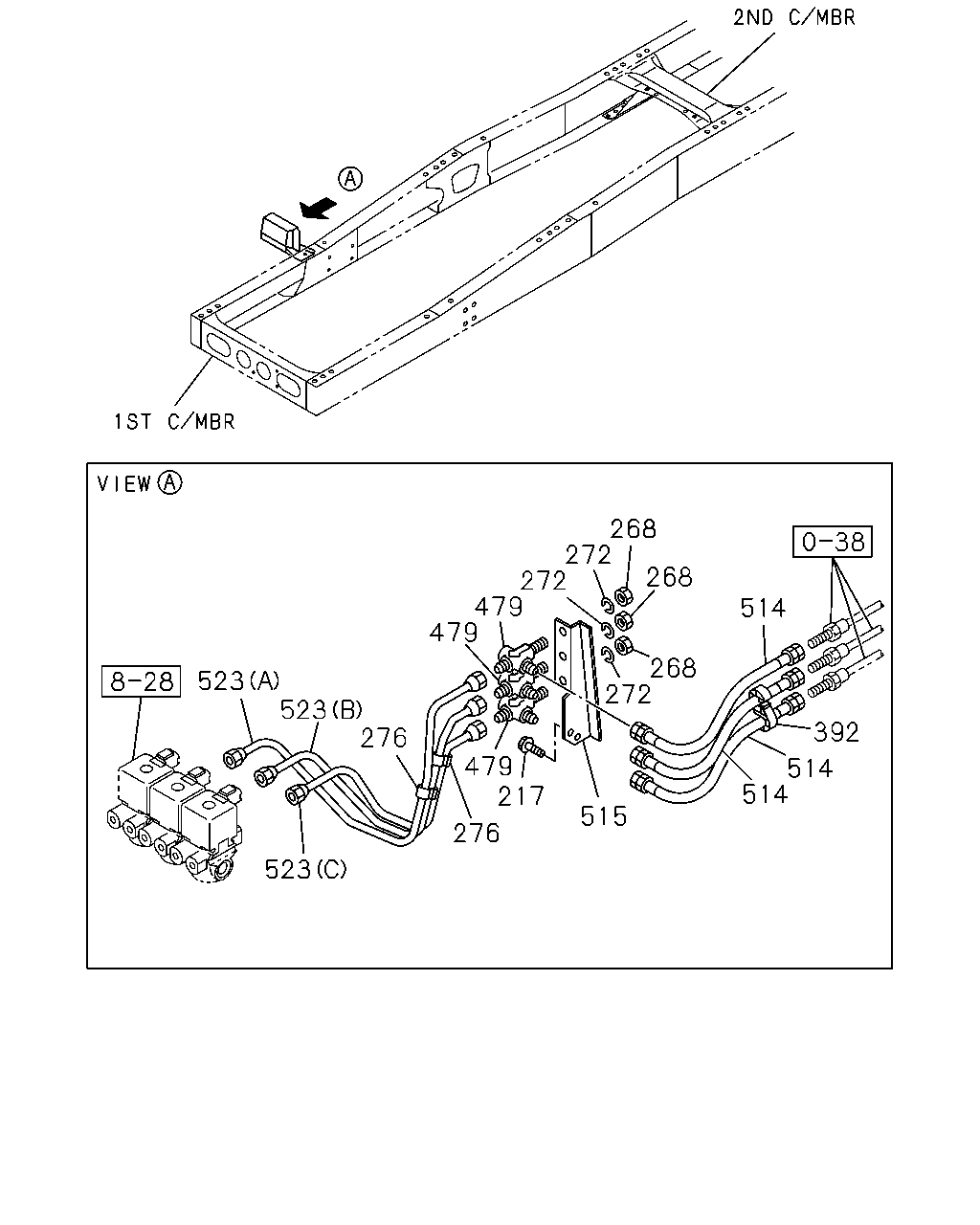

[036A] FLEX HOSE (11 parça)
[036A] TURBOCHARGER FIXING (24 parça)
▶
268
272
272
479
479
268
514
268
272
523
523
276
392
479
217
514
514
515
276
523
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
217
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0801-
●
●
268
NUT; FLEX TUBE
M12
0-91110-512-0
03
1
0801-
●
●
272
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
03
1
0801-
●
●
276
CLIP; PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
0801-
●
●
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
0801-
●
●
479
UNION; FLEX TUBE
M12 2WAY
1-09654-059-2
03
1
0801-
●
●
514
HOSE; FLEX
L=240
1-09363-671-0
03
1
0801-
●
●
515
BRACKET; UNION
8-97608-912-1
01
1
0801-
●
●
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550
1-47428-808-0
01
1
0801-
●
●
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439
8-97618-499-0
01
1
0801-
●
●
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379
8-97618-500-0
01
1
0801-
●
●

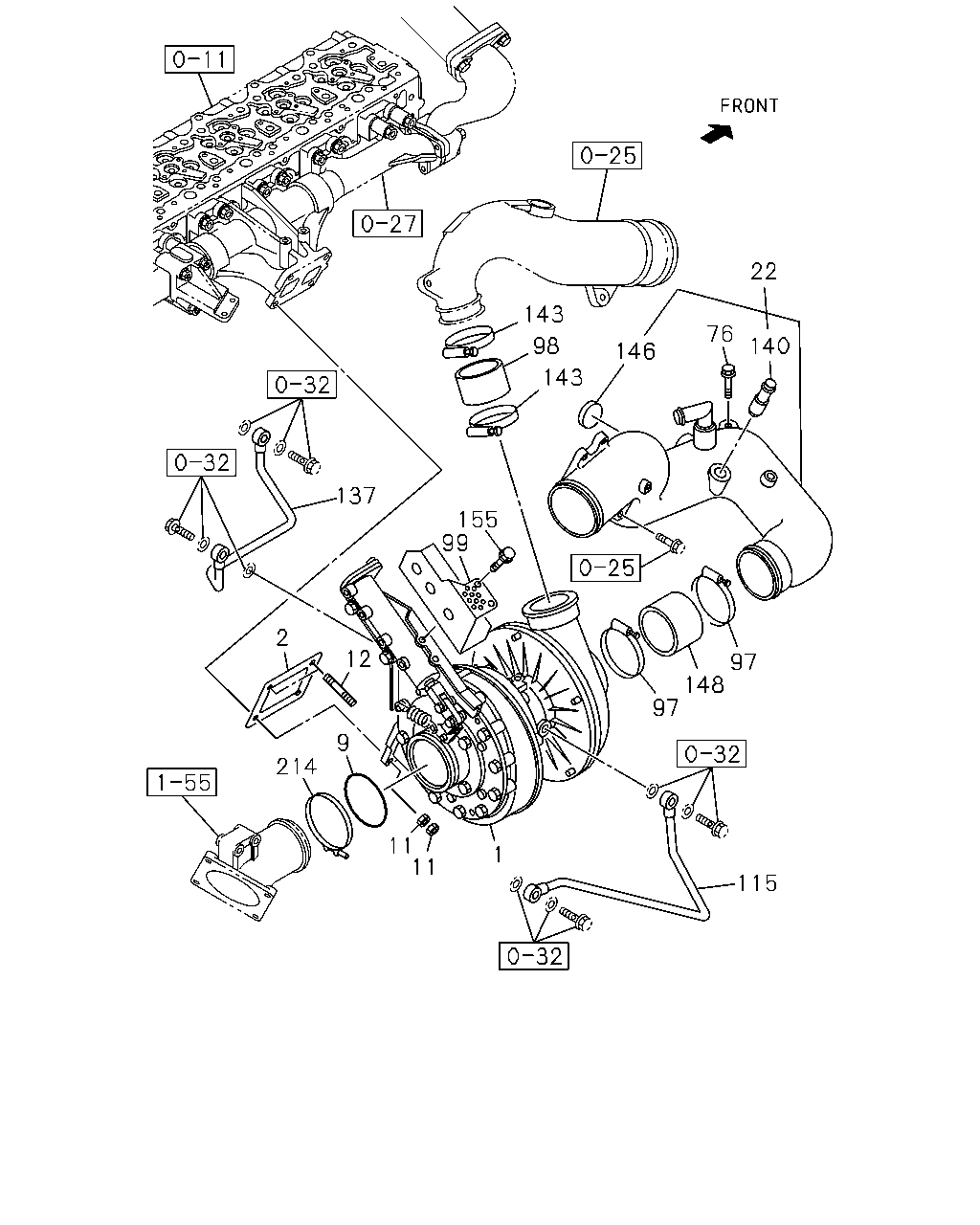

137
155
99
2
12
9
214
11
11
1
115
97
148
97
143
98
143
146
76
22
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-429-5
01
1
0801-
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-208-1
01
1
0801-0804
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98116-466-0
01
1
0805-1001
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1002-
●
●
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
0801-
●
●
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
0801-
●
●
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
0801-
●
●
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
0801-
●
22
DUCT; INL,ACL TO TURBOCHARGER
8-97615-638-1
01
1
0801-
●
76
BOLT; AIR DUCT
M10X45 FLANGE
0-28151-045-0
03
1
0801-
●
●
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-144-0
02
1
0801-1007
●
●
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1008-
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-97606-779-0
01
1
0801-1007
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=63.6 L=64
8-98169-677-0
01
1
1008-
●
●
99
PROTECTOR; HEAT
1-14181-350-0
01
1
0801-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
0801-
●
●
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
0801-
●
●
140
PIPE; AIR PIPE
8-97603-427-1
01
1
0801-
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=87-111
8-97375-039-0
02
1
0801-1007
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1008-
●
●
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
0801-
●
●
148
HOSE; TURBOCHARGER,INL
L=70
1-09360-913-0
01
1
0801-
●
●
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
04
1
0801-
●
●
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
0801-
●
●
