◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#57111) — 45 parça

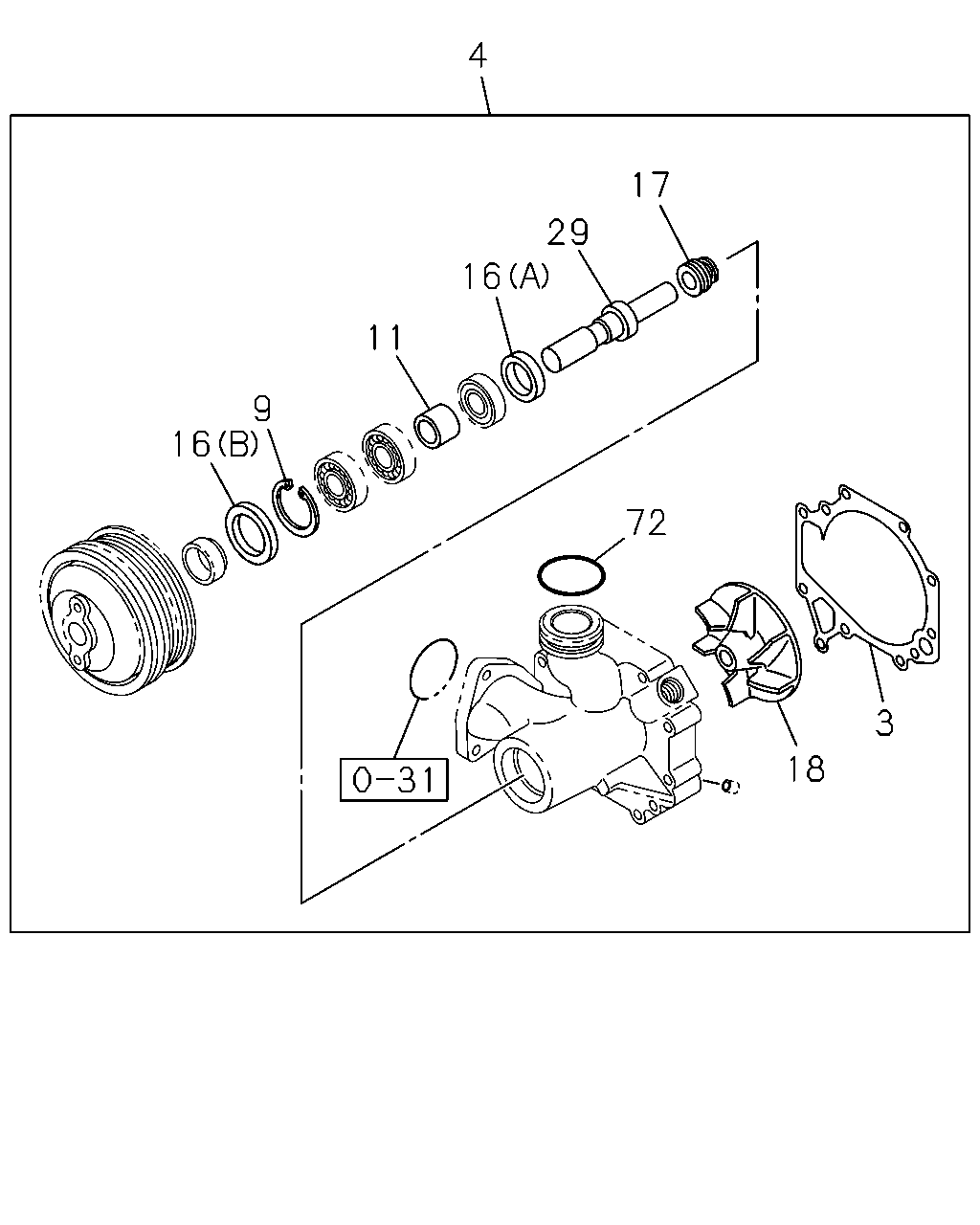

çizim 160761
4 17 29 16 11 9 16 72 18 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-027-0 01 1 0801- ● ●
4 REPAIR KIT; WATER PUMP 1-87812-946-0 01 1 0801-1207 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-954-0 01 1 1208-1306 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-096-0 01 1 1307-1312 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-201-0 01 1 1401-1406 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-616-0 01 1 1407- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0801- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-035-0 01 1 0801- ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0801- ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0801- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0801-1207 ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1208-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1406 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1407- ● ●
18 IMPELLER; WATER PUMP 8-97605-265-0 01 1 0801- ● ●
29 SHAFT; WATER PUMP 1-13631-081-0 01 1 0801- ● ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-394-0 01 1 0801-1306 ● ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=54.5 		8-98236-254-0 01 1 1307- ● ●

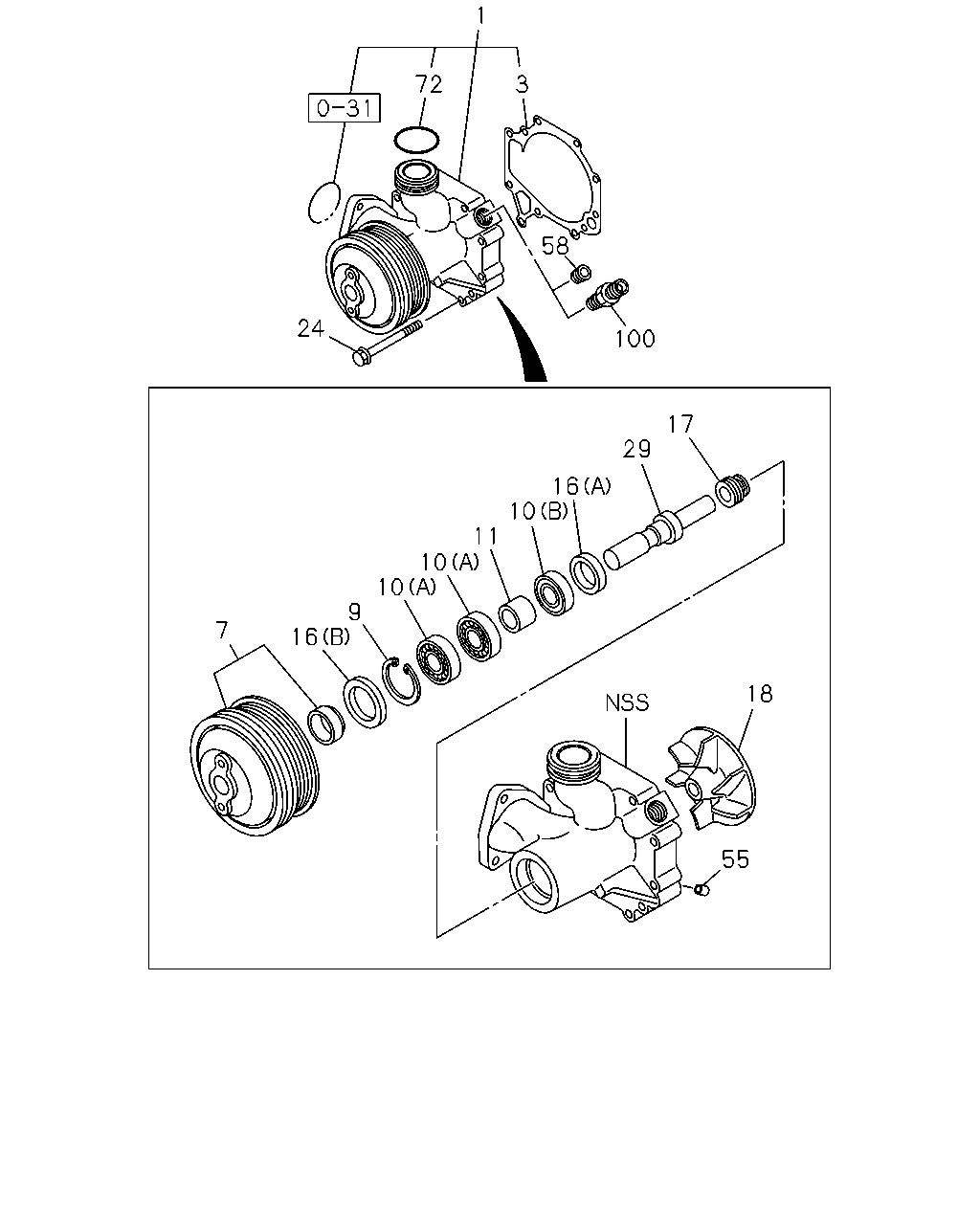

çizim 160772
24 72 1 3 58 100 17 29 16 10 11 10 10 9 16 7 18 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 8-97607-466-0 01 1 0801-1207 ● ●
1 PUMP ASM; WATER,W/GASKET 8-98236-219-0 01 1 1208-1306 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87814-095-0 01 1 1307-1312 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-954-0 01 1 1401-1406 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-991-0 01 1 1407- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-027-0 01 1 0801- ● ●
7 PULLEY; WATER PUMP 8-97606-580-0 01 1 0801- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0801- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 02 1 0801- ● ●
10 BEARING; WATER PUMP
(B) 		8-97605-268-0 01 1 0801- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-035-0 01 1 0801- ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-388-0 01 1 0801- ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-389-0 01 1 0801- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0801-1207 ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1208-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1406 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1407- ● ●
18 IMPELLER; WATER PUMP 8-97605-265-0 01 1 0801- ● ●
24 BOLT; WATER PUMP
M10X45 FLANGE 		0-28151-045-0 11 1 0801- ● ●
29 SHAFT; WATER PUMP 1-13631-081-0 01 1 0801- ● ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 0801- ● ●
58 PLUG; HTR
HEATER & DEFROSTER(C41) PT3/4 		1-09605-020-0 01 1 0801-1302 ●
58 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0801-1302 ●
58 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 1303- ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-394-0 01 1 0801-1306 ● ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=54.5 		8-98236-254-0 01 1 1307- ● ●
100 JOINT; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-09660-210-0 01 1 0801- ●
