2-07 — CLUTCH BOOSTER; MINIPACK (#5711) — 280 parça

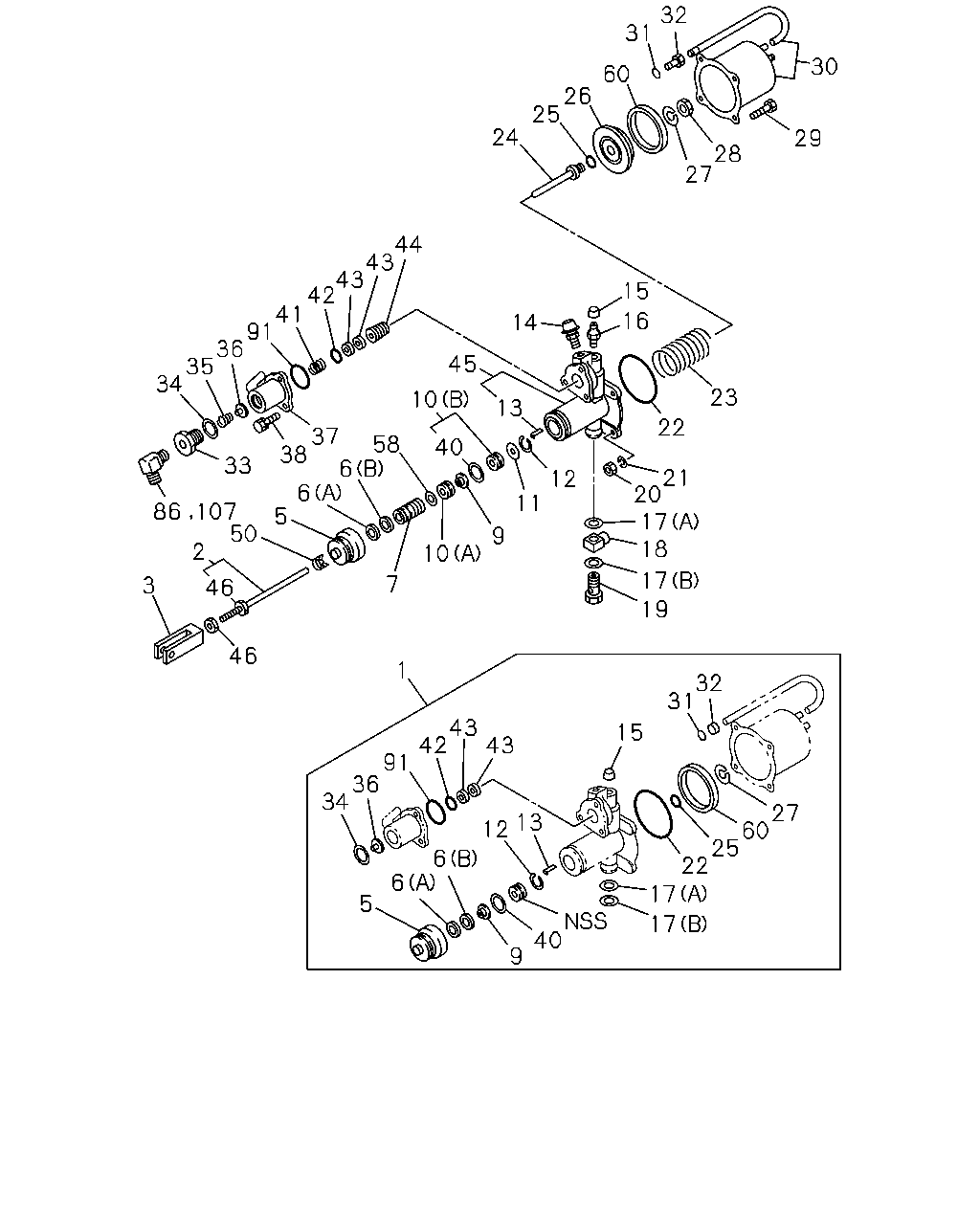

çizim 99457
32 31 30 60 26 25 24 29 28 27 44 43 43 42 41 91 36 35 34 15 16 14 45 23 10 13 22 37 38 58 6 40 33 21 20 17 18 12 6 11 50 5 9 2 10 17 7 3 46 19 46 1 32 31 43 15 91 36 34 13 12 27 60 25 22 17 6 6 40 5 17 9 42 43 86 107
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0611- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-352-0 01 1 9811-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0107-0307 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-550-0 01 1 0308-0610 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0611- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0611- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9811-0610 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0611- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9811-0106 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0308-0610 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0611- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0611- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9811-0610 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0611- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9811-0610 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0611- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9811-0610 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0611- ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9811-0106 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-0610 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0611- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9811-0610 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0611- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 9811-0610 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0611- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-293-0 01 1 9811-0106 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0107-0610 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0611- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9811-0610 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0611- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0611- ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9811-0106 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0107-0610 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0611- ●
13 PIN; SPR 1-31829-109-0 01 1 9811-0610 ●
13 PIN; SPR 1-31829-109-0 01 1 0611- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9811-0106 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-0610 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0611- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9811-0610 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0611- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9811-0610 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0611- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9811-0610 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0611- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9811-0610 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0611- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9811-0610 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0611- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9811-0610 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0611- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0611- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9811-0610 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0611- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0611- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9811-0610 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0611- ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0611- ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9811-0610 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0611- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9811-0106 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-0610 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0611- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9811-0610 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0611- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9811-0610 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0611- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0611- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9811-0106 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0107-0610 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0611- ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9811-0610 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0611- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9811-0610 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0611- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0611- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9811-0610 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0611- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0611- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9811-0106 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0107-0610 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0611- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0611- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9811-0610 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0611- ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0611- ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9811-0610 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0611- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0611- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 9811-0610 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 0611- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9811-0610 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0611- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9811-0106 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-0610 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0611- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9811-0106 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-0610 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0611- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0611- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-018-0 01 1 9811-0106 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-089-0 01 1 0107-0307 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0308-0610 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0611- ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 03 1 9811-0106 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107-0610 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0611- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9811-0610 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0611- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0611- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 9811-0610 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0611- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9811-0610 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0611- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9811-0610 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0611- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 9811-0307 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0308-0610 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0611- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0611- ●
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 9811-0610 ●
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 0611- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 9811-0307 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0308-0610 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0611- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0611- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9811-0610 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0611- ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 9811-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0611- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9811-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0107-0610 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0611- ●
86 ELBOW ASM; CLU BOOSTER 1-09650-358-1 01 1 9811-0106 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9811-0610 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0611- ● ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0107-0610 ●
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0611- ●

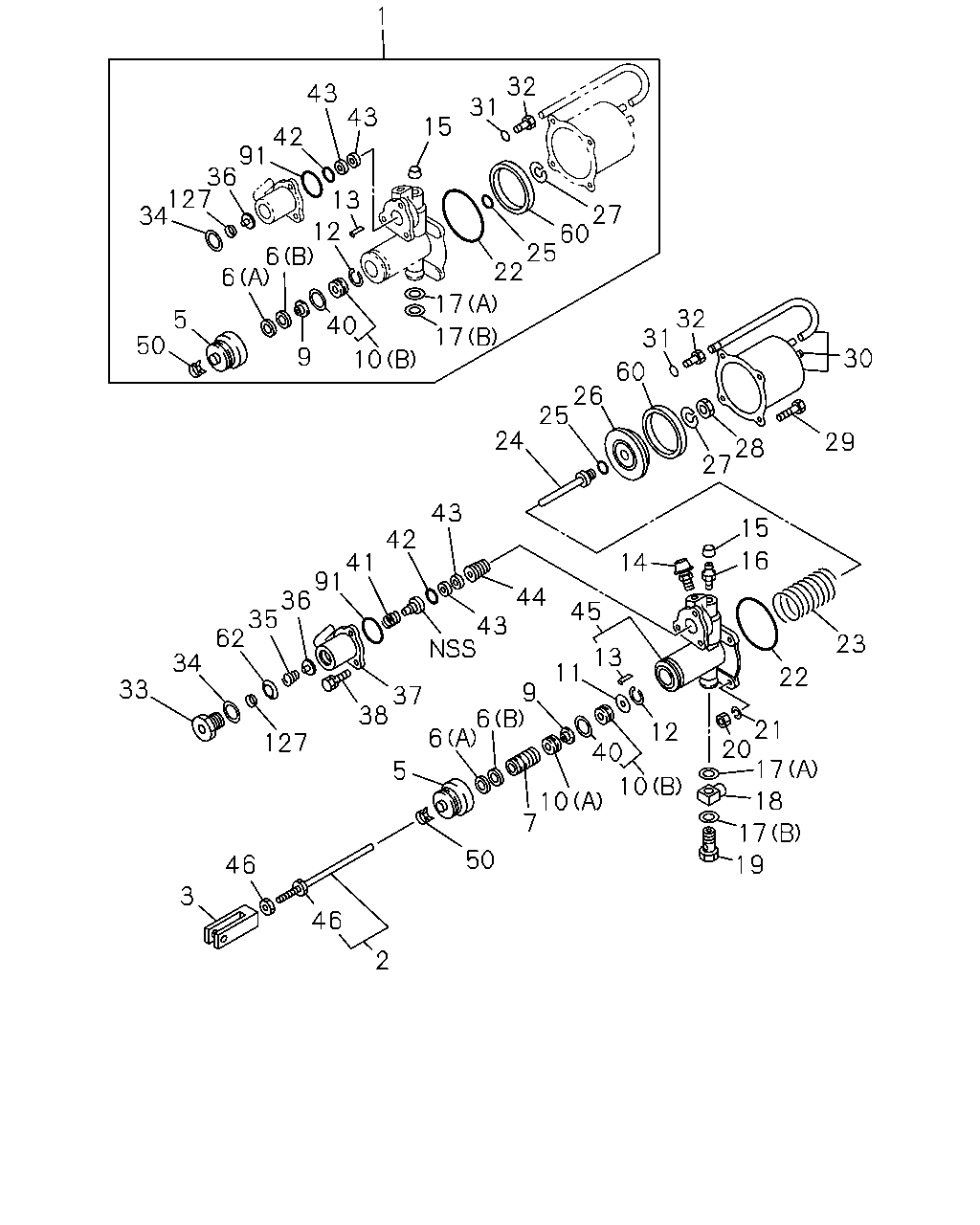

çizim 99524
1 32 43 43 31 15 42 91 36 127 34 13 27 60 25 22 12 6 6 40 17 32 31 5 50 17 9 30 10 60 26 25 24 29 28 27 43 15 42 16 14 41 91 36 35 62 44 43 45 23 13 34 11 22 33 9 6 37 38 40 21 20 7 1 12 6 127 5 10 18 10 7 17 50 46 19 3 46 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0611- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-352-0 01 1 9811-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-542-0 01 1 0107-0307 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-550-0 01 1 0308-0610 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0611- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0611- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9811-0610 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0611- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9811-0106 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0308-0610 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0611- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0611- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9811-0610 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0611- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9811-0610 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0611- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9811-0610 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0611- ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9811-0106 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-0610 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0611- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 9811-0610 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0611- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 9811-0610 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0611- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-293-0 01 1 9811-0106 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0107-0610 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0611- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9811-0610 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0611- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0611- ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9811-0106 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0107-0610 ●
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0611- ●
13 PIN; SPR 1-31829-109-0 01 1 9811-0610 ●
13 PIN; SPR 1-31829-109-0 01 1 0611- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9811-0106 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-0610 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0611- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9811-0610 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0611- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9811-0610 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0611- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9811-0610 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0611- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9811-0610 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0611- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9811-0610 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0611- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9811-0610 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0611- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0611- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9811-0610 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0611- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0611- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9811-0610 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0611- ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0611- ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9811-0610 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0611- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9811-0106 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-0610 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0611- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 9811-0610 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0611- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9811-0610 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0611- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0611- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9811-0106 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0107-0610 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0611- ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9811-0610 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0611- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9811-0610 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0611- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0611- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9811-0610 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0611- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0611- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9811-0106 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0107-0610 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0611- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0611- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9811-0610 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0611- ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0611- ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9811-0610 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0611- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0611- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 9811-0610 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 0611- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9811-0610 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0611- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9811-0106 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-0610 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0611- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9811-0106 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-0610 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0611- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0611- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-018-0 01 1 9811-0106 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-089-0 01 1 0107-0307 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0308-0610 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0611- ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 03 1 9811-0106 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107-0610 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0611- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9811-0610 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0611- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0611- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 9811-0610 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0611- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9811-0610 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0611- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9811-0610 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0611- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 9811-0307 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0308-0610 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0611- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0611- ●
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 9811-0610 ●
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 0611- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 9811-0307 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0308-0610 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0611- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0611- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 9811-0610 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0611- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0611- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9811-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0107-0610 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0611- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-0610 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0611- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9811-0610 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0611- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107-0610 ●
127 FILTER; POPPET 1-31829-495-0 01 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
