0-27 — EXHAUST MANIFOLD (#57109) — 18 parça

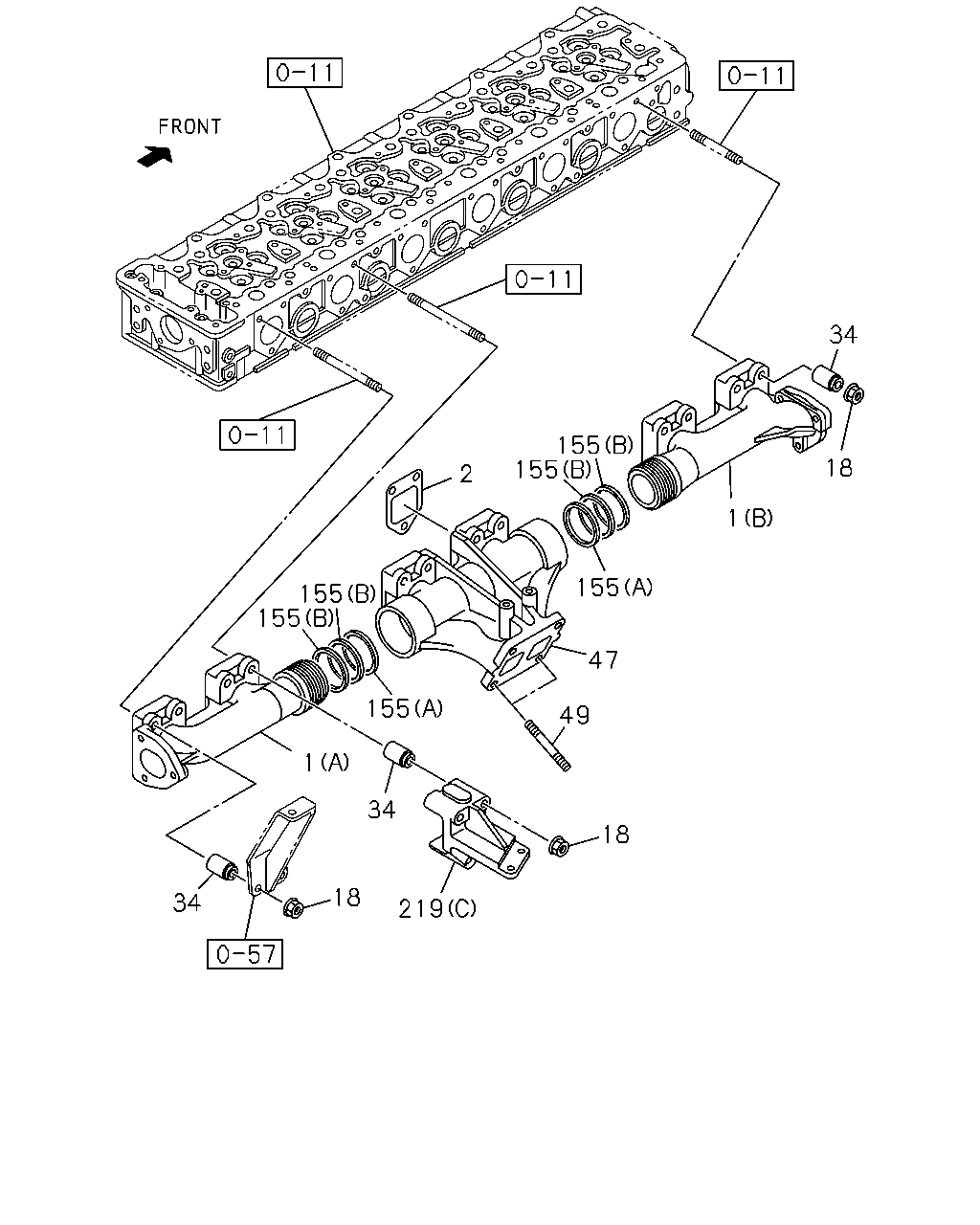

çizim 160767
2 155 155 34 18 1 155 47 49 18 155 219 34 18 1 34 155 155
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; EXHAUST
(A) 		8-97604-163-2 01 1 0801- ● ●
1 MANIFOLD; EXHAUST
(B) 		8-97604-518-3 01 1 0801- ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-205-2 06 1 0801- ● ●
18 NUT; EXH MANIF
M10 FLANGE 		8-97096-192-1 18 1 0801- ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 18 1 0801- ● ●
47 MANIFOLD; EXH,CENTER 8-97603-684-3 01 1 0801- ● ●
49 STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47 		8-97378-071-0 02 1 0801- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 02 1 0801- ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 04 1 0801- ● ●
219 BRACKET; DUCT
(C) 		8-98147-019-0 01 1 0801- ● ●
219 BRACKET; DUCT
(A) 		8-97606-627-0 01 1 0801- ● ●
219 BRACKET; DUCT
(B) 		8-97606-628-0 01 1 0801- ● ●

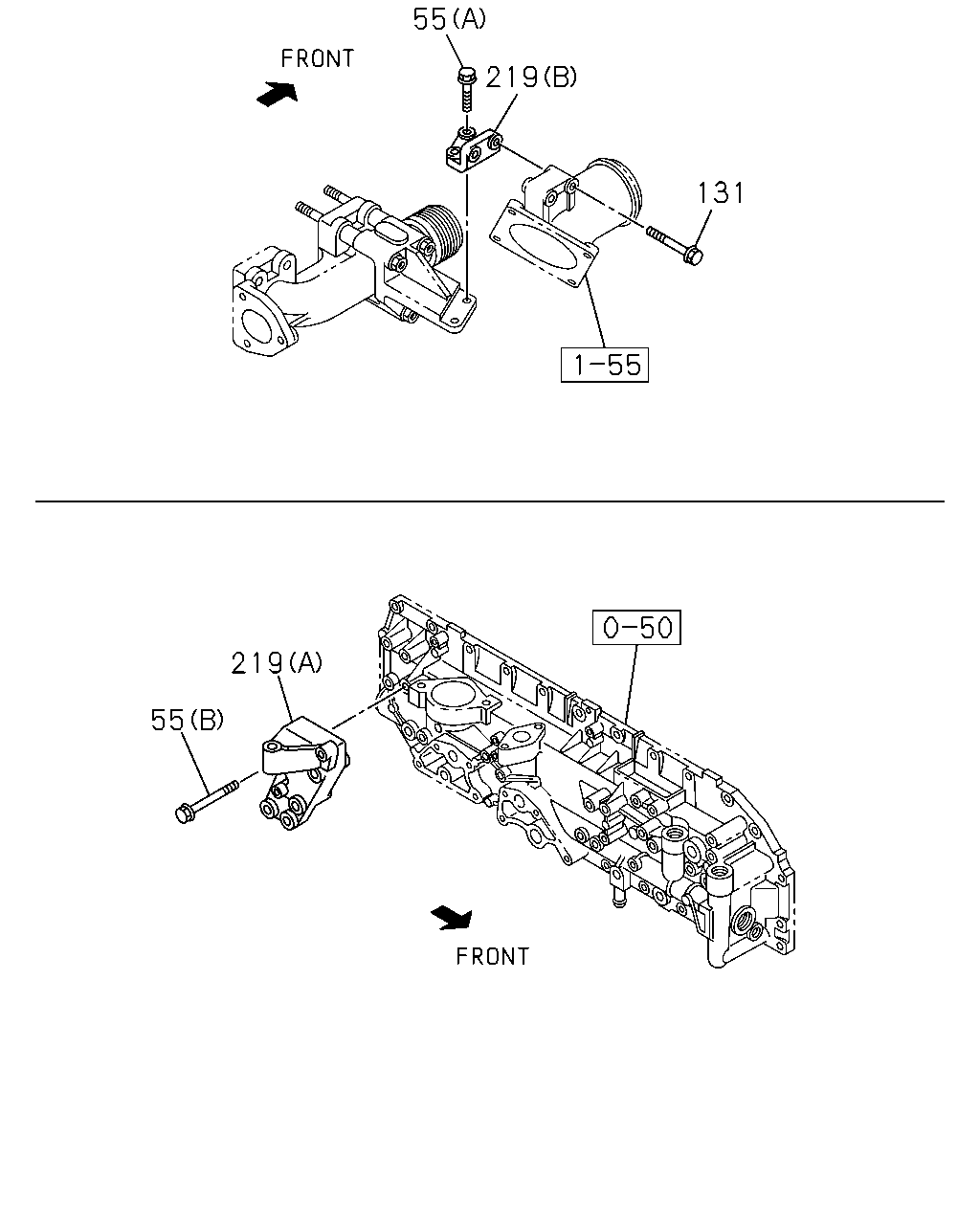

çizim 161105
55 219 131 219 55
BalonParca AdiParca NoAdetTipApplied Date A B
55 BOLT; BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 0801- ● ●
55 BOLT; BRKT
(A) M10X30 FLANGE 		0-28751-030-0 02 1 0801- ● ●
131 BOLT; MTG
M10X60 FLANGE 		0-28151-060-0 03 1 0801- ● ●
219 BRACKET; DUCT
(C) 		8-98147-019-0 01 1 0801- ● ●
219 BRACKET; DUCT
(A) 		8-97606-627-0 01 1 0801- ● ●
219 BRACKET; DUCT
(B) 		8-97606-628-0 01 1 0801- ● ●
