◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#57103) — 27 parça

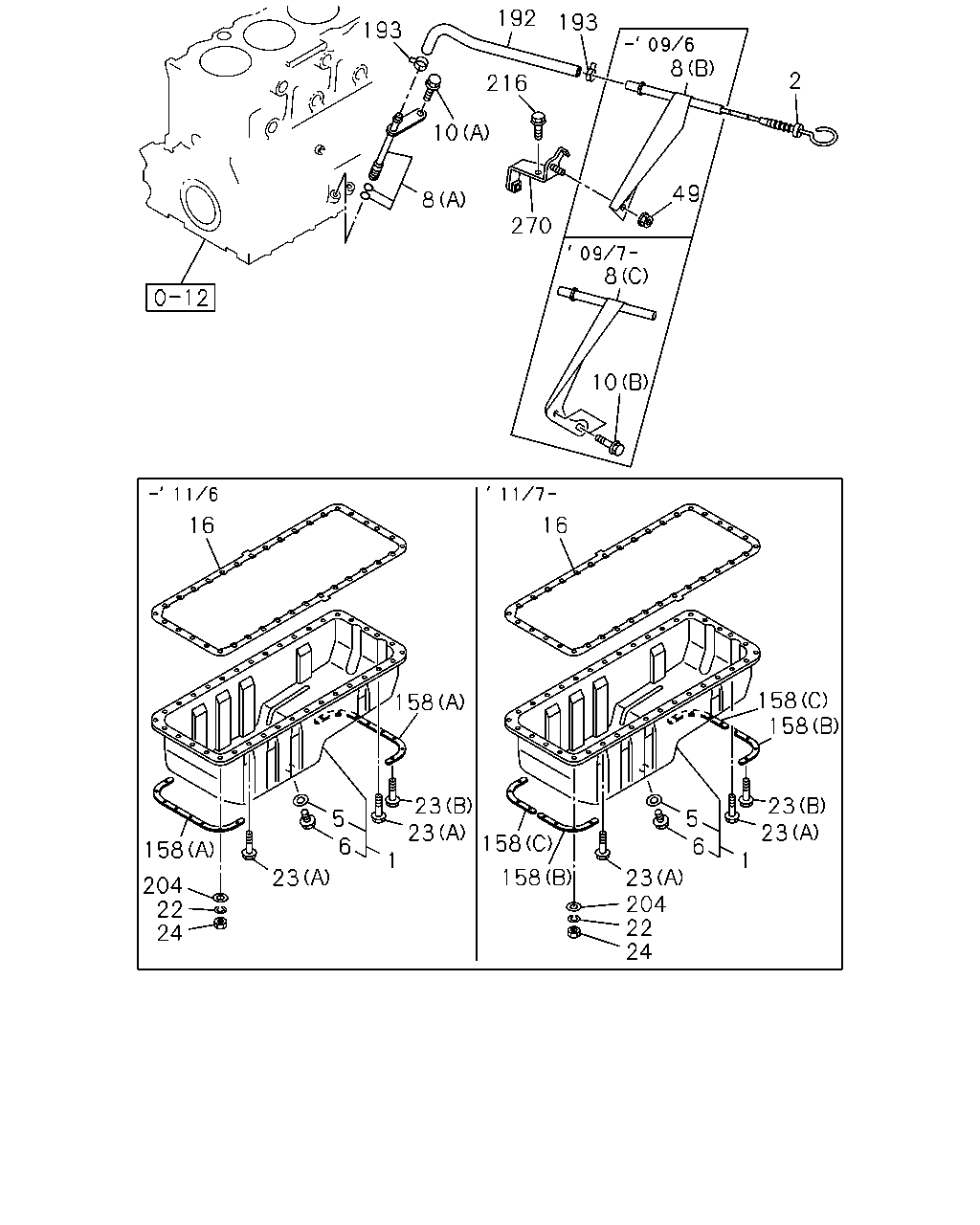

çizim 161094
193 192 193 216 10 8 270 8 2 49 8 10 16 158 23 23 1 5 6 23 158 204 22 24 16 158 158 158 158 23 23 5 6 1 23 204 22 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97616-994-2 01 1 0801- ● ●
2 GAUGE; OIL LEVEL 8-97619-197-1 01 1 0801-0806 ●
2 GAUGE; OIL LEVEL 8-97619-197-1 01 1 0807- ● ●
2 GAUGE; OIL LEVEL 8-98090-183-0 01 1 0801-0806 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-058-0 01 1 0801- ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-022-0 01 1 0801- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-97620-044-0 01 1 0801- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-97619-104-2 01 1 0801-0906 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-98141-406-0 01 1 0907- ● ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0907- ● ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0801- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-129-1 01 1 0801-1103 ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98187-258-0 01 1 1104- ● ●
22 WASHER; LK,OIL PAN
ID=8.2 		0-91510-508-0 06 1 0801- ● ●
23 BOLT; OIL PAN
(A) M8X22 W/LK&PL WASHER 		0-50140-822-0 17 1 0801-0906 ● ●
23 BOLT; OIL PAN
(A) M8X22 W/LK&PL WASHER 		0-50640-822-0 17 1 0907- ● ●
23 BOLT; OIL PAN
(B) M8X30 W/LK&PL WASHER 		0-50640-830-0 10 1 0801- ● ●
24 NUT; OIL PAN
M8 		0-91110-508-0 06 1 0801- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0801-0906 ● ●
158 PLATE
(A) 		1-11369-153-0 02 1 0801-1106 ● ●
158 PLATE
(B) 		8-98191-929-0 02 1 1107- ● ●
158 PLATE
(C) 		8-98191-930-0 02 1 1107- ● ●
192 HOSE; GUIDE TUBE 8-97619-178-1 01 1 0801- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0801- ● ●
204 WASHER; PL,OIL PAN
ID=8.4 OD=16 		0-91610-508-0 06 1 0801- ● ●
216 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 8-98089-895-2 01 1 0801- ● ●
