0-11 — CYLINDER HEAD
(#57101) — 48 parça
Tümü
A - 6UZ1 TC-N
B - 6UZ1 TC-C
◀

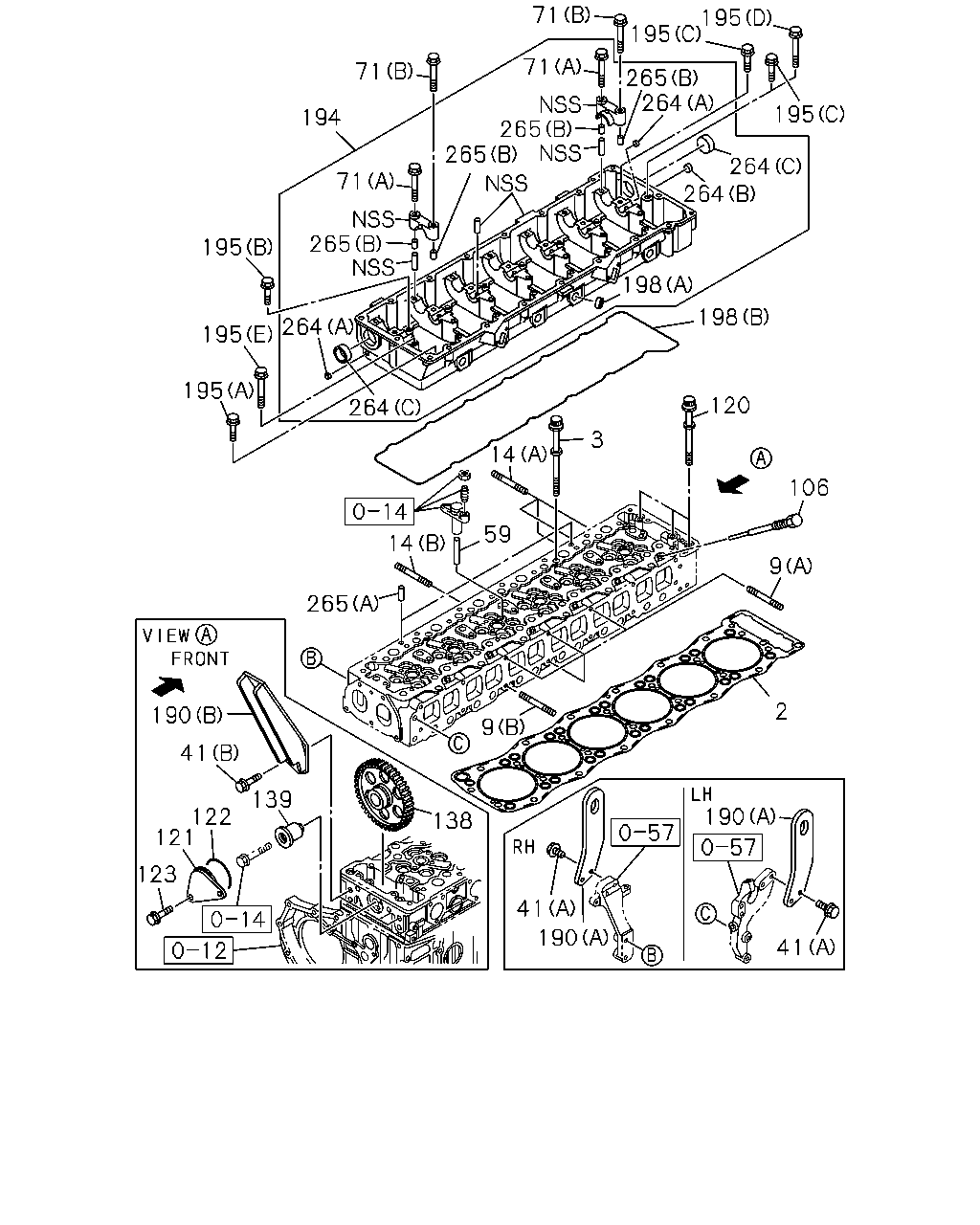

[011A] HEAD AND GASKET (36 parça)

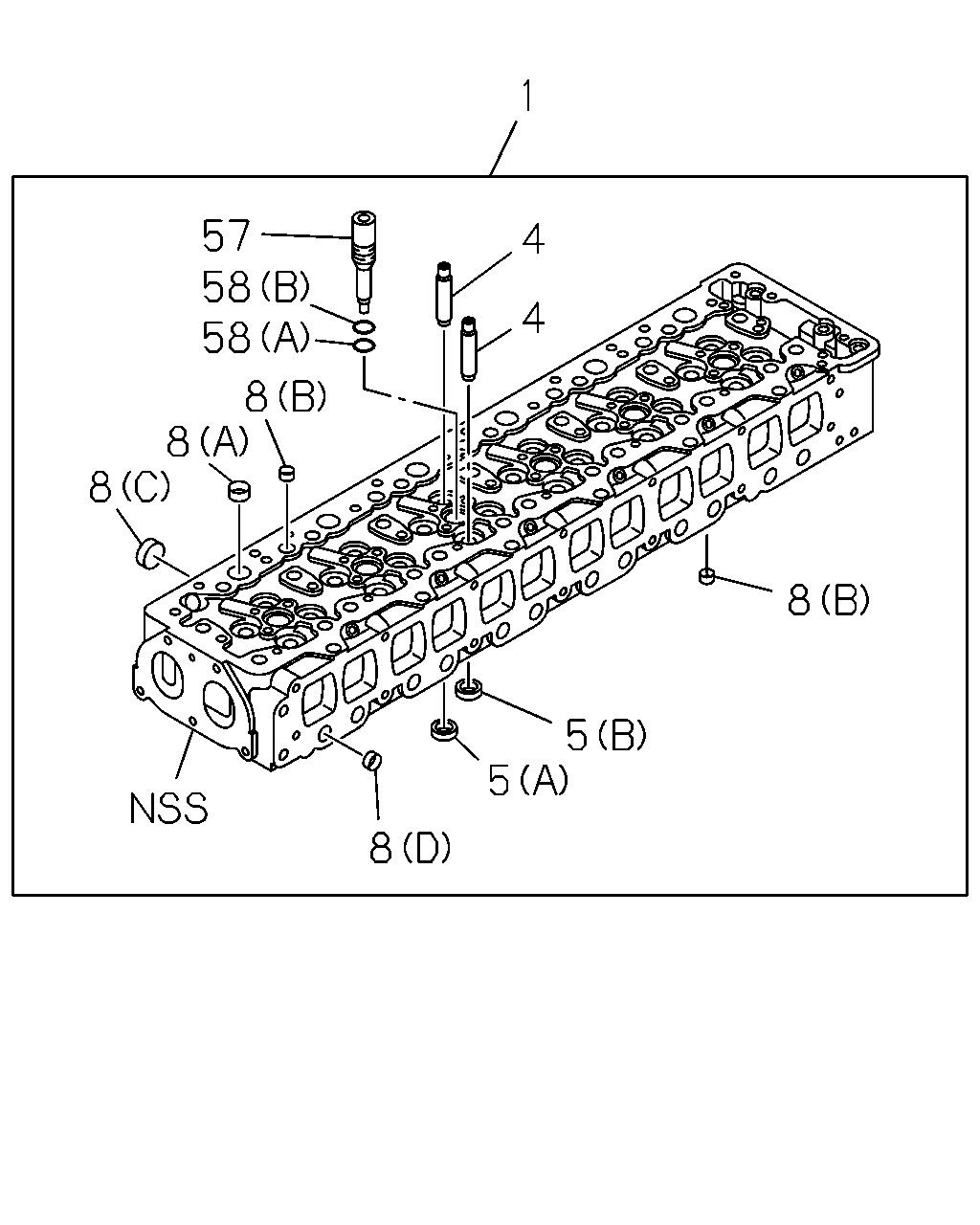

[011A] COMPONENT (12 parça)
▶
106
9
2
190
41
41
190
120
198
198
264
264
195
195
195
265
264
71
71
265
265
71
194
71
265
195
195
195
264
14
3
59
14
265
190
41
122
139
121
123
138
9
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-292-2
01
1
0801-
●
●
3
BOLT; CYL HD TO BLOCK
M15X161
1-09070-160-1
26
1
0801-
●
●
9
STUD; INL MANIF
(A) M10X110 L=125
1-09302-001-0
04
1
0801-0910
●
●
9
STUD; INL MANIF
(A) M10X110 L=125
1-09302-001-0
02
1
0911-
●
●
9
STUD; INL MANIF
(B) M10X60 L=75
8-94397-286-0
10
1
0801-0910
●
●
14
STUD; EXH MANIF
(A) M10X135 L=150
1-09302-159-0
03
1
0801-
●
●
14
STUD; EXH MANIF
(B) M10X77 L=92
1-09302-176-0
15
1
0801-
●
●
41
BOLT; ENG HANGER
(A) M12X30 FLANGE
0-28151-230-0
04
1
0801-
●
●
41
BOLT; ENG HANGER
(B) M12X40 FLANGE
0-28751-240-0
04
1
0801-
●
●
59
GUIDE; BRIDGE
8-97603-036-0
12
1
0801-
●
●
71
BOLT; CAM BRKT
(A) M10X60 FLANGE
0-28151-060-0
07
1
0801-
●
●
71
BOLT; CAM BRKT
(B) M10X120 FLANGE
0-28156-012-0
07
1
0801-
●
●
106
PLUG; GLOW PLUG HOLE
8-94392-236-0
06
1
0801-
●
●
120
BOLT; CYL HD TO HSG
M10X122 FLANGE W/PL WASHER
1-09070-060-0
03
1
0801-
●
●
121
COVER; IDLE GEAR,CYL HD
8-97603-803-0
01
1
0801-
●
●
122
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98020-344-0
01
1
0801-
●
●
123
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
02
1
0801-
●
●
138
GEAR; IDLE
Z=64
8-97603-256-2
01
1
0801-
●
●
139
SHAFT; IDLE GEAR
8-97603-054-0
01
1
0801-
●
●
190
HANGER; ENG
(A)
8-97603-797-2
02
1
0801-
●
●
190
HANGER; ENG
(B)
8-97606-737-0
02
1
0801-
●
●
194
CARRIER; CAM SHAFT
8-97613-257-2
01
1
0801-1307
●
●
194
CARRIER; CAM SHAFT
8-98192-430-1
01
1
1308-
●
●
195
BOLT; CARRIER
(A) M8X45 FLANGE
0-28050-845-0
07
1
0801-
●
●
195
BOLT; CARRIER
(B) M10X35 FLANGE
0-28151-035-0
06
1
0801-
●
●
195
BOLT; CARRIER
(C) M10X50 FLANGE
0-28151-050-0
01
1
0801-1307
●
●
195
BOLT; CARRIER
(C) M10X50 FLANGE
0-28151-050-0
03
1
1308-
●
●
195
BOLT; CARRIER
(D) M10X110 FLANGE
0-28156-011-0
02
1
0801-1307
●
●
195
BOLT; CARRIER
(E) M10X85 FLANGE
8-94397-359-1
07
1
0801-
●
●
198
GASKET; CAM CARRIER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=30
1-09639-034-0
06
1
0801-
●
●
198
GASKET; CAM CARRIER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-97609-580-0
01
1
0801-
●
●
264
CUP; SEALING
(A) OD=12.3
5-09600-013-0
02
1
0801-
●
●
264
CUP; SEALING
(B) OD=18
5-11219-008-0
01
1
0801-
●
●
264
CUP; SEALING
(C) OD=45
8-97351-451-0
02
1
0801-
●
●
265
PIN; CAM CARRIER SET
(B) OD=4 L=12
1-09740-032-0
14
1
0801-
●
●
265
PIN; CAM CARRIER SET
(A) OD=8 L=16
9-08150-816-0
02
1
0801-
●
●
1
57
58
58
4
4
8
8
8
8
5
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HEAD ASM; CYL
8-98067-125-4
01
1
0801-1302
●
●
1
HEAD ASM; CYL
8-98236-753-1
01
1
1303-
●
●
4
GUIDE; VLV
L=57
8-97376-719-2
24
1
0801-
●
●
5
SEAT; VLV INSERT
(A) EXHAUST
1-11711-087-0
12
1
0801-
●
●
5
SEAT; VLV INSERT
(B) INLET
1-11715-124-0
12
1
0801-
●
●
8
CUP; SEALING,WATER JACKET
(A) OD=25
1-09600-016-0
06
1
0801-
●
●
8
CUP; SEALING,WATER JACKET
(B) OD=18
5-11219-008-0
12
1
0801-
●
●
8
CUP; SEALING,WATER JACKET
(C) OD=36
5-11219-018-0
06
1
0801-
●
●
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
12
1
0801-
●
●
57
SLEEVE; NOZZLE HOLDER
1-11129-064-1
06
1
0801-
●
●
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) LOWER ID=30.9 BLACK
8-97233-126-0
06
1
0801-
●
●
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) UPPER ID=30.9 WHITE
8-98041-585-0
06
1
0801-
●
●
