Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#5710) — 432 parça

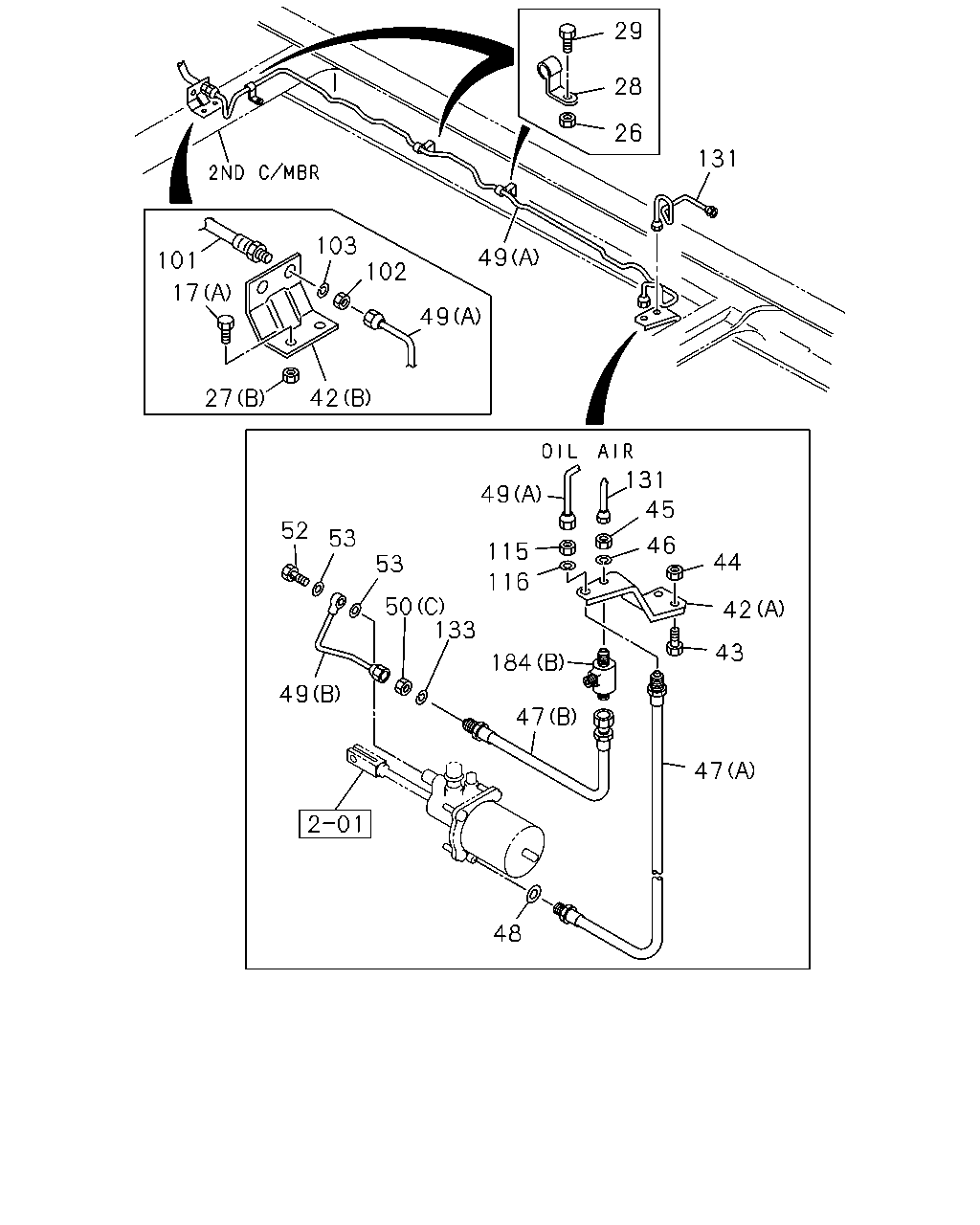

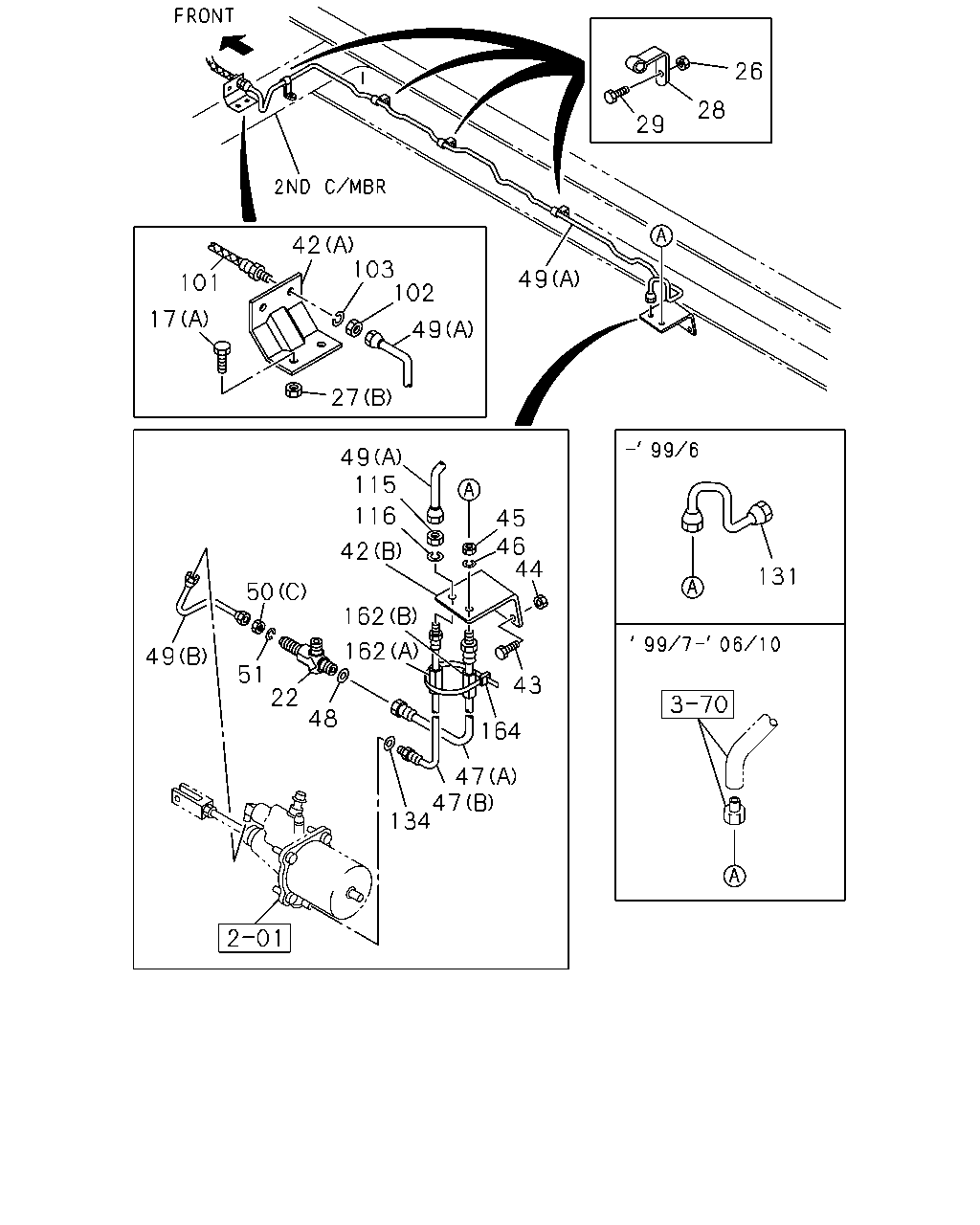

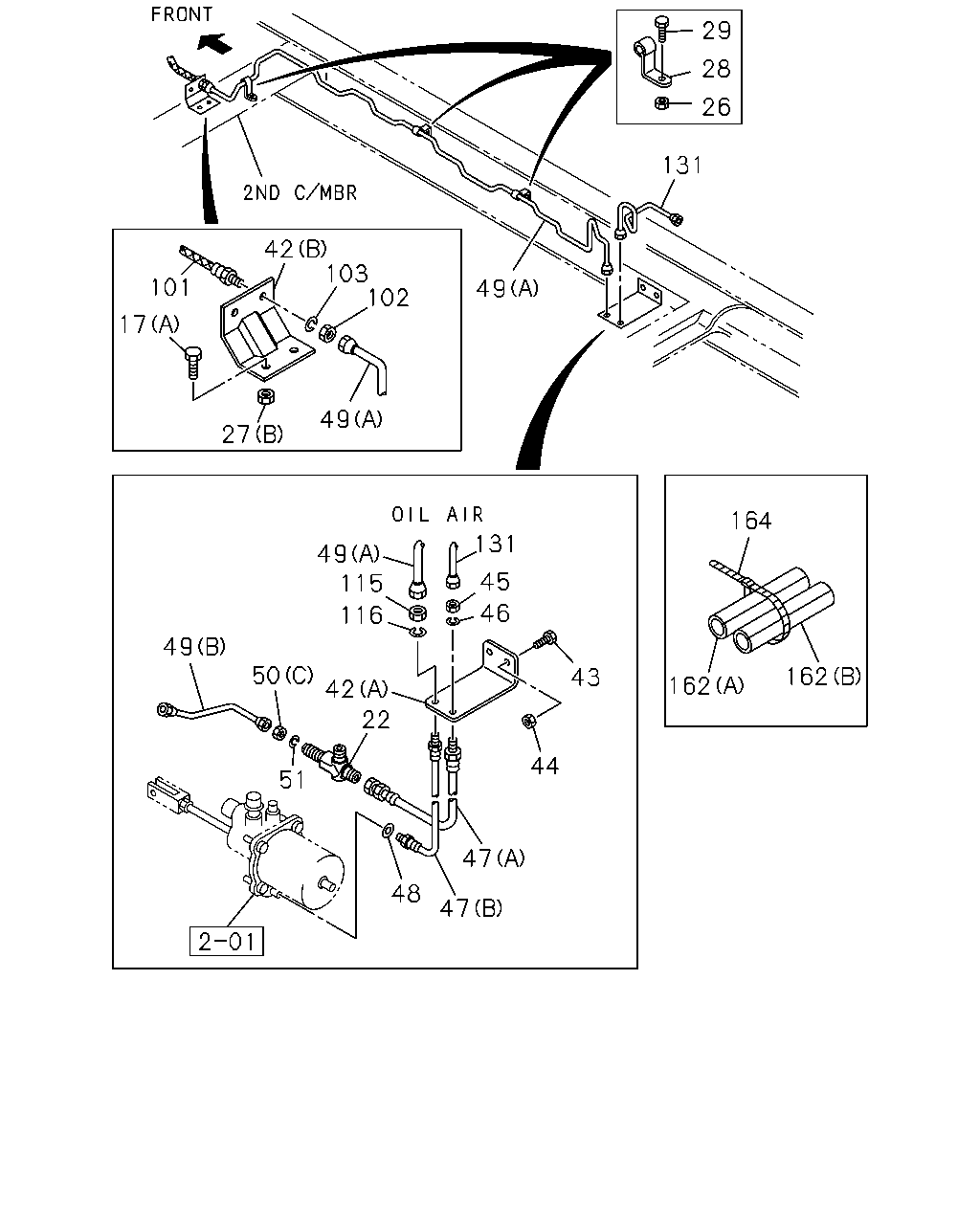

26 28 29 42 103 102 49 101 17 49 27 49 115 116 45 46 44 42 131 50 162 162 49 51 22 48 43 164 47 47 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-0610	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-		●	●
22	UNION; CLU PIPE M12 3-WAY	9-09228-706-1	01	1	9811-0607	●
22	UNION; CLU PIPE M12 3-WAY	0-92138-706-0	01	1	0608-0610	●
22	UNION; CLU PIPE M12 3-WAY	0-92138-706-0	01	1	0611-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0611-			●
26	NUT; CLIP,OIL PIPE FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	03	1	9811-9906	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9907-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-0610	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0611-		●
26	NUT; CLIP,OIL PIPE FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	9811-0610	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	0611-		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	04	1	0611-			●
28	CLIP; OIL PIPE FRR MIDDLE CHASSIS(FR****) ID=8 H=20 L=20 TAI	1-09700-604-0	02	1	9811-9906	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	03	1	9907-0610	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	02	1	0611-		●
28	CLIP; OIL PIPE FVR MIDDLE CHASSIS(FV****) ID=8 H=20 L=20 TAI	1-09700-604-0	04	1	9811-9906	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0611-			●
29	BOLT; CLIP,OIL PIPE FRR MIDDLE CHASSIS(FR****) M8X30 FLANGE	0-28680-830-0	03	1	9811-9906	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9907-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-0610	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
29	BOLT; CLIP,OIL PIPE FVR MIDDLE CHASSIS(FV****) M8X30 FLANGE	0-28680-830-0	04	1	9811-9906	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47471-220-0	01	1	0611-			●
42	BRACKET; FLEX HOSE,CLU CONT (B) TAI	8-97530-356-0	01	1	9811-0610	●
42	BRACKET; FLEX HOSE,CLU CONT (B) TAI	1-47476-781-0	01	1	0611-		●	●
42	BRACKET; FLEX HOSE,CLU CONT (A) TAI	8-97530-357-0	01	1	9811-0610	●
42	BRACKET; FLEX HOSE,CLU CONT (A) TAI	1-47477-944-0	01	1	0611-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9811-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-0610	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0611-		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9811-0610	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0611-		●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9811-0603	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-0610	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0611-		●	●
47	HOSE; FLEX,CLU CONT FRR MIDDLE CHASSIS(FR****) (A) L=470	1-09363-682-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (A) L=470	1-09363-682-0	01	1	0611-		●
47	HOSE; FLEX,CLU CONT FRR MIDDLE CHASSIS(FR****) (B) L=470	1-09364-692-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	0611-		●
47	HOSE; FLEX,CLU CONT FVR MIDDLE CHASSIS(FV****) (A) L=420	1-09363-633-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (A) L=370	1-09363-621-0	01	1	0611-			●
47	HOSE; FLEX,CLU CONT FVR MIDDLE CHASSIS(FV****) (B) L=415	1-09364-490-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (B) L=390	1-09364-475-0	01	1	0611-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-0610	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0611-		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3168 SERVICED BY L=3300	1-47426-398-0	01	1	0611-0612			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3169 SERVICED BY L=3300	1-47426-398-0	01	1	0701-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) TAI	8-97530-527-0	01	1	9811-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=2969 SERVICED BY L=3000	1-47426-397-0	01	1	0611-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR MIDDLE CHASSIS(FR****) (A) TAI	8-97530-435-0	01	1	9811-9906	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR MIDDLE CHASSIS(FR****) (A) TAI	8-97531-044-0	01	1	9907-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=204 TAI	1-49117-400-0	01	1	0611-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97530-436-0	01	1	9811-9906	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97530-611-0	01	1	9907-9908	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97531-159-0	01	1	9909-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A)	1-47495-700-1	01	1	0611-			●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	9811-0610	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	0611-		●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9811-0610	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0611-		●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9811-0512	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-0610	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0611-		●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9811-0603	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-0610	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0611-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9811-9906	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FVR MIDDLE CHASSIS(FV****) L=430	1-09364-859-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0611-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FRR MIDDLE CHASSIS(FR****) L=460	1-09365-070-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0611-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0610	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0610	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0610	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0610	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-		●	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49119-152-0	01	1	0611-		●
131	PIPE; AIR,UNION TO FLEX HOSE L=406	1-49124-866-0	01	1	0611-			●
131	PIPE; AIR,UNION TO FLEX HOSE FRR MIDDLE CHASSIS(FR****) TAI	8-97530-437-0	01	1	9811-9906	●
131	PIPE; AIR,UNION TO FLEX HOSE FVR MIDDLE CHASSIS(FV****) TAI	8-97530-438-0	01	1	9811-9906	●
134	GASKET ID=11 OD=18	9-09572-510-0	01	1	9811-9906	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9811-0610	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0611-		●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9811-0610	●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0611-		●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	9811-0610	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0611-		●

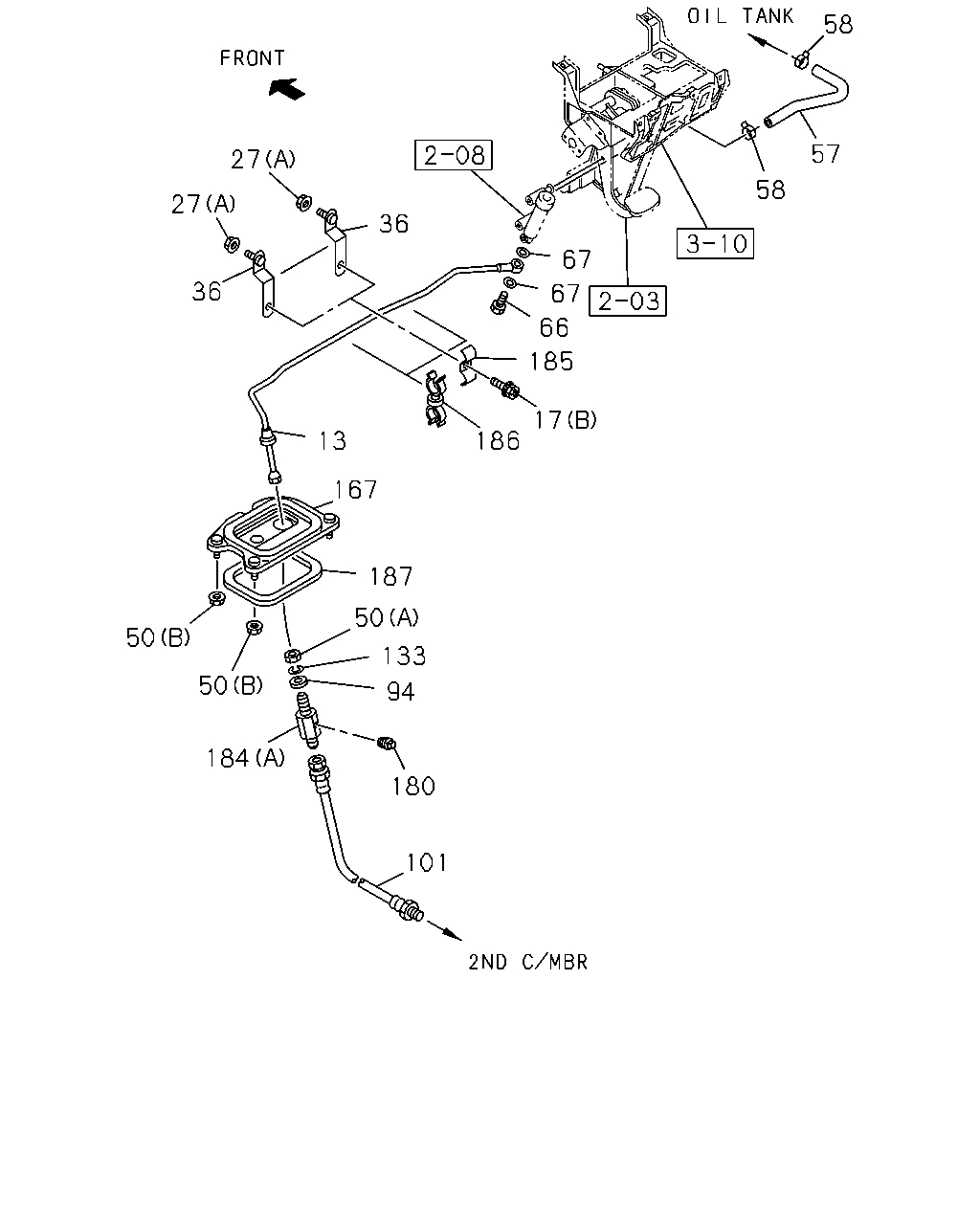

58 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 50 94 184 180 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL TAI	1-47429-143-0	01	1	0611-		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL TAI	8-97535-063-0	01	1	9811-0610	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL TAI	8-97535-063-0	01	1	0611-			●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-0610	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-		●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	9811-0610	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	0611-		●	●
36	BRACKET; CLIP TAI	1-79738-186-1	02	1	9811-0610	●
36	BRACKET; CLIP TAI	1-79738-186-1	02	1	0611-		●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	9811-0610	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	0611-		●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9811-0610	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0611-		●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9811-0512	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-0610	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0611-		●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9811-0610	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0611-		●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14 TAI	8-94238-572-0	02	1	9811-0610	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14 TAI	8-94238-572-0	02	1	0611-		●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT TAI	1-09675-146-0	01	1	9811-0610	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT TAI	1-09675-146-0	01	1	0611-		●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-0610	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-		●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9811-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-0610	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0611-		●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9811-9906	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FVR MIDDLE CHASSIS(FV****) L=430	1-09364-859-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0611-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FRR MIDDLE CHASSIS(FR****) L=460	1-09365-070-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0611-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-		●
133	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0611-			●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9811-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-0610	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0611-		●	●
167	BRACKET; UNION	1-79738-204-2	01	1	9811-9911	●
167	BRACKET; UNION	1-79738-845-1	01	1	9912-0610	●
167	BRACKET; UNION	1-79738-845-1	01	1	0611-		●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9811-0610	●
180	PLUG; PIPE	9-09204-510-0	01	1	0611-		●	●
184	UNION; FLEX HOSE (B) M12 3-WAY	0-92138-706-0	01	1	0611-			●
184	UNION; FLEX HOSE (A) TAI	1-09656-679-0	01	1	9811-0610	●
184	UNION; FLEX HOSE (A) TAI	1-09656-679-0	01	1	0611-		●	●
185	CLIP; BRKT ID=5 & 8 TAI	5-09700-165-0	02	1	9811-0610	●
185	CLIP; BRKT ID=5 & 8 TAI	5-09700-165-0	02	1	0611-		●	●
186	HOLDER; CLIP ID=6 & 4.8 TAI	8-94313-325-0	01	1	9811-0610	●
186	HOLDER; CLIP ID=6 & 4.8 TAI	8-94313-325-0	01	1	0611-		●	●
187	SEAL; BRKT TAI	1-79738-190-0	01	1	9811-0610	●
187	SEAL; BRKT TAI	1-79738-190-0	01	1	0611-		●	●

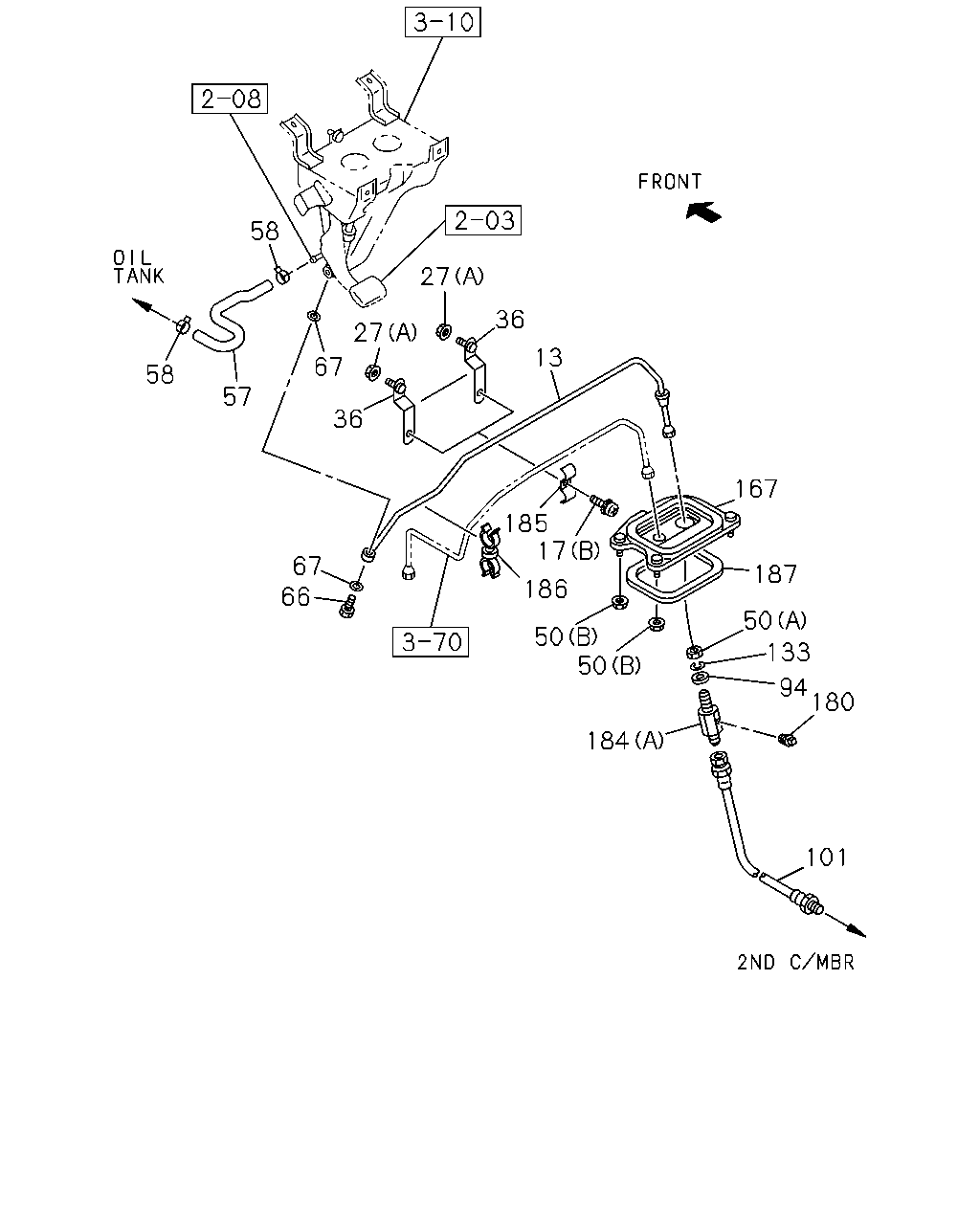

58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 50 133 94 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL TAI	1-47429-143-0	01	1	0611-		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL TAI	8-97535-063-0	01	1	9811-0610	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL TAI	8-97535-063-0	01	1	0611-			●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-0610	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-		●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	9811-0610	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	0611-		●	●
36	BRACKET; CLIP TAI	1-79738-186-1	02	1	9811-0610	●
36	BRACKET; CLIP TAI	1-79738-186-1	02	1	0611-		●	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	9811-0610	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	0611-		●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9811-0610	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0611-		●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9811-0512	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-0610	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0611-		●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9811-0610	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0611-		●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14 TAI	8-94238-572-0	02	1	9811-0610	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14 TAI	8-94238-572-0	02	1	0611-		●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT TAI	1-09675-146-0	01	1	9811-0610	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT TAI	1-09675-146-0	01	1	0611-		●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-0610	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-		●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9811-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-0610	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0611-		●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9811-9906	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FVR MIDDLE CHASSIS(FV****) L=430	1-09364-859-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0611-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FRR MIDDLE CHASSIS(FR****) L=460	1-09365-070-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0611-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-		●
133	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0611-			●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9811-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-0610	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0611-		●	●
167	BRACKET; UNION	1-79738-204-2	01	1	9811-9911	●
167	BRACKET; UNION	1-79738-845-1	01	1	9912-0610	●
167	BRACKET; UNION	1-79738-845-1	01	1	0611-		●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9811-0610	●
180	PLUG; PIPE	9-09204-510-0	01	1	0611-		●	●
184	UNION; FLEX HOSE (B) M12 3-WAY	0-92138-706-0	01	1	0611-			●
184	UNION; FLEX HOSE (A) TAI	1-09656-679-0	01	1	9811-0610	●
184	UNION; FLEX HOSE (A) TAI	1-09656-679-0	01	1	0611-		●	●
185	CLIP; BRKT ID=5 & 8 TAI	5-09700-165-0	02	1	9811-0610	●
185	CLIP; BRKT ID=5 & 8 TAI	5-09700-165-0	02	1	0611-		●	●
186	HOLDER; CLIP ID=6 & 4.8 TAI	8-94313-325-0	01	1	9811-0610	●
186	HOLDER; CLIP ID=6 & 4.8 TAI	8-94313-325-0	01	1	0611-		●	●
187	SEAL; BRKT TAI	1-79738-190-0	01	1	9811-0610	●
187	SEAL; BRKT TAI	1-79738-190-0	01	1	0611-		●	●

29 28 26 131 103 49 101 102 17 49 42 27 131 49 45 52 53 46 115 44 53 116 50 133 43 184 49 47 47 48 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-0610	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-		●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0611-			●
26	NUT; CLIP,OIL PIPE FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	03	1	9811-9906	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9907-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-0610	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0611-		●
26	NUT; CLIP,OIL PIPE FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	9811-0610	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	0611-		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	04	1	0611-			●
28	CLIP; OIL PIPE FRR MIDDLE CHASSIS(FR****) ID=8 H=20 L=20 TAI	1-09700-604-0	02	1	9811-9906	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	03	1	9907-0610	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	02	1	0611-		●
28	CLIP; OIL PIPE FVR MIDDLE CHASSIS(FV****) ID=8 H=20 L=20 TAI	1-09700-604-0	04	1	9811-9906	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0611-			●
29	BOLT; CLIP,OIL PIPE FRR MIDDLE CHASSIS(FR****) M8X30 FLANGE	0-28680-830-0	03	1	9811-9906	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9907-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-0610	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
29	BOLT; CLIP,OIL PIPE FVR MIDDLE CHASSIS(FV****) M8X30 FLANGE	0-28680-830-0	04	1	9811-9906	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47471-220-0	01	1	0611-			●
42	BRACKET; FLEX HOSE,CLU CONT (B) TAI	8-97530-356-0	01	1	9811-0610	●
42	BRACKET; FLEX HOSE,CLU CONT (B) TAI	1-47476-781-0	01	1	0611-		●	●
42	BRACKET; FLEX HOSE,CLU CONT (A) TAI	8-97530-357-0	01	1	9811-0610	●
42	BRACKET; FLEX HOSE,CLU CONT (A) TAI	1-47477-944-0	01	1	0611-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9811-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-0610	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0611-		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9811-0610	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0611-		●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9811-0603	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-0610	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0611-		●	●
47	HOSE; FLEX,CLU CONT FRR MIDDLE CHASSIS(FR****) (A) L=470	1-09363-682-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (A) L=470	1-09363-682-0	01	1	0611-		●
47	HOSE; FLEX,CLU CONT FRR MIDDLE CHASSIS(FR****) (B) L=470	1-09364-692-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	0611-		●
47	HOSE; FLEX,CLU CONT FVR MIDDLE CHASSIS(FV****) (A) L=420	1-09363-633-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (A) L=370	1-09363-621-0	01	1	0611-			●
47	HOSE; FLEX,CLU CONT FVR MIDDLE CHASSIS(FV****) (B) L=415	1-09364-490-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (B) L=390	1-09364-475-0	01	1	0611-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-0610	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0611-		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3168 SERVICED BY L=3300	1-47426-398-0	01	1	0611-0612			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3169 SERVICED BY L=3300	1-47426-398-0	01	1	0701-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) TAI	8-97530-527-0	01	1	9811-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=2969 SERVICED BY L=3000	1-47426-397-0	01	1	0611-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR MIDDLE CHASSIS(FR****) (A) TAI	8-97530-435-0	01	1	9811-9906	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR MIDDLE CHASSIS(FR****) (A) TAI	8-97531-044-0	01	1	9907-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=204 TAI	1-49117-400-0	01	1	0611-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97530-436-0	01	1	9811-9906	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97530-611-0	01	1	9907-9908	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97531-159-0	01	1	9909-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A)	1-47495-700-1	01	1	0611-			●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	9811-0610	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	0611-		●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9811-0610	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0611-		●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9811-0512	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-0610	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0611-		●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0611-			●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9811-9906	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FVR MIDDLE CHASSIS(FV****) L=430	1-09364-859-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0611-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FRR MIDDLE CHASSIS(FR****) L=460	1-09365-070-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0611-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0610	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0610	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0610	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0610	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-		●	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49119-152-0	01	1	0611-		●
131	PIPE; AIR,UNION TO FLEX HOSE L=406	1-49124-866-0	01	1	0611-			●
131	PIPE; AIR,UNION TO FLEX HOSE FRR MIDDLE CHASSIS(FR****) TAI	8-97530-437-0	01	1	9811-9906	●
131	PIPE; AIR,UNION TO FLEX HOSE FVR MIDDLE CHASSIS(FV****) TAI	8-97530-438-0	01	1	9811-9906	●
133	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0611-			●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9811-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-0610	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0611-		●	●
184	UNION; FLEX HOSE (B) M12 3-WAY	0-92138-706-0	01	1	0611-			●
184	UNION; FLEX HOSE (A) TAI	1-09656-679-0	01	1	9811-0610	●
184	UNION; FLEX HOSE (A) TAI	1-09656-679-0	01	1	0611-		●	●

29 28 26 131 42 103 102 101 49 17 49 27 164 131 49 115 45 46 116 49 50 162 43 162 42 22 44 51 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9811-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0610	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0611-		●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-0610	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-		●	●
22	UNION; CLU PIPE M12 3-WAY	9-09228-706-1	01	1	9811-0607	●
22	UNION; CLU PIPE M12 3-WAY	0-92138-706-0	01	1	0608-0610	●
22	UNION; CLU PIPE M12 3-WAY	0-92138-706-0	01	1	0611-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0611-			●
26	NUT; CLIP,OIL PIPE FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	03	1	9811-9906	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9907-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-0610	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0611-		●
26	NUT; CLIP,OIL PIPE FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	9811-0610	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER TAI	1-09984-180-0	02	1	0611-		●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	04	1	0611-			●
28	CLIP; OIL PIPE FRR MIDDLE CHASSIS(FR****) ID=8 H=20 L=20 TAI	1-09700-604-0	02	1	9811-9906	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	03	1	9907-0610	●
28	CLIP; OIL PIPE ID=8 H=20 L=20 TAI	1-09700-604-0	02	1	0611-		●
28	CLIP; OIL PIPE FVR MIDDLE CHASSIS(FV****) ID=8 H=20 L=20 TAI	1-09700-604-0	04	1	9811-9906	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	04	1	0611-			●
29	BOLT; CLIP,OIL PIPE FRR MIDDLE CHASSIS(FR****) M8X30 FLANGE	0-28680-830-0	03	1	9811-9906	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	9907-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0601-0610	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
29	BOLT; CLIP,OIL PIPE FVR MIDDLE CHASSIS(FV****) M8X30 FLANGE	0-28680-830-0	04	1	9811-9906	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47471-220-0	01	1	0611-			●
42	BRACKET; FLEX HOSE,CLU CONT (B) TAI	8-97530-356-0	01	1	9811-0610	●
42	BRACKET; FLEX HOSE,CLU CONT (B) TAI	1-47476-781-0	01	1	0611-		●	●
42	BRACKET; FLEX HOSE,CLU CONT (A) TAI	8-97530-357-0	01	1	9811-0610	●
42	BRACKET; FLEX HOSE,CLU CONT (A) TAI	1-47477-944-0	01	1	0611-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9811-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-0610	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0611-		●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9811-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0610	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0611-		●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	9811-0610	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0611-		●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	9811-0603	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-0610	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0611-		●	●
47	HOSE; FLEX,CLU CONT FRR MIDDLE CHASSIS(FR****) (A) L=470	1-09363-682-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (A) L=470	1-09363-682-0	01	1	0611-		●
47	HOSE; FLEX,CLU CONT FRR MIDDLE CHASSIS(FR****) (B) L=470	1-09364-692-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	0611-		●
47	HOSE; FLEX,CLU CONT FVR MIDDLE CHASSIS(FV****) (A) L=420	1-09363-633-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (A) L=370	1-09363-621-0	01	1	0611-			●
47	HOSE; FLEX,CLU CONT FVR MIDDLE CHASSIS(FV****) (B) L=415	1-09364-490-0	01	1	9811-0610	●
47	HOSE; FLEX,CLU CONT (B) L=390	1-09364-475-0	01	1	0611-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9811-0610	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0611-		●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3168 SERVICED BY L=3300	1-47426-398-0	01	1	0611-0612			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=3169 SERVICED BY L=3300	1-47426-398-0	01	1	0701-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) TAI	8-97530-527-0	01	1	9811-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=2969 SERVICED BY L=3000	1-47426-397-0	01	1	0611-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR MIDDLE CHASSIS(FR****) (A) TAI	8-97530-435-0	01	1	9811-9906	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FRR MIDDLE CHASSIS(FR****) (A) TAI	8-97531-044-0	01	1	9907-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=204 TAI	1-49117-400-0	01	1	0611-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97530-436-0	01	1	9811-9906	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97530-611-0	01	1	9907-9908	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FVR MIDDLE CHASSIS(FV****) (A) TAI	8-97531-159-0	01	1	9909-0610	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A)	1-47495-700-1	01	1	0611-			●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	9811-0610	●
50	NUT; UNION (B) M8 CUTTING NUT W/FLANGE TAI	1-09985-340-0	03	1	0611-		●	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	9811-0610	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0611-		●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9811-0512	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-0610	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0611-		●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9811-0603	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-0610	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0611-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9811-9906	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FVR MIDDLE CHASSIS(FV****) L=430	1-09364-859-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0611-0703			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-			●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE FRR MIDDLE CHASSIS(FR****) L=460	1-09365-070-1	01	1	9907-0610	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0611-0703		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0610	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-		●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0610	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-		●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9811-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0610	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0611-		●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9811-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0610	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0611-		●	●
131	PIPE; AIR,UNION TO FLEX HOSE	1-49119-152-0	01	1	0611-		●
131	PIPE; AIR,UNION TO FLEX HOSE L=406	1-49124-866-0	01	1	0611-			●
131	PIPE; AIR,UNION TO FLEX HOSE FRR MIDDLE CHASSIS(FR****) TAI	8-97530-437-0	01	1	9811-9906	●
131	PIPE; AIR,UNION TO FLEX HOSE FVR MIDDLE CHASSIS(FV****) TAI	8-97530-438-0	01	1	9811-9906	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9811-0610	●
162	COVER; RUBBER,FLEX HOSE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0611-		●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9811-0610	●
162	COVER; RUBBER,FLEX HOSE (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0611-		●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	9811-0610	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0611-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
