2-03 — CLUTCH PEDAL AND CONTROL (#5709) — 31 parça

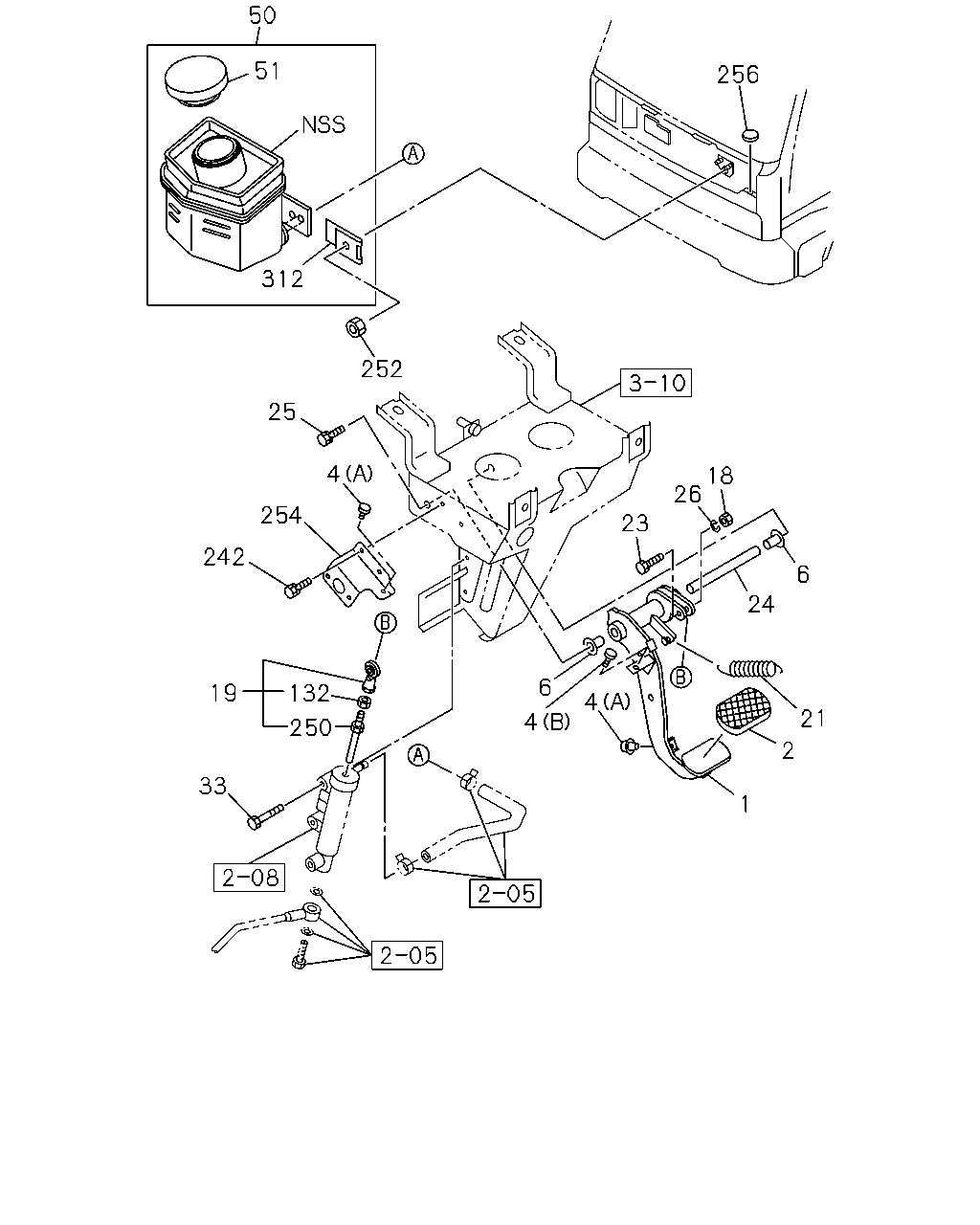

çizim 26149
50 51 256 312 252 25 4 18 26 254 23 242 6 24 6 19 132 4 21 4 250 2 33 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-73908-079-3 01 1 9811- ● ●
2 COVER; CLU PEDAL
TAI 		8-94204-810-0 01 1 9811-0103 ● ●
2 COVER; CLU PEDAL
TAI 		8-97893-618-1 01 1 0104- ● ●
4 STOPPER; CLU PEDAL
(A) TAI 		1-47319-014-1 04 1 9811- ● ●
4 STOPPER; CLU PEDAL
(B) TAI 		5-31419-003-0 01 1 9811-9904 ● ●
6 BUSHING; CLU PEDAL
TAI 		1-09330-045-0 02 1 9811- ● ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 9811-0610 ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0611- ● ●
19 ROD ASM; PUSH,CLU
TAI 		1-73908-332-0 01 1 9811-9904 ● ●
19 ROD ASM; PUSH,CLU 1-73996-144-1 01 1 9905- ● ●
21 SPRING; RETURN,CLU PEDAL
TAI 		1-73908-265-0 01 1 9811- ● ●
23 BOLT; PUSH ROD
M8X43.7 TAI 		1-73908-333-0 01 1 9811-9904 ● ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9905-0610 ● ●
23 BOLT; PUSH ROD
M8X35 		0-10960-835-0 01 1 0611- ● ●
24 SHAFT; CLU PEDAL
TAI 		1-73998-936-1 01 1 9811- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 9811- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9811-0610 ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0611- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9811-0512 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 9811- ● ●
51 CAP; OIL TANK,CLU
TAI 		8-94136-483-1 01 1 9811- ● ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 9811-0610 ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0611- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9811-0610 ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50540-616-0 02 1 0611- ● ●
250 ROD; PUSH,CLU
TAI 		1-73996-219-0 01 1 9811- ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER TAI 		1-09984-176-0 02 1 9811- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 9811- ● ●
256 SEAL; HOLE
OD=25 BLACK TAI 		1-76798-019-0 01 1 9811- ● ●
312 PLATE; OIL TANK,CLU
TAI 		1-21249-007-1 01 1 9811- ● ●
