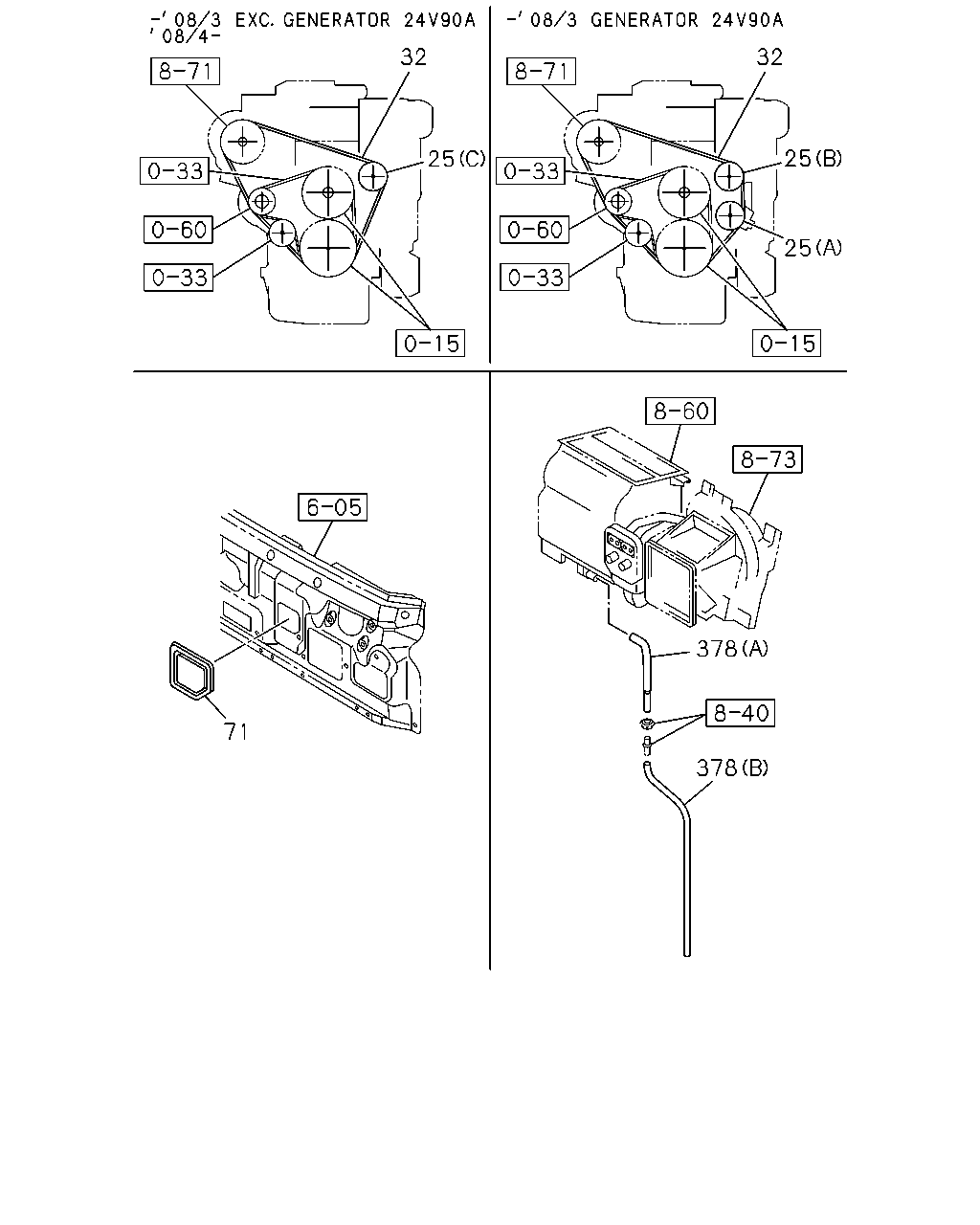

8-50 — AIR CONDITIONING SYSTEM; FRONT (#57088) — 126 parça

32 32 25 25 25 378 71 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	PULLEY ASM; IDLER,CMPR GENERATOR 24V90A(K44) (A) 1-GROOVE	8-94334-696-2	01	1	0712-0803	●	●
25	PULLEY ASM; IDLER,CMPR GENERATOR 24V90A(K44) (B) 1-GROOVE	8-94334-873-0	01	1	0712-0803	●	●
25	PULLEY ASM; IDLER,CMPR EXC. GENERATOR 24V90A(K44) (C) 1-GROOVE	8-97161-198-1	01	1	0712-0803	●	●
25	PULLEY ASM; IDLER,CMPR (C) 1-GROOVE	8-97161-198-1	01	1	0804-0808	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 1-GROOVE	8-97161-198-1	01	1	0809-1003	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0809-1003		●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 1-GROOVE	8-97161-198-1	01	1	1004-	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE	8-97161-198-1	01	1	1004-		●	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS	1-87610-100-0	01	1	0907-1003	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-100-0	01	1	0907-1003		●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS	1-87610-100-0	01	1	1004-	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-100-0	01	1	1004-		●	●
32	BELT; A/C CMPR L=1594	8-97383-577-0	01	1	0712-0808	●	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1594	8-97383-577-1	01	1	0809-1003	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1594	8-97383-577-1	01	1	0809-1003		●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1594	8-97383-577-1	01	1	1004-	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1594	8-97383-577-1	01	1	1004-		●	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98017-234-1	01	1	0712-0803	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98017-234-1	01	1	0712-0803		●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	0804-0811	●	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98017-234-1	01	1	0812-1003	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98017-234-1	01	1	0812-1003		●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98017-234-1	01	1	1004-1301	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98017-234-1	01	1	1004-1301		●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98017-234-1	01	1	1004-1301			●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	1302-	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98017-234-1	01	1	1302-		●	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-759-0	01	1	0712-1003	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98041-759-0	01	1	0712-1003		●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-759-0	01	1	1004-1111	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98041-759-0	01	1	1004-1111		●	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98204-846-0	01	1	1112-	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98204-846-0	01	1	1112-		●	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98041-428-0	01	1	0712-0803	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98041-428-0	01	1	0712-0803		●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-428-0	01	1	0804-0811	●	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98041-428-0	01	1	0812-1003	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98041-428-0	01	1	0812-1003		●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98041-428-0	01	1	1004-	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98041-428-0	01	1	1004-		●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98041-428-0	01	1	1004-			●

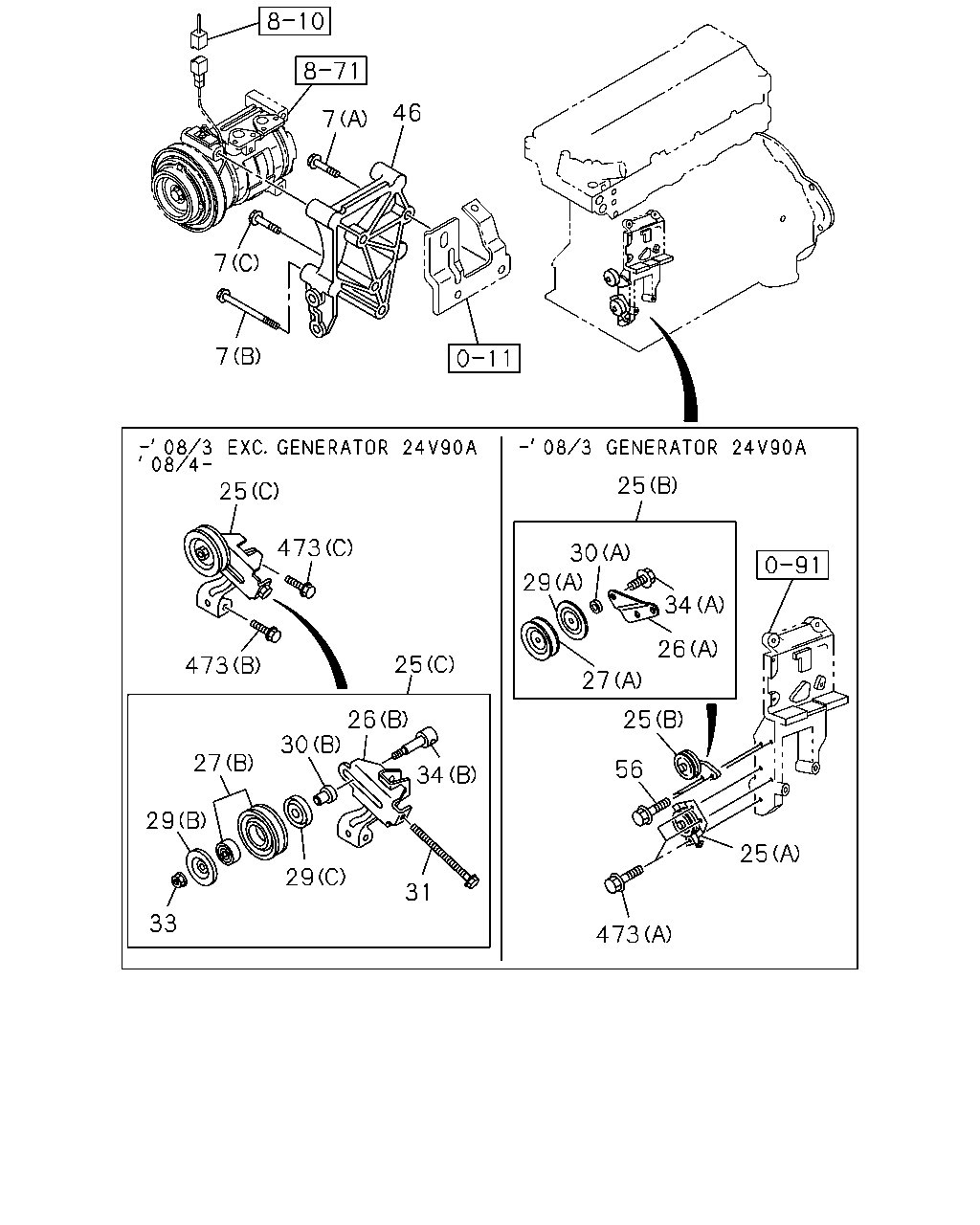

46 7 7 7 25 25 473 30 29 34 26 25 473 27 26 30 25 27 56 34 29 25 29 31 33 473

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	BOLT; BRKT (A) M10X45 FLANGE	0-28151-045-0	02	1	0712-1003	●	●
7	BOLT; BRKT (A) M10X45 FLANGE	0-28151-045-0	02	1	1004-	●	●	●
7	BOLT; BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	0712-0803	●	●
7	BOLT; BRKT GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	01	1	0804-	●	●
7	BOLT; BRKT GENERATOR 24V90A(K44) (C) M10X130 FLANGE	0-28156-013-0	01	1	0712-	●	●
7	BOLT; BRKT EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	02	1	0804-1003	●	●
7	BOLT; BRKT EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	02	1	1004-	●	●
7	BOLT; BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	1004-			●
25	PULLEY ASM; IDLER,CMPR GENERATOR 24V90A(K44) (A) 1-GROOVE	8-94334-696-2	01	1	0712-0803	●	●
25	PULLEY ASM; IDLER,CMPR GENERATOR 24V90A(K44) (B) 1-GROOVE	8-94334-873-0	01	1	0712-0803	●	●
25	PULLEY ASM; IDLER,CMPR EXC. GENERATOR 24V90A(K44) (C) 1-GROOVE	8-97161-198-1	01	1	0712-0803	●	●
25	PULLEY ASM; IDLER,CMPR (C) 1-GROOVE	8-97161-198-1	01	1	0804-0808	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 1-GROOVE	8-97161-198-1	01	1	0809-1003	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0809-1003		●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 1-GROOVE	8-97161-198-1	01	1	1004-	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE	8-97161-198-1	01	1	1004-		●	●
26	BRACKET; IDLE PULLEY,A/C GENERATOR 24V90A(K44) (A)	8-97060-362-0	01	1	0712-0803	●	●
26	BRACKET; IDLE PULLEY,A/C EXC. GENERATOR 24V90A(K44) (B)	8-97161-031-1	01	1	0712-0803	●	●
26	BRACKET; IDLE PULLEY,A/C (B)	8-97161-031-1	01	1	0804-0808	●	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97161-031-1	01	1	0809-1003	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-031-1	01	1	0809-1003		●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97161-031-1	01	1	1004-	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-031-1	01	1	1004-		●	●
27	PULLEY; IDLE,A/C GENERATOR 24V90A(K44) (A)	9-13663-606-0	01	1	0712-0803	●	●
27	PULLEY; IDLE,A/C EXC. GENERATOR 24V90A(K44) (B)	8-97386-869-0	01	1	0712-0803	●	●
27	PULLEY; IDLE,A/C (B)	8-97386-869-0	01	1	0804-0808	●	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97386-869-0	01	1	0809-1003	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97386-869-0	01	1	0809-1003		●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97386-869-0	01	1	1004-	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97386-869-0	01	1	1004-		●	●
29	COVER; DUST,IDLE PULLEY GENERATOR 24V90A(K44) (A)	9-13669-603-0	02	1	0712-0803	●	●
29	COVER; DUST,IDLE PULLEY EXC. GENERATOR 24V90A(K44) (B)	8-97384-114-0	01	1	0712-0803	●	●
29	COVER; DUST,IDLE PULLEY (B)	8-97384-114-0	01	1	0804-0808	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-114-0	01	1	0809-1003	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-114-0	01	1	0809-1003		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-114-0	01	1	1004-	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-114-0	01	1	1004-		●	●
29	COVER; DUST,IDLE PULLEY EXC. GENERATOR 24V90A(K44) (C)	8-97384-115-0	01	1	0712-0803	●	●
29	COVER; DUST,IDLE PULLEY (C)	8-97384-115-0	01	1	0804-0808	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-97384-115-0	01	1	0809-1003	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-115-0	01	1	0809-1003		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-97384-115-0	01	1	1004-	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-115-0	01	1	1004-		●	●
30	COLLAR; IDLE PULLEY GENERATOR 24V90A(K44) (A)	8-94207-192-0	01	1	0712-0803	●	●
30	COLLAR; IDLE PULLEY EXC. GENERATOR 24V90A(K44) (B)	8-97384-117-0	01	1	0712-0803	●	●
30	COLLAR; IDLE PULLEY (B)	8-97384-117-0	01	1	0804-0808	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-117-0	01	1	0809-1003	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-117-0	01	1	0809-1003		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-117-0	01	1	1004-	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-117-0	01	1	1004-		●	●
31	BOLT; ADJ,IDLE PULLEY EXC. GENERATOR 24V90A(K44)	8-97384-113-0	01	1	0712-0803	●	●
31	BOLT; ADJ,IDLE PULLEY	8-97384-113-0	01	1	0804-0808	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-113-0	01	1	0809-1003	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-113-0	01	1	0809-1003		●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-113-0	01	1	1004-	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-113-0	01	1	1004-		●	●
33	NUT; IDLER PULLEY EXC. GENERATOR 24V90A(K44)	8-97384-118-0	01	1	0712-0803	●	●
33	NUT; IDLER PULLEY	8-97384-118-0	01	1	0804-0808	●	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-118-0	01	1	0809-1003	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-118-0	01	1	0809-1003		●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-118-0	01	1	1004-	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-97384-118-0	01	1	1004-		●	●
34	SHAFT; IDLE PULLEY GENERATOR 24V90A(K44) (A) M10X30	0-28121-030-0	01	1	0712-0803	●	●
34	SHAFT; IDLE PULLEY EXC. GENERATOR 24V90A(K44) (B)	8-97384-116-0	01	1	0712-0803	●	●
34	SHAFT; IDLE PULLEY (B)	8-97384-116-0	01	1	0804-0808	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-116-0	01	1	0809-1003	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-116-0	01	1	0809-1003		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-116-0	01	1	1004-	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-116-0	01	1	1004-		●	●
46	BRACKET; CMPR GENERATOR 24V90A(K44)	8-98101-365-0	01	1	0712-	●	●
46	BRACKET; CMPR EXC. GENERATOR 24V90A(K44)	8-98101-364-0	01	1	0712-1003	●	●
46	BRACKET; CMPR EXC. GENERATOR 24V90A(K44)	8-98101-364-0	01	1	1004-	●	●
46	BRACKET; CMPR	8-98101-364-0	01	1	1004-			●
56	BOLT; IDLER PULLEY GENERATOR 24V90A(K44) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803	●	●
473	BOLT; TENSIONER (B) M10X65 FLANGE	8-94344-540-1	01	1	0712-0808	●	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X65 FLANGE	8-94344-540-1	01	1	0809-1003	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE	8-94344-540-1	01	1	0809-1003		●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X65 FLANGE	8-94344-540-1	01	1	1004-	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE	8-94344-540-1	01	1	1004-		●	●
473	BOLT; TENSIONER GENERATOR 24V90A(K44) (A) M8X16 FLANGE	0-28050-816-0	03	1	0712-0803	●	●
473	BOLT; TENSIONER (C) M8X50 FLANGE	0-28050-850-0	01	1	0712-0808	●	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X50 FLANGE	0-28050-850-0	01	1	0809-1003	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X50 FLANGE	0-28050-850-0	01	1	0809-1003		●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X50 FLANGE	0-28050-850-0	01	1	1004-	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X50 FLANGE	0-28050-850-0	01	1	1004-		●	●
