Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#57085) — 428 parça

284 210 714 714 261 34 602 40 282 210 285 714 88 34 34 34 40 36 34 34 284 210 714 285 284 602 210 285 714 261 36 34 34 714 34 261 273 298 36 284 34 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

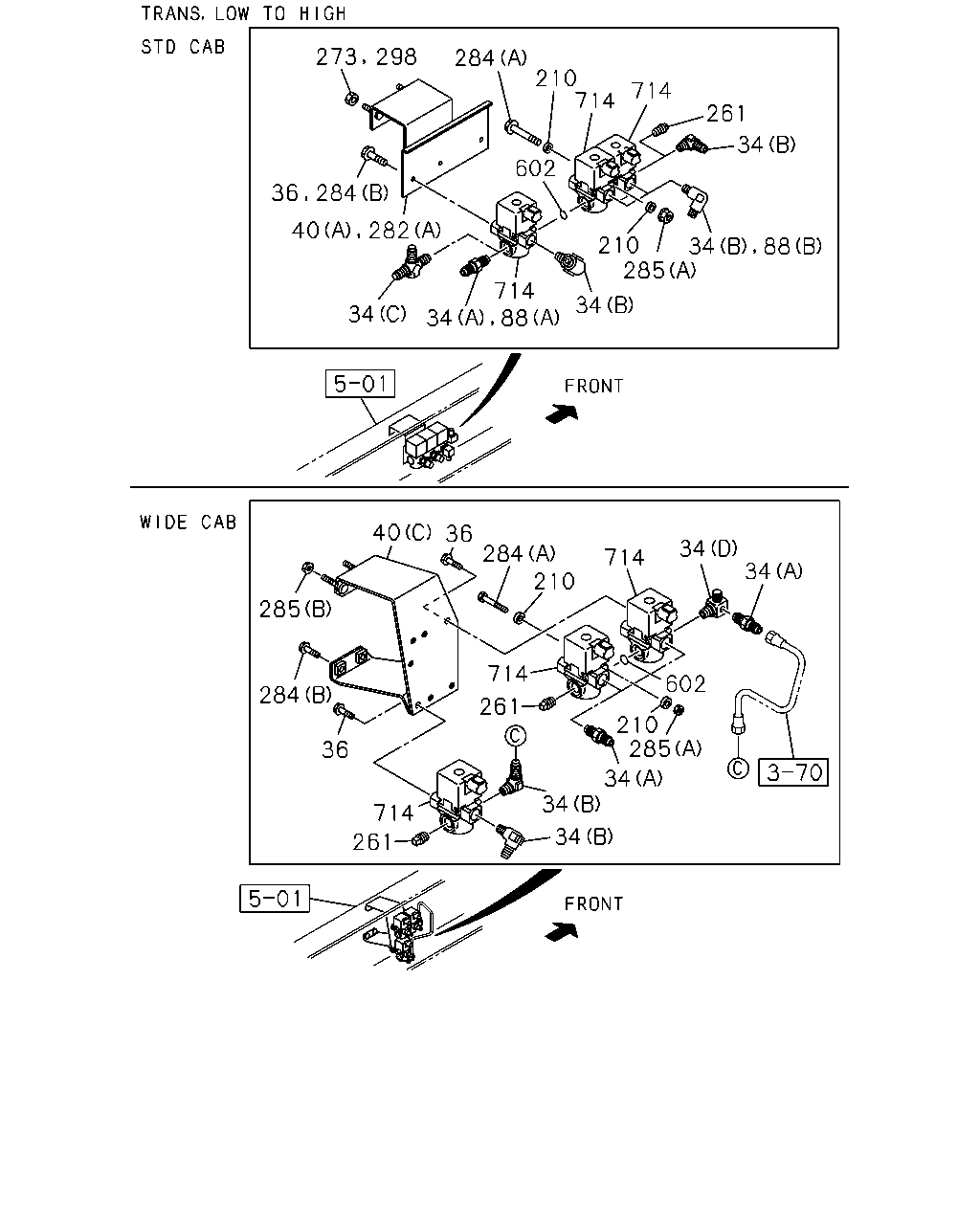

34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (D) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-1003		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0803-		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802			●
34	CONNECTOR; MAG VLV,INL PORT (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0803-			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0712-0802			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-1003			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1004-			●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1004-	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1004-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0812-1003		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	03	1	0712-0802		●	●
40	BRACKET; MAG VLV DIFF LOCK<C3N> (B)	8-98034-702-0	01	1	1004-	●
40	BRACKET; MAG VLV (C)	8-98090-008-3	01	1	1004-	●
40	BRACKET; MAG VLV (A)	1-47479-463-0	01	1	0712-0802		●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802		●	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0803-0811		●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-			●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0802		●	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811		●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-			●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0712-0802		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811		●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-			●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-0811		●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0812-1003		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0812-1003			●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1004-		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1004-			●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1004-	●
210	WASHER; PL,BRKT DIFF LOCK<C3N> PTO CONTROL<SV6>	1-82569-266-0	02	1	1004-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0712-		●	●
261	PLUG; MAG VLV DIFF LOCK<C3N>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1004-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0712-0802		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0803-0811		●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0812-1003		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1003		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1003		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1004-1205		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1004-1205		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1004-1205		●
261	PLUG; MAG VLV DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1004-1205	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1004-1205	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1206-1206		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206		●
261	PLUG; MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-		●
261	PLUG; MAG VLV DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1207-	●
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0712-0802		●

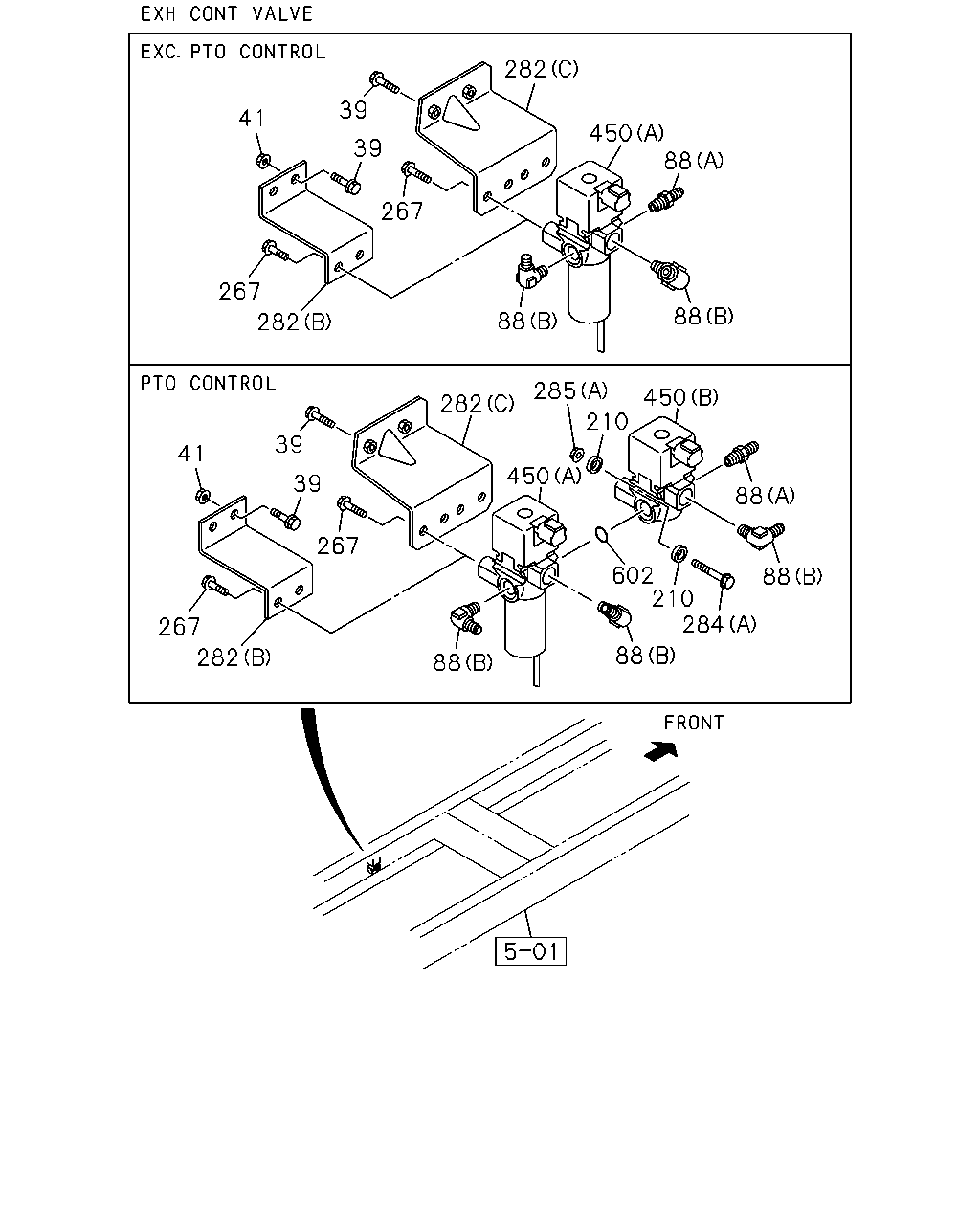

282	BRACKET; MAG VLV (A)	1-47479-463-0	01	1	0712-0802			●
282	BRACKET; MAG VLV (B)	1-47471-374-0	01	1	0712-0802		●	●
282	BRACKET; MAG VLV (C)	8-98034-702-0	01	1	0803-0811		●	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98034-702-0	01	1	0812-		●
282	BRACKET; MAG VLV (C)	8-98034-702-0	01	1	0812-			●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1004-1004	●
284	BOLT; MAG VLV (B) M10X30 FLANGE	0-28651-030-0	02	1	1005-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0803-0811		●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-1003		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-1003			●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-			●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-	●
284	BOLT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	0803-		●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	0712-		●	●
285	NUT; MAG VLV (B) M10 FLANGE	0-91180-210-0	02	1	1004-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0803-0811		●	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6 FLANGE	0-91180-106-0	01	1	0812-1003		●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0812-1003			●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6 FLANGE	0-91180-106-0	01	1	1004-		●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1004-			●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	1004-	●
285	NUT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1004-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	02	1	0712-		●	●
298	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0712-0802			●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-0811		●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0812-1003		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0812-1003			●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1004-		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1004-			●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1004-	●
602	GASKET; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1004-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0712-		●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	03	1	0712-1003		●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	03	1	1004-	●	●	●

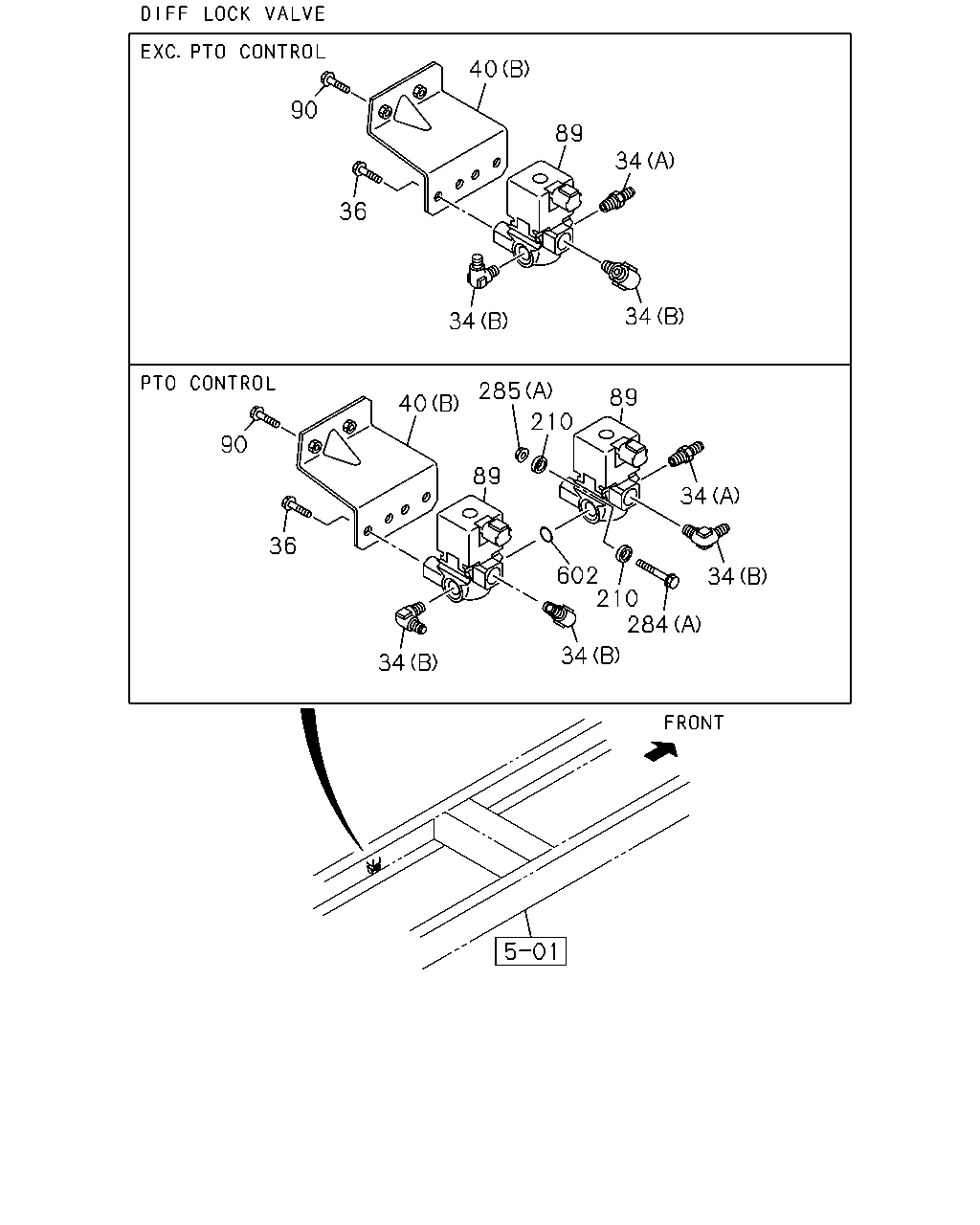

40 90 89 34 36 34 34 285 89 40 210 90 89 34 36 602 210 284 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (D) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-1003		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0803-		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802			●
34	CONNECTOR; MAG VLV,INL PORT (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0803-			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0712-0802			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-1003			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1004-			●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1004-	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1004-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0812-1003		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	03	1	0712-0802		●	●
40	BRACKET; MAG VLV DIFF LOCK<C3N> (B)	8-98034-702-0	01	1	1004-	●
40	BRACKET; MAG VLV (C)	8-98090-008-3	01	1	1004-	●
40	BRACKET; MAG VLV (A)	1-47479-463-0	01	1	0712-0802		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> PTO CONTROL<SV6>	1-82563-871-2	02	1	1004-1205	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> PTO CONTROL<SV6>	1-82563-871-2	01	1	1206-	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> EXC. PTO CONTROL<SV6>	1-82563-871-2	01	1	1004-1205	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-	●
90	BOLT; MAG VLV DIFF LOCK<C3N> M10X30 FLANGE	0-28651-030-0	02	1	1004-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-0811		●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0812-1003		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0812-1003			●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1004-		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1004-			●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1004-	●
210	WASHER; PL,BRKT DIFF LOCK<C3N> PTO CONTROL<SV6>	1-82569-266-0	02	1	1004-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0712-		●	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1004-1004	●
284	BOLT; MAG VLV (B) M10X30 FLANGE	0-28651-030-0	02	1	1005-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0803-0811		●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-1003		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-1003			●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-			●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-	●
284	BOLT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	0803-		●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	0712-		●	●
285	NUT; MAG VLV (B) M10 FLANGE	0-91180-210-0	02	1	1004-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0803-0811		●	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6 FLANGE	0-91180-106-0	01	1	0812-1003		●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0812-1003			●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6 FLANGE	0-91180-106-0	01	1	1004-		●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1004-			●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	1004-	●
285	NUT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1004-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	02	1	0712-		●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-0811		●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0812-1003		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0812-1003			●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1004-		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1004-			●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1004-	●
602	GASKET; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1004-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0712-		●	●

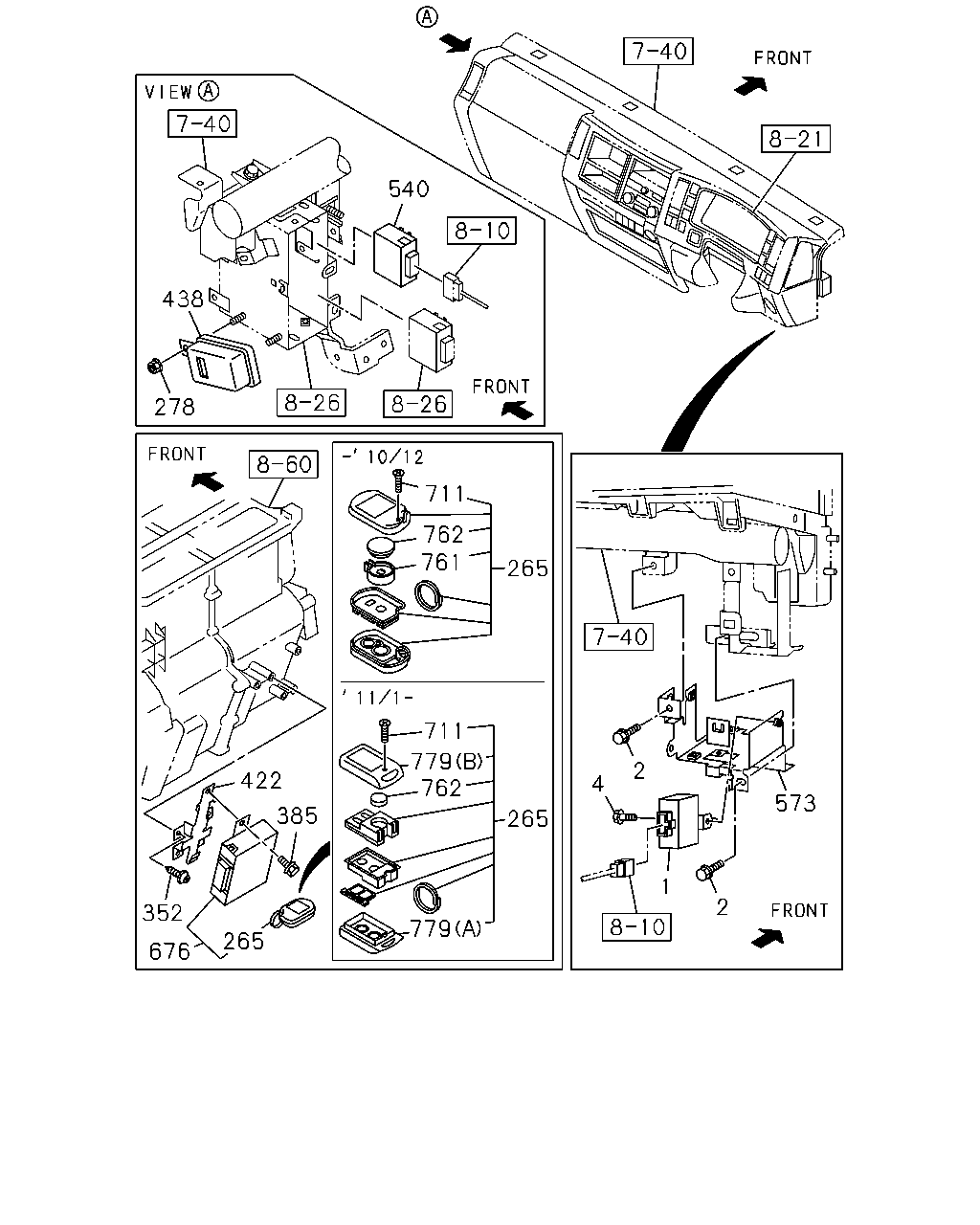

540 438 278 711 762 761 265 711 779 762 779 385 422 352 265 676 265 1 2 573 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	UNIT; FLASHER	8-98025-533-1	01	1	0712-1003		●	●
1	UNIT; FLASHER	8-98025-533-1	01	1	1004-	●	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0712-1003		●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1004-	●	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0712-1003		●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1004-	●	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0712-0811		●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0812-1012		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0812-1012			●
265	TRANSMITTER ASM; AUTO DOOR LOCK AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205			●
265	TRANSMITTER ASM; AUTO DOOR LOCK AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-		●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-			●
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	0712-1003		●	●
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1004-	●	●	●
352	SCREW; BRKT ACCESSORY SOCKET<KC5> M3X10	9-93490-310-0	01	1	1004-	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-0811		●	●
352	SCREW; BRKT AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0812-		●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0812-			●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0712-0811		●	●
385	BOLT; CONT UNIT AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0812-		●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0812-			●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0712-0811		●	●
422	BRACKET; CONT UNIT AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0812-		●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0812-			●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	0712-1003		●	●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1004-	●	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0712-0811		●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0812-1003		●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0812-1003			●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1004-1308	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1004-1308			●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-			●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0712-1003		●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1004-	●	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0712-0811		●	●
676	CONTROL UNIT; KEYLESS ENTRY AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98017-258-1	01	1	0812-1012		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0812-1012			●
676	CONTROL UNIT; KEYLESS ENTRY AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98181-809-0	01	1	1101-1205		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205			●
676	CONTROL UNIT; KEYLESS ENTRY AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1206-		●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-			●
711	SCREW; TRANSMITTER AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0907-1205		●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0907-1205			●
711	SCREW; TRANSMITTER AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-		●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-			●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	01	1	0712-0811		●	●
711	SCREW; TRANSMITTER AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	01	1	0812-0906		●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	01	1	0812-0906			●
761	HOLDER; BATTERY AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0907-1012		●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0907-1012			●
761	HOLDER; BATTERY	8-98078-063-0	01	1	0712-0811		●	●
761	HOLDER; BATTERY AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	01	1	0812-0906		●
761	HOLDER; BATTERY	8-98078-063-0	01	1	0812-0906			●
762	BATTERY	8-98078-061-0	01	1	0712-0811		●	●
762	BATTERY AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	01	1	0812-0906		●
762	BATTERY	8-98078-061-0	01	1	0812-0906			●
762	BATTERY AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0907-		●
762	BATTERY	8-98078-061-0	02	1	0907-			●
779	COVER; TRANSMITTER AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1206-		●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-			●
779	COVER; TRANSMITTER AUSTRALIA EQUIPMENT(B13) REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-243-0	02	1	1206-		●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-			●

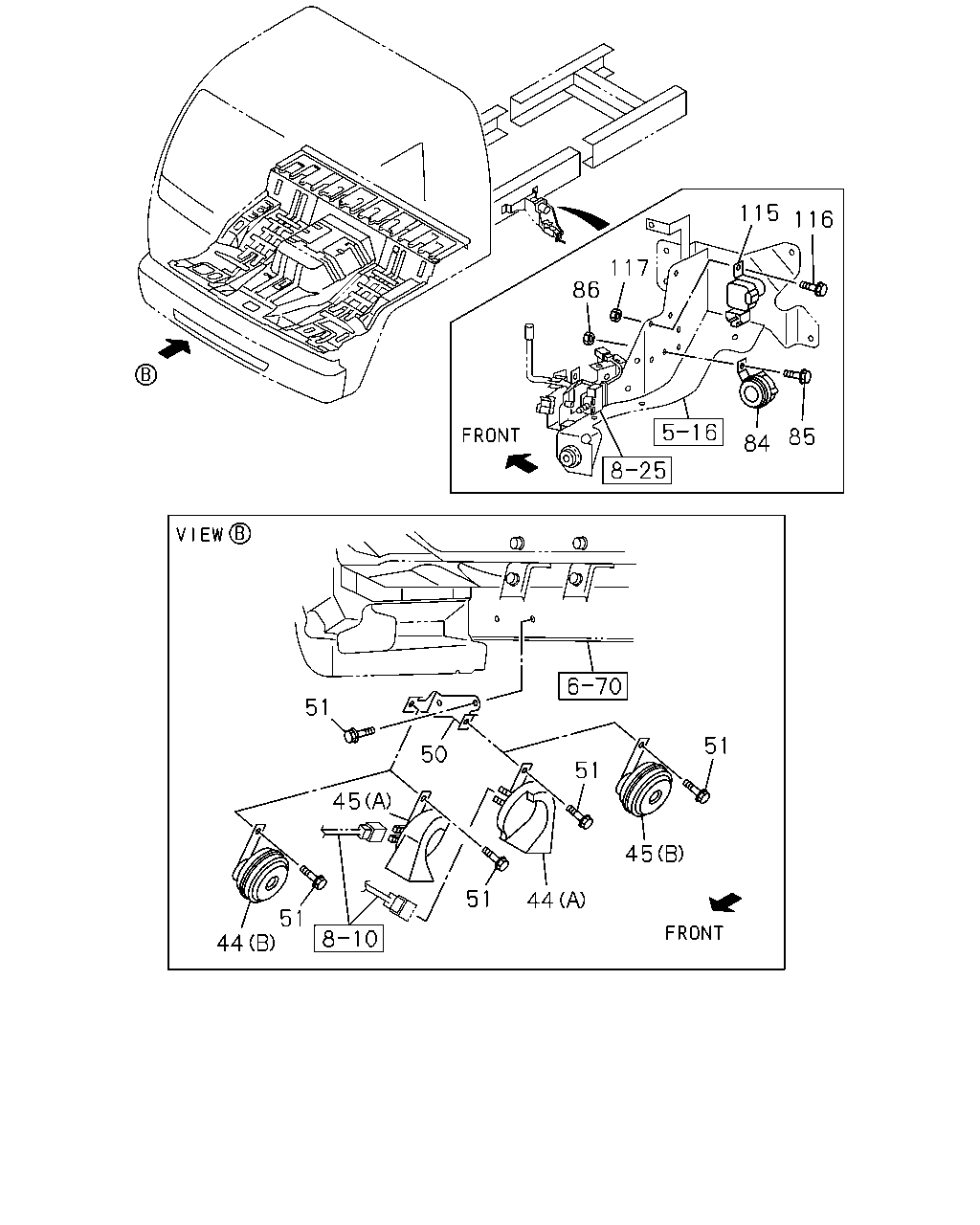

115 116 117 86 85 84 51 51 50 51 45 45 51 44 51 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN(WB7) (B)	8-98022-022-0	01	1	0812-1001		●
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) (B)	8-98022-022-0	01	1	1002-1003		●
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) (B)	8-98022-022-0	01	1	1004-		●
44	HORN; HIGH NOTE (B)	8-98022-022-0	01	1	1004-	●
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0712-0811		●	●
44	HORN; HIGH NOTE ELECTRICAL HORN(WB7) (A)	8-97611-677-2	01	1	0812-		●
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0812-			●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN(WB7) (B)	8-98022-023-0	01	1	0812-1003		●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN(WB7) (B)	8-98022-023-0	01	1	1004-		●
45	HORN; LOW NOTE (B)	8-98022-023-0	01	1	1004-	●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0712-0811		●	●
45	HORN; LOW NOTE ELECTRICAL HORN(WB7) (A)	8-97611-676-2	01	1	0812-		●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0812-			●
50	BRACKET; HORN	8-97613-300-2	01	1	0712-1003		●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1004-	●	●	●
51	BOLT; HORN TO BRKT EXC. ELECTRICAL HORN(WB7),DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1002-		●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0712-1001		●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-1003		●	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN(WB7),DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-1003		●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-1003			●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1004-	●	●	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN(WB7),DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1004-		●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1004-	●		●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0712-			●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0712-			●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0712-			●
115	RELAY; POWER CAB TILT UNIT 24V NIKKO	8-98005-631-1	01	1	0712-			●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0712-			●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0712-			●

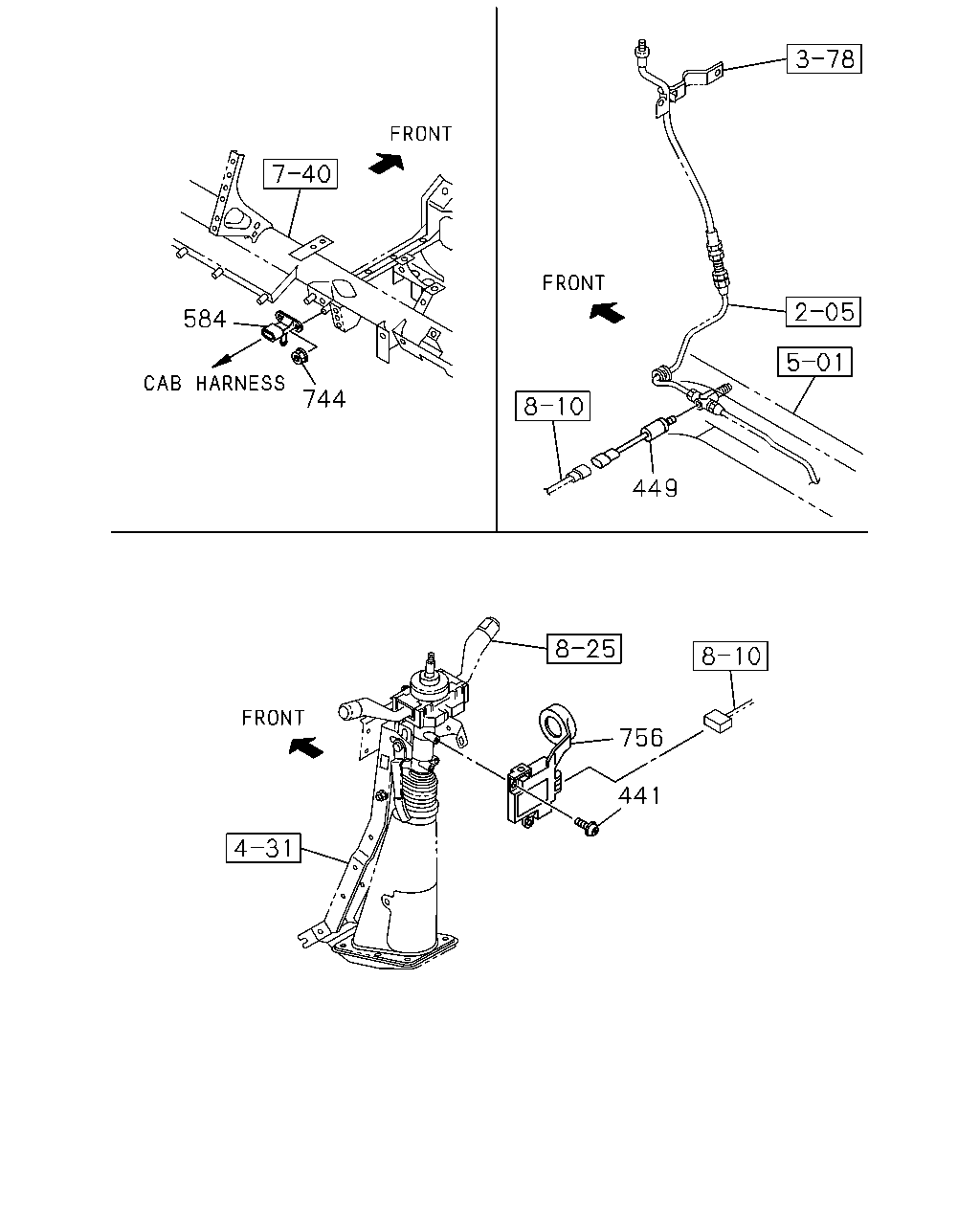

584 744 449 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-0811		●	●
441	SCREW; CONT UNIT IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0812-		●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0812-			●
449	SWITCH; OIL PRESS,CLUTCH	1-82410-143-1	01	1	0712-0802		●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0712-1003		●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1004-	●	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0712-1003		●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1004-	●	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0712-0712		●	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-0811		●	●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98097-554-0	01	1	0812-1005		●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0812-1005			●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98158-127-0	01	1	1006-		●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-			●

39 36 34 33 35 34 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	0812-1003		●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	1004-		●
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (D) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-1003		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1004-	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0803-		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802			●
34	CONNECTOR; MAG VLV,INL PORT (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0803-			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0712-0802			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-1003			●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1004-			●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1004-	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	8-98034-702-0	01	1	0812-1003		●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	8-98034-702-0	01	1	1004-		●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	8-98034-702-0	01	1	1004-	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1004-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0812-1003		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1004-		●
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	03	1	0712-0802		●	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0812-1003		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0812-1003		●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0812-1003			●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	1004-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	1004-		●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1004-			●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M10X30 FLANGE	0-28651-030-0	02	1	1004-	●
39	BOLT; BRKT,MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	0712-0802		●	●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0803-0808		●	●
261	PLUG; MAG VLV DIFF LOCK<C3N>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1004-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0712-0802		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0803-0811		●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0812-1003		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1003		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1003		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1004-1205		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1004-1205		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1004-1205		●
261	PLUG; MAG VLV DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1004-1205	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1004-1205	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1206-1206		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206		●
261	PLUG; MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-		●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-		●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-		●
261	PLUG; MAG VLV DIFF LOCK<C3N> EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1207-	●

282 39 41 450 88 39 267 267 88 88 282 285 450 282 210 39 41 450 39 88 267 602 210 284 88 267 88 282 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0812-1003		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	0812-1003		●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0812-1003			●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	1004-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X30 FLANGE	0-28651-030-0	02	1	1004-		●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1004-			●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M10X30 FLANGE	0-28651-030-0	02	1	1004-	●
39	BOLT; BRKT,MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	0712-0802		●	●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0803-0808		●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0712-0802		●	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802		●	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0803-0811		●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-			●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0802		●	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811		●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-		●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-			●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0712-0802		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811		●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-			●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-0811		●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0812-1003		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0812-1003			●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1004-		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1004-			●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1004-	●
210	WASHER; PL,BRKT DIFF LOCK<C3N> PTO CONTROL<SV6>	1-82569-266-0	02	1	1004-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0712-		●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0811		●	●
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0812-		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-			●
282	BRACKET; MAG VLV (A)	1-47479-463-0	01	1	0712-0802			●
282	BRACKET; MAG VLV (B)	1-47471-374-0	01	1	0712-0802		●	●
282	BRACKET; MAG VLV (C)	8-98034-702-0	01	1	0803-0811		●	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98034-702-0	01	1	0812-		●
282	BRACKET; MAG VLV (C)	8-98034-702-0	01	1	0812-			●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1004-1004	●
284	BOLT; MAG VLV (B) M10X30 FLANGE	0-28651-030-0	02	1	1005-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0803-0811		●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-1003		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-1003			●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-			●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-	●
284	BOLT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1004-	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	0803-		●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	0712-		●	●
285	NUT; MAG VLV (B) M10 FLANGE	0-91180-210-0	02	1	1004-	●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0803-0811		●	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6 FLANGE	0-91180-106-0	01	1	0812-1003		●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0812-1003			●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6 FLANGE	0-91180-106-0	01	1	1004-		●
285	NUT; MAG VLV PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1004-			●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	1004-	●
285	NUT; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1004-	●
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	02	1	0712-		●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0811		●	●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0812-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0812-			●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0712-0811		●	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0812-0910		●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0812-0910			●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-		●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-			●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-0811		●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0812-1003		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0812-1003			●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1004-		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1004-			●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1004-	●
602	GASKET; MAG VLV DIFF LOCK<C3N> PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1004-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0712-		●	●

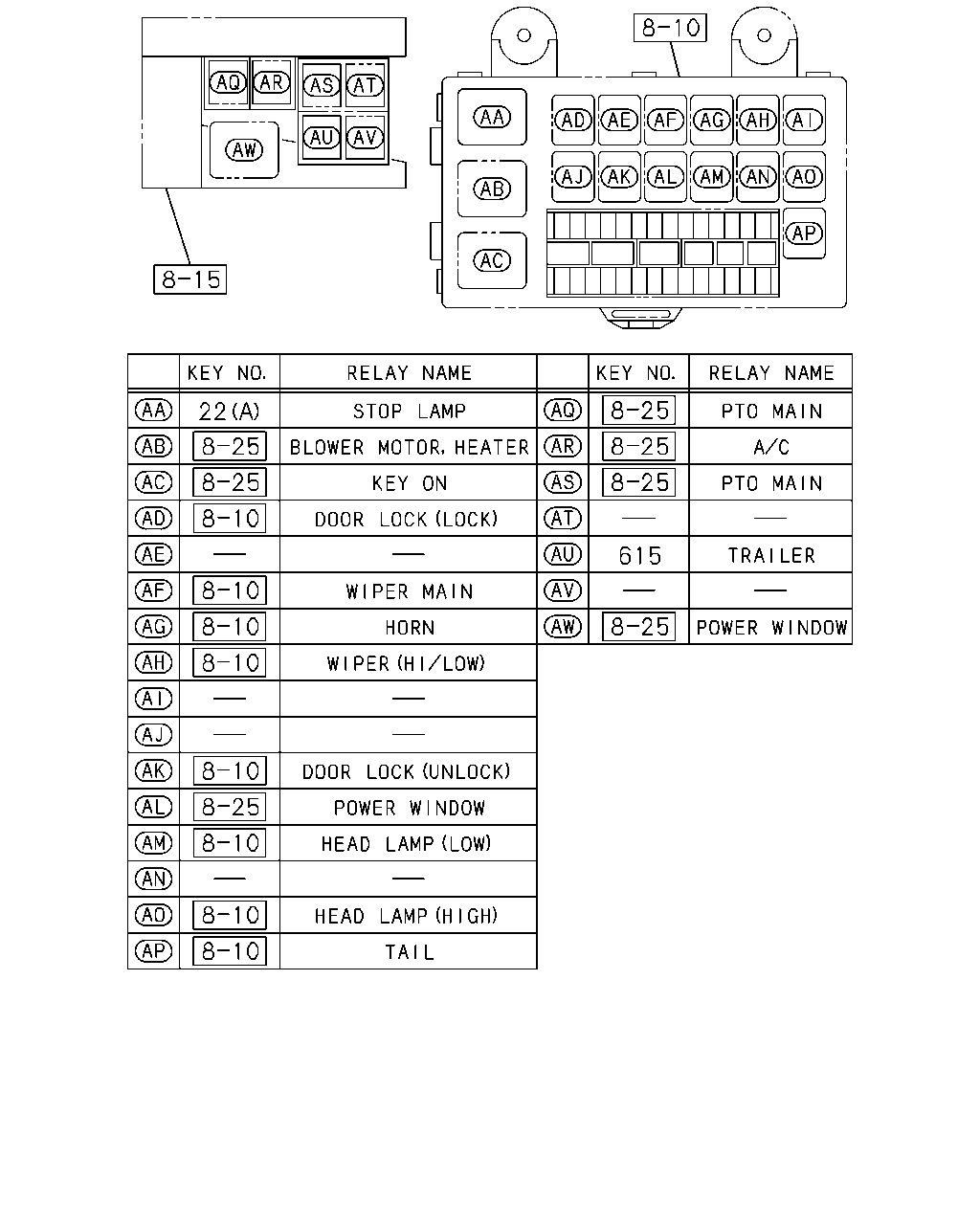

22 615

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1004-	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-1003		●	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1004-	●	●	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	0712-1003		●	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1004-	●	●	●

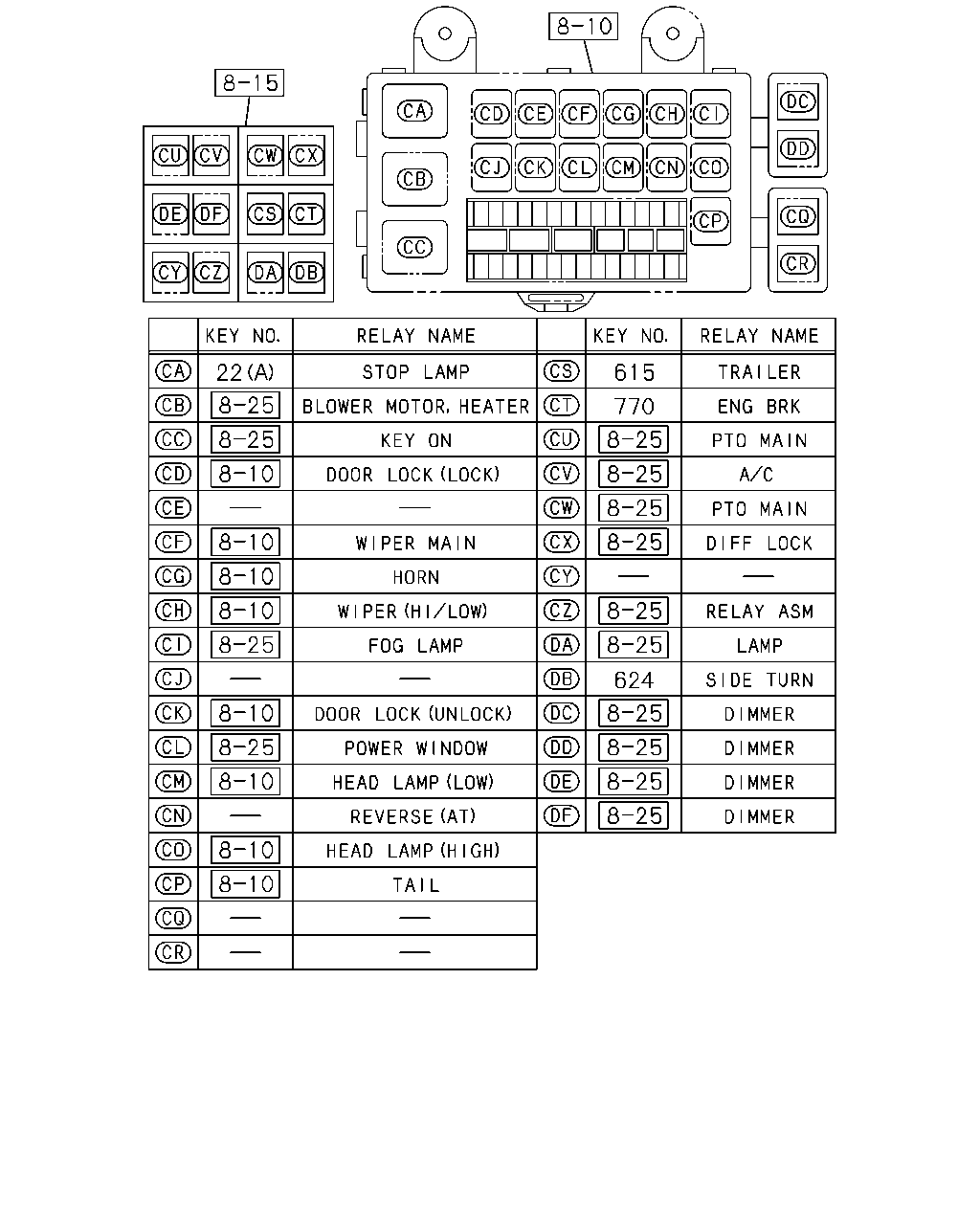

22 615 770 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1004-	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-1003		●	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1004-	●	●	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	0712-1003		●	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1004-	●	●	●
624	RELAY; SIDE TURN LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1004-	●
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1004-	●

531 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1004-	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-1003		●	●
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1004-	●	●	●
531	RELAY; MAIN 24V 30A MITUBA	8-97238-540-0	01	1	0712-1003		●	●
531	RELAY; MAIN 24V 30A MITUBA	8-97238-540-0	01	1	1004-1402	●	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●	●

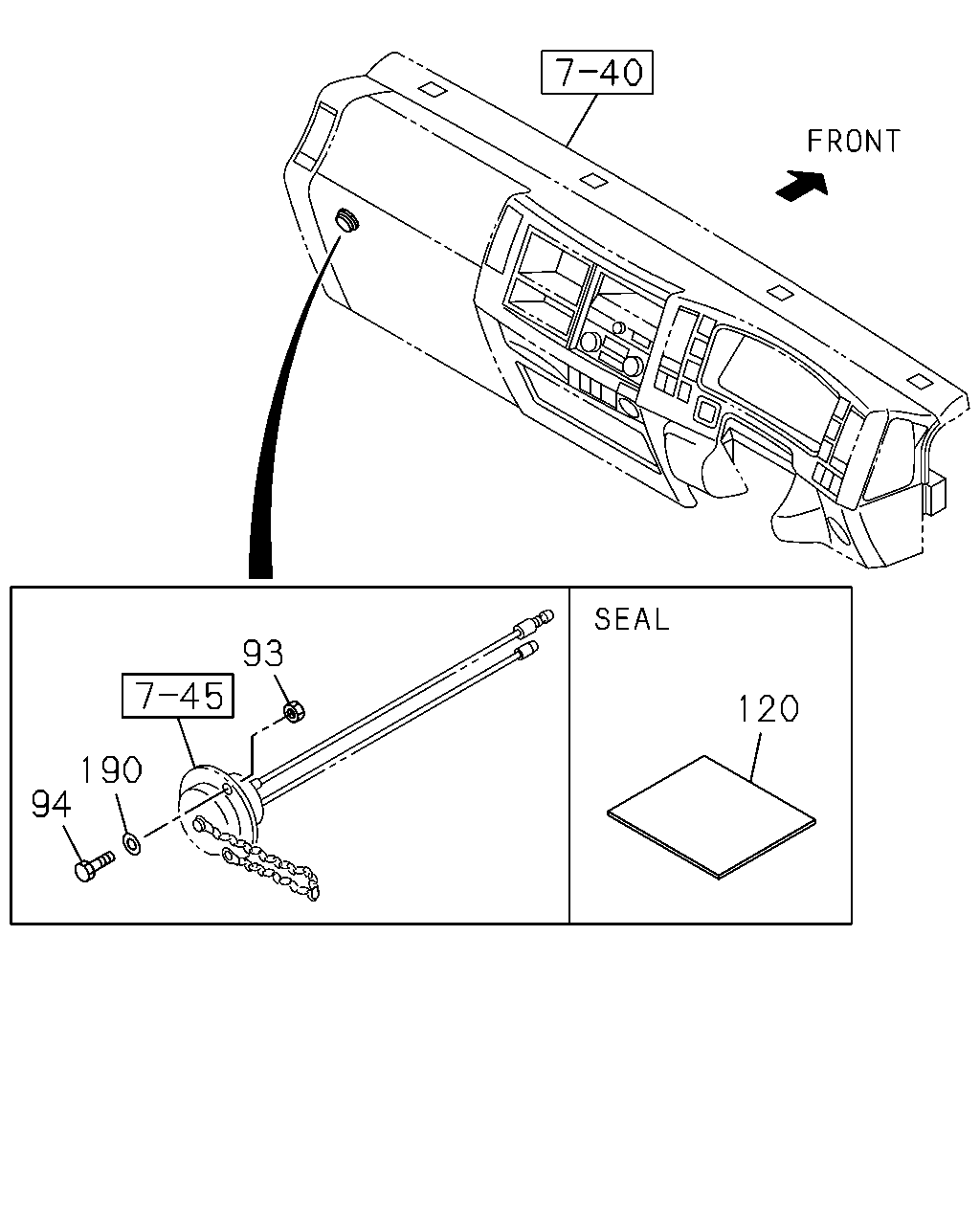

93 120 190 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
93	NUT; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3	9-99110-403-0	03	1	1004-	●
94	SCREW; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3X10 CK-HEAD	9-93090-310-0	02	1	1004-	●
120	SEAL ACCESSORY SOCKET<KC5> 100X40	1-72498-022-1	01	1	1004-	●
190	WASHER ACCESSORY SOCKET<KC5> ID=3.1	0-91510-503-0	01	1	1004-	●

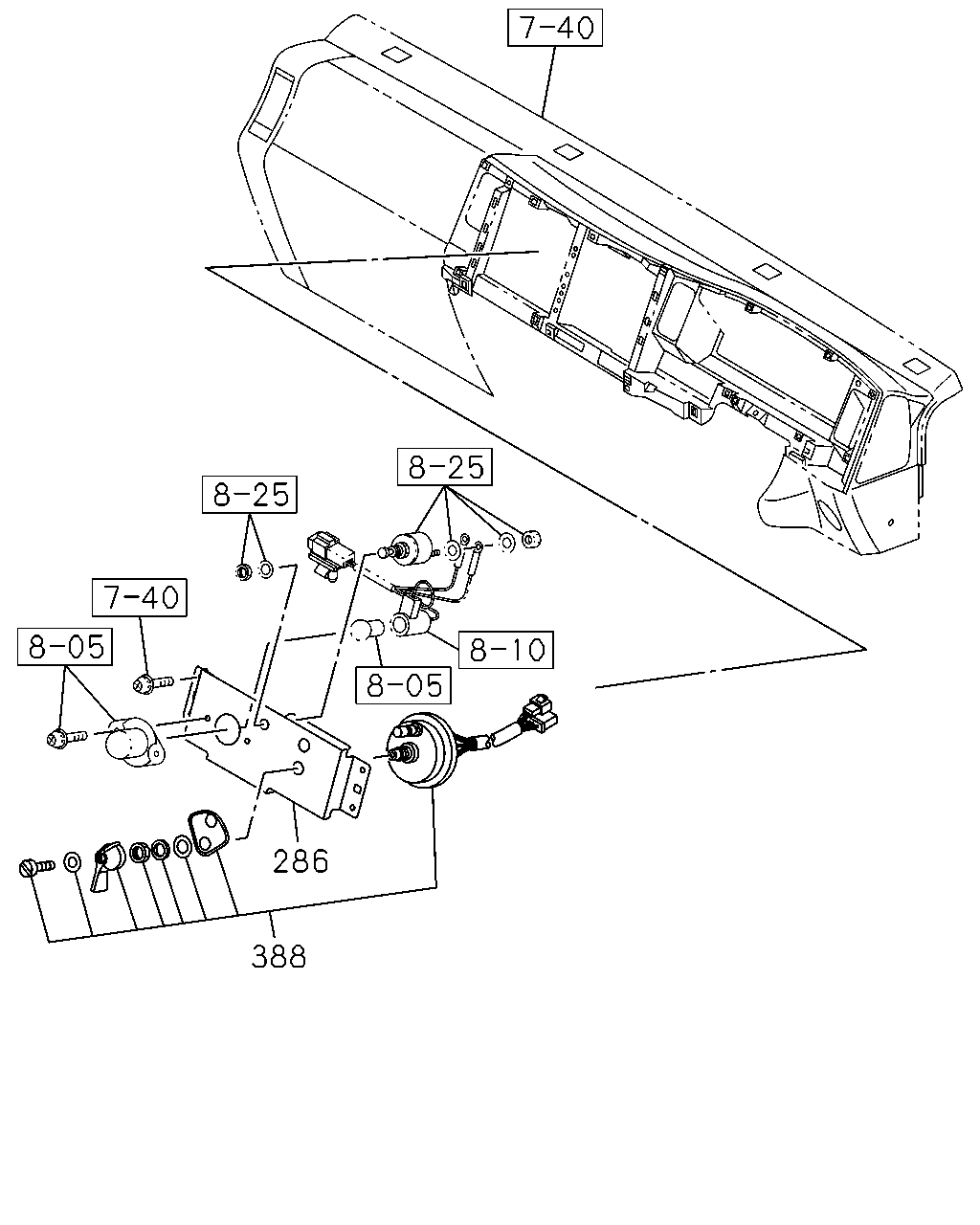

286 388

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	286	BRACKET LAMPS EXP PACKAGE<WL5>	8-97623-460-2	01	1	1004-	●
	388	SWITCH; ROTARY LAMPS EXP PACKAGE<WL5>	1-82430-003-0	01	1	1004-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
