8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#57083) — 123 parça

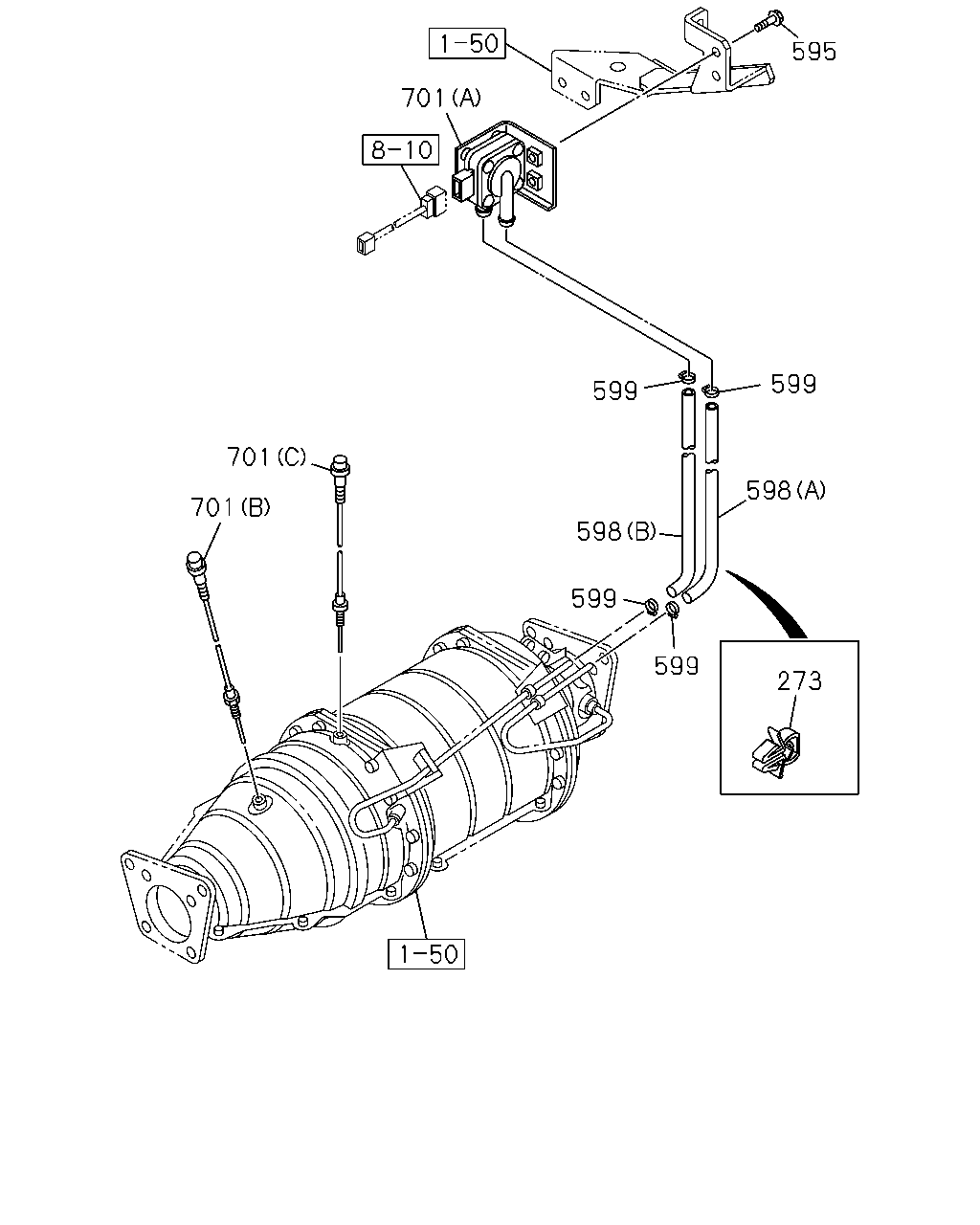

595 701 599 599 701 598 701 598 599 599 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
273	CLIP; HARNESS	8-94225-098-0	01	1	0712-0802	●	●
595	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0712-0811	●	●
595	BOLT; SENSOR EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
595	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0812-		●
598	HOSE; RUBBER,SENSOR (B)	8-98098-462-0	01	1	0712-		●
598	HOSE; RUBBER,SENSOR (A)	8-98098-463-0	01	1	0712-		●
598	HOSE; RUBBER,SENSOR (B)	8-97622-017-0	01	1	0712-0811	●
598	HOSE; RUBBER,SENSOR EURO4 SPECIFICATION<NT4> (B)	8-97622-017-0	01	1	0812-1505	●
598	HOSE; RUBBER,SENSOR EURO4 SPECIFICATION<NT4> (B)	8-98309-677-0	01	1	1506-	●
598	HOSE; RUBBER,SENSOR (A)	8-97622-018-0	01	1	0712-0811	●
598	HOSE; RUBBER,SENSOR EURO4 SPECIFICATION<NT4> (A)	8-97622-018-0	01	1	0812-1505	●
598	HOSE; RUBBER,SENSOR EURO4 SPECIFICATION<NT4> (A)	8-98309-679-0	01	1	1506-	●
599	CLIP; HOSE ID=13	8-97329-627-0	04	1	0712-0811	●	●
599	CLIP; HOSE EURO4 SPECIFICATION<NT4> ID=13	8-97329-627-0	04	1	0812-	●
599	CLIP; HOSE ID=13	8-97329-627-0	04	1	0812-		●
701	SENSOR; DPD (B)	8-97359-987-5	01	1	0712-0811	●	●
701	SENSOR; DPD CATALYSIS CONTROL WITH DPD<8JM> (B)	8-97359-987-5	01	1	0812-	●
701	SENSOR; DPD (B)	8-97359-987-5	01	1	0812-		●
701	SENSOR; DPD (C)	8-97359-989-5	01	1	0712-0811	●	●
701	SENSOR; DPD CATALYSIS CONTROL WITH DPD<8JM> (C)	8-97359-989-5	01	1	0812-	●
701	SENSOR; DPD (C)	8-97359-989-5	01	1	0812-		●
701	SENSOR; DPD (A)	8-97360-368-2	01	1	0712-0811	●	●
701	SENSOR; DPD CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97360-368-2	01	1	0812-	●
701	SENSOR; DPD (A)	8-97360-368-2	01	1	0812-		●

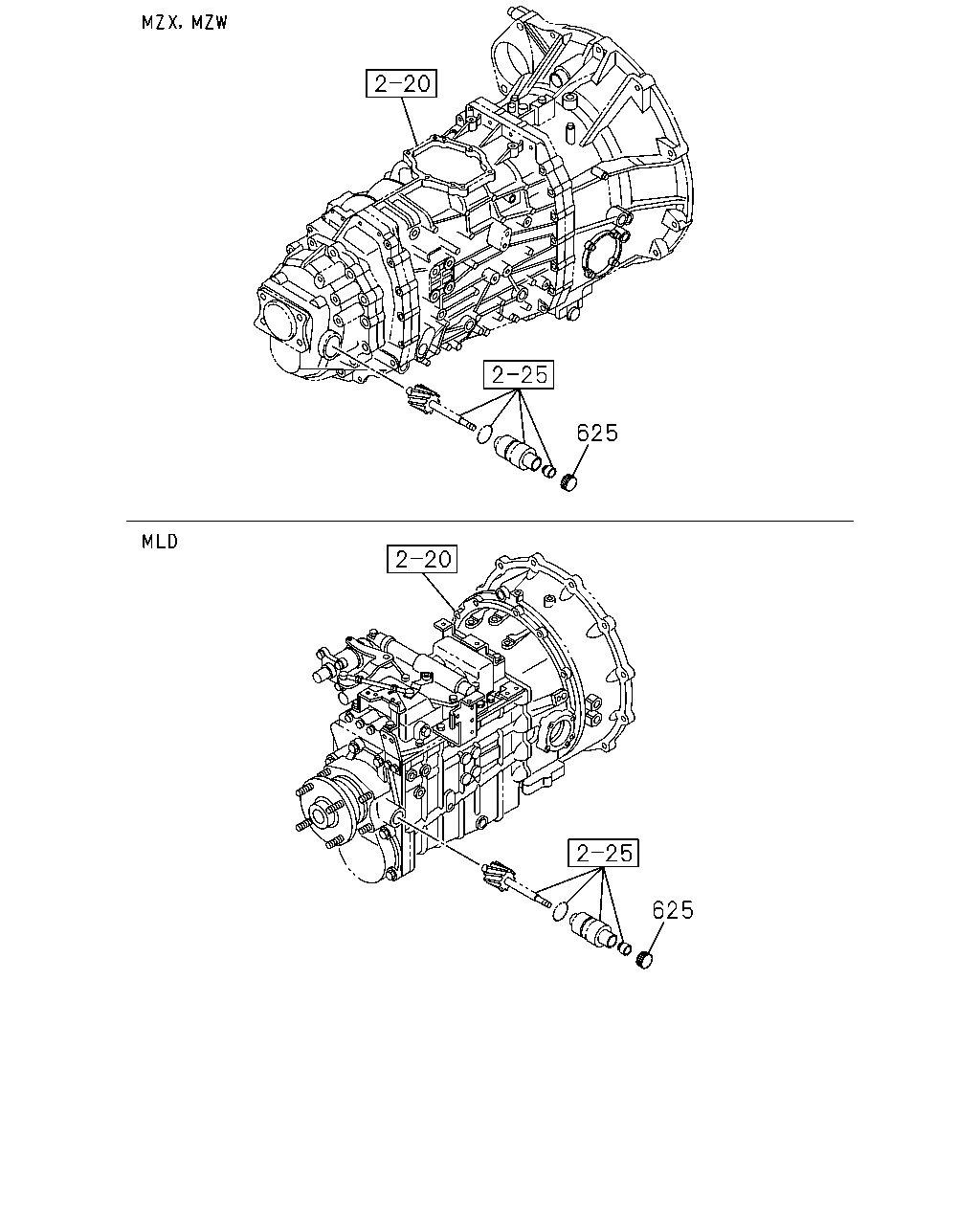

625 625

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	625	CAP; SPEED SENSOR	1-83129-133-0	01	1	0712-1003	●	●
	625	CAP; SPEED SENSOR	1-83129-133-0	01	1	1004-	●	●	●

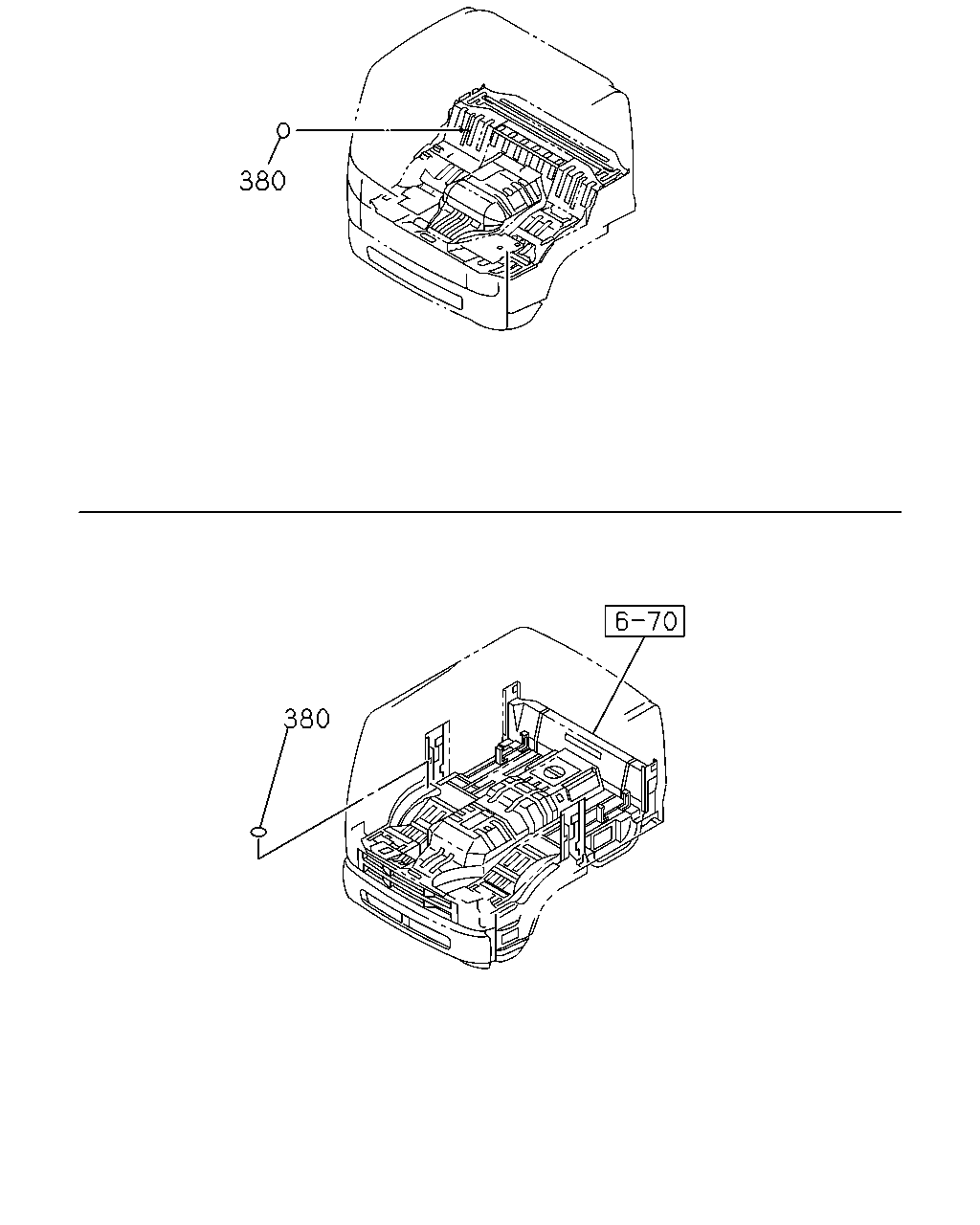

380 380

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	380	SEAL OD=25 BLACK	1-76798-019-0	01	1	0712-1003	●	●
	380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1004-	●	●	●

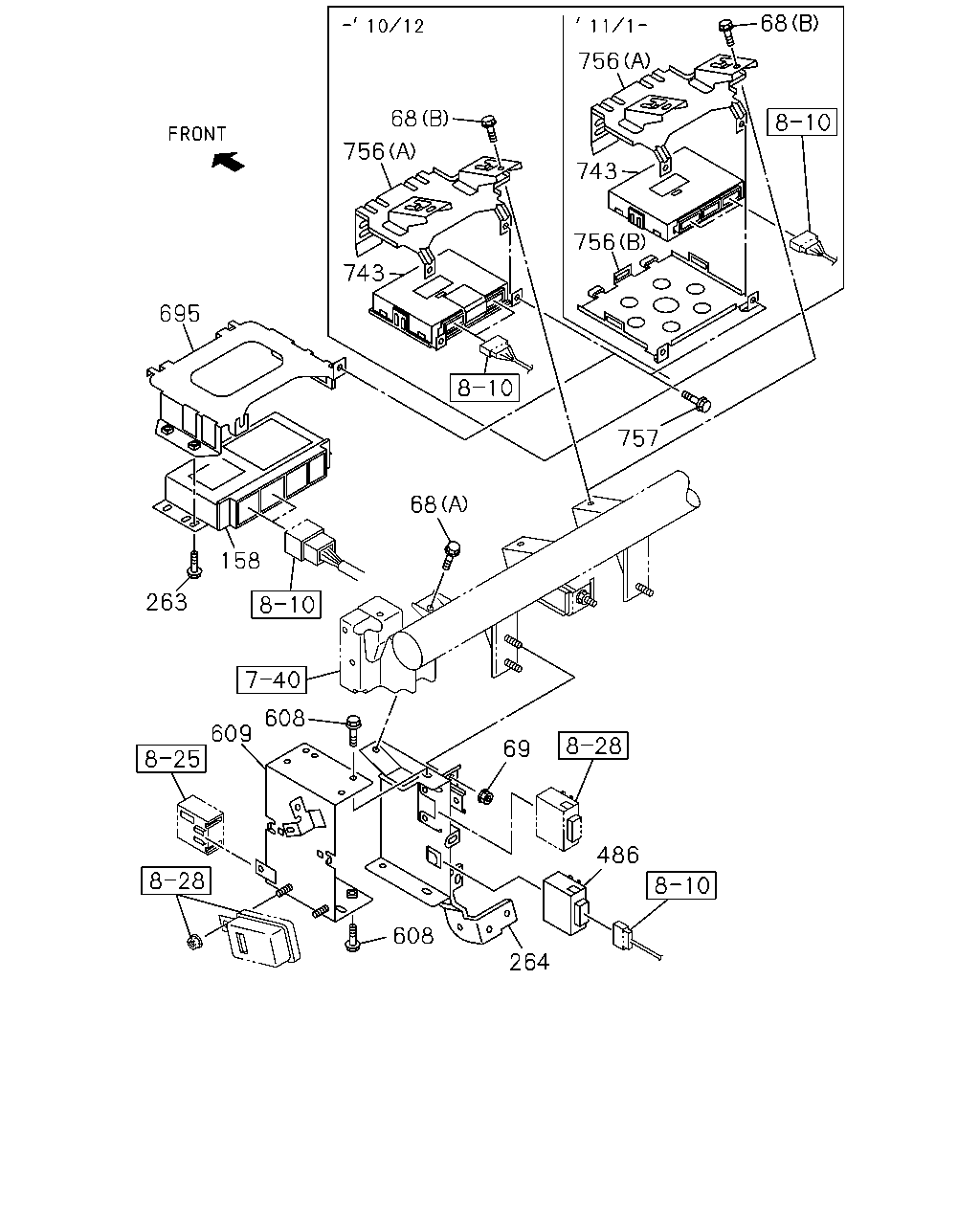

68 756 68 756 743 756 743 695 757 68 158 263 608 609 69 486 608 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
68	BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	0911-1003	●	●
68	BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1004-	●	●
68	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1004-			●
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-1003	●	●
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	1004-	●	●	●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	0712-1003	●	●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1004-	●	●	●
158	CONTROLLER; ABS ANTI LOCK BRAKE<JE5>	1-80119-229-2	01	1	1004-1005			●
158	CONTROLLER; ABS ANTI LOCK BRAKE<JE5> TIRE 11.00R20-14 SPECIAL BLOCK(79R),TIRE 11.00R-20-16 SPECIAL BLOCK(89T),TIRE 10.00R20-16 SPECIALSAND MIDDLE EAST(94K)	1-80119-229-2	01	1	1006-1201			●
158	CONTROLLER; ABS ANTI LOCK BRAKE<JE5> TIRE 11.00R20-14 SPECIAL BLOCK(79R),TIRE 11.00R-20-16 SPECIAL BLOCK(89T),TIRE 10.00R20-16 SPECIALSAND MIDDLE EAST(94K)	8-98170-647-0	01	1	1202-			●
263	BOLT; CONT UNIT ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	04	1	1004-			●
264	BRACKET; CONT UNIT	8-97609-985-9	01	1	0712-1003	●	●
264	BRACKET; CONT UNIT	8-97609-985-9	01	1	1004-	●	●	●
486	CONTROL UNIT; MIRROR O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-97610-202-0	01	1	0812-0912	●
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	0712-1003	●	●
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	1004-	●	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	0712-1003	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	1004-1308	●	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98169-737-1	01	1	1309-	●	●	●
695	BRACKET; CONT UNIT,ABS ANTI LOCK BRAKE<JE5>	8-98045-016-1	01	1	1004-			●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98125-904-0	01	1	0911-1005	●	●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98155-169-1	01	1	1006-1007	●	●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98176-213-0	01	1	1008-1012	●	●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98182-026-3	01	1	1101-	●	●
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> (B)	8-98111-836-1	01	1	1101-	●	●
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> (A)	8-98056-411-3	01	1	0911-1003	●	●
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> (A)	8-98056-411-3	01	1	1004-	●	●
756	BRACKET; ECU,BCM ANTI LOCK BRAKE<JE5> (A)	8-98056-411-3	01	1	1004-			●
757	BOLT; BRKT,BCM MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE	0-28650-616-0	02	1	0911-1003	●	●
757	BOLT; BRKT,BCM MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE	0-28650-616-0	02	1	1004-	●	●
757	BOLT; BRKT,BCM ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	02	1	1004-			●

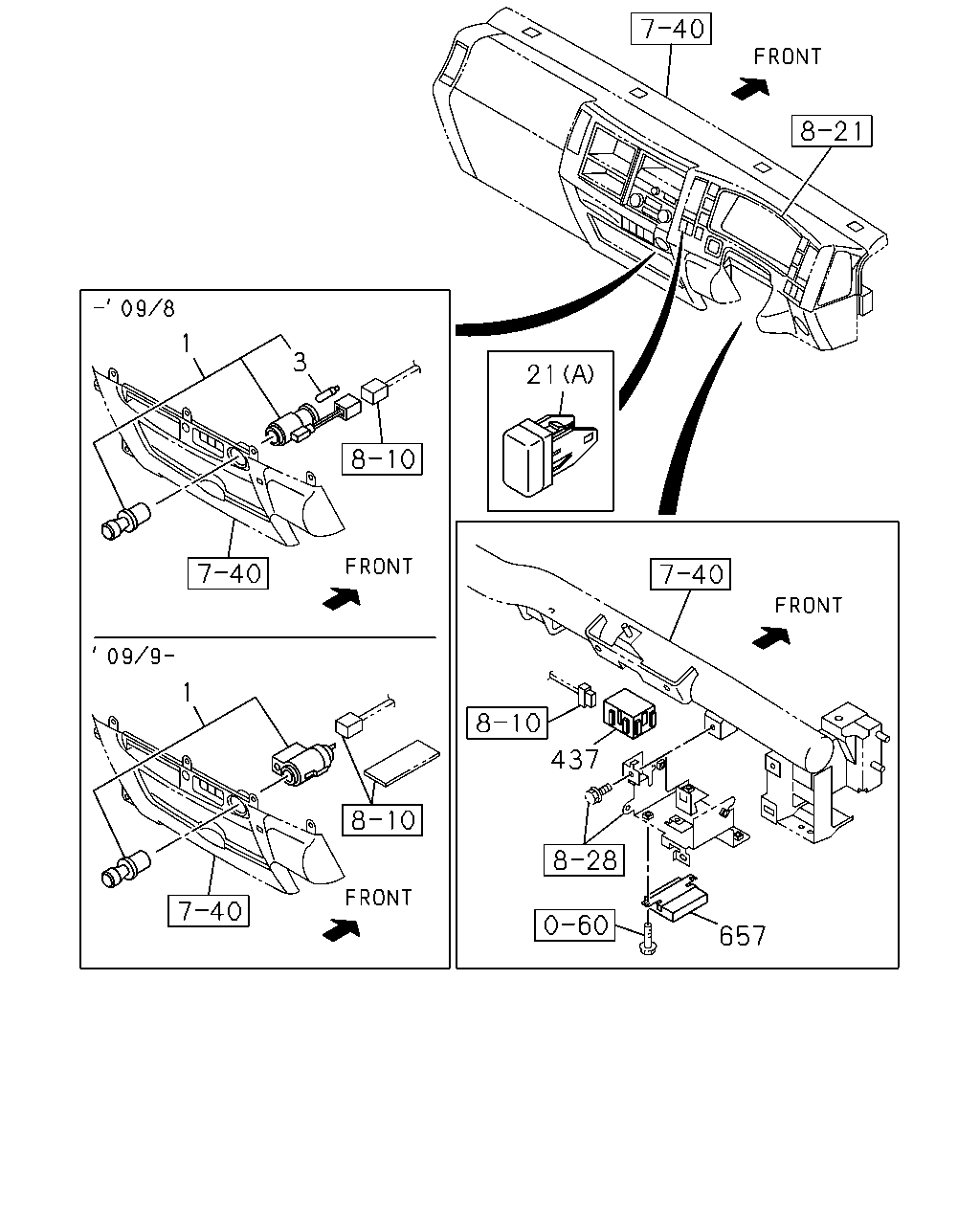

21 1 3 1 437 657

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LIGHTER; CIGAR	8-98076-255-0	01	1	0712-0908	●	●
1	LIGHTER; CIGAR	8-98142-962-0	01	1	0909-1003	●	●
1	LIGHTER; CIGAR	8-98142-962-0	01	1	1004-	●	●	●
3	BULB; CIGAR LIGHTER 28V 1.8W	8-97173-159-0	01	1	0712-0908	●	●
21	COVER; HOLE (A)	8-98025-954-1	01	1	0712-0811	●	●
21	COVER; HOLE EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A)	8-98025-954-1	01	1	0812-0912	●
21	COVER; HOLE (A)	8-98025-954-1	01	1	0812-0912		●
21	COVER; HOLE (A)	8-98025-954-1	01	1	1001-1003	●	●
21	COVER; HOLE (A)	8-98025-954-1	01	1	1004-	●	●	●
21	COVER; HOLE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97101-974-0	01	1	0712-	●	●
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	0712-	●	●
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	0712-1003	●	●
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	1004-1401	●	●	●
657	CONTROL UNIT; MIMAMORI	8-98260-912-0	01	1	1402-	●	●	●

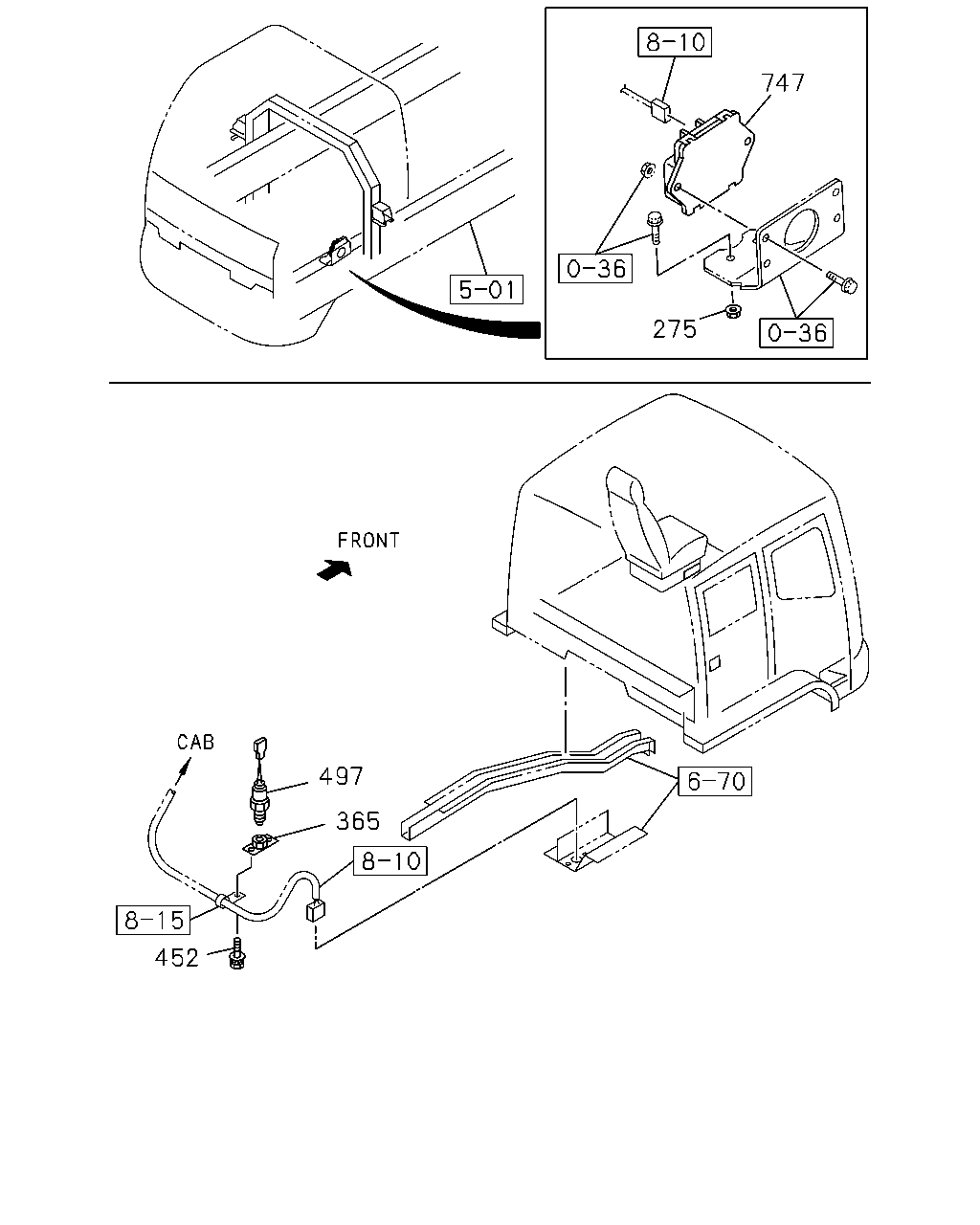

747 275 497 365 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
275	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0811	●	●
275	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0812-	●
275	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-		●
365	PLATE ASM; SW,CAB TILT	1-71998-393-1	01	1	0712-		●
452	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0712-		●
497	SWITCH; CAB TILT STAMP NC	1-82380-125-1	01	1	0712-		●
747	CONTROL UNIT; TURBOCHARGER	8-98077-118-2	01	1	0712-0811	●	●
747	CONTROL UNIT; TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98077-118-2	01	1	0812-1103	●
747	CONTROL UNIT; TURBOCHARGER	8-98077-118-2	01	1	0812-1103		●
747	CONTROL UNIT; TURBOCHARGER EURO4 SPECIFICATION<NT4>	8-98162-807-0	01	1	1104-	●
747	CONTROL UNIT; TURBOCHARGER	8-98162-807-0	01	1	1104-		●

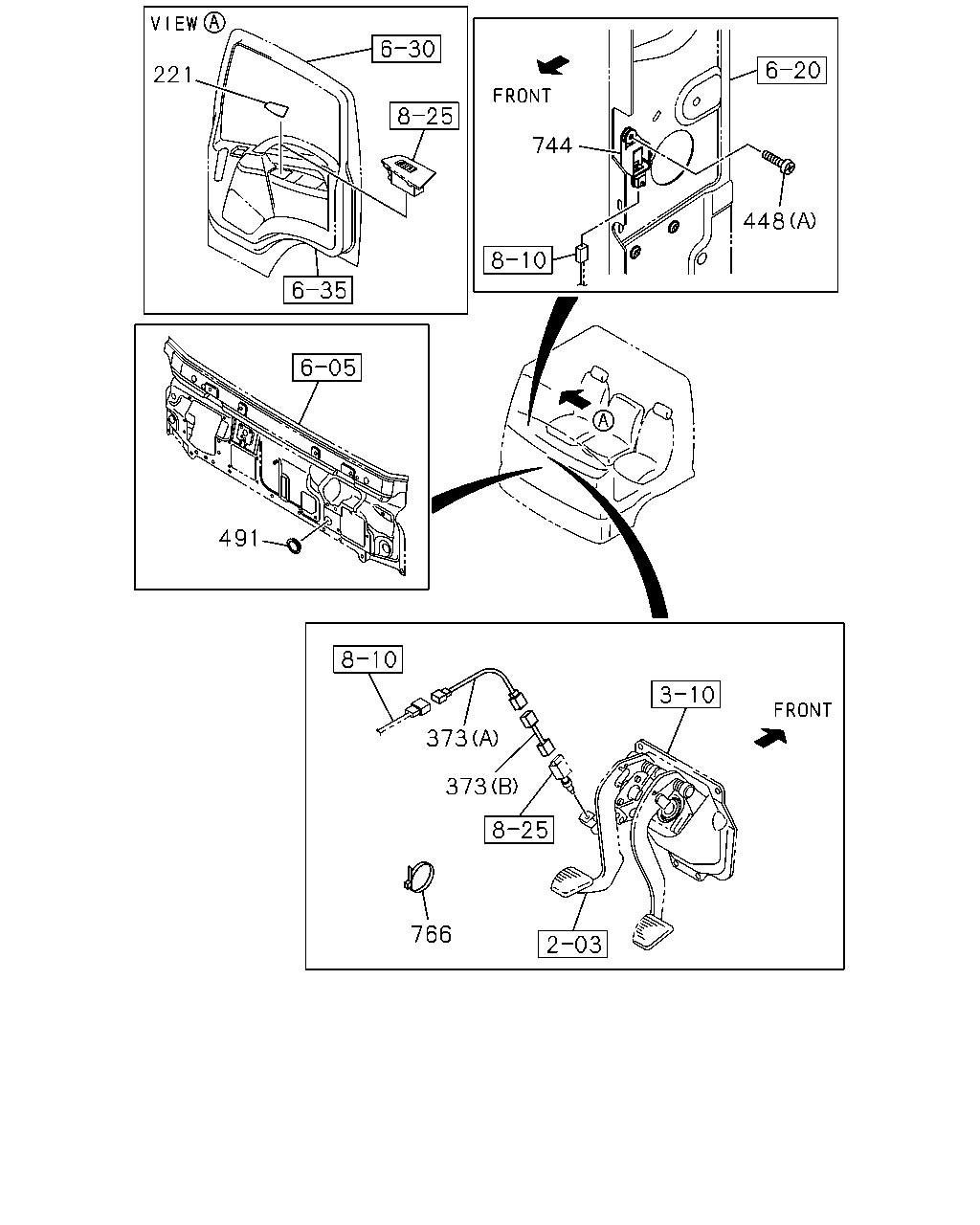

221 744 448 491 373 373 766

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	0812-1003	●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1004-	●
221	COVER; HOLE,DOOR LOCK SW	8-98029-915-2	01	1	1004-			●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	0812-1003	●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1004-	●
221	COVER; HOLE,DOOR LOCK SW	8-98029-916-2	01	1	1004-			●
373	HARNESS; CLU SWITCH (B)	8-98105-661-0	01	1	0712-0809	●	●
373	HARNESS; CLU SWITCH (A)	8-98059-419-1	01	1	0712-0801	●	●
373	HARNESS; CLU SWITCH (A)	8-98053-829-3	01	1	0802-1003	●	●
373	HARNESS; CLU SWITCH (A)	8-98053-829-3	01	1	1004-	●	●	●
448	BOLT; SENSOR POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X16 FLANGE	0-28050-616-0	01	1	0712-1003	●	●
448	BOLT; SENSOR (B) M6X16 FLANGE	0-28050-616-0	01	1	0712-1003	●	●
448	BOLT; SENSOR (B) M6X16 FLANGE	0-28050-616-0	01	1	1004-1311	●	●	●
448	BOLT; SENSOR POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X16 FLANGE	0-28050-616-0	01	1	1004-1311	●	●
448	BOLT; SENSOR (B) M6X16 FLANGE	0-28050-616-0	01	1	1312-	●	●	●
448	BOLT; SENSOR POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X16 FLANGE	0-28050-616-0	01	1	1312-	●	●	●
448	BOLT; SENSOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	0712-	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	0712-0804	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	0805-1003	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1004-	●	●	●
744	SENSOR; AIR BAG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97386-841-2	01	1	0712-	●	●
766	BAND; CLIP L=140	5-09707-031-1	01	1	0712-0908	●	●

21 448 553 648 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	COVER; HOLE (A)	8-98025-954-1	01	1	0712-0811	●	●
21	COVER; HOLE EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> (A)	8-98025-954-1	01	1	0812-0912	●
21	COVER; HOLE (A)	8-98025-954-1	01	1	0812-0912		●
21	COVER; HOLE (A)	8-98025-954-1	01	1	1001-1003	●	●
21	COVER; HOLE (A)	8-98025-954-1	01	1	1004-	●	●	●
21	COVER; HOLE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97101-974-0	01	1	0712-	●	●
448	BOLT; SENSOR POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X16 FLANGE	0-28050-616-0	01	1	0712-1003	●	●
448	BOLT; SENSOR (B) M6X16 FLANGE	0-28050-616-0	01	1	0712-1003	●	●
448	BOLT; SENSOR (B) M6X16 FLANGE	0-28050-616-0	01	1	1004-1311	●	●	●
448	BOLT; SENSOR POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X16 FLANGE	0-28050-616-0	01	1	1004-1311	●	●
448	BOLT; SENSOR (B) M6X16 FLANGE	0-28050-616-0	01	1	1312-	●	●	●
448	BOLT; SENSOR POWER TAKE OFF-FLYWHEEL(6SZ) (B) M6X16 FLANGE	0-28050-616-0	01	1	1312-	●	●	●
448	BOLT; SENSOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	0712-	●	●
553	GASKET ID=14.2 OD=18.8	8-97369-404-0	01	1	0712-1003	●	●
553	GASKET ID=14.2 OD=18.8	8-97369-404-0	01	1	1004-	●	●	●
648	SENSOR; CRANK ANGLE	8-97606-943-0	01	1	0712-1003	●	●
648	SENSOR; CRANK ANGLE	8-97606-943-0	01	1	1004-	●	●	●
