Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#5708) — 278 parça

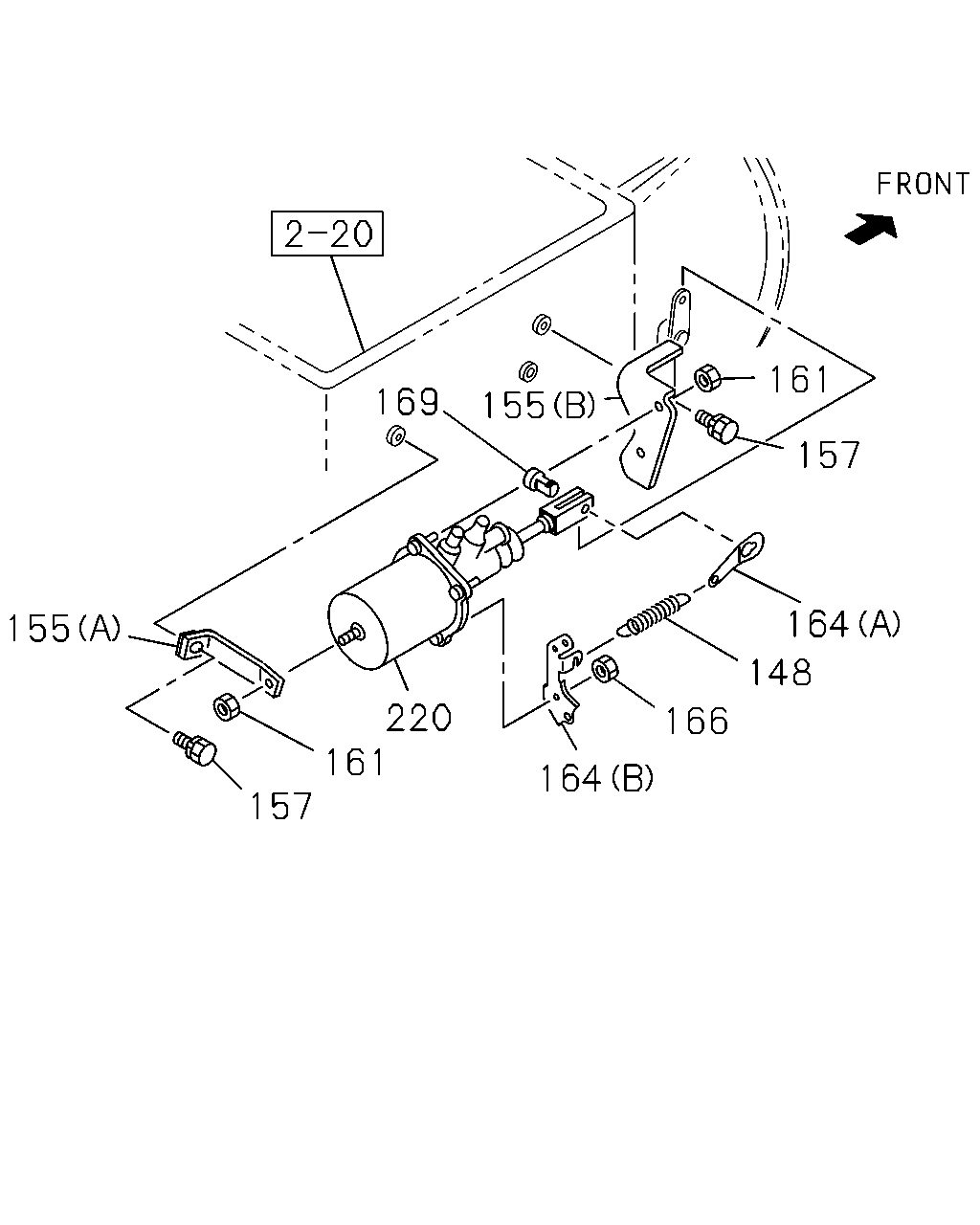

161 169 164 157 155 148 155 166 220 165 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9811-0610	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0611-		●	●
155	BRACKET; MINIPACK (C)	1-31429-382-0	01	1	0611-			●
155	BRACKET; MINIPACK (D)	1-31429-383-0	01	1	0611-			●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	9811-0610	●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	0611-		●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	9811-0610	●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	0611-		●
157	BOLT; BRKT	1-31829-421-0	03	1	0611-			●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9811-0610	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0611-		●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0611-			●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9811-0602	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-0610	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0611-		●
164	EYE; SPRING (A)	1-31426-041-0	01	1	9811-0610	●
164	EYE; SPRING (A)	1-31426-041-0	01	1	0611-		●	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	9811-0610	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	0611-		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47475-372-0	01	1	0611-			●
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	02	1	0611-			●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9811-0602	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-0610	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0611-		●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9811-0610	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0611-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-3	01	1	0611-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-383-2	01	1	9811-0610	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-388-2	01	1	0611-		●

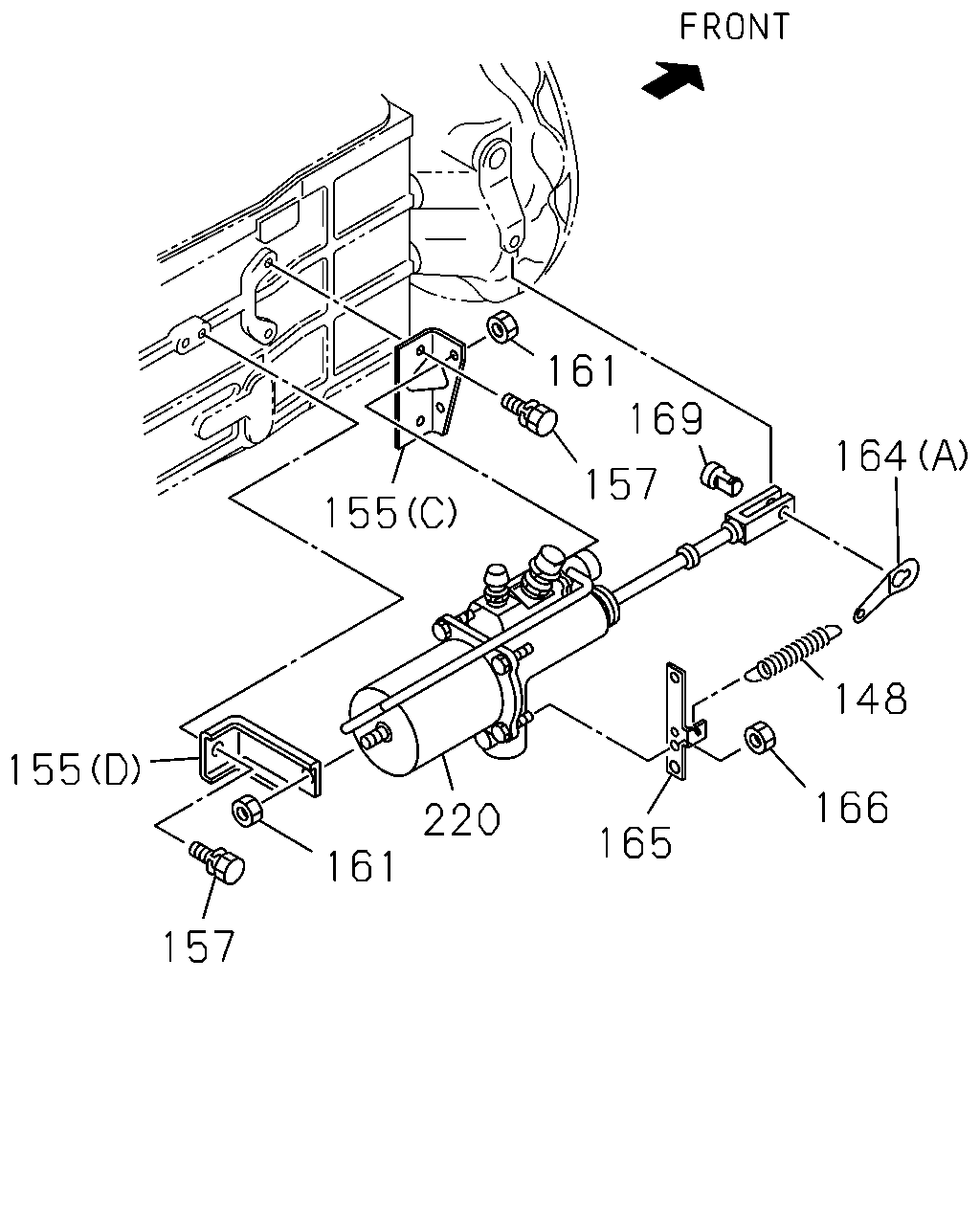

161 155 169 157 164 155 148 220 161 157 166 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9811-0610	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0611-		●	●
155	BRACKET; MINIPACK (C)	1-31429-382-0	01	1	0611-			●
155	BRACKET; MINIPACK (D)	1-31429-383-0	01	1	0611-			●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	9811-0610	●
155	BRACKET; MINIPACK (B)	1-31429-175-2	01	1	0611-		●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	9811-0610	●
155	BRACKET; MINIPACK (A)	1-31429-176-0	01	1	0611-		●
157	BOLT; BRKT	1-31829-421-0	03	1	0611-			●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9811-0610	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0611-		●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0611-			●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9811-0602	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0603-0610	●
161	NUT; BRKT M8 FLANGE	0-91180-208-0	03	1	0611-		●
164	EYE; SPRING (A)	1-31426-041-0	01	1	9811-0610	●
164	EYE; SPRING (A)	1-31426-041-0	01	1	0611-		●	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	9811-0610	●
164	EYE; SPRING (B)	1-47477-789-0	01	1	0611-		●
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	02	1	0611-			●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9811-0602	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0603-0610	●
166	NUT; SPRING EYE M8 FLANGE	0-91180-208-0	02	1	0611-		●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9811-0610	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0611-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-3	01	1	0611-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-383-2	01	1	9811-0610	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-388-2	01	1	0611-		●

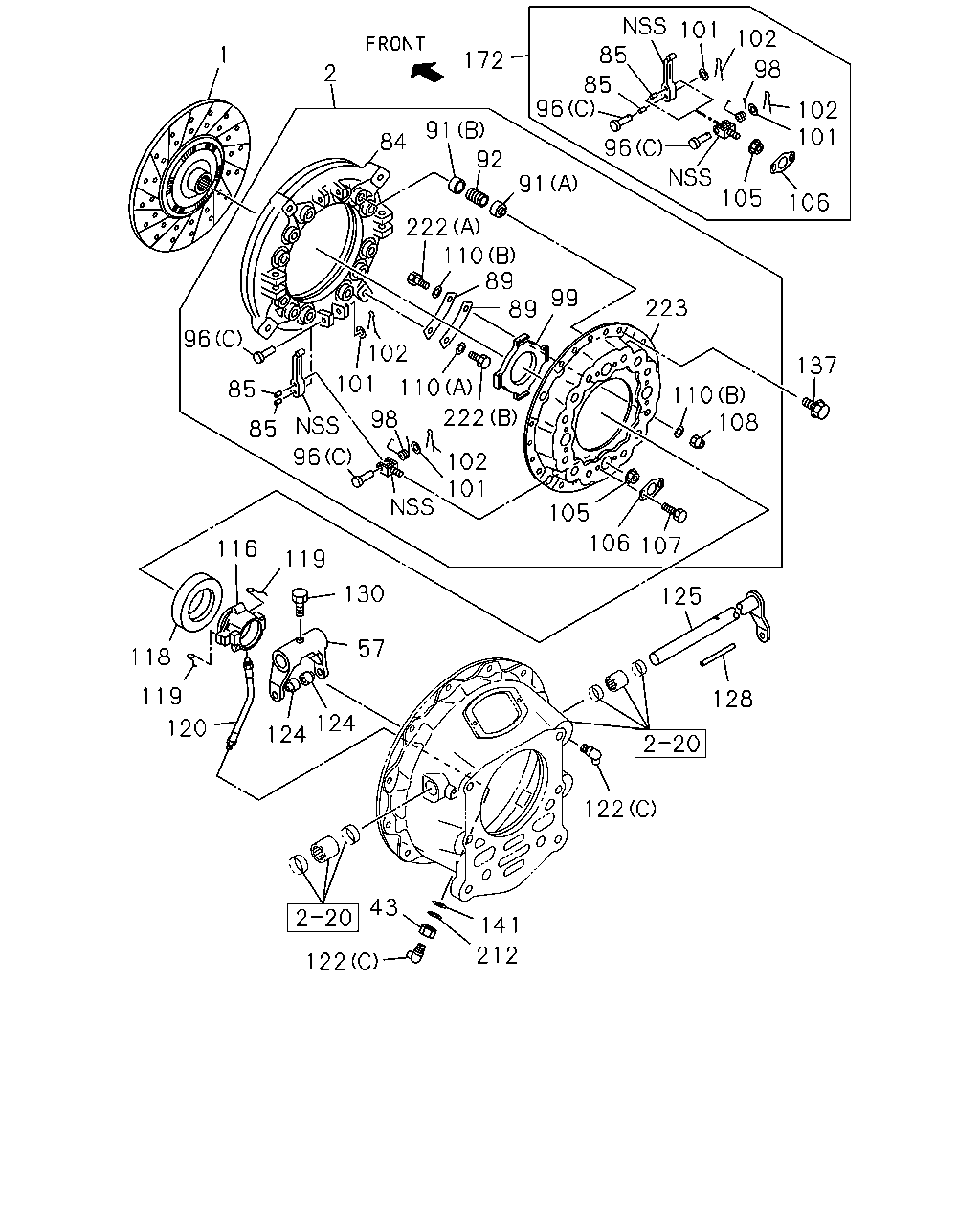

91 84 92 137 91 110 1 222 89 89 222 102 101 96 2 85 223 110 110 85 98 96 102 108 101 107 105 106 116 119 118 124 57 128 13 119 131 130 123 125 120 122 172 102 101 96 122 102 98 96 85 85 101 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15" TAI	1-31240-676-0	01	1	9811-0009	●
1	DISC; CLUTCH 15"	1-31240-875-0	01	1	0010-0610	●
1	DISC; CLUTCH 15"	1-31240-851-1	01	1	0611-		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0611-		●
2	PLATE ASM; PRESSURE,CLU TAI	1-31220-305-1	01	1	9811-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-373-2	01	1	0110-0610	●
2	PLATE ASM; PRESSURE,CLU	1-31220-382-2	01	1	0611-			●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0512	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0610	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0611-		●
57	FORK; SHIFT,CLU	1-31341-042-0	01	1	0611-			●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9811-0610	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0611-		●
84	PLATE; PRESSURE	1-31221-116-0	01	1	0611-			●
84	PLATE; PRESSURE 15" TAI	1-31221-100-0	01	1	9811-0610	●
84	PLATE; PRESSURE 15" TAI	1-31221-100-0	01	1	0611-		●
85	BUSHING; RELEASE LEVER TAI	9-31239-116-0	08	1	9811-0610	●
85	BUSHING; RELEASE LEVER TAI	9-31239-116-0	08	1	0611-		●	●
89	PLATE; STRAP TAI	1-31229-050-0	16	1	9811-0610	●
89	PLATE; STRAP TAI	1-31229-050-0	16	1	0611-		●	●
91	SEAT; SPR (A) ID=37 H=25 TAI	1-31219-012-0	12	1	9811-0610	●
91	SEAT; SPR (A) ID=37 H=25 TAI	1-31219-012-0	12	1	0611-		●	●
91	SEAT; SPR (B) ID=37 H=15 TAI	1-31219-013-0	12	1	9811-0610	●
91	SEAT; SPR (B) ID=37 H=15 TAI	1-31219-013-0	12	1	0611-		●	●
92	SPRING; CLU	1-31214-066-0	12	1	0611-			●
92	SPRING; CLU TAI	1-31214-039-0	12	1	9811-0109	●
92	SPRING; CLU	1-31214-065-0	12	1	0110-0610	●
92	SPRING; CLU	1-31214-086-0	12	1	0611-		●
96	PIN; RELEASE LEVER (C) L=57.0 TAI	1-31232-014-0	08	1	0611-			●
96	PIN; RELEASE LEVER (B) L=49.0 TAI	1-31232-005-0	04	1	9811-0610	●
96	PIN; RELEASE LEVER (B) L=49.0 TAI	1-31232-005-0	04	1	0611-		●
96	PIN; RELEASE LEVER (A) L=57.0 TAI	1-31232-014-0	04	1	9811-0610	●
96	PIN; RELEASE LEVER (A) L=57.0 TAI	1-31232-014-0	04	1	0611-		●
98	SPRING; RETURN	1-31233-009-0	04	1	0611-			●
98	SPRING; RETURN TAI	1-31233-003-0	04	1	9811-0610	●
98	SPRING; RETURN TAI	1-31233-003-0	04	1	0611-		●
101	WASHER; RELEASE LEVER TAI	9-31239-039-0	08	1	9811-0109	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0610	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0611-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9811-0610	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0611-		●	●
105	NUT; SUPPORT TAI	9-31235-061-0	04	1	9811-0109	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0610	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0611-		●	●
106	PLATE; LK,LEVER SUPPORT TAI	1-31239-019-0	04	1	9811-0610	●
106	PLATE; LK,LEVER SUPPORT TAI	1-31239-019-0	04	1	0611-		●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER TAI	1-31239-020-0	08	1	9811-0308	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0610	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0611-		●	●
108	NUT; STRAP TAI	1-09449-036-0	04	1	9811-0610	●
108	NUT; STRAP TAI	1-09449-036-0	04	1	0611-		●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2 TAI	1-09503-095-0	08	1	9811-0403	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-0610	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0611-		●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2 TAI	1-31229-009-0	04	1	9811-0610	●
110	WASHER; SPECIAL,STRAP (A) T=1.2 TAI	1-31229-009-0	04	1	0611-		●	●
116	BLOCK; SHIFT,CLU	1-31321-090-0	01	1	0611-			●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9811-0610	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0611-		●
118	BEARING; CLU RELEASE	1-31329-022-0	01	1	0611-			●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9811-0111	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0610	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0611-		●
119	SPRING; SHIFT FORK	1-31329-023-0	02	1	0611-			●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9811-0610	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0611-		●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9811-0610	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0611-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=233	1-31119-033-0	01	1	0611-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390 TAI	1-09364-870-0	01	1	9811-0003	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-0610	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0611-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C)	1-31119-035-0	02	1	0611-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	9811-0610	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	0611-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9811-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-0610	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0611-		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9811-0606	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-0610	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0611-		●
124	BEARING; CAM,SHIFT FORK	1-31349-029-0	02	1	0611-			●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9907-0610	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0611-		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9811-9906	●
125	SHAFT; CLU	1-31342-292-0	01	1	0611-			●
125	SHAFT; CLU	1-31342-169-1	01	1	9811-0610	●
125	SHAFT; CLU	1-31342-169-1	01	1	0611-		●
128	KEY; FEATHER,CLU SHAFT	1-31349-030-0	01	1	0611-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9811-0610	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0611-		●
130	SCREW; SHIFT FORK	1-31349-028-0	01	1	0611-			●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9811-0512	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-0610	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0611-		●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9811-0603	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-0610	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0611-		●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9811-0512	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-0610	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0611-		●	●
172	LEVER KIT; RELEASE,CLU	1-87830-884-3	01	1	0611-			●
172	LEVER KIT; RELEASE,CLU	1-87830-808-0	01	1	9811-0109	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0110-0307	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0308-0610	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0611-		●
222	BOLT; STRAP (B) M10X23.2 TAI	1-09040-042-0	04	1	9811-0610	●
222	BOLT; STRAP (B) M10X23.2 TAI	1-09040-042-0	04	1	0611-		●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET TAI	1-09040-043-0	04	1	9811-0610	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET TAI	1-09040-043-0	04	1	0611-		●	●
223	COVER; CLU	1-31211-019-1	01	1	9907-0610	●
223	COVER; CLU	1-31211-019-1	01	1	0611-		●	●

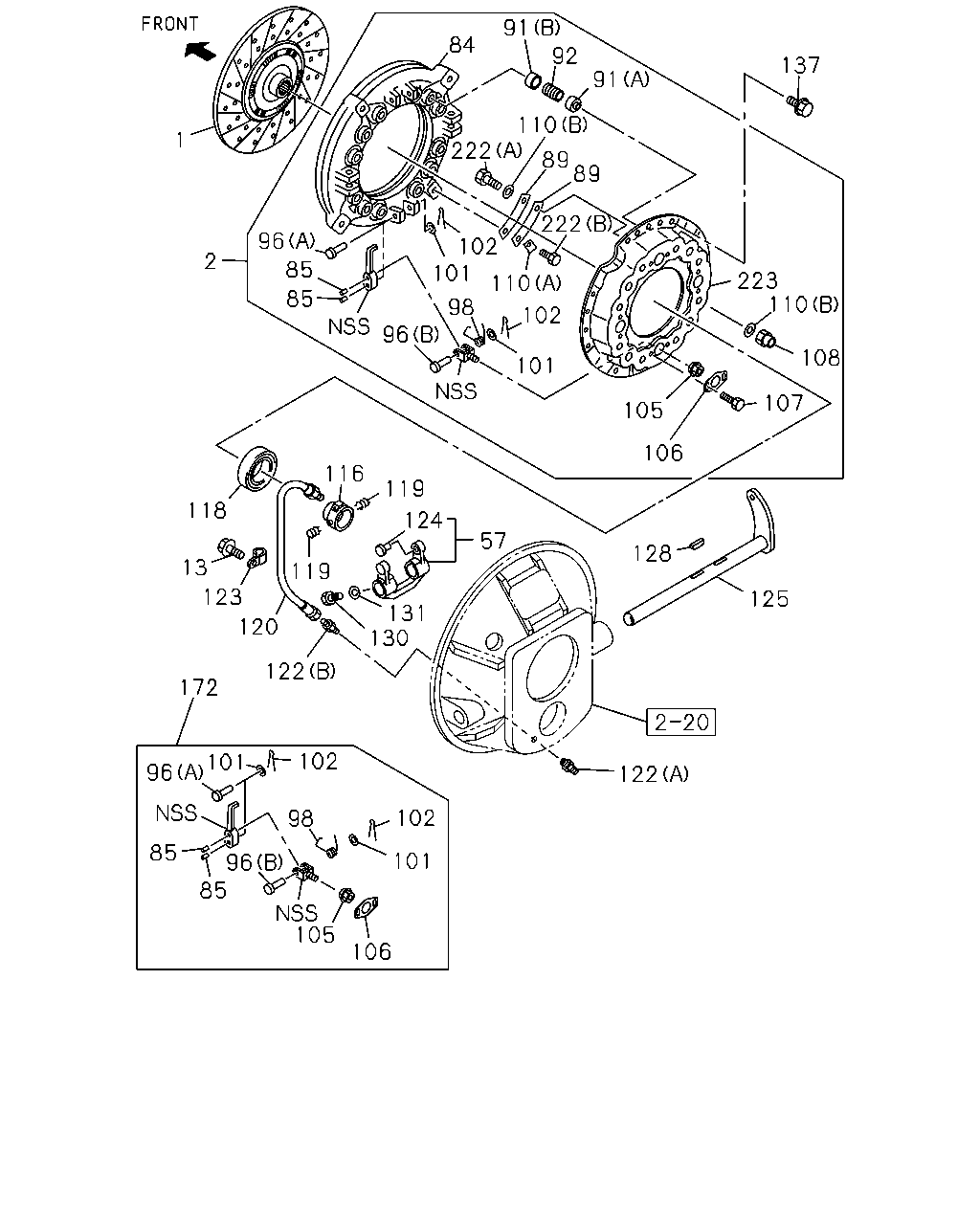

101 102 85 1 172 98 2 85 96 102 101 91 84 96 92 91 105 106 222 110 89 89 99 223 102 96 137 85 101 110 85 110 108 222 98 96 102 101 105 116 106 107 119 130 125 57 118 119 128 124 120 124 122 43 141 212 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15" TAI	1-31240-676-0	01	1	9811-0009	●
1	DISC; CLUTCH 15"	1-31240-875-0	01	1	0010-0610	●
1	DISC; CLUTCH 15"	1-31240-851-1	01	1	0611-		●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	0611-		●
2	PLATE ASM; PRESSURE,CLU TAI	1-31220-305-1	01	1	9811-0109	●
2	PLATE ASM; PRESSURE,CLU	1-31220-373-2	01	1	0110-0610	●
2	PLATE ASM; PRESSURE,CLU	1-31220-382-2	01	1	0611-			●
43	NUT; LK	1-31119-034-0	01	1	0611-			●
57	FORK; SHIFT,CLU	1-31341-042-0	01	1	0611-			●
57	FORK; SHIFT,CLU	1-31340-056-1	01	1	9811-0610	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0611-		●
84	PLATE; PRESSURE	1-31221-116-0	01	1	0611-			●
84	PLATE; PRESSURE 15" TAI	1-31221-100-0	01	1	9811-0610	●
84	PLATE; PRESSURE 15" TAI	1-31221-100-0	01	1	0611-		●
85	BUSHING; RELEASE LEVER TAI	9-31239-116-0	08	1	9811-0610	●
85	BUSHING; RELEASE LEVER TAI	9-31239-116-0	08	1	0611-		●	●
89	PLATE; STRAP TAI	1-31229-050-0	16	1	9811-0610	●
89	PLATE; STRAP TAI	1-31229-050-0	16	1	0611-		●	●
91	SEAT; SPR (A) ID=37 H=25 TAI	1-31219-012-0	12	1	9811-0610	●
91	SEAT; SPR (A) ID=37 H=25 TAI	1-31219-012-0	12	1	0611-		●	●
91	SEAT; SPR (B) ID=37 H=15 TAI	1-31219-013-0	12	1	9811-0610	●
91	SEAT; SPR (B) ID=37 H=15 TAI	1-31219-013-0	12	1	0611-		●	●
92	SPRING; CLU	1-31214-066-0	12	1	0611-			●
92	SPRING; CLU TAI	1-31214-039-0	12	1	9811-0109	●
92	SPRING; CLU	1-31214-065-0	12	1	0110-0610	●
92	SPRING; CLU	1-31214-086-0	12	1	0611-		●
96	PIN; RELEASE LEVER (C) L=57.0 TAI	1-31232-014-0	08	1	0611-			●
96	PIN; RELEASE LEVER (B) L=49.0 TAI	1-31232-005-0	04	1	9811-0610	●
96	PIN; RELEASE LEVER (B) L=49.0 TAI	1-31232-005-0	04	1	0611-		●
96	PIN; RELEASE LEVER (A) L=57.0 TAI	1-31232-014-0	04	1	9811-0610	●
96	PIN; RELEASE LEVER (A) L=57.0 TAI	1-31232-014-0	04	1	0611-		●
98	SPRING; RETURN	1-31233-009-0	04	1	0611-			●
98	SPRING; RETURN TAI	1-31233-003-0	04	1	9811-0610	●
98	SPRING; RETURN TAI	1-31233-003-0	04	1	0611-		●
99	PLATE; RELEASE LEVER	1-31231-049-0	01	1	0611-			●
101	WASHER; RELEASE LEVER TAI	9-31239-039-0	08	1	9811-0109	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0610	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0611-		●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9811-0610	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0611-		●	●
105	NUT; SUPPORT TAI	9-31235-061-0	04	1	9811-0109	●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0308	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-0610	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0611-		●	●
106	PLATE; LK,LEVER SUPPORT TAI	1-31239-019-0	04	1	9811-0610	●
106	PLATE; LK,LEVER SUPPORT TAI	1-31239-019-0	04	1	0611-		●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER TAI	1-31239-020-0	08	1	9811-0308	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-0610	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0611-		●	●
108	NUT; STRAP TAI	1-09449-036-0	04	1	9811-0610	●
108	NUT; STRAP TAI	1-09449-036-0	04	1	0611-		●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2 TAI	1-09503-095-0	08	1	9811-0403	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-0610	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0611-		●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2 TAI	1-31229-009-0	04	1	9811-0610	●
110	WASHER; SPECIAL,STRAP (A) T=1.2 TAI	1-31229-009-0	04	1	0611-		●	●
116	BLOCK; SHIFT,CLU	1-31321-090-0	01	1	0611-			●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9811-0610	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0611-		●
118	BEARING; CLU RELEASE	1-31329-022-0	01	1	0611-			●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9811-0111	●
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0610	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0611-		●
119	SPRING; SHIFT FORK	1-31329-023-0	02	1	0611-			●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9811-0610	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0611-		●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9811-0610	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0611-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=233	1-31119-033-0	01	1	0611-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390 TAI	1-09364-870-0	01	1	9811-0003	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-0610	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0611-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C)	1-31119-035-0	02	1	0611-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	9811-0610	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 L=23	1-09660-710-0	01	1	0611-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	9811-0512	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-0610	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0611-		●
124	BEARING; CAM,SHIFT FORK	1-31349-029-0	02	1	0611-			●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9907-0610	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0611-		●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9811-9906	●
125	SHAFT; CLU	1-31342-292-0	01	1	0611-			●
125	SHAFT; CLU	1-31342-169-1	01	1	9811-0610	●
125	SHAFT; CLU	1-31342-169-1	01	1	0611-		●
128	KEY; FEATHER,CLU SHAFT	1-31349-030-0	01	1	0611-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9811-0610	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0611-		●
130	SCREW; SHIFT FORK	1-31349-028-0	01	1	0611-			●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9811-0512	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-0610	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0611-		●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9811-0512	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-0610	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0611-		●	●
141	WASHER; PL,CLU COVER	1-33119-361-0	01	1	0611-			●
172	LEVER KIT; RELEASE,CLU	1-87830-884-3	01	1	0611-			●
172	LEVER KIT; RELEASE,CLU	1-87830-808-0	01	1	9811-0109	●
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0110-0307	●
172	LEVER KIT; RELEASE,CLU	1-87831-173-1	01	1	0308-0610	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0611-		●
212	WASHER; LK,CLU COVER	1-31139-018-0	01	1	0611-			●
222	BOLT; STRAP (B) M10X23.2 TAI	1-09040-042-0	04	1	9811-0610	●
222	BOLT; STRAP (B) M10X23.2 TAI	1-09040-042-0	04	1	0611-		●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET TAI	1-09040-043-0	04	1	9811-0610	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET TAI	1-09040-043-0	04	1	0611-		●	●
223	COVER; CLU	1-31211-019-1	01	1	9907-0610	●
223	COVER; CLU	1-31211-019-1	01	1	0611-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
