8-15 — FIXING PARTS; WIRING HARNESS (#57079) — 124 parça

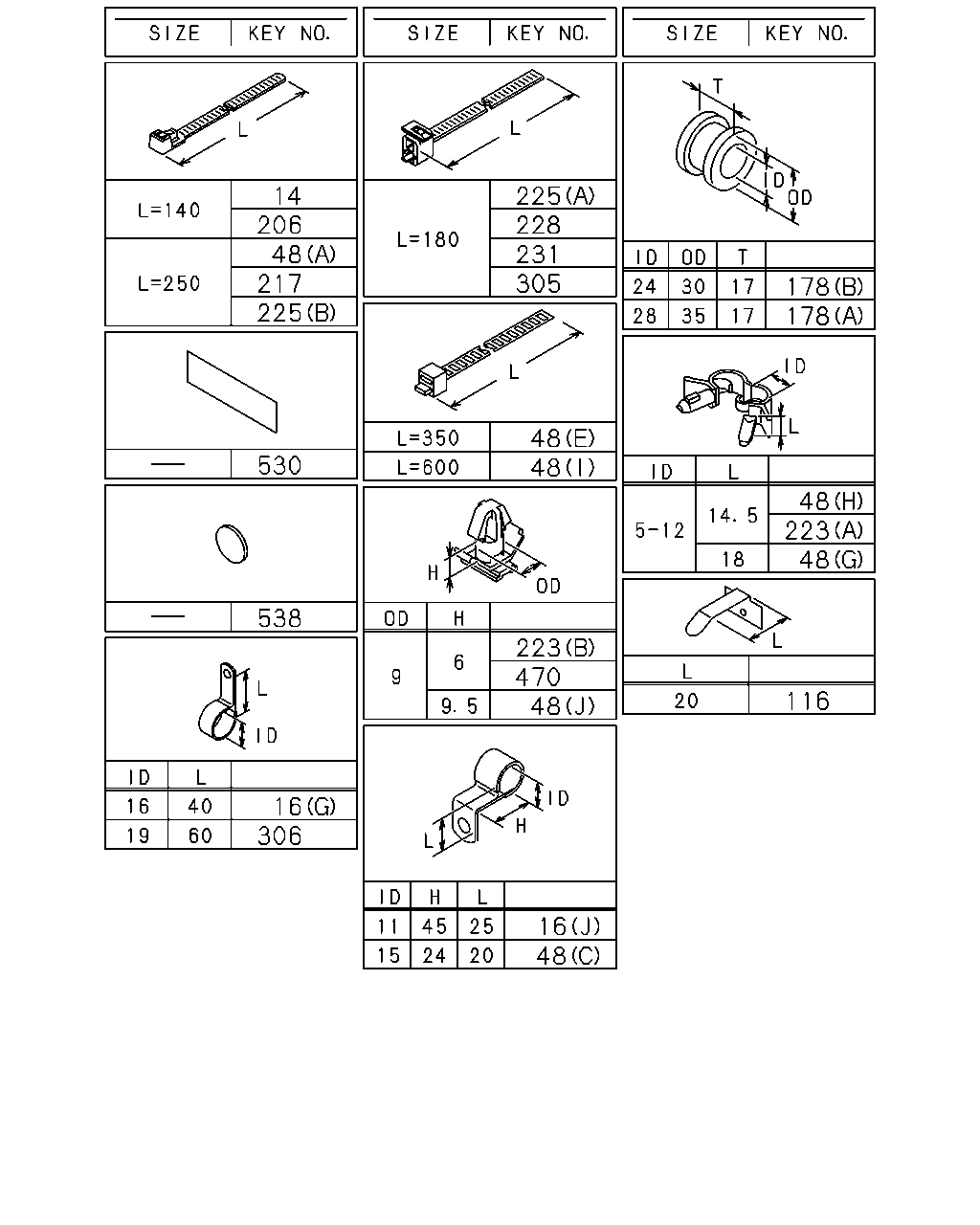

çizim 148167
225 228 231 305 14 206 48 217 225 178 178 48 48 530 48 223 48 538 223 470 48 116 16 306 16 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 1110-1205
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1110-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 01 1 1110-
16 CLIP; HARNESS
(I) ID=28 L=30 		1-09700-607-1 01 1 1110-
16 CLIP; HARNESS
(J) ID=11 H=45 L=25 		1-09700-866-0 02 1 1110-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1110-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 1110-
16 CLIP; HARNESS
(L) L=175 		1-09707-178-0 01 1 1110-
16 CLIP; HARNESS
(E) ID=10 & 10 		1-09709-277-1 04 1 1110-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1110-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1110-
48 CLIP; FRAME HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1110-
48 CLIP; FRAME HARNESS
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1110-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1110-
48 CLIP; FRAME HARNESS
(I) L=600 		1-09707-107-1 01 1 1110-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1110-
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1110-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=18 		1-09709-287-0 02 1 1110-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 1110-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1110-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 16 1 1110-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1110-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1202-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1110-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1110-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1110-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1110-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 03 1 1110-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1110-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 1110-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1110-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1110-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 1110-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1110-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 1110-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 1110-
306 CLIP; HARNESS,ELEC GOV
ID=19 L=60 		0-95235-896-0 01 1 1110-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1110-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1110-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1110-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1110-

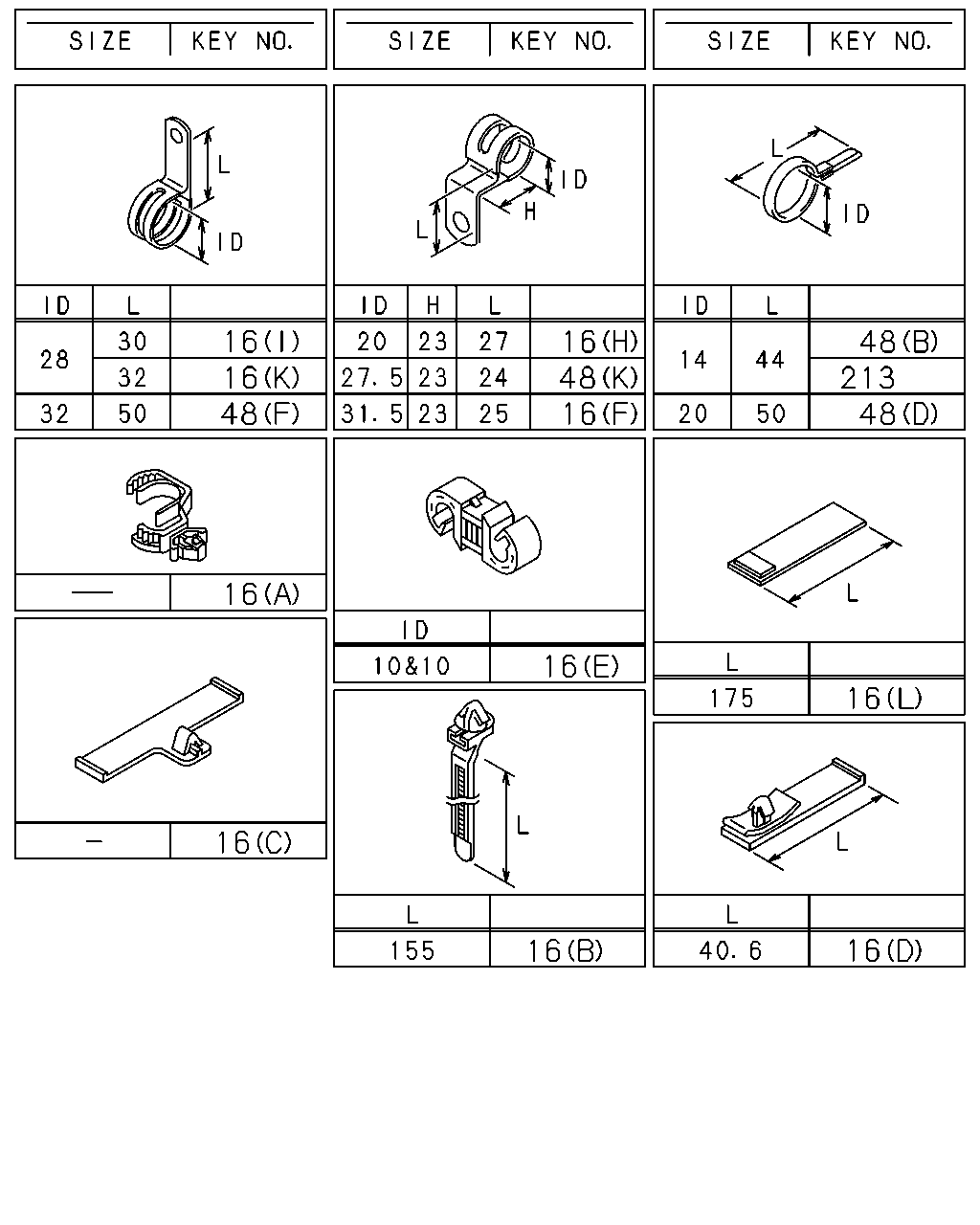

çizim 148171
16 16 48 16 48 16 48 213 48 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1110-
16 CLIP; HARNESS
(H) ID=20 H=23 L=27 		1-09700-861-0 01 1 1110-
16 CLIP; HARNESS
(I) ID=28 L=30 		1-09700-607-1 01 1 1110-
16 CLIP; HARNESS
(J) ID=11 H=45 L=25 		1-09700-866-0 02 1 1110-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1110-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 1110-
16 CLIP; HARNESS
(L) L=175 		1-09707-178-0 01 1 1110-
16 CLIP; HARNESS
(E) ID=10 & 10 		1-09709-277-1 04 1 1110-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1110-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1110-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1110-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1110-
48 CLIP; FRAME HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1110-
48 CLIP; FRAME HARNESS
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1110-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1110-
48 CLIP; FRAME HARNESS
(I) L=600 		1-09707-107-1 01 1 1110-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1110-
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1110-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=18 		1-09709-287-0 02 1 1110-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 1110-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1110-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 16 1 1110-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1110-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1202-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1110-
çizim 148172
139 38 377 38 386 38 386 47 38 38 139 313 38 139 150 313 38 139 139 313 139 524 219 294 525 294 525 184 127
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1110-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(F) M10X25 FLANGE 		0-28651-025-0 01 1 1110-
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1110-1201
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1110-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1110-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1110-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 01 1 1110-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 03 1 1110-
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1110-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1110-
150 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1110-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1110-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1110-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1110-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1110-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1110-
294 NUT
(B) 8N M10 FLANGE 		0-91180-110-0 01 1 1110-
294 NUT
(B)10N M10 FLANGE 		0-91180-210-0 01 1 1110-
294 NUT
(B)10N M10 FLANGE 		0-91180-210-0 02 1 1110-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1110-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1110-
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1110-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1110-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1110-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1110-
525 NUT; CLIP
(A) M8 FLANGE 		0-91180-108-0 01 1 1110-
525 NUT; CLIP
(B) M10 FLANGE 		0-91180-110-0 01 1 1110-1110

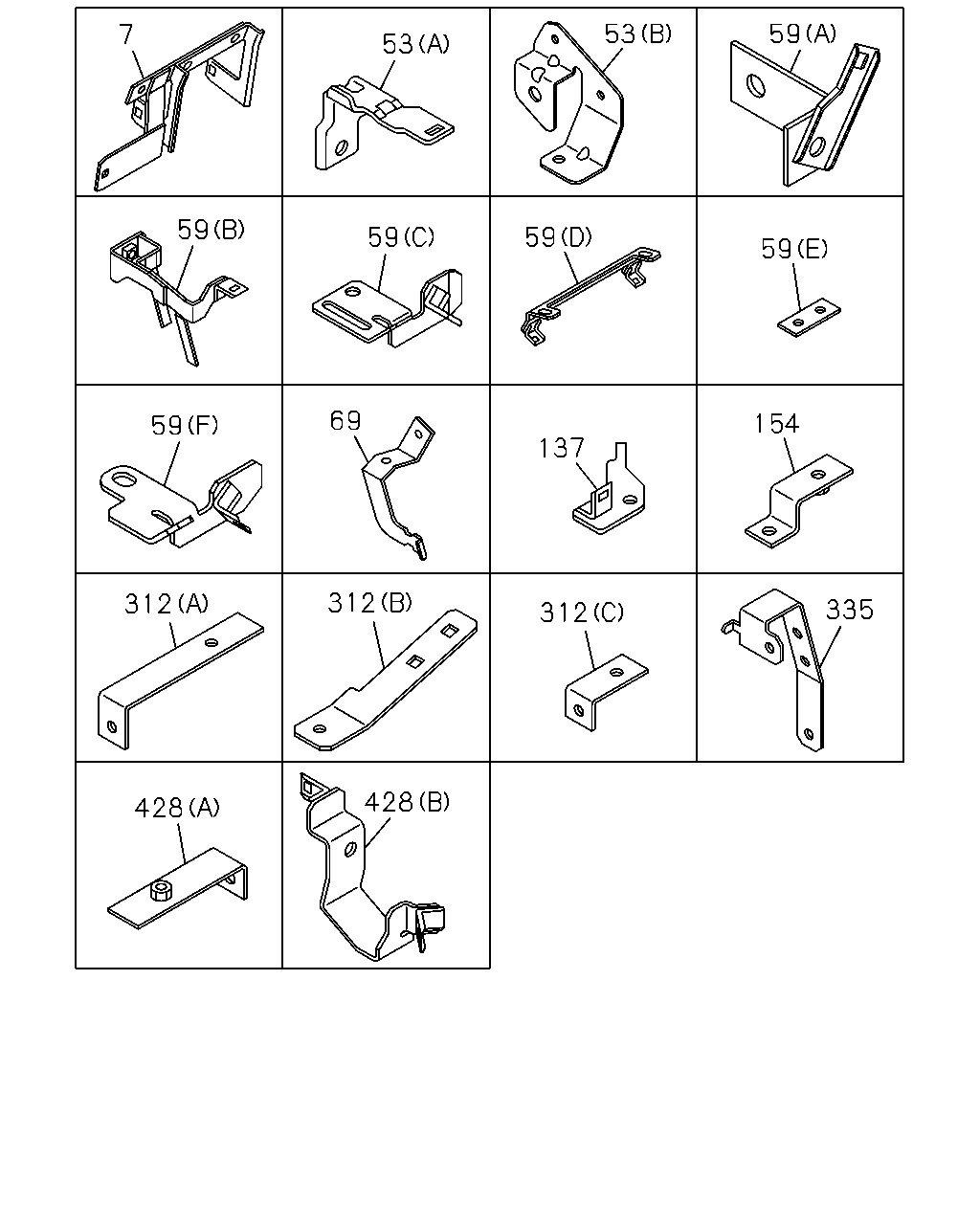

çizim 148182
7 53 53 59 59 59 59 59 59 69 137 154 312 312 312 335 428 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1110-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1110-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98084-590-0 01 1 1110-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1110-
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 1110-
59 BRACKET; FRAME HARNESS
(E) L=85 		8-98044-743-0 01 1 1110-
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 1110-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(A) 		8-98178-675-0 01 1 1110-
69 BRACKET; CLIP 8-97616-357-3 01 1 1110-
137 BRACKET; HARNESS CLAMP 8-98047-277-1 01 1 1110-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 1110-
312 BRACKET; CLIP HARNESS
(A) 		1-34656-009-0 01 1 1110-
312 BRACKET; CLIP HARNESS
(C) L=55 		1-47475-304-0 01 1 1110-
312 BRACKET; CLIP HARNESS
(B) 		8-98097-366-0 01 1 1110-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1110-
428 BRACKET
(A) 		1-47475-519-0 01 1 1110-
428 BRACKET
(B) 		8-98090-952-0 01 1 1110-
