Sayfa 1-55 - Isuzu EPC

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#5706) — 296 parça

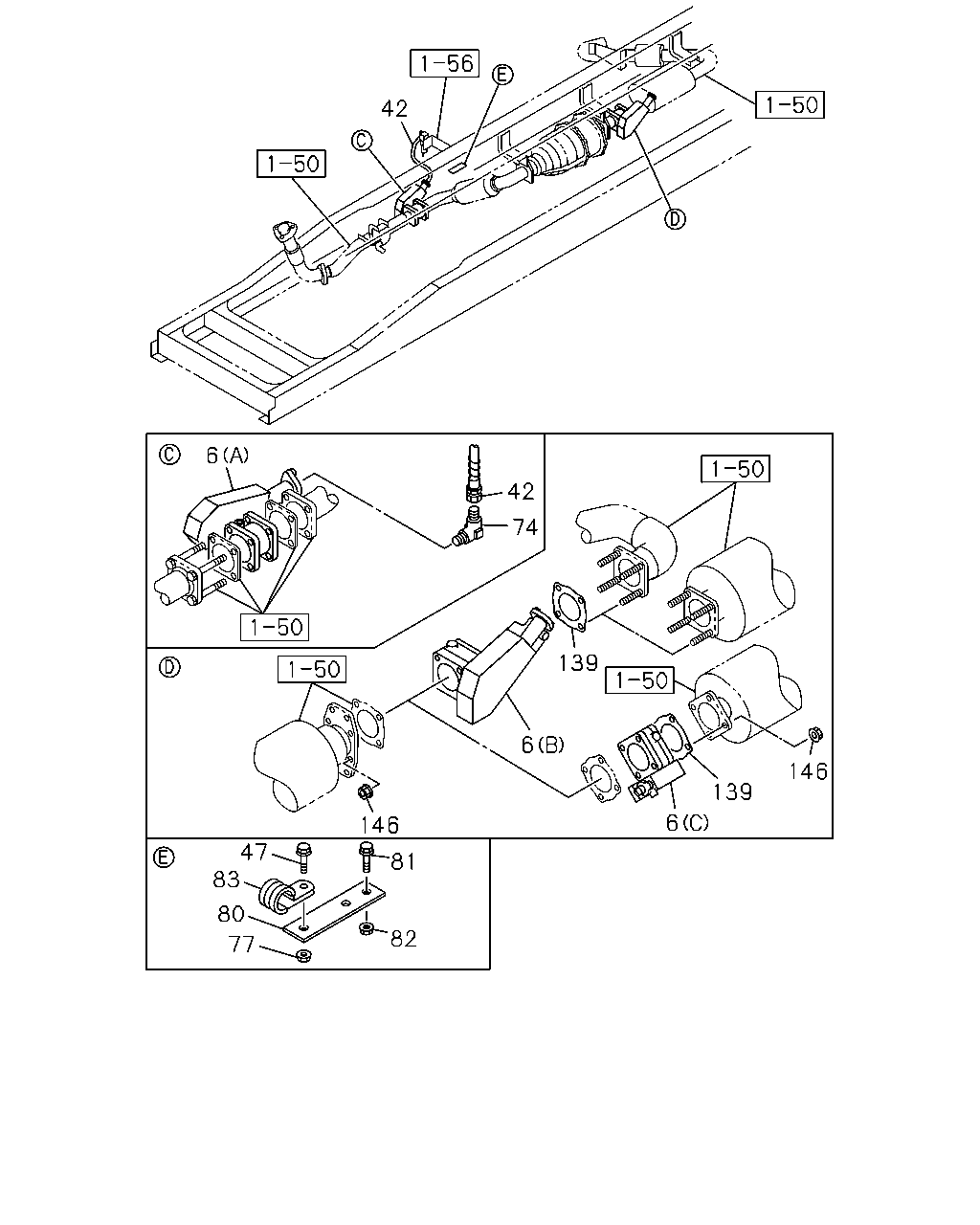

42 6 42 74 139 6 146 139 6 146 47 83 81 80 82 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (B)	8-98013-759-5	01	1	0611-	●
6	VALVE; EXH BRAKE (C)	8-98013-758-5	01	1	0611-		●
6	VALVE; EXH BRAKE (A)	8-94394-679-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (B)	1-22181-159-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (B)	1-22181-168-0	01	1	0007-0211				●
6	VALVE; EXH BRAKE (B)	8-94395-463-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (A)	8-94392-832-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (A)	8-97601-468-2	01	1	0007-0211				●
6	VALVE; EXH BRAKE (D)	8-97602-533-0	01	1	0212-0610				●
6	VALVE; EXH BRAKE (A)	8-98053-515-5	01	1	0611-	●	●
42	HOSE; FLEX,EXH BRK L=380	1-09363-919-0	01	1	0611-		●
42	HOSE; FLEX,EXH BRK L=330	1-09363-584-0	01	1	9811-9906			●
42	HOSE; FLEX,EXH BRK L=350	1-09363-651-0	01	1	9907-0610				●
42	HOSE; FLEX,EXH BRK L=620	1-09363-705-0	01	1	0611-0701	●
42	HOSE; FLEX,EXH BRK L=640	1-09363-961-0	01	1	0702-	●
47	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	01	1	9907-0512				●
47	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	01	1	0601-0610				●
47	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0611-	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0611-	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW TAI	1-09650-430-0	01	1	0212-0610				●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW TAI	1-09650-430-0	01	1	0611-		●
77	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0611-	●
80	BRACKET; FLEX HOSE TAI	8-97530-354-0	01	1	9811-9906			●
80	BRACKET; FLEX HOSE TAI	8-97530-354-0	01	1	9907-0610				●
80	BRACKET; FLEX HOSE L=130	1-47478-959-0	01	1	0611-	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-9906			●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9907-0512				●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-0610				●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0611-	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9907-0602				●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0610				●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	0611-	●
83	CLIP; FLEX HOSE ID=16 L=50	1-09701-158-0	01	1	0611-	●
139	GASKET; EXH BRK VLV	1-22116-043-0	01	1	0611-	●	●
146	NUT; EXH BRK VLV M10	0-91110-510-0	04	1	0611-	●	●

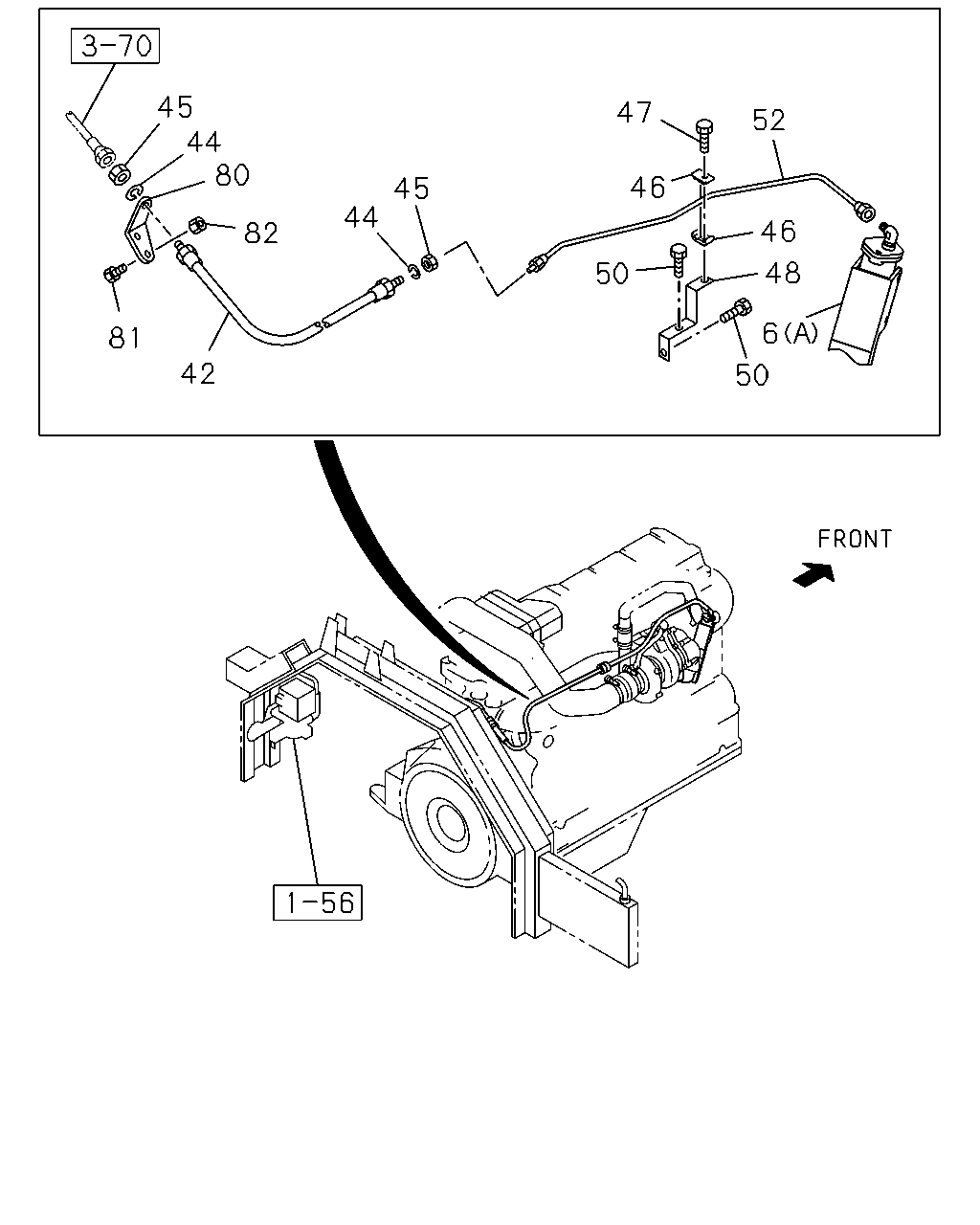

45 44 80 47 52 46 45 44 46 82 48 50 6 81 42 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (B)	8-98013-759-5	01	1	0611-	●
6	VALVE; EXH BRAKE (C)	8-98013-758-5	01	1	0611-		●
6	VALVE; EXH BRAKE (A)	8-94394-679-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (B)	1-22181-159-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (B)	1-22181-168-0	01	1	0007-0211				●
6	VALVE; EXH BRAKE (B)	8-94395-463-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (A)	8-94392-832-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (A)	8-97601-468-2	01	1	0007-0211				●
6	VALVE; EXH BRAKE (D)	8-97602-533-0	01	1	0212-0610				●
6	VALVE; EXH BRAKE (A)	8-98053-515-5	01	1	0611-	●	●
42	HOSE; FLEX,EXH BRK L=380	1-09363-919-0	01	1	0611-		●
42	HOSE; FLEX,EXH BRK L=330	1-09363-584-0	01	1	9811-9906			●
42	HOSE; FLEX,EXH BRK L=350	1-09363-651-0	01	1	9907-0610				●
42	HOSE; FLEX,EXH BRK L=620	1-09363-705-0	01	1	0611-0701	●
42	HOSE; FLEX,EXH BRK L=640	1-09363-961-0	01	1	0702-	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9811-9906			●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9907-0603				●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-0610				●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	9811-9906			●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	9907-0610				●
46	CLIP; AIR PIPE	1-09701-240-0	02	1	9907-0610				●
47	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	01	1	9907-0512				●
47	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	01	1	0601-0610				●
47	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0611-	●
48	BRACKET; AIR PIPE	8-97600-043-1	01	1	9907-9907				●
48	BRACKET; AIR PIPE	8-97600-122-1	01	1	9907-0610				●
50	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9907-0512				●
50	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-0610				●
52	PIPE ASM; AIR FLEX HOSE	8-97600-042-0	01	1	9907-0106				●
52	PIPE ASM; AIR FLEX HOSE	8-97601-724-0	01	1	0107-0202				●
52	PIPE ASM; AIR FLEX HOSE	8-97602-396-0	01	1	0203-0610				●
80	BRACKET; FLEX HOSE TAI	8-97530-354-0	01	1	9811-9906			●
80	BRACKET; FLEX HOSE TAI	8-97530-354-0	01	1	9907-0610				●
80	BRACKET; FLEX HOSE L=130	1-47478-959-0	01	1	0611-	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-9906			●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9907-0512				●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-0610				●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0611-	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9907-0602				●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0610				●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	0611-	●

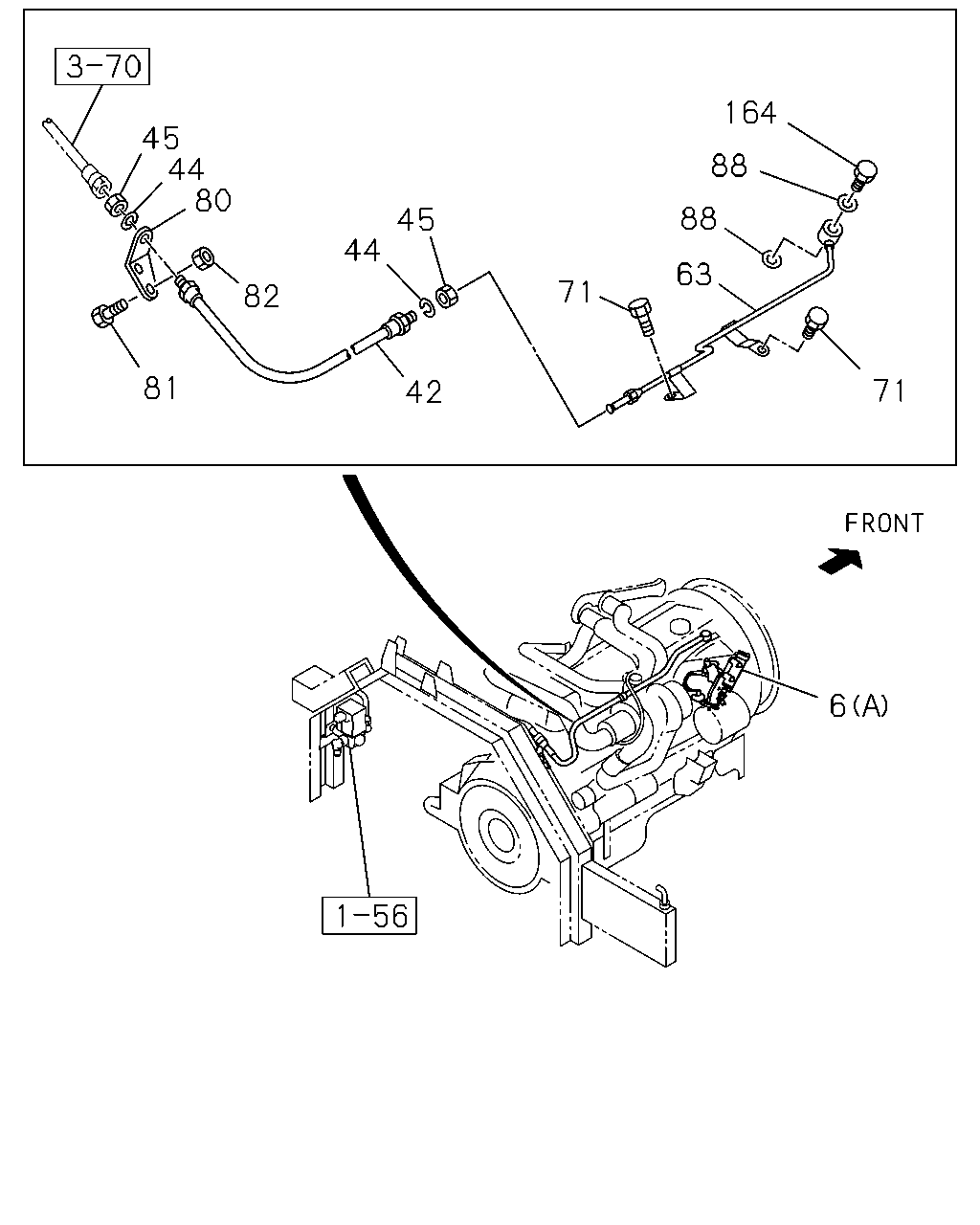

164 45 44 80 88 88 45 44 63 71 82 81 71 42 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (B)	8-98013-759-5	01	1	0611-	●
6	VALVE; EXH BRAKE (C)	8-98013-758-5	01	1	0611-		●
6	VALVE; EXH BRAKE (A)	8-94394-679-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (B)	1-22181-159-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (B)	1-22181-168-0	01	1	0007-0211				●
6	VALVE; EXH BRAKE (B)	8-94395-463-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (A)	8-94392-832-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (A)	8-97601-468-2	01	1	0007-0211				●
6	VALVE; EXH BRAKE (D)	8-97602-533-0	01	1	0212-0610				●
6	VALVE; EXH BRAKE (A)	8-98053-515-5	01	1	0611-	●	●
42	HOSE; FLEX,EXH BRK L=380	1-09363-919-0	01	1	0611-		●
42	HOSE; FLEX,EXH BRK L=330	1-09363-584-0	01	1	9811-9906			●
42	HOSE; FLEX,EXH BRK L=350	1-09363-651-0	01	1	9907-0610				●
42	HOSE; FLEX,EXH BRK L=620	1-09363-705-0	01	1	0611-0701	●
42	HOSE; FLEX,EXH BRK L=640	1-09363-961-0	01	1	0702-	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9811-9906			●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	9907-0603				●
44	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-0610				●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	9811-9906			●
45	NUT; FLEX HOSE M12	9-09840-280-0	02	1	9907-0610				●
63	PIPE; AIR,EXH BRAKE	8-94395-725-0	01	1	9811-9906			●
71	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9811-9906			●
80	BRACKET; FLEX HOSE TAI	8-97530-354-0	01	1	9811-9906			●
80	BRACKET; FLEX HOSE TAI	8-97530-354-0	01	1	9907-0610				●
80	BRACKET; FLEX HOSE L=130	1-47478-959-0	01	1	0611-	●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-9906			●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28680-820-0	02	1	9907-0512				●
81	BOLT; HOSE BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-0610				●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	01	1	0611-	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	9907-0602				●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0610				●
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	0611-	●
88	GASKET; AIR PIPE ID=12.2	1-09630-084-0	02	1	9811-9906			●
164	BOLT; EYE M12X24 EYE-BOLT	1-09675-081-0	01	1	9811-9906			●

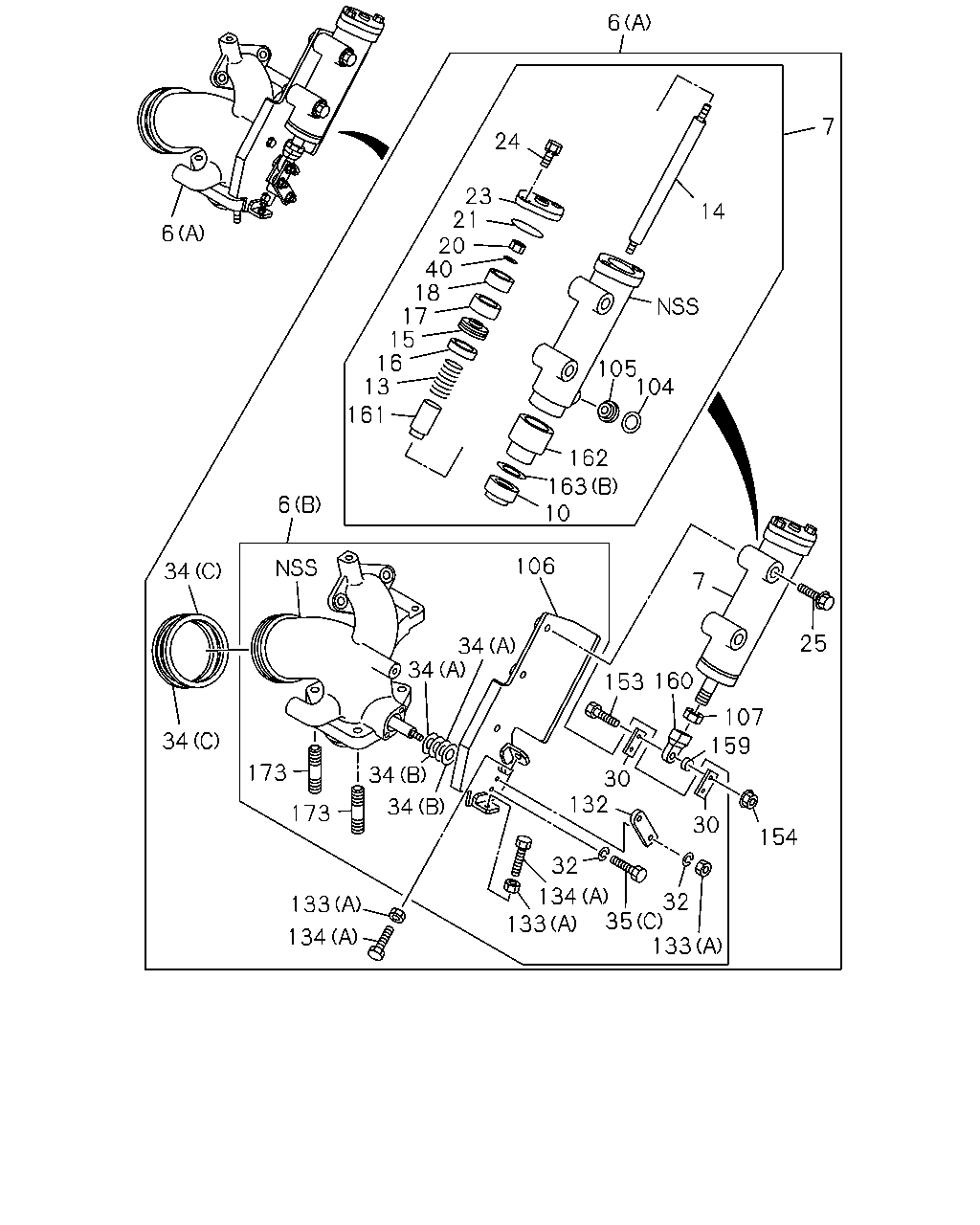

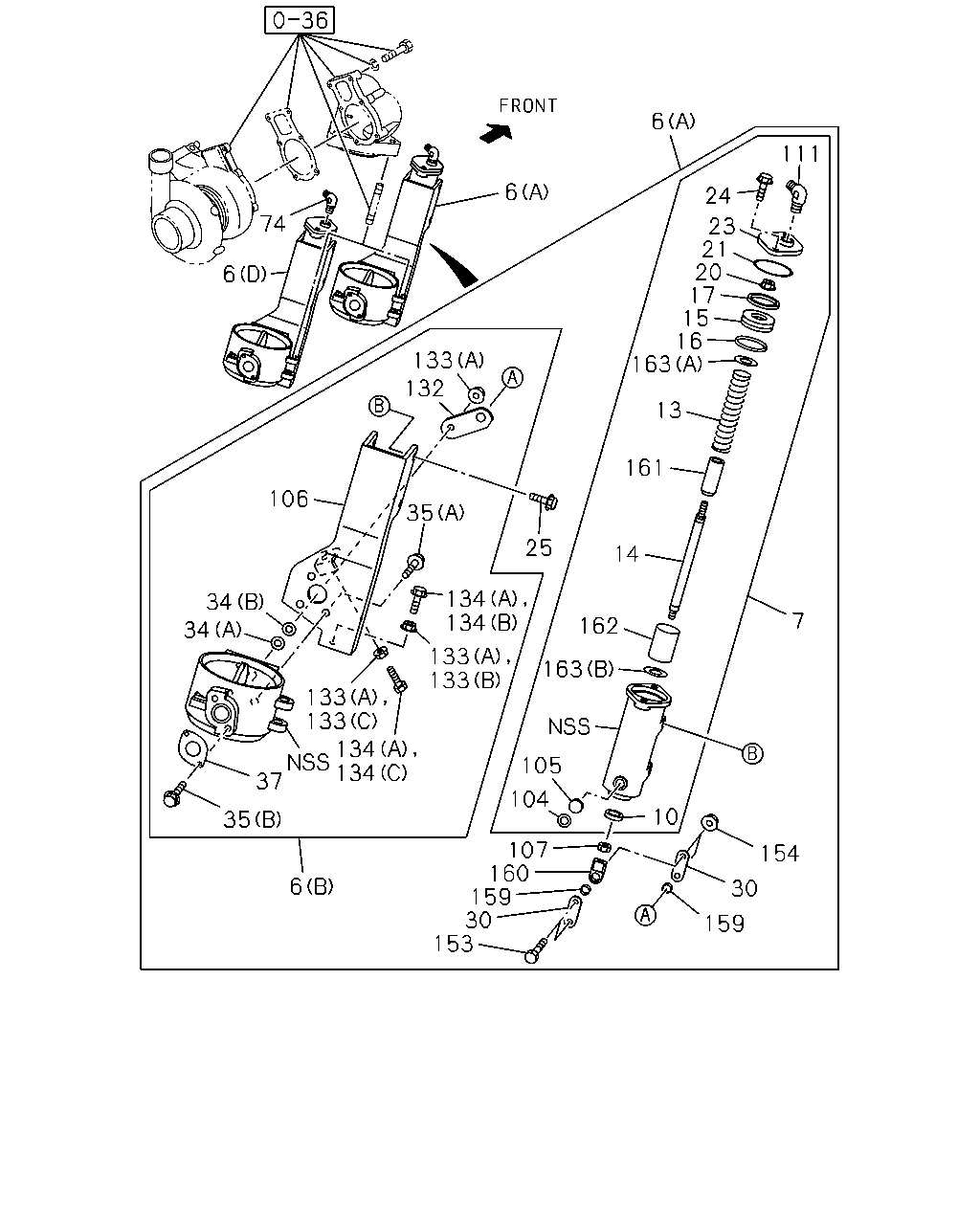

6 111 6 24 74 23 21 20 17 15 16 163 6 133 132 13 161 106 35 25 14 134 134 34 34 7 162 133 133 163 133 133 134 134 37 105 104 10 35 107 160 159 30 153 154 6 30 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (B)	8-98013-759-5	01	1	0611-	●
6	VALVE; EXH BRAKE (C)	8-98013-758-5	01	1	0611-		●
6	VALVE; EXH BRAKE (A)	8-94394-679-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (B)	1-22181-159-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (B)	1-22181-168-0	01	1	0007-0211				●
6	VALVE; EXH BRAKE (B)	8-94395-463-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (A)	8-94392-832-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (A)	8-97601-468-2	01	1	0007-0211				●
6	VALVE; EXH BRAKE (D)	8-97602-533-0	01	1	0212-0610				●
6	VALVE; EXH BRAKE (A)	8-98053-515-5	01	1	0611-	●	●
7	CYLINDER ASM; CONT	8-94395-444-0	01	1	9811-9906			●
7	CYLINDER ASM; CONT	1-22190-654-0	01	1	9907-0006				●
7	CYLINDER ASM; CONT	1-22190-658-0	01	1	0007-0211				●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9811-9906			●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9907-0211				●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9811-9906			●
13	SPRING; CONT CYL	1-22199-173-0	01	1	9907-0211				●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9811-9906			●
14	SHAFT; CONT CYL	1-22199-208-0	01	1	9907-0006				●
14	SHAFT; CONT CYL	1-22199-176-0	01	1	0007-0104				●
14	SHAFT; CONT CYL	1-22199-208-0	01	1	0105-0211				●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9811-9906			●
15	PLATE; CONT CYL	1-22199-168-0	01	1	9907-0211				●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9811-9906			●
16	RING; WEAR,CONT CYL	1-22189-345-0	01	1	9907-0211				●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9811-9906			●
17	GASKET; CONT CYL	1-22199-170-0	01	1	9907-0211				●
20	NUT; CONT CYL	9-83315-085-0	01	1	9811-9906			●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9907-0006				●
20	NUT; CONT CYL	1-09440-078-0	01	1	0007-0211				●
21	GASKET; COVER	1-22199-072-0	01	1	9811-9906			●
21	GASKET; COVER	1-22199-171-0	01	1	9907-0211				●
23	COVER; CONT CYL	1-22199-159-0	01	1	9811-9906			●
23	COVER; CONT CYL	1-22199-172-0	01	1	9907-0211				●
24	BOLT; COVER	1-22199-155-0	02	1	9811-9906			●
24	BOLT; COVER	1-22199-174-0	02	1	9907-0211				●
25	BOLT; CONT CYL M12X55	8-94399-884-0	02	1	9811-9906			●
25	BOLT; CONT CYL	1-22199-210-0	02	1	9907-0006				●
25	BOLT; CONT CYL	1-09000-745-0	02	1	0007-0211				●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9811-9906			●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9907-0006				●
30	ROD; LINK,CONT CYL	1-22199-162-0	01	1	0007-0211				●
34	RING; SEAL (C)	1-14149-084-1	02	1	9811-9906			●
34	RING; SEAL (A)	1-22189-343-0	02	1	9907-0006				●
34	RING; SEAL (B)	1-22189-272-0	02	1	9811-9906			●
34	RING; SEAL (A)	1-22189-273-0	02	1	9811-9906			●
34	RING; SEAL (B)	1-22189-340-0	02	1	9907-0006				●
35	BOLT; PLATE FIX (C) M8X16	9-02050-816-0	03	1	9811-9906			●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	03	1	9907-0006				●
35	BOLT; PLATE FIX (B)	1-22199-174-0	02	1	9907-0006				●
37	COVER; BODY	1-22189-344-0	01	1	9907-0006				●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0611-	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW TAI	1-09650-430-0	01	1	0212-0610				●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW TAI	1-09650-430-0	01	1	0611-		●
104	RING; RET	9-88510-331-0	01	1	9811-9906			●
104	RING; RET	9-88510-331-0	01	1	9907-0211				●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9811-9906			●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9907-0211				●
106	BRACKET; CONT CYL	8-94394-681-0	01	1	9811-9906			●
106	BRACKET; CONT CYL	1-22186-152-0	01	1	9907-0006				●
107	NUT; CONT CYL	9-83315-085-0	01	1	9811-9906			●
107	NUT; CONT CYL M10	9-09111-410-0	01	1	9907-0211				●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	9907-0211				●
132	LEVER; BRK VLV	1-22196-343-0	01	1	9811-9906			●
132	LEVER; BRK VLV	1-22196-351-0	01	1	9907-0006				●
133	NUT; LK (A)	8-94311-428-0	03	1	9811-9906			●
133	NUT; LK (A) M8 FLANGE	0-91150-108-0	03	1	9907-0006				●
133	NUT; LK (B)	1-09440-078-0	01	1	0007-0211				●
133	NUT; LK (C)	1-09440-079-0	01	1	0007-0211				●
134	BOLT; STOPPER (A)	1-22199-121-0	02	1	9811-9906			●
134	BOLT; STOPPER (A)	1-22199-121-0	02	1	9907-0006				●
134	BOLT; STOPPER (B)	1-22199-121-0	01	1	0007-0211				●
134	BOLT; STOPPER (C)	1-09000-742-0	01	1	0007-0211				●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9811-9906			●
153	BOLT; CLEVIS,CONT CYL	1-22199-211-0	02	1	9907-0006				●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9907-0006				●
154	NUT; CLEVIS,CONT CYL	1-09440-078-0	02	1	0007-0211				●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9811-9906			●
159	COLLAR; CONT CYL	1-22197-151-0	02	1	9907-0211				●
160	JOINT; CONT CYL	1-22199-150-0	01	1	9811-9906			●
160	JOINT; CONT CYL	1-22189-320-0	01	1	9907-0201				●
160	JOINT; CONT CYL	1-22189-364-0	01	1	0202-0211				●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9811-9906			●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9907-0211				●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9811-9906			●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9907-0211				●
163	WASHER; CONT CYL (B)	1-22199-148-0	01	1	9811-9906			●
163	WASHER; CONT CYL (B)	1-22199-148-0	01	1	9907-0211				●
163	WASHER; CONT CYL (A)	1-22199-209-0	01	1	9907-0006				●
163	WASHER; CONT CYL (A)	1-22199-179-0	01	1	0007-0104				●
163	WASHER; CONT CYL (A)	1-22199-209-0	01	1	0105-0211				●

6 7 24 23 21 20 40 18 17 15 16 13 14 6 105 104 161 162 163 10 6 106 34 7 25 34 34 160 153 107 34 159 34 173 30 132 34 173 30 154 32 134 133 32 35 133 133 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (B)	8-98013-759-5	01	1	0611-	●
6	VALVE; EXH BRAKE (C)	8-98013-758-5	01	1	0611-		●
6	VALVE; EXH BRAKE (A)	8-94394-679-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (B)	1-22181-159-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (B)	1-22181-168-0	01	1	0007-0211				●
6	VALVE; EXH BRAKE (B)	8-94395-463-0	01	1	9811-9906			●
6	VALVE; EXH BRAKE (A)	8-94392-832-0	01	1	9907-0006				●
6	VALVE; EXH BRAKE (A)	8-97601-468-2	01	1	0007-0211				●
6	VALVE; EXH BRAKE (D)	8-97602-533-0	01	1	0212-0610				●
6	VALVE; EXH BRAKE (A)	8-98053-515-5	01	1	0611-	●	●
7	CYLINDER ASM; CONT	8-94395-444-0	01	1	9811-9906			●
7	CYLINDER ASM; CONT	1-22190-654-0	01	1	9907-0006				●
7	CYLINDER ASM; CONT	1-22190-658-0	01	1	0007-0211				●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9811-9906			●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9907-0211				●
13	SPRING; CONT CYL	1-22199-157-0	01	1	9811-9906			●
13	SPRING; CONT CYL	1-22199-173-0	01	1	9907-0211				●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9811-9906			●
14	SHAFT; CONT CYL	1-22199-208-0	01	1	9907-0006				●
14	SHAFT; CONT CYL	1-22199-176-0	01	1	0007-0104				●
14	SHAFT; CONT CYL	1-22199-208-0	01	1	0105-0211				●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9811-9906			●
15	PLATE; CONT CYL	1-22199-168-0	01	1	9907-0211				●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9811-9906			●
16	RING; WEAR,CONT CYL	1-22189-345-0	01	1	9907-0211				●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9811-9906			●
17	GASKET; CONT CYL	1-22199-170-0	01	1	9907-0211				●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9811-9906			●
20	NUT; CONT CYL	9-83315-085-0	01	1	9811-9906			●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9907-0006				●
20	NUT; CONT CYL	1-09440-078-0	01	1	0007-0211				●
21	GASKET; COVER	1-22199-072-0	01	1	9811-9906			●
21	GASKET; COVER	1-22199-171-0	01	1	9907-0211				●
23	COVER; CONT CYL	1-22199-159-0	01	1	9811-9906			●
23	COVER; CONT CYL	1-22199-172-0	01	1	9907-0211				●
24	BOLT; COVER	1-22199-155-0	02	1	9811-9906			●
24	BOLT; COVER	1-22199-174-0	02	1	9907-0211				●
25	BOLT; CONT CYL M12X55	8-94399-884-0	02	1	9811-9906			●
25	BOLT; CONT CYL	1-22199-210-0	02	1	9907-0006				●
25	BOLT; CONT CYL	1-09000-745-0	02	1	0007-0211				●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9811-9906			●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9907-0006				●
30	ROD; LINK,CONT CYL	1-22199-162-0	01	1	0007-0211				●
32	WASHER; LK ID=8.2	9-09150-508-0	04	1	9811-9906			●
34	RING; SEAL (C)	1-14149-084-1	02	1	9811-9906			●
34	RING; SEAL (A)	1-22189-343-0	02	1	9907-0006				●
34	RING; SEAL (B)	1-22189-272-0	02	1	9811-9906			●
34	RING; SEAL (A)	1-22189-273-0	02	1	9811-9906			●
34	RING; SEAL (B)	1-22189-340-0	02	1	9907-0006				●
35	BOLT; PLATE FIX (C) M8X16	9-02050-816-0	03	1	9811-9906			●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	03	1	9907-0006				●
35	BOLT; PLATE FIX (B)	1-22199-174-0	02	1	9907-0006				●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9811-9906			●
104	RING; RET	9-88510-331-0	01	1	9811-9906			●
104	RING; RET	9-88510-331-0	01	1	9907-0211				●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9811-9906			●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9907-0211				●
106	BRACKET; CONT CYL	8-94394-681-0	01	1	9811-9906			●
106	BRACKET; CONT CYL	1-22186-152-0	01	1	9907-0006				●
107	NUT; CONT CYL	9-83315-085-0	01	1	9811-9906			●
107	NUT; CONT CYL M10	9-09111-410-0	01	1	9907-0211				●
132	LEVER; BRK VLV	1-22196-343-0	01	1	9811-9906			●
132	LEVER; BRK VLV	1-22196-351-0	01	1	9907-0006				●
133	NUT; LK (A)	8-94311-428-0	03	1	9811-9906			●
133	NUT; LK (A) M8 FLANGE	0-91150-108-0	03	1	9907-0006				●
133	NUT; LK (B)	1-09440-078-0	01	1	0007-0211				●
133	NUT; LK (C)	1-09440-079-0	01	1	0007-0211				●
134	BOLT; STOPPER (A)	1-22199-121-0	02	1	9811-9906			●
134	BOLT; STOPPER (A)	1-22199-121-0	02	1	9907-0006				●
134	BOLT; STOPPER (B)	1-22199-121-0	01	1	0007-0211				●
134	BOLT; STOPPER (C)	1-09000-742-0	01	1	0007-0211				●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9811-9906			●
153	BOLT; CLEVIS,CONT CYL	1-22199-211-0	02	1	9907-0006				●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9907-0006				●
154	NUT; CLEVIS,CONT CYL	1-09440-078-0	02	1	0007-0211				●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9811-9906			●
159	COLLAR; CONT CYL	1-22197-151-0	02	1	9907-0211				●
160	JOINT; CONT CYL	1-22199-150-0	01	1	9811-9906			●
160	JOINT; CONT CYL	1-22189-320-0	01	1	9907-0201				●
160	JOINT; CONT CYL	1-22189-364-0	01	1	0202-0211				●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9811-9906			●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9907-0211				●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9811-9906			●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9907-0211				●
163	WASHER; CONT CYL (B)	1-22199-148-0	01	1	9811-9906			●
163	WASHER; CONT CYL (B)	1-22199-148-0	01	1	9907-0211				●
163	WASHER; CONT CYL (A)	1-22199-209-0	01	1	9907-0006				●
163	WASHER; CONT CYL (A)	1-22199-179-0	01	1	0007-0104				●
163	WASHER; CONT CYL (A)	1-22199-209-0	01	1	0105-0211				●
173	STUD; EXH BRK VLV M12X40 L=64	9-94321-240-0	02	1	9811-9906			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
