Sayfa 1-50 - Isuzu EPC

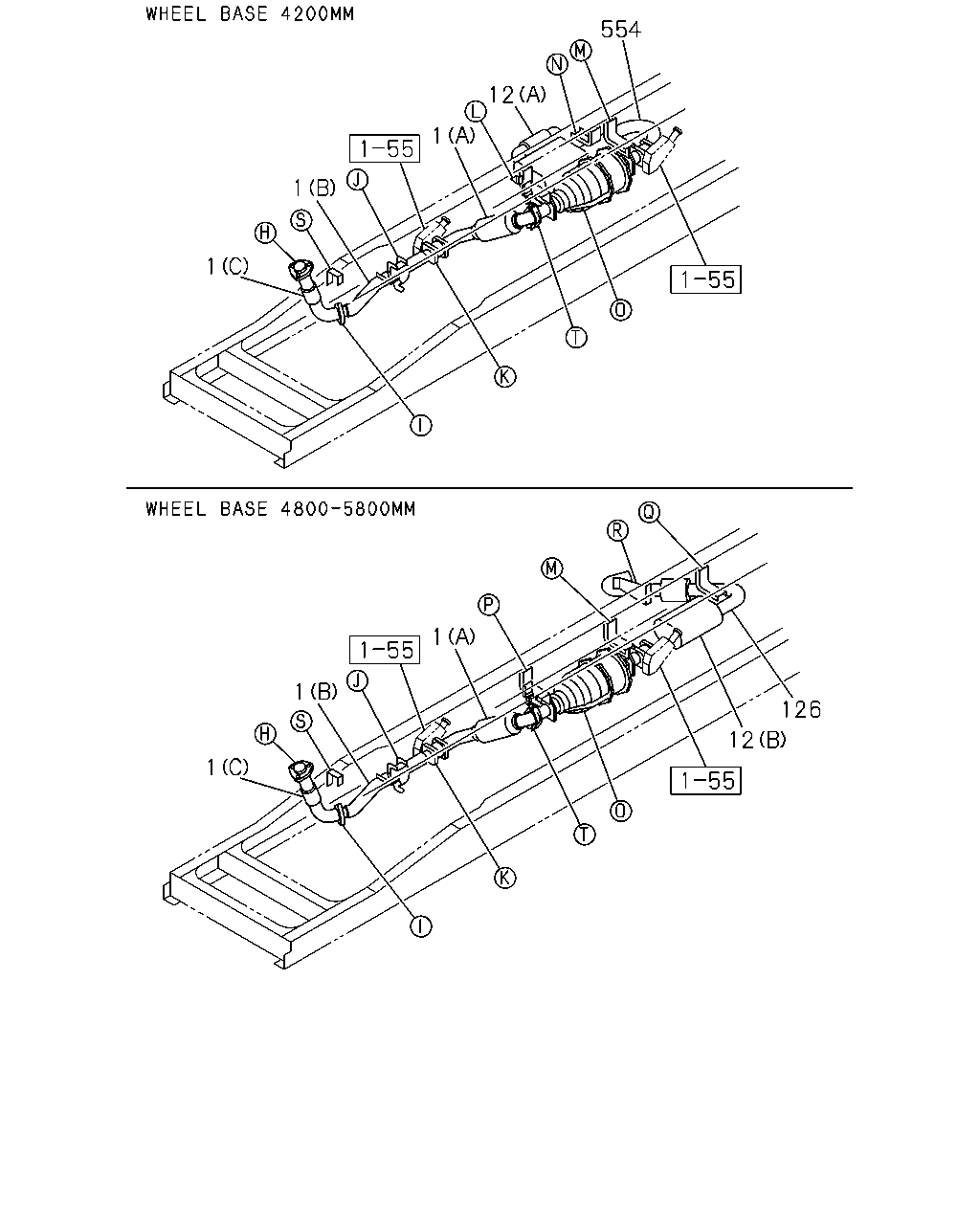

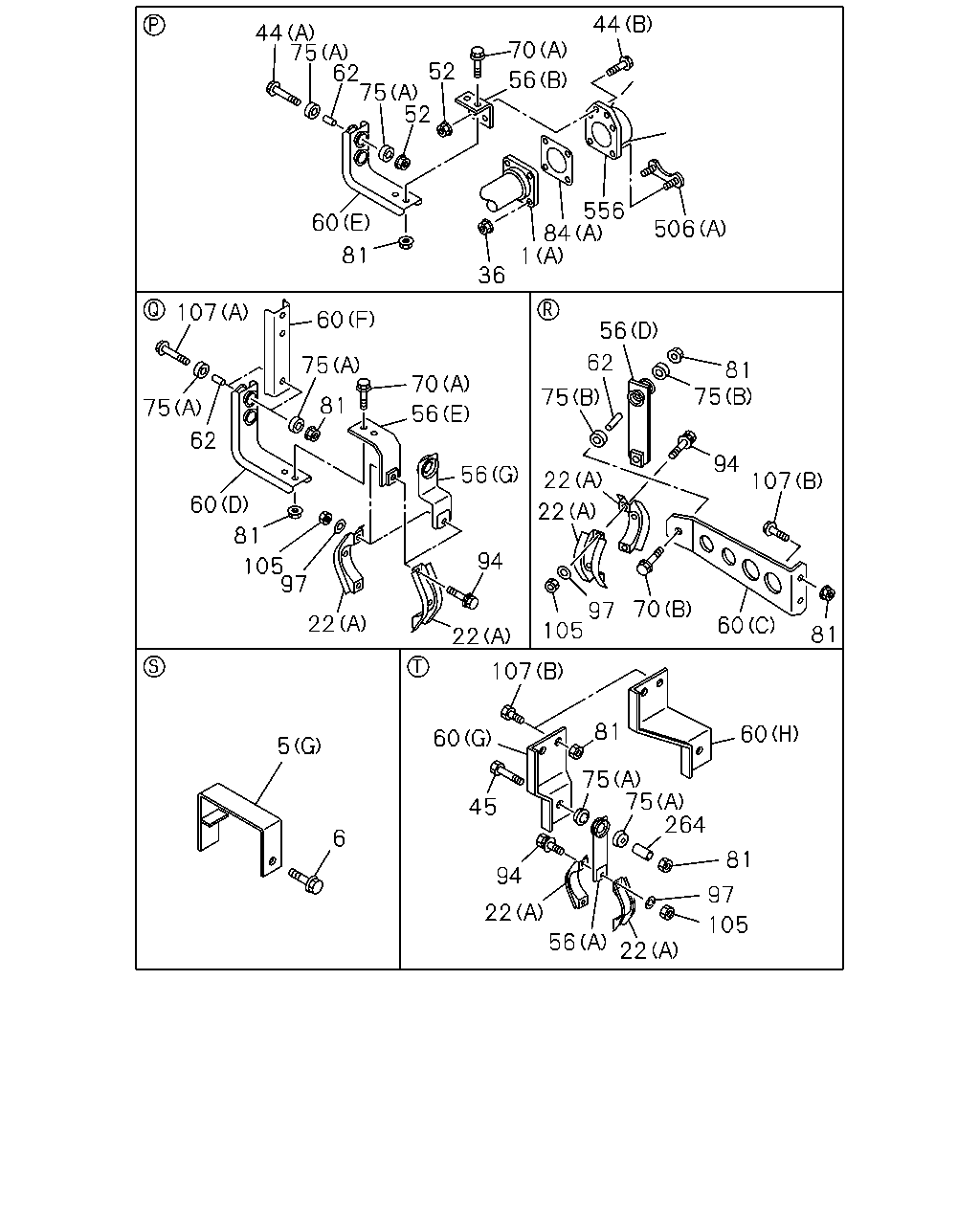

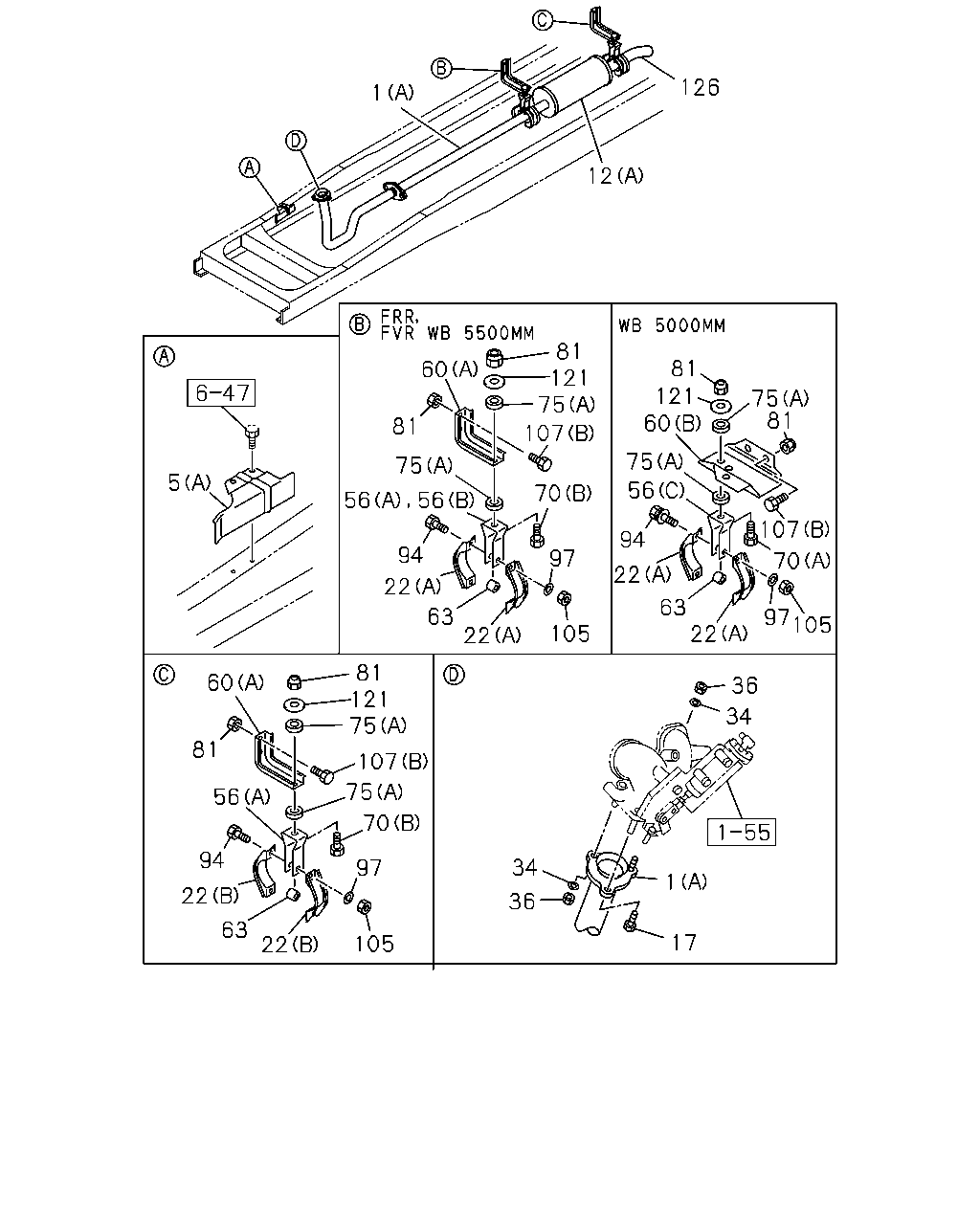

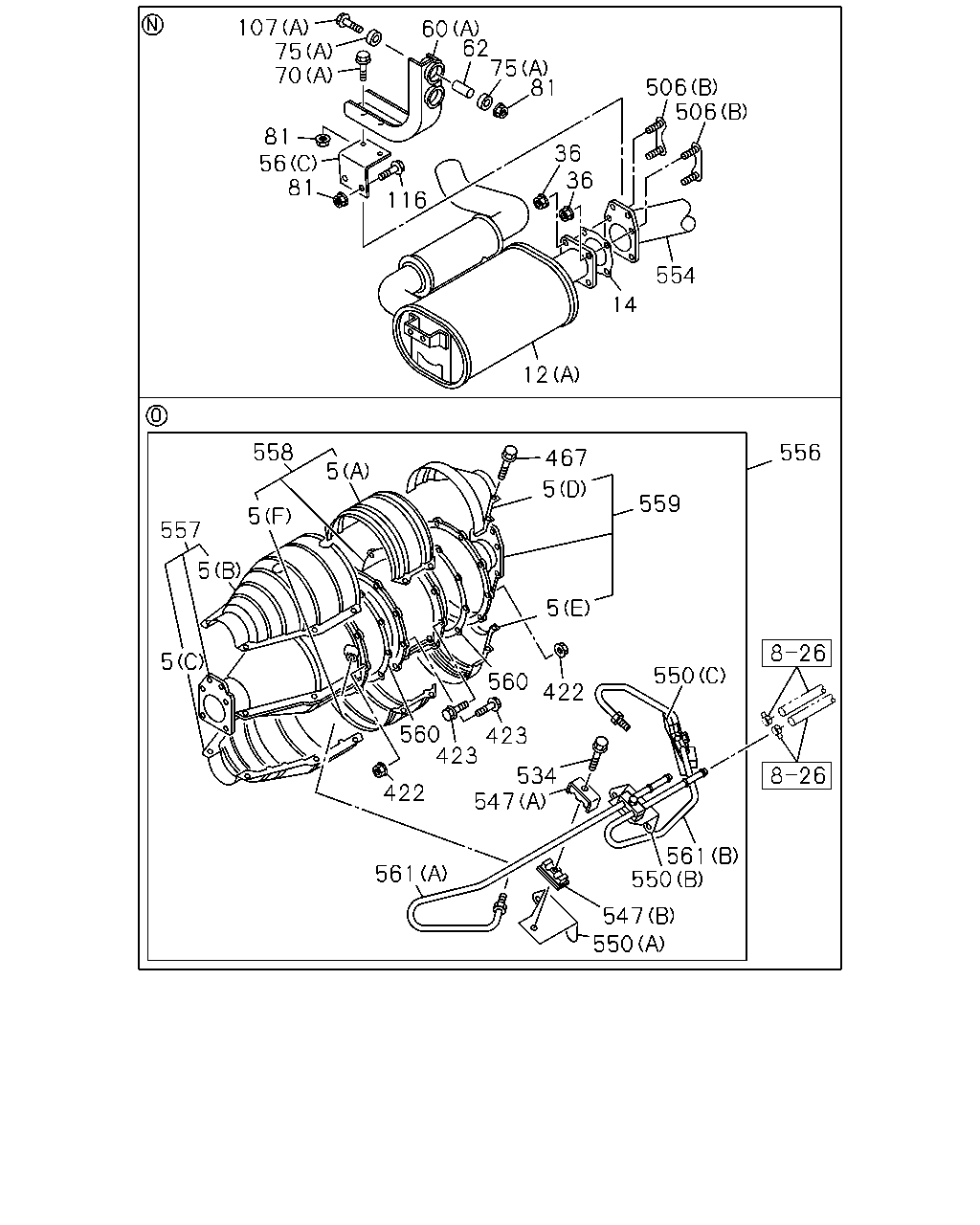

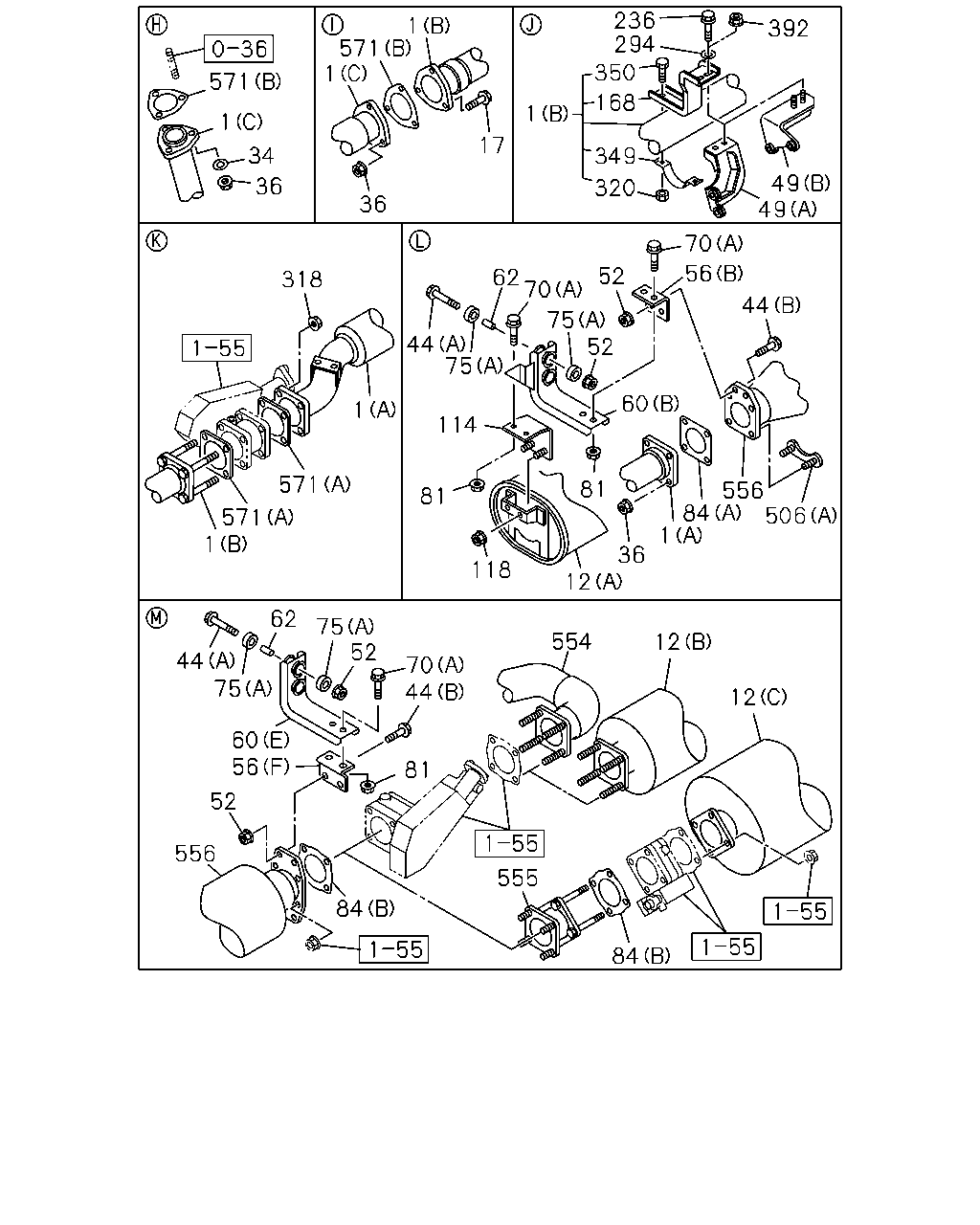

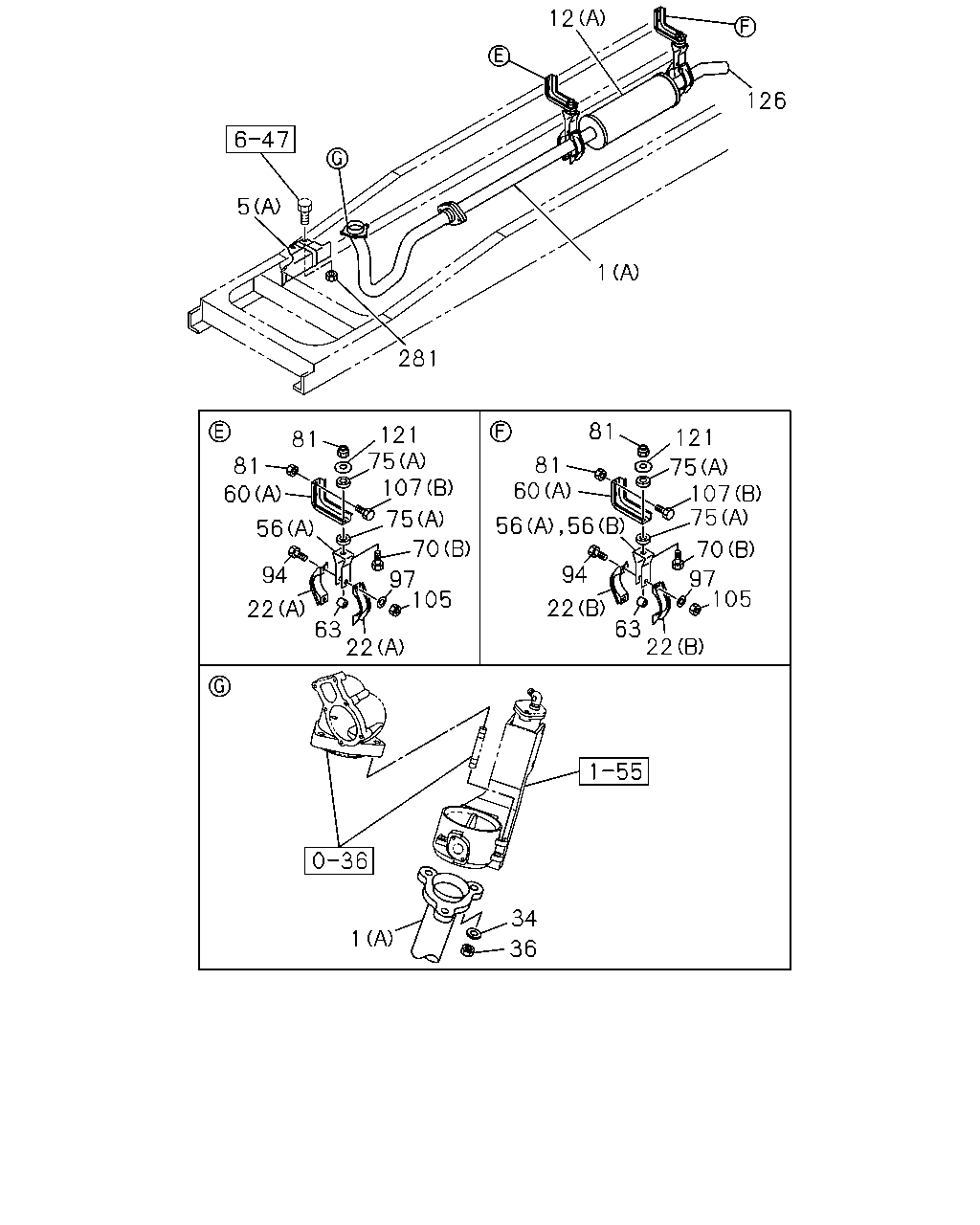

1-50 — EXHAUST PIPE AND SILENCER (#5705) — 811 parça

44 44 75 62 75 52 70 52 56 556 84 1 60 506 81 36 107 60 56 62 75 81 75 70 75 81 75 56 62 94 56 22 107 60 22 81 94 105 97 70 97 105 22 60 81 22 107 81 60 60 5 75 75 264 45 6 81 94 97 22 105 56 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (C)	8-98050-133-2	01	1	0611-	●	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-902-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-856-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-904-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-857-0	01	1	0611-	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22122-733-1	01	1	9811-9906				●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22123-070-5	01	1	9907-0502			●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-070-5	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-341-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22122-270-5	01	1	9811-9906				●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22123-215-2	01	1	9907-0502			●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-215-2	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-346-0	01	1	0611-	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (A)	1-33659-182-1	01	1	9811-9906				●
5	PROTECTOR; HEAT (A)	1-33659-231-0	01	1	0012-0610			●
5	PROTECTOR; HEAT (G)	1-33659-250-0	01	1	0611-	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	01	1	0611-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	9811-9906				●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	9907-0610			●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	0611-	●	●
22	CLAMP; EXH PIPE (B) ID=94-98	1-22133-237-0	02	1	9811-9906				●
22	CLAMP; EXH PIPE (B) ID=94-98	1-22133-237-0	02	1	9907-0610			●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	04	1	0611-	●
22	CLAMP; EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (A) ID=80-84 TAI	1-22133-233-0	04	1	0611-		●
36	NUT; EXH PIPE WB 4200MM(42W) M12 FLANGE	0-91180-212-0	04	1	0611-		●
36	NUT; EXH PIPE M12 FLANGE	0-91180-212-0	07	1	0611-	●	●
36	NUT; EXH PIPE M10	0-91110-510-0	04	1	0611-	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9811-9906				●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9907-0610			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0611-	●	●
44	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	04	1	0611-	●	●
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0611-0611	●	●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0611-	●	●
45	BOLT; BRKT M10X50	0-10856-050-0	01	1	0611-	●	●
45	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0611-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0611-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	09	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE WB 4200MM(42W) (C)	1-22139-280-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (D)	1-22131-528-1	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (E)	1-22139-283-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (A) L=94	1-22131-575-0	01	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE (D) L=254	1-22131-527-1	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE (G)	1-22134-247-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE WB 5000MM(50W) (C) H=67	1-22139-041-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-278-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-274-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) H=112	1-22139-043-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (B) H=112	1-22139-043-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22139-273-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (A)	1-22152-072-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (B)	8-98043-449-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (C)	1-22134-279-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (D)	1-22152-053-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (F)	1-22152-084-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (C)	8-98043-414-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (G)	8-98059-537-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 5000MM(50W) (B)	1-22151-534-3	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-0	02	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-1	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (H)	8-98059-536-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-3	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (E)	1-22152-155-0	02	1	0611-	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	04	1	0611-	●
62	TUBE; DIST,BRKT WB 4200MM(42W) L=22	9-22159-024-0	04	1	0611-		●
62	TUBE; DIST,BRKT WB 4800MM(48W),WB 5500MM(55W) L=22	9-22159-024-0	05	1	0611-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0611-	●	●
70	BOLT; BRKT WB 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-	●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0611-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0611-	●
70	BOLT; BRKT WB 5000MM(50W) (A) M10X45	0-10806-045-0	01	1	9811-9906				●
70	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X50	0-10806-050-0	02	1	9811-9906				●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	02	1	9907-0512			●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0601-0610			●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X50	0-10856-050-0	01	1	0611-		●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT WB 4800MM(48W),WB 5500MM(55W) (B) OD=40	1-22159-193-0	02	1	0611-		●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	06	1	0611-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	04	1	0611-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	10	1	0611-	●
75	RUBBER; SUPPORT,BRKT FRR MIDDLE CHASSIS(FR****) (A) OD=30	1-22159-106-1	04	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9907-0610			●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0611-		●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	06	1	0611-	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9811-9906				●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	9907-0603			●
81	NUT; BRKT M10 LOCK NUT	0-91370-010-0	02	1	0604-0610			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0611-	●	●
81	NUT; BRKT WB 5000MM(50W) M10 FLANGE	0-91150-210-0	03	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT WB 4800MM(48W),WB 5500MM(55W) M10 FLANGE	0-91180-210-0	07	1	0611-		●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 LOCK NUT	9-09131-510-0	02	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91150-210-0	01	1	0206-0602			●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91180-210-0	01	1	0603-0610			●
81	NUT; BRKT WB 4200MM(42W) M10 FLANGE	0-91180-210-0	09	1	0611-		●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0611-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0611-	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0611-	●	●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0611-	●
94	BOLT; CLAMP WB 4800MM(48W),WB 5500MM(55W) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0611-		●
94	BOLT; CLAMP FRR MIDDLE CHASSIS(FR****) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9811-9906				●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9907-0610			●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0611-	●	●
94	BOLT; CLAMP FVR MIDDLE CHASSIS(FV****) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9906				●
94	BOLT; CLAMP FVR MIDDLE CHASSIS(FV****) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9906				●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0611-	●
97	WASHER; PL,CLAMP WB 4800MM(48W),WB 5500MM(55W) ID=10.5	9-09164-510-0	04	1	0611-		●
97	WASHER; PL,CLAMP FRR MIDDLE CHASSIS(FR****) ID=10.5	9-09164-510-0	04	1	9811-9906				●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9907-0610			●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0611-	●	●
97	WASHER; PL,CLAMP FVR MIDDLE CHASSIS(FV****) ID=10.5	9-09164-510-0	02	1	9811-9906				●
97	WASHER; PL,CLAMP FVR MIDDLE CHASSIS(FV****) ID=10.5	9-09164-510-0	02	1	9811-9906				●
105	NUT; CLAMP M10	0-91110-510-0	04	1	0611-	●
105	NUT; CLAMP WB 4800MM(48W),WB 5500MM(55W) M10	0-91110-510-0	04	1	0611-		●
105	NUT; CLAMP FRR MIDDLE CHASSIS(FR****) M10	9-09110-510-0	04	1	9811-9906				●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9907-0512			●
105	NUT; CLAMP M10	0-91110-510-0	04	1	0601-0610			●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0611-	●	●
105	NUT; CLAMP FVR MIDDLE CHASSIS(FV****) M10	9-09110-510-0	02	1	9811-9906				●
105	NUT; CLAMP FVR MIDDLE CHASSIS(FV****) M10	9-09110-510-0	02	1	9811-9906				●
107	BOLT; BRKT WB 5000MM(50W) (B) M10X35 FLANGE	0-28681-035-0	03	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	04	1	9907-0512			●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610			●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-		●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9811-9906				●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9907-0512			●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-0610			●
107	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT WB 4200MM(42W) (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
264	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0611-	●	●
506	BRACKET; STUD WB 4200MM(42W) (B)	1-22134-214-0	02	1	0611-		●
506	BRACKET; STUD (A)	1-22131-963-0	02	1	0611-	●	●
556	DPD ASM	8-97613-331-6	01	1	0611-	●	●

126 1 12 81 121 75 81 121 60 60 75 81 81 107 75 75 5 56 70 56 56 107 94 94 70 97 22 22 63 22 63 97 105 105 22 81 121 75 60 36 34 81 107 75 56 70 94 34 97 1 22 36 63 17 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (C)	8-98050-133-2	01	1	0611-	●	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-902-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-856-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-904-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-857-0	01	1	0611-	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22122-733-1	01	1	9811-9906				●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22123-070-5	01	1	9907-0502			●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-070-5	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-341-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22122-270-5	01	1	9811-9906				●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22123-215-2	01	1	9907-0502			●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-215-2	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-346-0	01	1	0611-	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (A)	1-33659-182-1	01	1	9811-9906				●
5	PROTECTOR; HEAT (A)	1-33659-231-0	01	1	0012-0610			●
5	PROTECTOR; HEAT (G)	1-33659-250-0	01	1	0611-	●	●
12	SILENCER ASM; EXH (C)	8-98041-923-1	01	1	0611-	●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9811-9906				●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9907-0001			●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4800MM(48W),WB 5500MM(55W) (B)	8-98041-925-1	01	1	0611-		●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W) (A)	1-22140-912-0	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4200MM(42W) (A)	8-98043-317-2	01	1	0611-		●
17	BOLT; EXH PIPE M12X40 FLANGE	0-28051-240-0	03	1	0611-	●	●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	9811-9906				●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	9811-9906				●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	9907-0610			●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	0611-	●	●
22	CLAMP; EXH PIPE (B) ID=94-98	1-22133-237-0	02	1	9811-9906				●
22	CLAMP; EXH PIPE (B) ID=94-98	1-22133-237-0	02	1	9907-0610			●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	04	1	0611-	●
22	CLAMP; EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (A) ID=80-84 TAI	1-22133-233-0	04	1	0611-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9811-9906				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9907-0410			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-0610			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0611-	●	●
36	NUT; EXH PIPE WB 4200MM(42W) M12 FLANGE	0-91180-212-0	04	1	0611-		●
36	NUT; EXH PIPE M12 FLANGE	0-91180-212-0	07	1	0611-	●	●
36	NUT; EXH PIPE M10	0-91110-510-0	04	1	0611-	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9811-9906				●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9907-0610			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE WB 4200MM(42W) (C)	1-22139-280-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (D)	1-22131-528-1	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (E)	1-22139-283-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (A) L=94	1-22131-575-0	01	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE (D) L=254	1-22131-527-1	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE (G)	1-22134-247-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE WB 5000MM(50W) (C) H=67	1-22139-041-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-278-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-274-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) H=112	1-22139-043-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (B) H=112	1-22139-043-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22139-273-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (A)	1-22152-072-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (B)	8-98043-449-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (C)	1-22134-279-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (D)	1-22152-053-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (F)	1-22152-084-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (C)	8-98043-414-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (G)	8-98059-537-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 5000MM(50W) (B)	1-22151-534-3	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-0	02	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-1	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (H)	8-98059-536-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-3	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (E)	1-22152-155-0	02	1	0611-	●
63	TUBE; DIST,BRKT WB 5000MM(50W) L=8.5	1-22139-057-0	01	1	9811-9906				●
63	TUBE; DIST,BRKT FRR MIDDLE CHASSIS(FR****) L=11	1-22139-026-0	02	1	9811-9906				●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9907-0610			●
63	TUBE; DIST,BRKT FVR MIDDLE CHASSIS(FV****) L=11	1-22139-026-0	01	1	9811-9906				●
63	TUBE; DIST,BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) L=11	1-22139-026-0	01	1	9811-9906				●
70	BOLT; BRKT WB 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-	●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0611-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0611-	●
70	BOLT; BRKT WB 5000MM(50W) (A) M10X45	0-10806-045-0	01	1	9811-9906				●
70	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X50	0-10806-050-0	02	1	9811-9906				●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	02	1	9907-0512			●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0601-0610			●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X50	0-10856-050-0	01	1	0611-		●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT WB 4800MM(48W),WB 5500MM(55W) (B) OD=40	1-22159-193-0	02	1	0611-		●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	06	1	0611-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	04	1	0611-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	10	1	0611-	●
75	RUBBER; SUPPORT,BRKT FRR MIDDLE CHASSIS(FR****) (A) OD=30	1-22159-106-1	04	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9907-0610			●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0611-		●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	06	1	0611-	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9811-9906				●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	9907-0603			●
81	NUT; BRKT M10 LOCK NUT	0-91370-010-0	02	1	0604-0610			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0611-	●	●
81	NUT; BRKT WB 5000MM(50W) M10 FLANGE	0-91150-210-0	03	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT WB 4800MM(48W),WB 5500MM(55W) M10 FLANGE	0-91180-210-0	07	1	0611-		●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 LOCK NUT	9-09131-510-0	02	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91150-210-0	01	1	0206-0602			●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91180-210-0	01	1	0603-0610			●
81	NUT; BRKT WB 4200MM(42W) M10 FLANGE	0-91180-210-0	09	1	0611-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0611-	●
94	BOLT; CLAMP WB 4800MM(48W),WB 5500MM(55W) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0611-		●
94	BOLT; CLAMP FRR MIDDLE CHASSIS(FR****) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9811-9906				●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9907-0610			●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0611-	●	●
94	BOLT; CLAMP FVR MIDDLE CHASSIS(FV****) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9906				●
94	BOLT; CLAMP FVR MIDDLE CHASSIS(FV****) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9906				●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0611-	●
97	WASHER; PL,CLAMP WB 4800MM(48W),WB 5500MM(55W) ID=10.5	9-09164-510-0	04	1	0611-		●
97	WASHER; PL,CLAMP FRR MIDDLE CHASSIS(FR****) ID=10.5	9-09164-510-0	04	1	9811-9906				●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9907-0610			●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0611-	●	●
97	WASHER; PL,CLAMP FVR MIDDLE CHASSIS(FV****) ID=10.5	9-09164-510-0	02	1	9811-9906				●
97	WASHER; PL,CLAMP FVR MIDDLE CHASSIS(FV****) ID=10.5	9-09164-510-0	02	1	9811-9906				●
105	NUT; CLAMP M10	0-91110-510-0	04	1	0611-	●
105	NUT; CLAMP WB 4800MM(48W),WB 5500MM(55W) M10	0-91110-510-0	04	1	0611-		●
105	NUT; CLAMP FRR MIDDLE CHASSIS(FR****) M10	9-09110-510-0	04	1	9811-9906				●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9907-0512			●
105	NUT; CLAMP M10	0-91110-510-0	04	1	0601-0610			●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0611-	●	●
105	NUT; CLAMP FVR MIDDLE CHASSIS(FV****) M10	9-09110-510-0	02	1	9811-9906				●
105	NUT; CLAMP FVR MIDDLE CHASSIS(FV****) M10	9-09110-510-0	02	1	9811-9906				●
107	BOLT; BRKT WB 5000MM(50W) (B) M10X35 FLANGE	0-28681-035-0	03	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	04	1	9907-0512			●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610			●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-		●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9811-9906				●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9907-0512			●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-0610			●
107	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT WB 4200MM(42W) (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
121	WASHER; PL,BRKT FRR MIDDLE CHASSIS(FR****) ID=10.5 OD=32	9-09164-810-0	02	1	9811-9906				●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9907-0605			●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	02	1	0606-0610			●
121	WASHER; PL,BRKT FVR MIDDLE CHASSIS(FV****) ID=10.5 OD=32	9-09164-810-0	01	1	9811-9906				●
121	WASHER; PL,BRKT FVR MIDDLE CHASSIS(FV****) ID=10.5 OD=32	9-09164-810-0	01	1	9811-9906				●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9811-9906				●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9907-0001			●
126	PIPE; EXH,RR FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) OD=94	1-22126-059-0	01	1	0002-0009			●
126	PIPE; EXH,RR FVR MIDDLE CHASSIS(FV****) OD=94	1-22126-059-0	01	1	0002-0009			●
126	PIPE; EXH,RR FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) OD=94	1-22126-331-0	01	1	0010-0610			●
126	PIPE; EXH,RR FVR MIDDLE CHASSIS(FV****) OD=94	1-22126-331-0	01	1	0010-0610			●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0611-	●
126	PIPE; EXH,RR WB 4800MM(48W),WB 5500MM(55W)	8-98043-365-2	01	1	0611-		●

554 12 1 1 1 1 1 126 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (C)	8-98050-133-2	01	1	0611-	●	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-902-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-856-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-904-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-857-0	01	1	0611-	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22122-733-1	01	1	9811-9906				●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22123-070-5	01	1	9907-0502			●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-070-5	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-341-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22122-270-5	01	1	9811-9906				●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22123-215-2	01	1	9907-0502			●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-215-2	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-346-0	01	1	0611-	●
12	SILENCER ASM; EXH (C)	8-98041-923-1	01	1	0611-	●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9811-9906				●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9907-0001			●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4800MM(48W),WB 5500MM(55W) (B)	8-98041-925-1	01	1	0611-		●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W) (A)	1-22140-912-0	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4200MM(42W) (A)	8-98043-317-2	01	1	0611-		●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9811-9906				●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9907-0001			●
126	PIPE; EXH,RR FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) OD=94	1-22126-059-0	01	1	0002-0009			●
126	PIPE; EXH,RR FVR MIDDLE CHASSIS(FV****) OD=94	1-22126-059-0	01	1	0002-0009			●
126	PIPE; EXH,RR FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) OD=94	1-22126-331-0	01	1	0010-0610			●
126	PIPE; EXH,RR FVR MIDDLE CHASSIS(FV****) OD=94	1-22126-331-0	01	1	0010-0610			●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0611-	●
126	PIPE; EXH,RR WB 4800MM(48W),WB 5500MM(55W)	8-98043-365-2	01	1	0611-		●
554	PIPE; EXH,SILENCER WB 4200MM(42W)	8-98043-308-0	01	1	0611-		●

107 75 70 60 62 75 81 506 506 81 56 81 36 36 116 554 14 12 558 556 467 5 5 559 5 557 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (A)	1-33659-182-1	01	1	9811-9906				●
5	PROTECTOR; HEAT (A)	1-33659-231-0	01	1	0012-0610			●
5	PROTECTOR; HEAT (G)	1-33659-250-0	01	1	0611-	●	●
12	SILENCER ASM; EXH (C)	8-98041-923-1	01	1	0611-	●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9811-9906				●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9907-0001			●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4800MM(48W),WB 5500MM(55W) (B)	8-98041-925-1	01	1	0611-		●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W) (A)	1-22140-912-0	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4200MM(42W) (A)	8-98043-317-2	01	1	0611-		●
14	GASKET; SILENCER TO EXH PIPE WB 4200MM(42W)	1-22116-042-0	01	1	0611-		●
36	NUT; EXH PIPE WB 4200MM(42W) M12 FLANGE	0-91180-212-0	04	1	0611-		●
36	NUT; EXH PIPE M12 FLANGE	0-91180-212-0	07	1	0611-	●	●
36	NUT; EXH PIPE M10	0-91110-510-0	04	1	0611-	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9811-9906				●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9907-0610			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE WB 4200MM(42W) (C)	1-22139-280-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (D)	1-22131-528-1	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (E)	1-22139-283-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (A) L=94	1-22131-575-0	01	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE (D) L=254	1-22131-527-1	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE (G)	1-22134-247-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE WB 5000MM(50W) (C) H=67	1-22139-041-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-278-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-274-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) H=112	1-22139-043-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (B) H=112	1-22139-043-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22139-273-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (A)	1-22152-072-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (B)	8-98043-449-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (C)	1-22134-279-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (D)	1-22152-053-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (F)	1-22152-084-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (C)	8-98043-414-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (G)	8-98059-537-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 5000MM(50W) (B)	1-22151-534-3	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-0	02	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-1	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (H)	8-98059-536-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-3	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (E)	1-22152-155-0	02	1	0611-	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	04	1	0611-	●
62	TUBE; DIST,BRKT WB 4200MM(42W) L=22	9-22159-024-0	04	1	0611-		●
62	TUBE; DIST,BRKT WB 4800MM(48W),WB 5500MM(55W) L=22	9-22159-024-0	05	1	0611-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0611-	●	●
70	BOLT; BRKT WB 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-	●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0611-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0611-	●
70	BOLT; BRKT WB 5000MM(50W) (A) M10X45	0-10806-045-0	01	1	9811-9906				●
70	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X50	0-10806-050-0	02	1	9811-9906				●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	02	1	9907-0512			●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0601-0610			●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X50	0-10856-050-0	01	1	0611-		●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT WB 4800MM(48W),WB 5500MM(55W) (B) OD=40	1-22159-193-0	02	1	0611-		●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	06	1	0611-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	04	1	0611-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	10	1	0611-	●
75	RUBBER; SUPPORT,BRKT FRR MIDDLE CHASSIS(FR****) (A) OD=30	1-22159-106-1	04	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9907-0610			●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0611-		●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	06	1	0611-	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9811-9906				●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	9907-0603			●
81	NUT; BRKT M10 LOCK NUT	0-91370-010-0	02	1	0604-0610			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0611-	●	●
81	NUT; BRKT WB 5000MM(50W) M10 FLANGE	0-91150-210-0	03	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT WB 4800MM(48W),WB 5500MM(55W) M10 FLANGE	0-91180-210-0	07	1	0611-		●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 LOCK NUT	9-09131-510-0	02	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91150-210-0	01	1	0206-0602			●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91180-210-0	01	1	0603-0610			●
81	NUT; BRKT WB 4200MM(42W) M10 FLANGE	0-91180-210-0	09	1	0611-		●
107	BOLT; BRKT WB 5000MM(50W) (B) M10X35 FLANGE	0-28681-035-0	03	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	04	1	9907-0512			●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610			●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-		●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9811-9906				●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9907-0512			●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-0610			●
107	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT WB 4200MM(42W) (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
116	BOLT; BRKT WB 4200MM(42W) M10X30 FLANGE	0-28651-030-0	02	1	0611-0612		●
116	BOLT; BRKT WB 4200MM(42W) M10X35 FLANGE	0-28651-035-0	02	1	0701-		●
422	NUT; PIPE M8 FLANGE	0-91180-208-0	20	1	0611-0702	●	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0703-	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0611-	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0611-	●	●
506	BRACKET; STUD WB 4200MM(42W) (B)	1-22134-214-0	02	1	0611-		●
506	BRACKET; STUD (A)	1-22131-963-0	02	1	0611-	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0611-	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0611-	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0611-	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0611-	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0611-	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0611-	●	●
554	PIPE; EXH,SILENCER WB 4200MM(42W)	8-98043-308-0	01	1	0611-		●
556	DPD ASM	8-97613-331-6	01	1	0611-	●	●
557	CATALYST ASM	8-97608-055-7	01	1	0611-	●	●
558	FILTER ASM	8-97608-057-3	01	1	0611-	●	●
559	COVER; RR	8-97611-078-0	01	1	0611-	●	●
560	GASKET; DPD	8-97611-080-0	02	1	0611-	●	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	0611-	●	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	0611-	●	●

12 126 5 1 281 81 121 75 107 121 81 81 60 81 75 107 75 60 56 75 56 56 70 70 94 94 97 105 97 105 22 22 63 22 63 22 34 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (C)	8-98050-133-2	01	1	0611-	●	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-902-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-856-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-904-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-857-0	01	1	0611-	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22122-733-1	01	1	9811-9906				●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22123-070-5	01	1	9907-0502			●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-070-5	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-341-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22122-270-5	01	1	9811-9906				●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22123-215-2	01	1	9907-0502			●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-215-2	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-346-0	01	1	0611-	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0611-	●	●
5	PROTECTOR; HEAT (A)	1-33659-182-1	01	1	9811-9906				●
5	PROTECTOR; HEAT (A)	1-33659-231-0	01	1	0012-0610			●
5	PROTECTOR; HEAT (G)	1-33659-250-0	01	1	0611-	●	●
12	SILENCER ASM; EXH (C)	8-98041-923-1	01	1	0611-	●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9811-9906				●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9907-0001			●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4800MM(48W),WB 5500MM(55W) (B)	8-98041-925-1	01	1	0611-		●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W) (A)	1-22140-912-0	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4200MM(42W) (A)	8-98043-317-2	01	1	0611-		●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	9811-9906				●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	9907-0610			●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	02	1	0611-	●	●
22	CLAMP; EXH PIPE (B) ID=94-98	1-22133-237-0	02	1	9811-9906				●
22	CLAMP; EXH PIPE (B) ID=94-98	1-22133-237-0	02	1	9907-0610			●
22	CLAMP; EXH PIPE (A) ID=80-84 TAI	1-22133-233-0	04	1	0611-	●
22	CLAMP; EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (A) ID=80-84 TAI	1-22133-233-0	04	1	0611-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9811-9906				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9907-0410			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-0610			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0611-	●	●
36	NUT; EXH PIPE WB 4200MM(42W) M12 FLANGE	0-91180-212-0	04	1	0611-		●
36	NUT; EXH PIPE M12 FLANGE	0-91180-212-0	07	1	0611-	●	●
36	NUT; EXH PIPE M10	0-91110-510-0	04	1	0611-	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9811-9906				●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9907-0610			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE WB 4200MM(42W) (C)	1-22139-280-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (D)	1-22131-528-1	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (E)	1-22139-283-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (A) L=94	1-22131-575-0	01	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE (D) L=254	1-22131-527-1	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE (G)	1-22134-247-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE WB 5000MM(50W) (C) H=67	1-22139-041-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-278-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-274-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) H=112	1-22139-043-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (B) H=112	1-22139-043-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22139-273-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (A)	1-22152-072-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (B)	8-98043-449-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (C)	1-22134-279-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (D)	1-22152-053-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (F)	1-22152-084-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (C)	8-98043-414-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (G)	8-98059-537-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 5000MM(50W) (B)	1-22151-534-3	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-0	02	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-1	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (H)	8-98059-536-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-3	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (E)	1-22152-155-0	02	1	0611-	●
63	TUBE; DIST,BRKT WB 5000MM(50W) L=8.5	1-22139-057-0	01	1	9811-9906				●
63	TUBE; DIST,BRKT FRR MIDDLE CHASSIS(FR****) L=11	1-22139-026-0	02	1	9811-9906				●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	9907-0610			●
63	TUBE; DIST,BRKT FVR MIDDLE CHASSIS(FV****) L=11	1-22139-026-0	01	1	9811-9906				●
63	TUBE; DIST,BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) L=11	1-22139-026-0	01	1	9811-9906				●
70	BOLT; BRKT WB 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-	●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0611-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0611-	●
70	BOLT; BRKT WB 5000MM(50W) (A) M10X45	0-10806-045-0	01	1	9811-9906				●
70	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X50	0-10806-050-0	02	1	9811-9906				●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	02	1	9907-0512			●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0601-0610			●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X50	0-10856-050-0	01	1	0611-		●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT WB 4800MM(48W),WB 5500MM(55W) (B) OD=40	1-22159-193-0	02	1	0611-		●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	06	1	0611-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	04	1	0611-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	10	1	0611-	●
75	RUBBER; SUPPORT,BRKT FRR MIDDLE CHASSIS(FR****) (A) OD=30	1-22159-106-1	04	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9907-0610			●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0611-		●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	06	1	0611-	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9811-9906				●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	9907-0603			●
81	NUT; BRKT M10 LOCK NUT	0-91370-010-0	02	1	0604-0610			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0611-	●	●
81	NUT; BRKT WB 5000MM(50W) M10 FLANGE	0-91150-210-0	03	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT WB 4800MM(48W),WB 5500MM(55W) M10 FLANGE	0-91180-210-0	07	1	0611-		●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 LOCK NUT	9-09131-510-0	02	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91150-210-0	01	1	0206-0602			●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91180-210-0	01	1	0603-0610			●
81	NUT; BRKT WB 4200MM(42W) M10 FLANGE	0-91180-210-0	09	1	0611-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0611-	●
94	BOLT; CLAMP WB 4800MM(48W),WB 5500MM(55W) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0611-		●
94	BOLT; CLAMP FRR MIDDLE CHASSIS(FR****) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9811-9906				●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9907-0610			●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0611-	●	●
94	BOLT; CLAMP FVR MIDDLE CHASSIS(FV****) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9906				●
94	BOLT; CLAMP FVR MIDDLE CHASSIS(FV****) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9906				●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0611-	●
97	WASHER; PL,CLAMP WB 4800MM(48W),WB 5500MM(55W) ID=10.5	9-09164-510-0	04	1	0611-		●
97	WASHER; PL,CLAMP FRR MIDDLE CHASSIS(FR****) ID=10.5	9-09164-510-0	04	1	9811-9906				●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	9907-0610			●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0611-	●	●
97	WASHER; PL,CLAMP FVR MIDDLE CHASSIS(FV****) ID=10.5	9-09164-510-0	02	1	9811-9906				●
97	WASHER; PL,CLAMP FVR MIDDLE CHASSIS(FV****) ID=10.5	9-09164-510-0	02	1	9811-9906				●
105	NUT; CLAMP M10	0-91110-510-0	04	1	0611-	●
105	NUT; CLAMP WB 4800MM(48W),WB 5500MM(55W) M10	0-91110-510-0	04	1	0611-		●
105	NUT; CLAMP FRR MIDDLE CHASSIS(FR****) M10	9-09110-510-0	04	1	9811-9906				●
105	NUT; CLAMP M10	9-09110-510-0	04	1	9907-0512			●
105	NUT; CLAMP M10	0-91110-510-0	04	1	0601-0610			●
105	NUT; CLAMP M10	0-91110-510-0	02	1	0611-	●	●
105	NUT; CLAMP FVR MIDDLE CHASSIS(FV****) M10	9-09110-510-0	02	1	9811-9906				●
105	NUT; CLAMP FVR MIDDLE CHASSIS(FV****) M10	9-09110-510-0	02	1	9811-9906				●
107	BOLT; BRKT WB 5000MM(50W) (B) M10X35 FLANGE	0-28681-035-0	03	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	04	1	9907-0512			●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-0610			●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-	●
107	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0611-		●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9811-9906				●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28681-030-0	04	1	9907-0512			●
107	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-0610			●
107	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT WB 4200MM(42W) (A) M10X60 FLANGE	0-28051-060-0	02	1	0611-		●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
107	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9811-9906				●
121	WASHER; PL,BRKT FRR MIDDLE CHASSIS(FR****) ID=10.5 OD=32	9-09164-810-0	02	1	9811-9906				●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9907-0605			●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	02	1	0606-0610			●
121	WASHER; PL,BRKT FVR MIDDLE CHASSIS(FV****) ID=10.5 OD=32	9-09164-810-0	01	1	9811-9906				●
121	WASHER; PL,BRKT FVR MIDDLE CHASSIS(FV****) ID=10.5 OD=32	9-09164-810-0	01	1	9811-9906				●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9811-9906				●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9907-0001			●
126	PIPE; EXH,RR FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) OD=94	1-22126-059-0	01	1	0002-0009			●
126	PIPE; EXH,RR FVR MIDDLE CHASSIS(FV****) OD=94	1-22126-059-0	01	1	0002-0009			●
126	PIPE; EXH,RR FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) OD=94	1-22126-331-0	01	1	0010-0610			●
126	PIPE; EXH,RR FVR MIDDLE CHASSIS(FV****) OD=94	1-22126-331-0	01	1	0010-0610			●
126	PIPE; EXH,RR	8-98043-365-2	01	1	0611-	●
126	PIPE; EXH,RR WB 4800MM(48W),WB 5500MM(55W)	8-98043-365-2	01	1	0611-		●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	0012-0602			●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	01	1	0603-0610			●

236 294 1 571 1 392 350 571 168 1 1 17 34 349 49 49 36 320 36 70 56 52 62 70 318 44 75 52 44 75 60 1 114 571 81 556 84 506 1 81 571 1 36 118 12 62 75 52 554 12 44 75 70 44 12 60 56 81 52 556 555 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (C)	8-98050-133-2	01	1	0611-	●	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-902-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-856-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-904-0	01	1	0503-0610			●
1	PIPE; EXH (B)	8-98063-857-0	01	1	0611-	●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22122-733-1	01	1	9811-9906				●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) (A)	1-22123-070-5	01	1	9907-0502			●
1	PIPE; EXH FRR MIDDLE CHASSIS(FR****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-070-5	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-341-0	01	1	0611-		●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22122-270-5	01	1	9811-9906				●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22123-215-2	01	1	9907-0502			●
1	PIPE; EXH FVR MIDDLE CHASSIS(FV****) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (A)	1-22123-215-2	01	1	0503-0610			●
1	PIPE; EXH (A)	8-98058-346-0	01	1	0611-	●
12	SILENCER ASM; EXH (C)	8-98041-923-1	01	1	0611-	●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9811-9906				●
12	SILENCER ASM; EXH (A)	1-22140-723-1	01	1	9907-0001			●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4800MM(48W),WB 5500MM(55W) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH FVR MIDDLE CHASSIS(FV****) (A)	1-22140-723-2	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4800MM(48W),WB 5500MM(55W) (B)	8-98041-925-1	01	1	0611-		●
12	SILENCER ASM; EXH FRR MIDDLE CHASSIS(FR****) WB 4200MM(42W) (A)	1-22140-912-0	01	1	0002-0610			●
12	SILENCER ASM; EXH WB 4200MM(42W) (A)	8-98043-317-2	01	1	0611-		●
17	BOLT; EXH PIPE M12X40 FLANGE	0-28051-240-0	03	1	0611-	●	●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	9811-9906				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9811-9906				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9907-0410			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-0610			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0611-	●	●
36	NUT; EXH PIPE WB 4200MM(42W) M12 FLANGE	0-91180-212-0	04	1	0611-		●
36	NUT; EXH PIPE M12 FLANGE	0-91180-212-0	07	1	0611-	●	●
36	NUT; EXH PIPE M10	0-91110-510-0	04	1	0611-	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9811-9906				●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9907-0610			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0611-	●	●
44	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	04	1	0611-	●	●
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0611-0611	●	●
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0611-	●	●
49	BRACKET; EXH PIPE TO TRANS (A)	8-98058-347-0	01	1	0611-		●
49	BRACKET; EXH PIPE TO TRANS (B)	8-98050-141-0	01	1	0611-	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0611-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	09	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE WB 4200MM(42W) (C)	1-22139-280-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (D)	1-22131-528-1	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE WB 4800MM(48W),WB 5500MM(55W) (E)	1-22139-283-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE (A) L=94	1-22131-575-0	01	1	0611-	●	●
56	BRACKET; CLAMP,EXH PIPE (D) L=254	1-22131-527-1	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE (G)	1-22134-247-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE WB 5000MM(50W) (C) H=67	1-22139-041-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FRR MIDDLE CHASSIS(FR****) (A)	1-22139-082-0	02	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-278-0	01	1	0611-		●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (A)	1-22139-082-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-274-0	01	1	0611-	●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) H=112	1-22139-043-0	01	1	9811-9906				●
56	BRACKET; CLAMP,EXH PIPE FVR MIDDLE CHASSIS(FV****) (B) H=112	1-22139-043-0	01	1	9907-0610			●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22139-273-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (A)	1-22152-072-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4200MM(42W) (B)	8-98043-449-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (C)	1-22134-279-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (D)	1-22152-053-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT WB 4800MM(48W),WB 5500MM(55W) (E)	1-22152-065-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT (F)	1-22152-084-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (C)	8-98043-414-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT (G)	8-98059-537-0	01	1	0611-	●
60	BRACKET; FRAME TO BRKT WB 5000MM(50W) (B)	1-22151-534-3	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-0	02	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FRR MIDDLE CHASSIS(FR****) (A)	1-22151-679-1	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (H)	8-98059-536-0	01	1	0611-		●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (A)	1-22151-512-2	01	1	9811-9906				●
60	BRACKET; FRAME TO BRKT FVR MIDDLE CHASSIS(FV****) (A)	1-22151-512-3	02	1	9907-0610			●
60	BRACKET; FRAME TO BRKT (E)	1-22152-155-0	02	1	0611-	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	04	1	0611-	●
62	TUBE; DIST,BRKT WB 4200MM(42W) L=22	9-22159-024-0	04	1	0611-		●
62	TUBE; DIST,BRKT WB 4800MM(48W),WB 5500MM(55W) L=22	9-22159-024-0	05	1	0611-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0611-	●	●
70	BOLT; BRKT WB 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-	●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	04	1	0611-		●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0611-		●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0611-	●
70	BOLT; BRKT WB 5000MM(50W) (A) M10X45	0-10806-045-0	01	1	9811-9906				●
70	BOLT; BRKT FRR MIDDLE CHASSIS(FR****) (B) M10X50	0-10806-050-0	02	1	9811-9906				●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	02	1	9907-0512			●
70	BOLT; BRKT (B) M10X50	0-10856-050-0	02	1	0601-0610			●
70	BOLT; BRKT WB 4800MM(48W),WB 5500MM(55W) (B) M10X50	0-10856-050-0	01	1	0611-		●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
70	BOLT; BRKT FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) (B) M10X50	0-10806-050-0	01	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT WB 4800MM(48W),WB 5500MM(55W) (B) OD=40	1-22159-193-0	02	1	0611-		●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	06	1	0611-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-193-0	04	1	0611-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	10	1	0611-	●
75	RUBBER; SUPPORT,BRKT FRR MIDDLE CHASSIS(FR****) (A) OD=30	1-22159-106-1	04	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9907-0610			●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	08	1	0611-		●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
75	RUBBER; SUPPORT,BRKT FVR MIDDLE CHASSIS(FV****) (A) OD=30	1-22159-106-1	02	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	06	1	0611-	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9811-9906				●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	9907-0603			●
81	NUT; BRKT M10 LOCK NUT	0-91370-010-0	02	1	0604-0610			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0611-	●	●
81	NUT; BRKT WB 5000MM(50W) M10 FLANGE	0-91150-210-0	03	1	9811-9906				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91150-210-0	02	1	9907-0602			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 FLANGE	0-91180-210-0	02	1	0603-0610			●
81	NUT; BRKT WB 4800MM(48W),WB 5500MM(55W) M10 FLANGE	0-91180-210-0	07	1	0611-		●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 LOCK NUT	9-09131-510-0	02	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M10 LOCK NUT	9-09131-510-0	01	1	9811-9906				●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91150-210-0	01	1	0206-0602			●
81	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M10 FLANGE	0-91180-210-0	01	1	0603-0610			●
81	NUT; BRKT WB 4200MM(42W) M10 FLANGE	0-91180-210-0	09	1	0611-		●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0611-	●	●
84	GASKET; EXH PIPE (B)	1-22116-043-0	01	1	0611-	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0611-	●	●
114	BRACKET; EXH SILENCER WB 4200MM(42W)	1-22139-328-0	01	1	0611-		●
118	NUT; SILENCER MTG BRKT WB 4200MM(42W) M10 FLANGE	0-91180-210-0	02	1	0611-		●
168	BRACKET; EXH PIPE,FRT	8-98063-858-0	01	1	0611-		●
168	BRACKET; EXH PIPE,FRT	8-98063-859-0	01	1	0611-	●
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0611-		●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5 OD=22	0-91610-610-0	02	1	0611-	●	●
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0611-	●	●
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0611-	●	●
349	CLAMP; EXH PIPE	8-98058-351-0	01	1	0611-	●	●
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	0611-	●	●
392	NUT; CLAMP BRKT M10 FLANGE	0-91180-210-0	02	1	0611-	●
506	BRACKET; STUD WB 4200MM(42W) (B)	1-22134-214-0	02	1	0611-		●
506	BRACKET; STUD (A)	1-22131-963-0	02	1	0611-	●	●
554	PIPE; EXH,SILENCER WB 4200MM(42W)	8-98043-308-0	01	1	0611-		●
555	PIPE; EXH,DPD	8-98050-138-0	01	1	0611-	●
556	DPD ASM	8-97613-331-6	01	1	0611-	●	●
571	GASKET (A)	1-22116-043-0	02	1	0611-	●	●
571	GASKET (B)	8-98043-481-0	02	1	0611-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
