◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11395 - FRR RHD EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#57043) — 32 parça

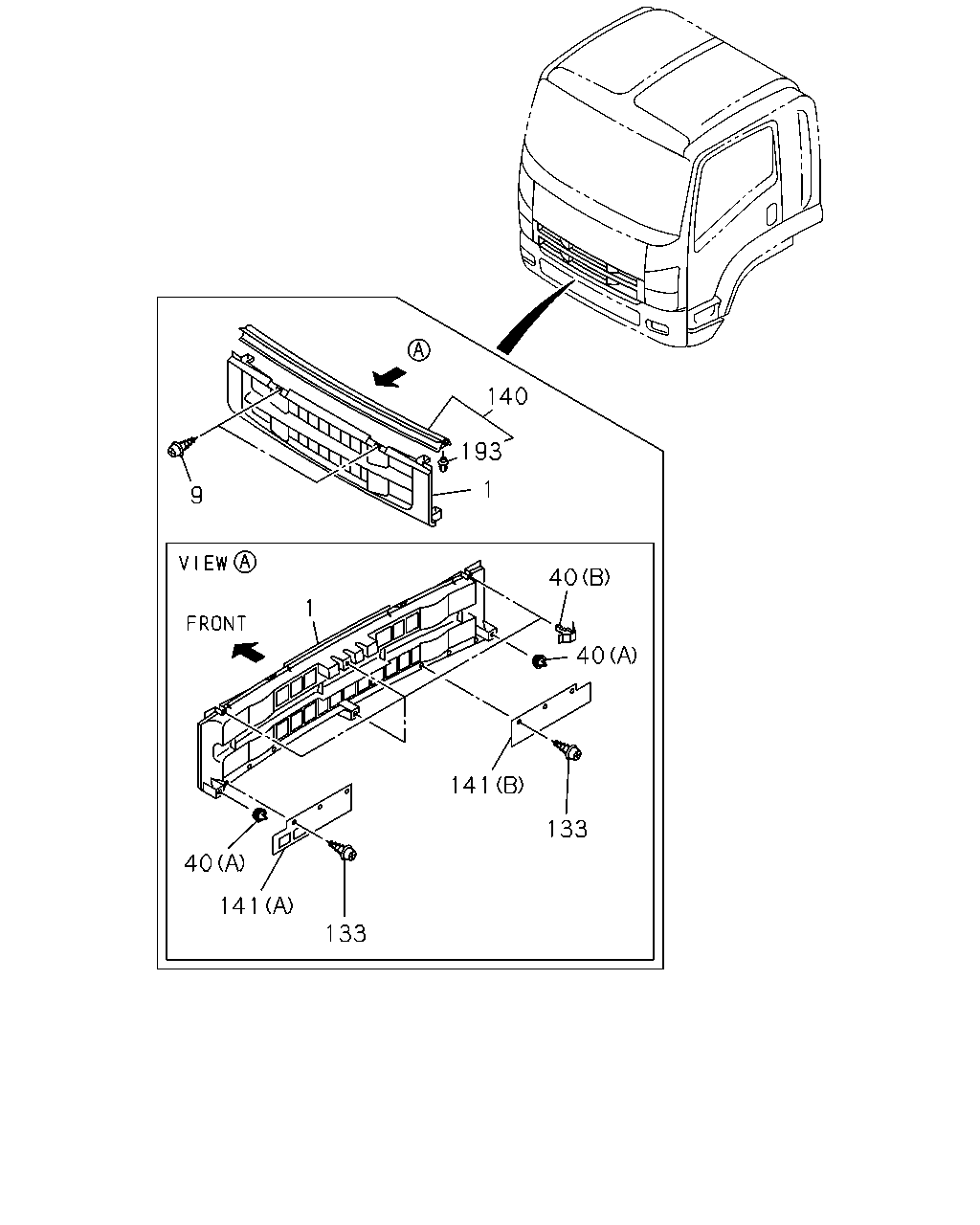

çizim 148100
140 193 1 9 40 1 40 141 133 40 141 133
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-918-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-867-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-380-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-927-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-383-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-926-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-384-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-933-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-931-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-930-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-984-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-919-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-381-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-385-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-929-5 01 1 1110-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-928-5 01 1 1110-
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD> DARK GRAY 		8-98040-994-5 01 1 1110-
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1110-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD> (A) 		8-97581-651-2 02 1 1110-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANSBLUE(999) CAB ALL PAINTING<TFD> (A) 		8-97581-651-2 02 1 1110-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD> (B) 		8-98025-698-0 04 1 1110-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANSBLUE(999) CAB ALL PAINTING<TFD> (B) 		8-98025-698-0 04 1 1110-
133 SCREW; COVER
EXC. CAB ALL PAINTING<TFD> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1110-
133 SCREW; COVER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANSBLUE(999) CAB ALL PAINTING<TFD> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1110-
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD> 		8-98060-339-0 01 1 1110-
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANSBLUE(999) CAB ALL PAINTING<TFD> 		8-98060-339-0 01 1 1110-
141 COVER; RAD GRILLE
EXC. CAB ALL PAINTING<TFD> (B) 		8-98041-012-1 01 1 1110-
141 COVER; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANSBLUE(999) CAB ALL PAINTING<TFD> (B) 		8-98041-012-1 01 1 1110-
141 COVER; RAD GRILLE
EXC. CAB ALL PAINTING<TFD> (A) 		8-98060-783-0 01 1 1110-
141 COVER; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANSBLUE(999) CAB ALL PAINTING<TFD> (A) 		8-98060-783-0 01 1 1110-
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD> NATURAL 		8-98027-457-0 13 1 1110-
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANSBLUE(999) CAB ALL PAINTING<TFD> NATURAL 		8-98027-457-0 13 1 1110-
