1-45 — WATER SEDIMENTER; FUEL (#5704) — 39 parça

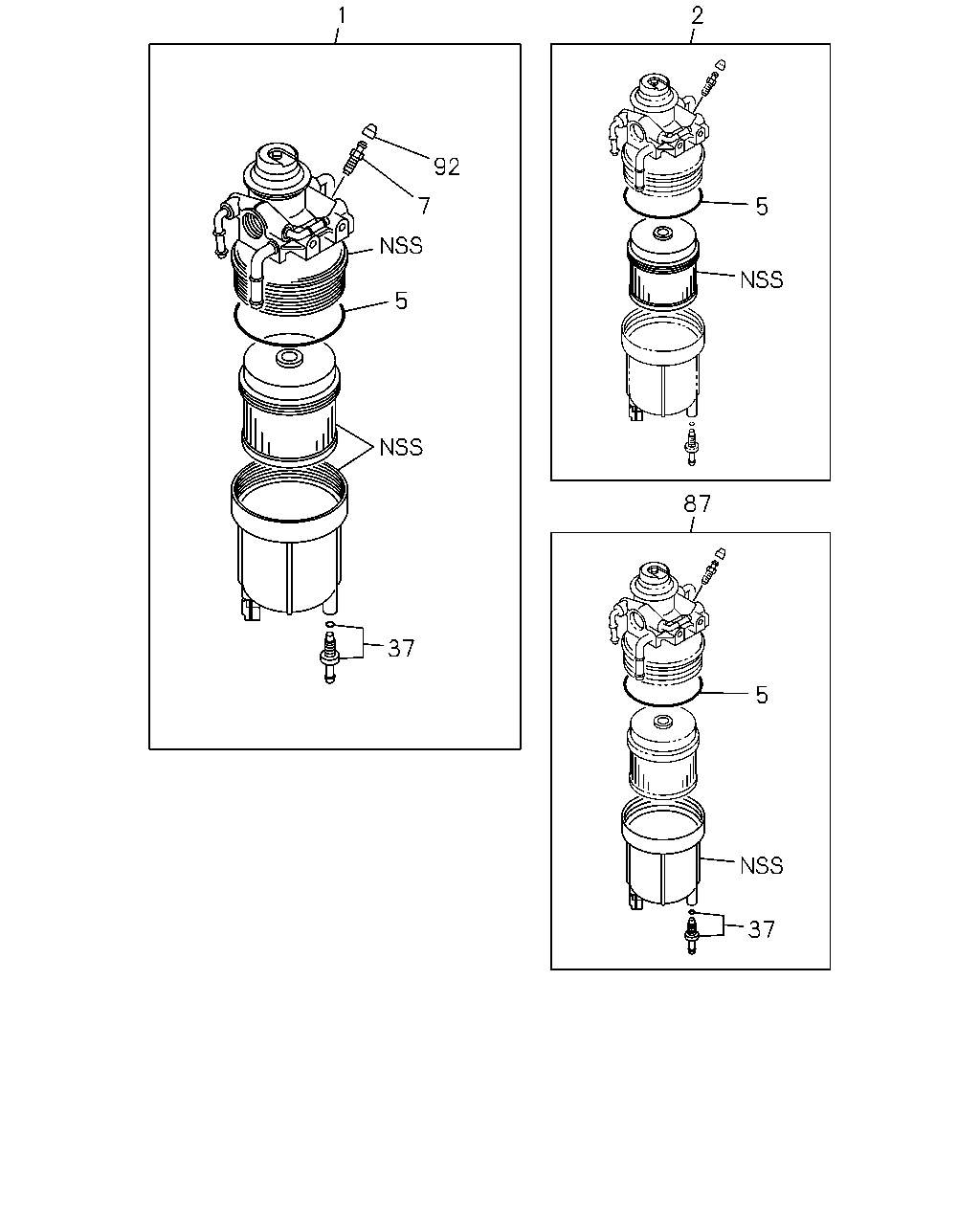

çizim 24619
2 1 92 7 5 5 87 37 5 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9811-9906 ●
1 SEDIMENTER; FUEL 8-97600-048-0 01 1 9907-0006 ●
1 SEDIMENTER; FUEL 8-97601-458-0 01 1 0007-0610 ●
1 SEDIMENTER; FUEL 8-98023-327-2 01 1 0611- ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9811-9906 ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9907-0610 ●
2 ELEMENT; FUEL FILTER 8-98037-011-0 01 1 0611- ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9811-9906 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9907-0610 ●
5 GASKET; UPR COVER,SEDIMENTER 8-98037-015-0 01 1 0611- ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9811-9906 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9907-0610 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		8-98034-312-0 01 1 0611- ● ●
37 PLUG; SENSOR 8-98037-095-0 01 1 0611- ● ●
87 CASE ASM; SEDIMENTER 8-98039-987-0 01 1 0611- ● ●
92 CAP; DRAIN 8-98034-314-0 01 1 0611- ● ●

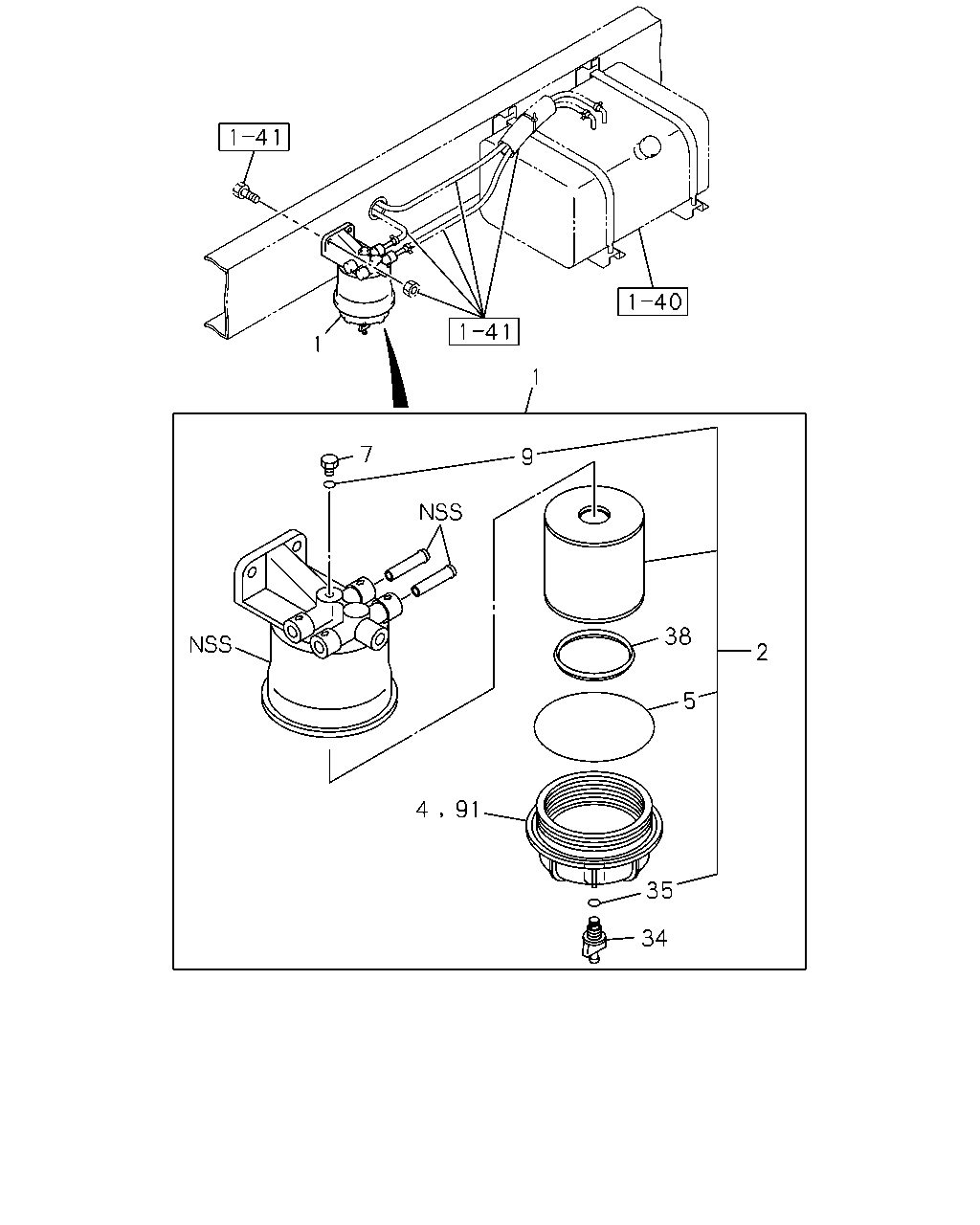

çizim 26070
1 1 7 9 38 2 5 91 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9811-9906 ●
1 SEDIMENTER; FUEL 8-97600-048-0 01 1 9907-0006 ●
1 SEDIMENTER; FUEL 8-97601-458-0 01 1 0007-0610 ●
1 SEDIMENTER; FUEL 8-98023-327-2 01 1 0611- ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9811-9906 ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9907-0610 ●
2 ELEMENT; FUEL FILTER 8-98037-011-0 01 1 0611- ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9811-9906 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9811-9906 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9907-0610 ●
5 GASKET; UPR COVER,SEDIMENTER 8-98037-015-0 01 1 0611- ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9811-9906 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9907-0610 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		8-98034-312-0 01 1 0611- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9811-9906 ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9907-0610 ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9811-9906 ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9907-0610 ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9811-9906 ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9907-0610 ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9811-9906 ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9907-0610 ●
91 COVER; LWR,SEDIMENTER 1-13212-176-2 01 1 9907-0610 ●
