Isuzu WW
▶
TRUCKS
▶
FRR
▶
11395 - FRR RHD EURO1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

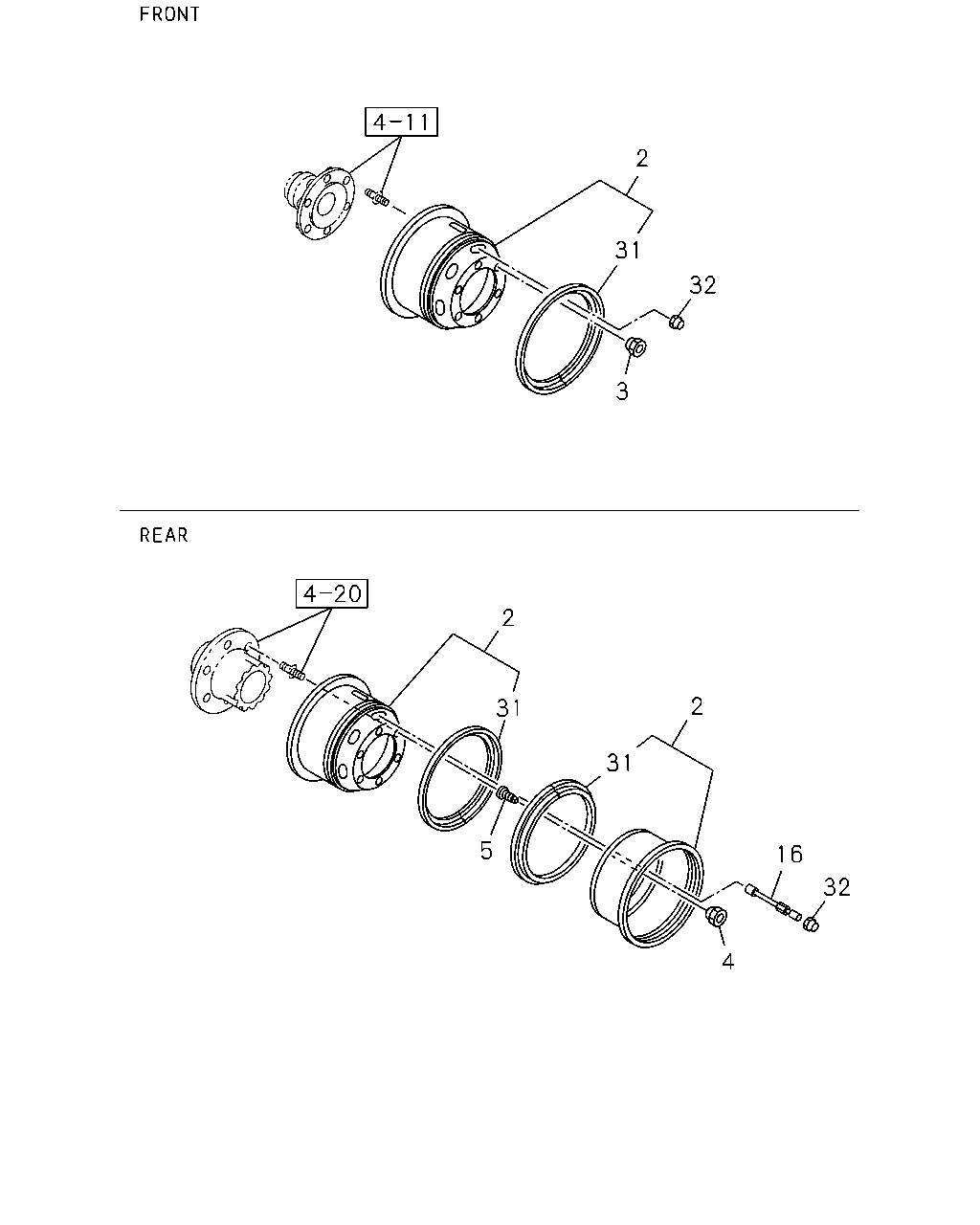

4-80 — ROAD WHEEL
(#57036) — 16 parça
2
31
32
3
2
2
31
31
5
16
32
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE
1-42350-417-0
06
1
1110-
2
WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE
1-42350-417-0
01
1
1110-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE
1-42350-417-0
01
1
1110-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
1110-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
1110-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1110-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1110-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1110-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1110-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
8-98167-051-0
02
1
1110-
31
RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
1-42355-015-2
06
1
1110-
31
RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 16X6.00GS STAMP, BLACK
1-42355-015-2
01
1
1110-
31
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 16X6.00GS STAMP, BLACK
1-42355-015-2
01
1
1110-
32
CAP; VALVE
DISC WHEEL SPARE<N79>
1-42374-001-0
04
1
1110-
32
CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIREONE<WH2>
1-42374-001-0
04
1
1110-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>
1-42374-001-0
05
1
1110-
