Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#5703) — 198 parça

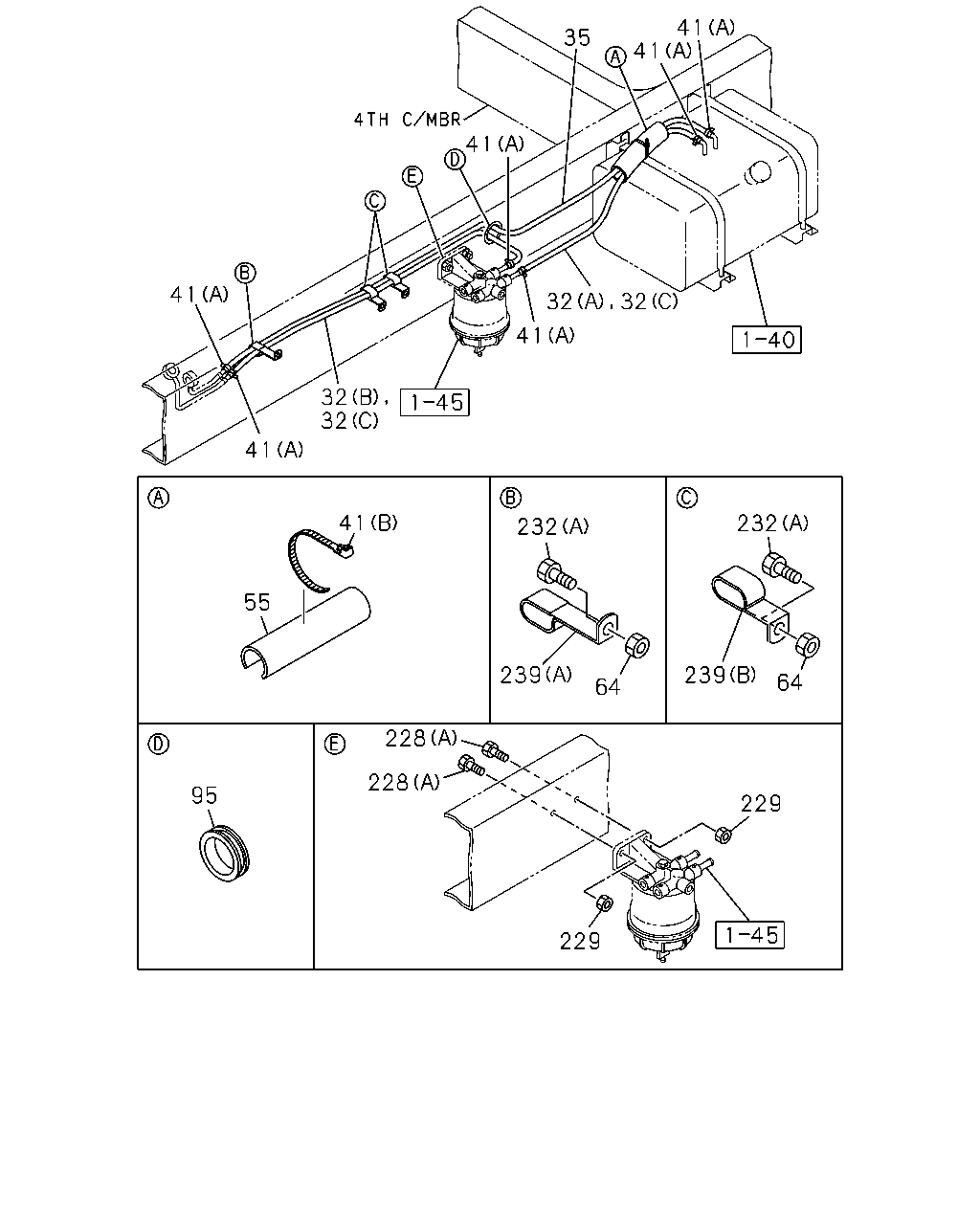

41 41 35 41 41 32 32 41 32 32 41 41 232 232 55 239 239 64 64 228 228 95 229 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0611-	●	●
32	PIPE; DELIVERY,FUEL TANK FRR MIDDLE CHASSIS(FR****) (C) L=1050 SERVICED BY L=3000	0-01260-300-0	02	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK (C) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK FRR MIDDLE CHASSIS(FR****) (C) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2150 SERVICED BY L=3000	0-01260-300-0	01	1	0611-		●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (B) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (B) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0611-	●
35	PIPE; FUEL TANK,RETURN FRR MIDDLE CHASSIS(FR****) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
35	PIPE; FUEL TANK,RETURN FRR MIDDLE CHASSIS(FR****) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9907-9907				●
35	PIPE; FUEL TANK,RETURN FRR MIDDLE CHASSIS(FR****) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
35	PIPE; FUEL TANK,RETURN FVR MIDDLE CHASSIS(FV****) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
35	PIPE; FUEL TANK,RETURN FVR MIDDLE CHASSIS(FV****) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	9907-9907				●
35	PIPE; FUEL TANK,RETURN FVR MIDDLE CHASSIS(FV****) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9811-9906			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	10	1	0611-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	9811-9906			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	0611-	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0611-	●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9811-9906			●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9907-0610				●
55	COVER; PIPE,FUEL TANK L=500 SERVICED BY L=1300	1-09360-677-1	01	1	0611-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0611-	●
64	NUT; CLIP FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9907-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0610				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0611-		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	03	1	9811-9906			●
95	BUSHING; PIPE,FUEL TANK FRR MIDDLE CHASSIS(FR****) ID=28 OD=35 T=17	9-09956-256-1	01	1	9811-9906			●
95	BUSHING; PIPE,FUEL TANK FRR MIDDLE CHASSIS(FR****) ID=28 OD=35 T=17	9-09956-256-2	01	1	9907-0610				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0611-		●
95	BUSHING; PIPE,FUEL TANK FVR MIDDLE CHASSIS(FV****) ID=28 OD=35 T=25	1-09332-011-1	01	1	9811-9906			●
95	BUSHING; PIPE,FUEL TANK FVR MIDDLE CHASSIS(FV****) ID=28 OD=35 T=25	1-09332-011-1	01	1	9907-0610				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-	●
228	BOLT; BRKT,SEDIMENTER FRR MIDDLE CHASSIS(FR****) (A) M10X40 FLANGE	0-28681-040-0	02	1	9811-9906			●
228	BOLT; BRKT,SEDIMENTER FRR MIDDLE CHASSIS(FR****) (A) M10X40 FLANGE	0-28681-040-0	02	1	9907-0512				●
228	BOLT; BRKT,SEDIMENTER FRR MIDDLE CHASSIS(FR****) (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-0610				●
228	BOLT; BRKT,SEDIMENTER (A) M10X25 FLANGE	0-28051-025-0	02	1	0611-	●	●
228	BOLT; BRKT,SEDIMENTER FVR MIDDLE CHASSIS(FV****) (A) M10X45 FLANGE	0-28081-045-0	02	1	9811-9906			●
228	BOLT; BRKT,SEDIMENTER FVR MIDDLE CHASSIS(FV****) (A) M10X45 FLANGE	0-28081-045-0	02	1	9907-0512				●
228	BOLT; BRKT,SEDIMENTER FVR MIDDLE CHASSIS(FV****) (A) M10X45 FLANGE	0-28051-045-0	02	1	0601-0610				●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0611-	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9811-9906			●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9907-0602				●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-0610				●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0611-		●
232	BOLT; CLIP,PIPE (A) M8X20 FLANGE	0-28650-820-0	04	1	0611-	●	●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906			●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512				●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610				●
232	BOLT; CLIP,PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28680-835-0	03	1	9811-9906			●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28680-835-0	02	1	9907-0512				●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-0610				●
232	BOLT; CLIP,PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	0611-	●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	02	1	0611-		●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0611-	●	●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	03	1	0611-	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9811-9906			●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9907-9907				●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0610				●
239	CLIP; FUEL PIPE (D) ID=16X2 L=20	0-95325-535-0	01	1	0611-	●	●
239	CLIP; FUEL PIPE FRR MIDDLE CHASSIS(FR****) (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9811-9906			●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9907-0610				●
239	CLIP; FUEL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0611-	●	●
239	CLIP; FUEL PIPE FVR MIDDLE CHASSIS(FV****) (B) ID=14X2 H=30 L=25	1-09701-101-0	02	1	9811-9906			●

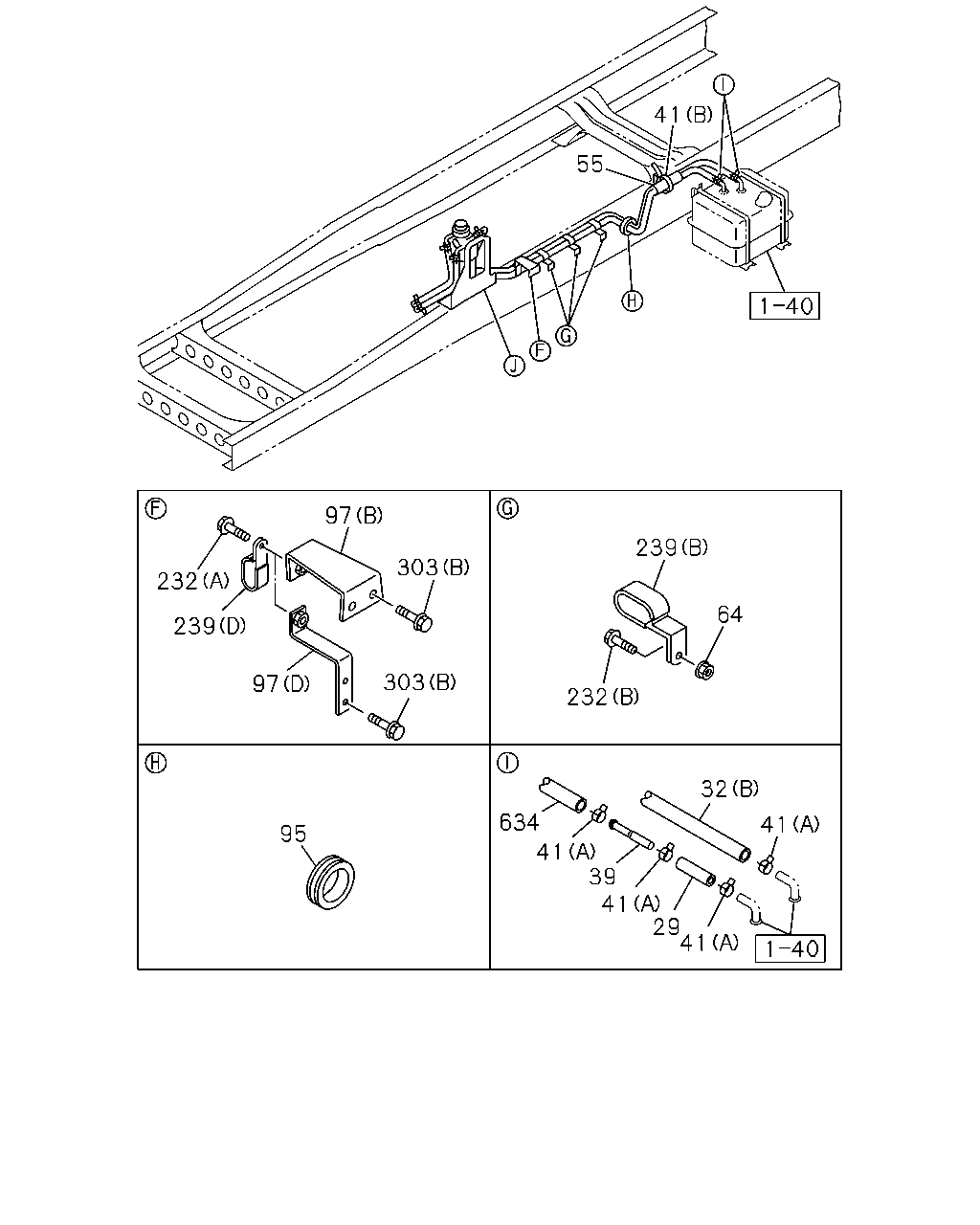

41 55 97 239 303 232 64 239 303 97 232 32 634 41 95 41 39 41 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	HOSE; FUEL	8-98009-718-0	01	1	0611-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0611-	●	●
32	PIPE; DELIVERY,FUEL TANK FRR MIDDLE CHASSIS(FR****) (C) L=1050 SERVICED BY L=3000	0-01260-300-0	02	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK (C) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK FRR MIDDLE CHASSIS(FR****) (C) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2150 SERVICED BY L=3000	0-01260-300-0	01	1	0611-		●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (B) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (B) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0611-	●
39	PIPE; FUEL	8-98009-438-1	01	1	0611-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9811-9906			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	10	1	0611-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	9811-9906			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	0611-	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0611-	●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9811-9906			●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9907-0610				●
55	COVER; PIPE,FUEL TANK L=500 SERVICED BY L=1300	1-09360-677-1	01	1	0611-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0611-	●
64	NUT; CLIP FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9907-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0610				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0611-		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	03	1	9811-9906			●
95	BUSHING; PIPE,FUEL TANK FRR MIDDLE CHASSIS(FR****) ID=28 OD=35 T=17	9-09956-256-1	01	1	9811-9906			●
95	BUSHING; PIPE,FUEL TANK FRR MIDDLE CHASSIS(FR****) ID=28 OD=35 T=17	9-09956-256-2	01	1	9907-0610				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0611-		●
95	BUSHING; PIPE,FUEL TANK FVR MIDDLE CHASSIS(FV****) ID=28 OD=35 T=25	1-09332-011-1	01	1	9811-9906			●
95	BUSHING; PIPE,FUEL TANK FVR MIDDLE CHASSIS(FV****) ID=28 OD=35 T=25	1-09332-011-1	01	1	9907-0610				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-	●
97	BRACKET; CLIP (D)	1-48495-279-0	01	1	0611-		●
97	BRACKET; CLIP (A)	1-48495-274-0	01	1	0611-	●	●
97	BRACKET; CLIP (C)	1-48495-284-0	01	1	0611-	●	●
97	BRACKET; CLIP (B)	1-48495-276-0	01	1	0611-	●
232	BOLT; CLIP,PIPE (A) M8X20 FLANGE	0-28650-820-0	04	1	0611-	●	●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906			●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512				●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610				●
232	BOLT; CLIP,PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28680-835-0	03	1	9811-9906			●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28680-835-0	02	1	9907-0512				●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-0610				●
232	BOLT; CLIP,PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	0611-	●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	02	1	0611-		●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0611-	●	●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	03	1	0611-	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9811-9906			●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9907-9907				●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0610				●
239	CLIP; FUEL PIPE (D) ID=16X2 L=20	0-95325-535-0	01	1	0611-	●	●
239	CLIP; FUEL PIPE FRR MIDDLE CHASSIS(FR****) (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9811-9906			●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9907-0610				●
239	CLIP; FUEL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0611-	●	●
239	CLIP; FUEL PIPE FVR MIDDLE CHASSIS(FV****) (B) ID=14X2 H=30 L=25	1-09701-101-0	02	1	9811-9906			●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0611-	●	●
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0611-	●	●
634	HOSE; RUBBER RETURN L=450 SERVICED BY L=3000	0-01559-300-0	01	1	0611-		●
634	HOSE; RUBBER RETURN L=2600 SERVICED BY L=3000	0-01559-300-0	01	1	0611-	●	●
634	HOSE; RUBBER RETURN L=460 SERVICED BY L=3000	0-01559-300-0	01	1	0611-	●

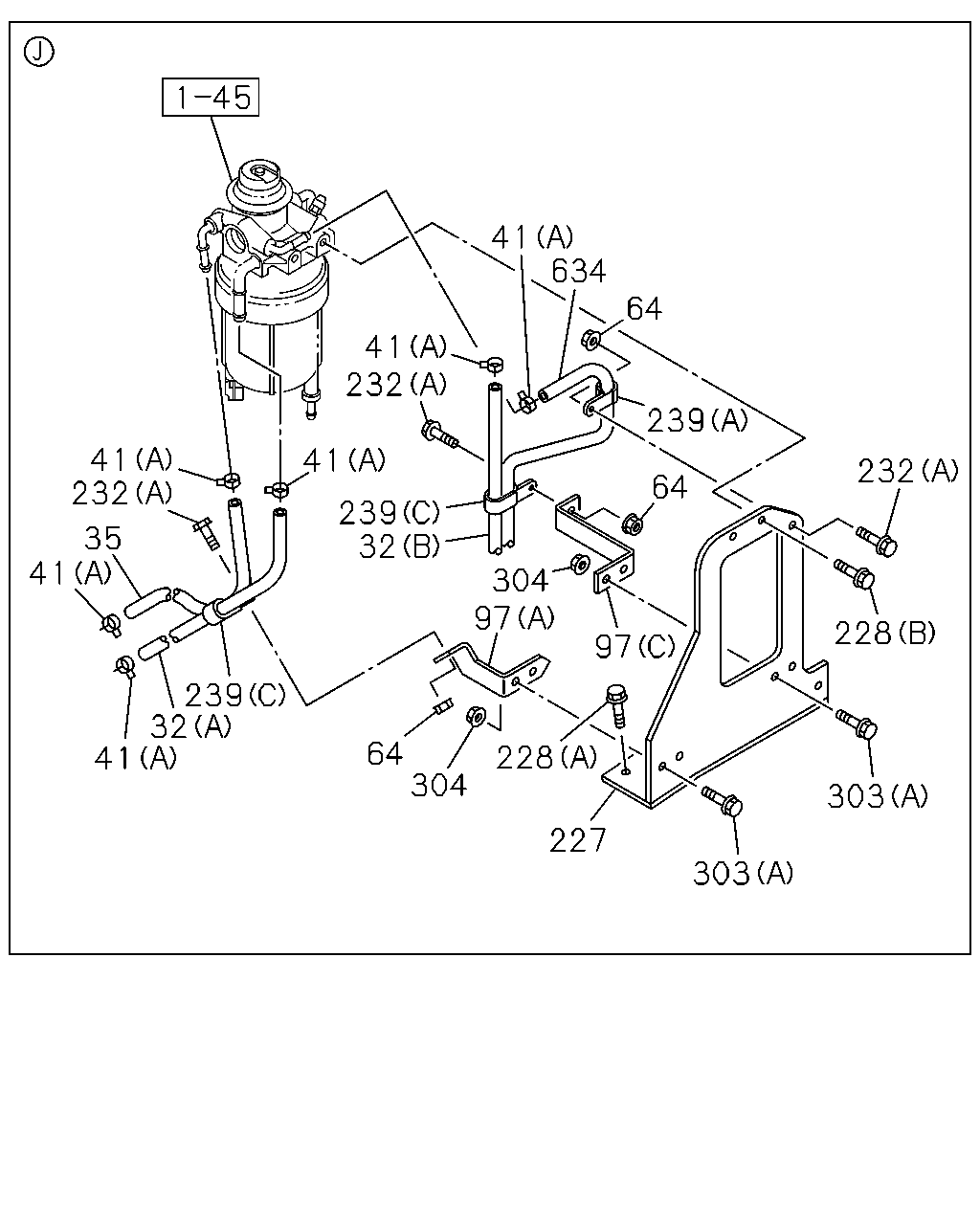

41 634 64 41 232 239 41 232 41 232 64 239 32 35 41 304 97 228 97 239 32 41 64 304 228 303 227 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0611-	●	●
32	PIPE; DELIVERY,FUEL TANK FRR MIDDLE CHASSIS(FR****) (C) L=1050 SERVICED BY L=3000	0-01260-300-0	02	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK (C) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK FRR MIDDLE CHASSIS(FR****) (C) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2150 SERVICED BY L=3000	0-01260-300-0	01	1	0611-		●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (B) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FV****) (B) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0611-	●
35	PIPE; FUEL TANK,RETURN FRR MIDDLE CHASSIS(FR****) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
35	PIPE; FUEL TANK,RETURN FRR MIDDLE CHASSIS(FR****) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9907-9907				●
35	PIPE; FUEL TANK,RETURN FRR MIDDLE CHASSIS(FR****) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
35	PIPE; FUEL TANK,RETURN FVR MIDDLE CHASSIS(FV****) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	9811-9906			●
35	PIPE; FUEL TANK,RETURN FVR MIDDLE CHASSIS(FV****) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	9907-9907				●
35	PIPE; FUEL TANK,RETURN FVR MIDDLE CHASSIS(FV****) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9811-9906			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	10	1	0611-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	9811-9906			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	9907-0610				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250 TAI	5-09707-030-1	01	1	0611-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0611-	●
64	NUT; CLIP FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	02	1	9811-9906			●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9907-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0610				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0611-		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	03	1	9811-9906			●
97	BRACKET; CLIP (D)	1-48495-279-0	01	1	0611-		●
97	BRACKET; CLIP (A)	1-48495-274-0	01	1	0611-	●	●
97	BRACKET; CLIP (C)	1-48495-284-0	01	1	0611-	●	●
97	BRACKET; CLIP (B)	1-48495-276-0	01	1	0611-	●
227	BRACKET; FUEL SEDIMENTER	8-98031-394-0	01	1	0611-		●
227	BRACKET; FUEL SEDIMENTER	8-98023-636-1	01	1	0611-	●
228	BOLT; BRKT,SEDIMENTER FRR MIDDLE CHASSIS(FR****) (A) M10X40 FLANGE	0-28681-040-0	02	1	9811-9906			●
228	BOLT; BRKT,SEDIMENTER FRR MIDDLE CHASSIS(FR****) (A) M10X40 FLANGE	0-28681-040-0	02	1	9907-0512				●
228	BOLT; BRKT,SEDIMENTER FRR MIDDLE CHASSIS(FR****) (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-0610				●
228	BOLT; BRKT,SEDIMENTER (A) M10X25 FLANGE	0-28051-025-0	02	1	0611-	●	●
228	BOLT; BRKT,SEDIMENTER FVR MIDDLE CHASSIS(FV****) (A) M10X45 FLANGE	0-28081-045-0	02	1	9811-9906			●
228	BOLT; BRKT,SEDIMENTER FVR MIDDLE CHASSIS(FV****) (A) M10X45 FLANGE	0-28081-045-0	02	1	9907-0512				●
228	BOLT; BRKT,SEDIMENTER FVR MIDDLE CHASSIS(FV****) (A) M10X45 FLANGE	0-28051-045-0	02	1	0601-0610				●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0611-	●	●
232	BOLT; CLIP,PIPE (A) M8X20 FLANGE	0-28650-820-0	04	1	0611-	●	●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28680-830-0	02	1	9811-9906			●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28680-830-0	02	1	9907-0512				●
232	BOLT; CLIP,PIPE FRR MIDDLE CHASSIS(FR****) (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0610				●
232	BOLT; CLIP,PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0611-		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28680-835-0	03	1	9811-9906			●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28680-835-0	02	1	9907-0512				●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FV****) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-0610				●
232	BOLT; CLIP,PIPE (B) M8X30 FLANGE	0-28650-830-0	03	1	0611-	●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	02	1	0611-		●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0611-	●	●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	03	1	0611-	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9811-9906			●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9907-9907				●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0610				●
239	CLIP; FUEL PIPE (D) ID=16X2 L=20	0-95325-535-0	01	1	0611-	●	●
239	CLIP; FUEL PIPE FRR MIDDLE CHASSIS(FR****) (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9811-9906			●
239	CLIP; FUEL PIPE (B) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9907-0610				●
239	CLIP; FUEL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0611-	●	●
239	CLIP; FUEL PIPE FVR MIDDLE CHASSIS(FV****) (B) ID=14X2 H=30 L=25	1-09701-101-0	02	1	9811-9906			●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0611-	●	●
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0611-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0611-	●	●
634	HOSE; RUBBER RETURN L=450 SERVICED BY L=3000	0-01559-300-0	01	1	0611-		●
634	HOSE; RUBBER RETURN L=2600 SERVICED BY L=3000	0-01559-300-0	01	1	0611-	●	●
634	HOSE; RUBBER RETURN L=460 SERVICED BY L=3000	0-01559-300-0	01	1	0611-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
