Isuzu WW
▶
TRUCKS
▶
FRR
▶
11395 - FRR RHD EURO1
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶

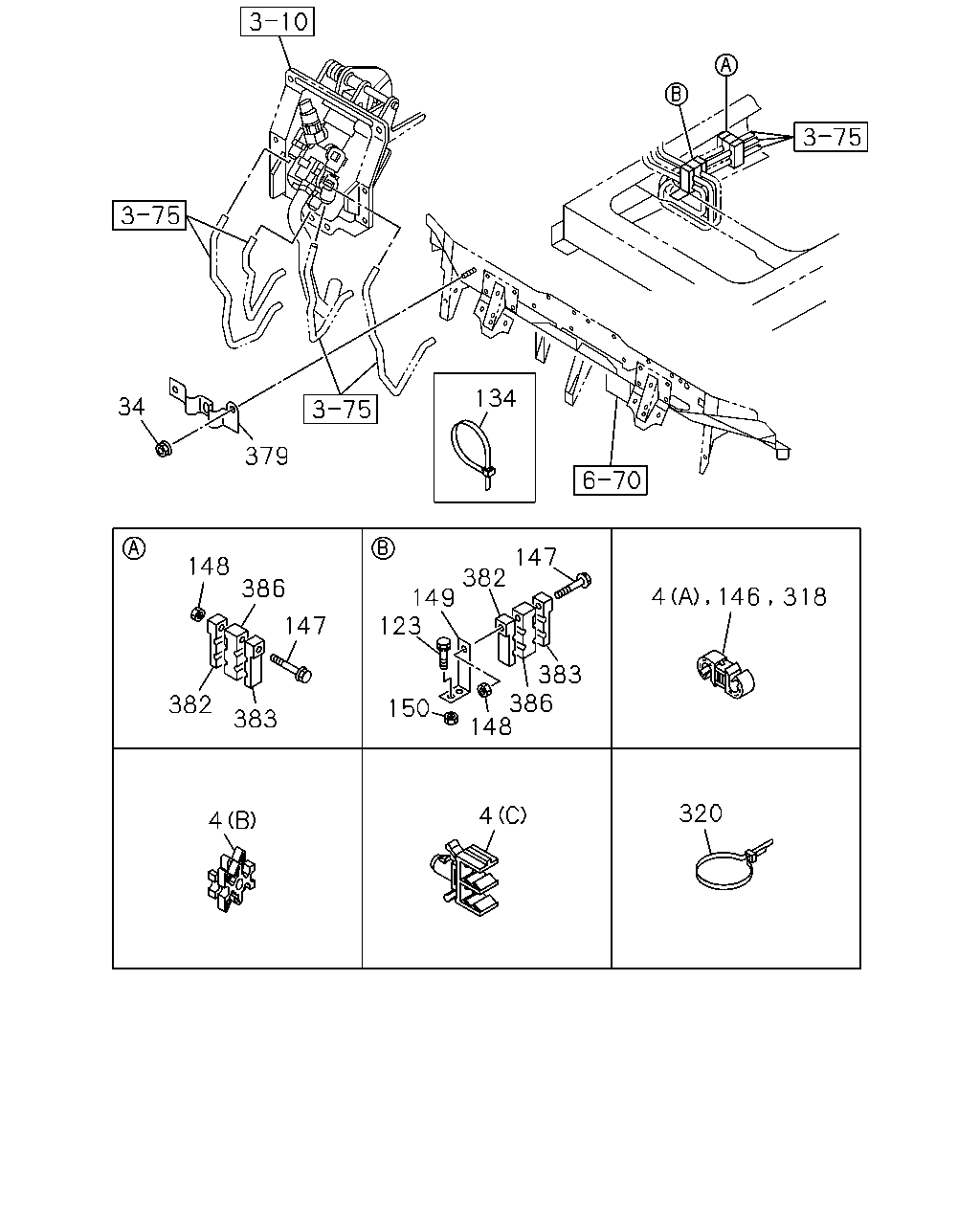

3-78 — FIXING PARTS; AIR PIPING
(#57019) — 22 parça
134
34
379
147
148
382
149
123
386
4
147
383
386
148
382
150
383
320
4
4
146
318
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=4.7X4
1-09701-304-0
03
1
1110-
4
CLIP; AIR PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
02
1
1110-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
01
1
1110-
4
CLIP; AIR PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
01
1
1110-
4
CLIP; AIR PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1110-
4
CLIP; AIR PIPE
(A) ID=4.76 & 12
1-09709-306-0
01
1
1110-
4
CLIP; AIR PIPE
(C) ID=4.8X2
8-94316-410-0
01
1
1110-
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1110-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1110-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1110-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1110-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1110-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
1110-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1110-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1110-
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
01
1
1110-
320
CLIP; BAND,FLEX FIX
L=250
5-09707-030-1
01
1
1110-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1110-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1110-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
1110-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
1110-
