3-75 — BRAKE PIPING; AIR,FRONT (#57017) — 24 parça

5 2 2 5 77 5 5 87 1 3

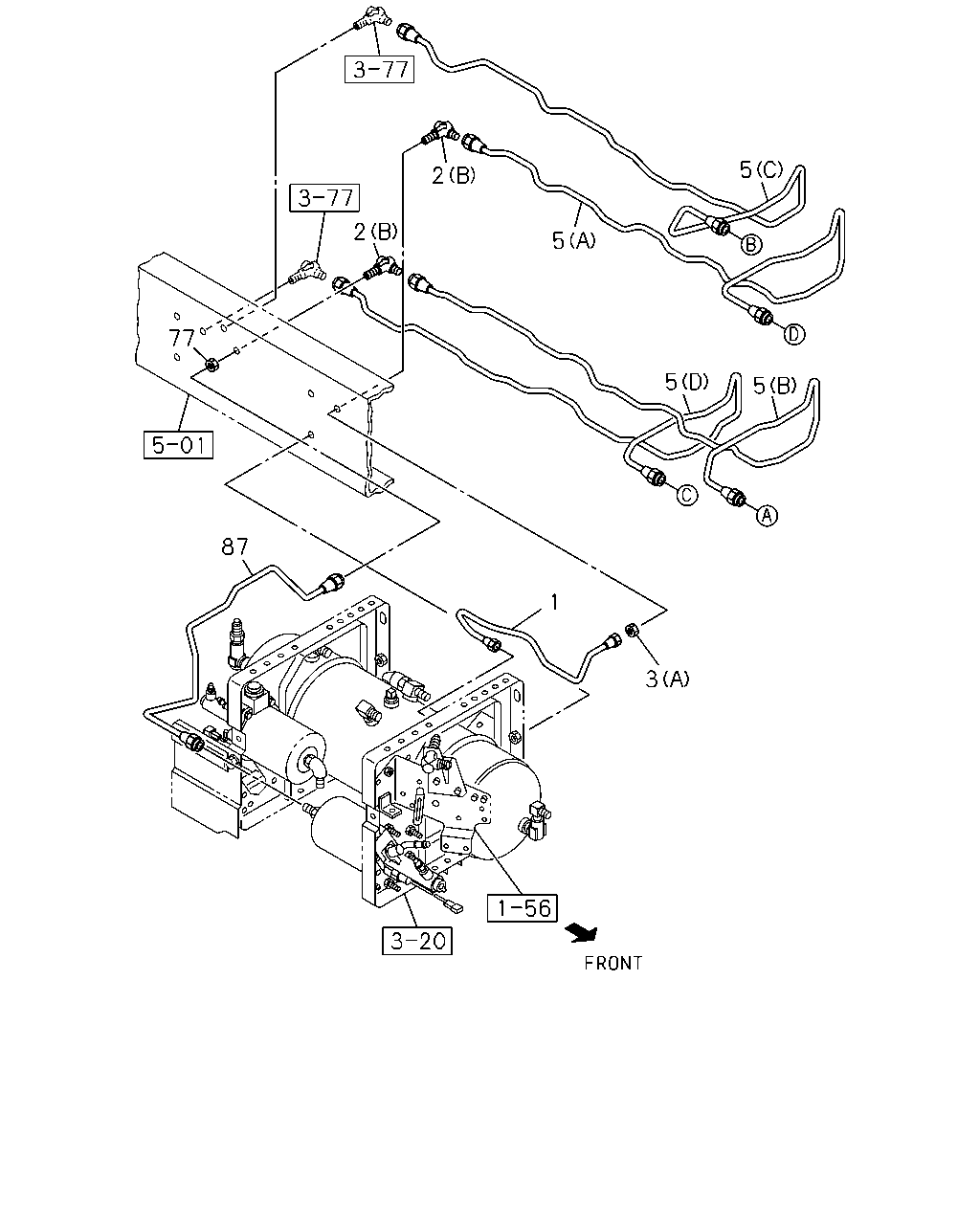

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=300	8-98190-601-0	01	1	1110-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1110-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1110-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1110-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1110-
5	PIPE; AIR,UNION TO UNION (A) L=2486 SERVICED BY L=2500	1-47428-883-0	01	1	1110-
5	PIPE; AIR,UNION TO UNION (C) L=2788 SERVICED BY L=2900	1-47428-885-0	01	1	1110-
5	PIPE; AIR,UNION TO UNION (B) L=2946 SERVICED BY L=3300	1-47428-886-0	01	1	1110-
5	PIPE; AIR,UNION TO UNION (D) L=2910 SERVICED BY L=3300	1-47428-886-0	01	1	1110-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1110-
87	PIPE; AIR,UNION TO AIR MASTER L=795 SERVICED BY L=800	1-47428-872-0	01	1	1110-

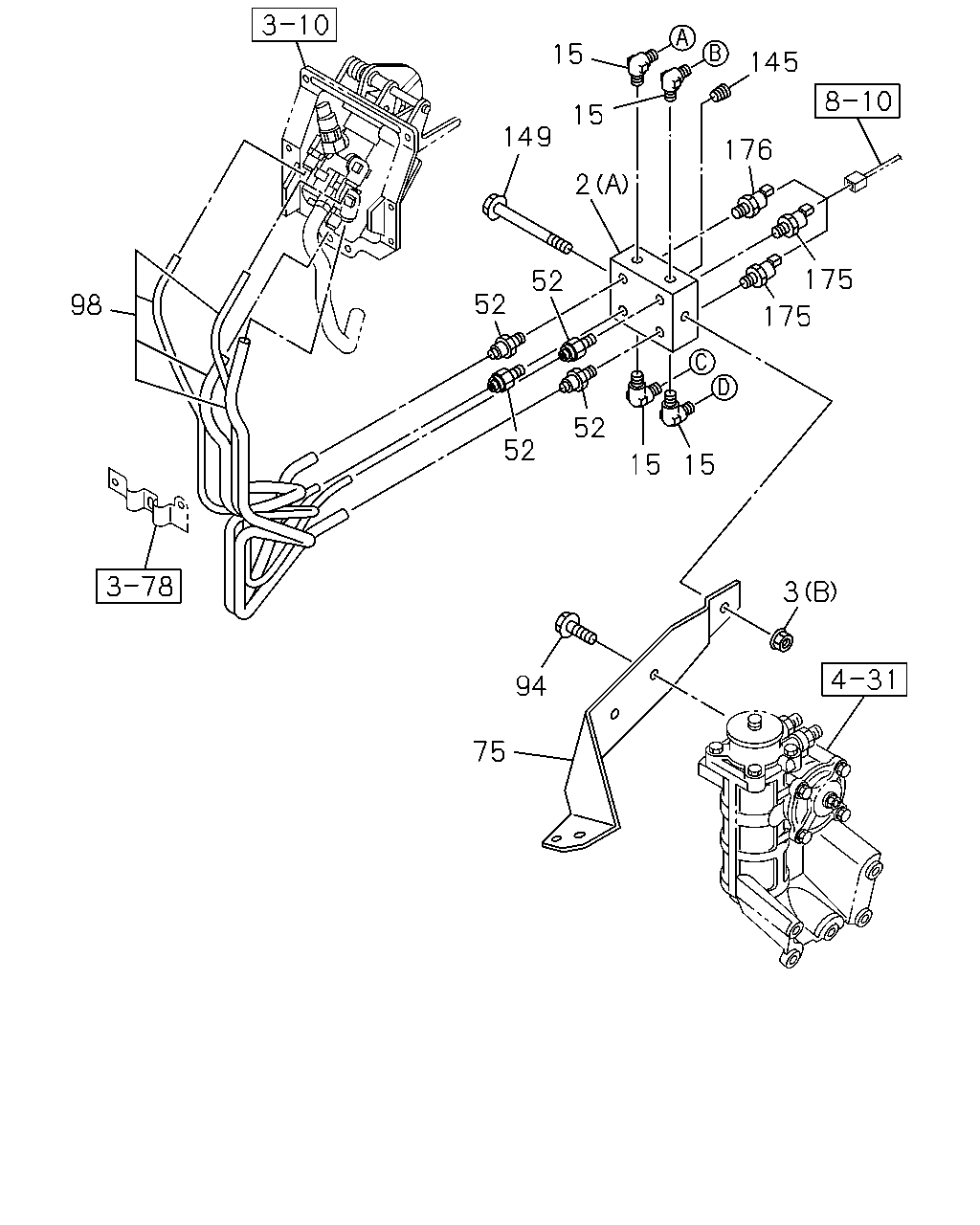

15 145 15 149 176 2 175 52 52 98 175 52 52 15 15 3 94 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1110-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1110-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1110-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1110-
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	1110-
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1110-
75	BRACKET; UNION	8-98066-785-0	01	1	1110-
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1110-
98	TUBE; NYLON	8-98079-175-0	01	1	1110-
145	PLUG PT1/4	9-99204-513-0	01	1	1110-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1110-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1110-
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1110-
