◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11395 - FRR RHD EURO1 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#57013) — 13 parça

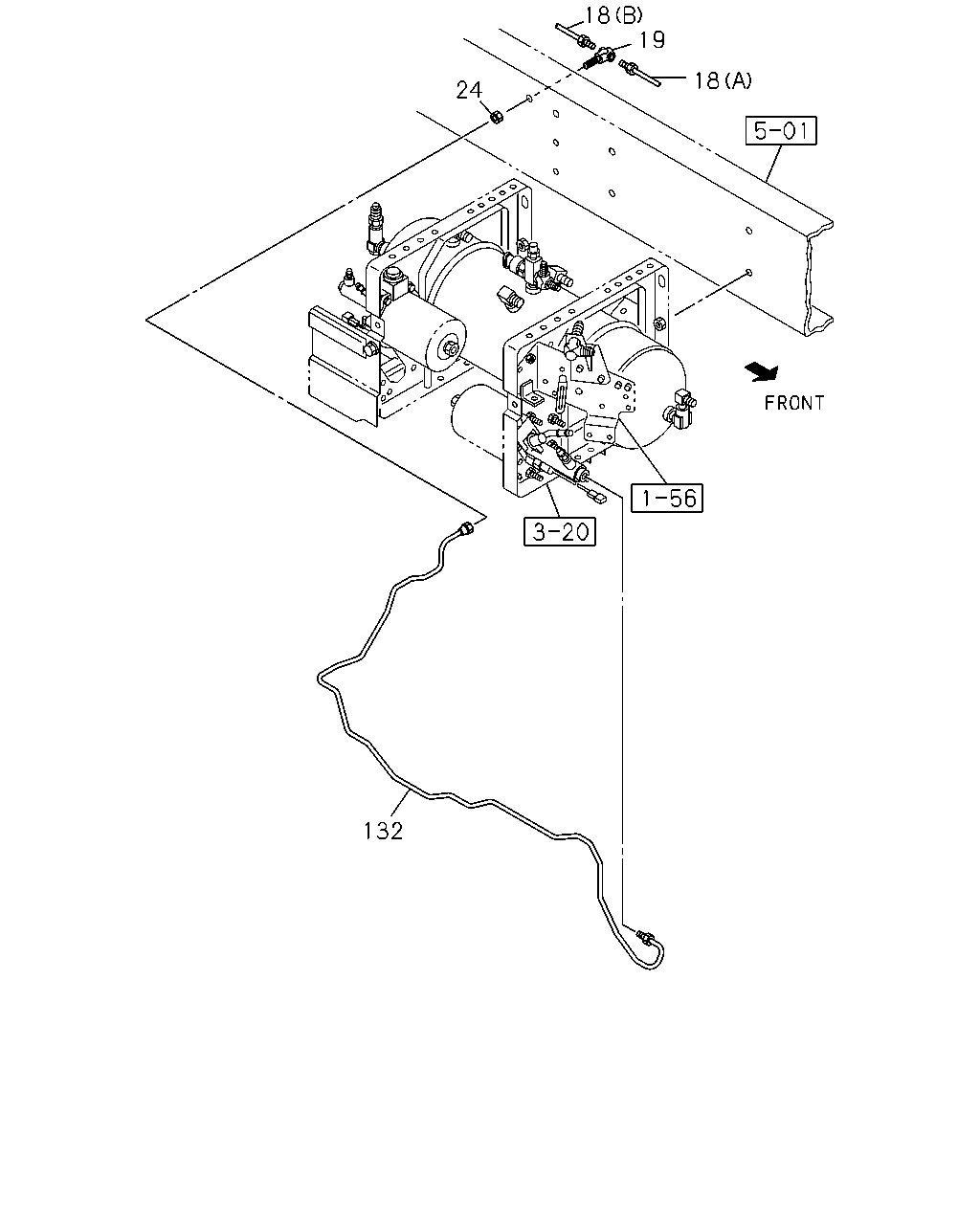

çizim 148057
18 19 18 24 132
BalonParca AdiParca NoAdetTipApplied Date
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=2984 		8-98189-677-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 1110-
19 UNION; OIL PIPE 8-98113-738-0 01 1 1110-
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 01 1 1110-
132 PIPE; OIL,BRK,HYD UNIT
L=1460 		8-98178-437-0 01 1 1110-

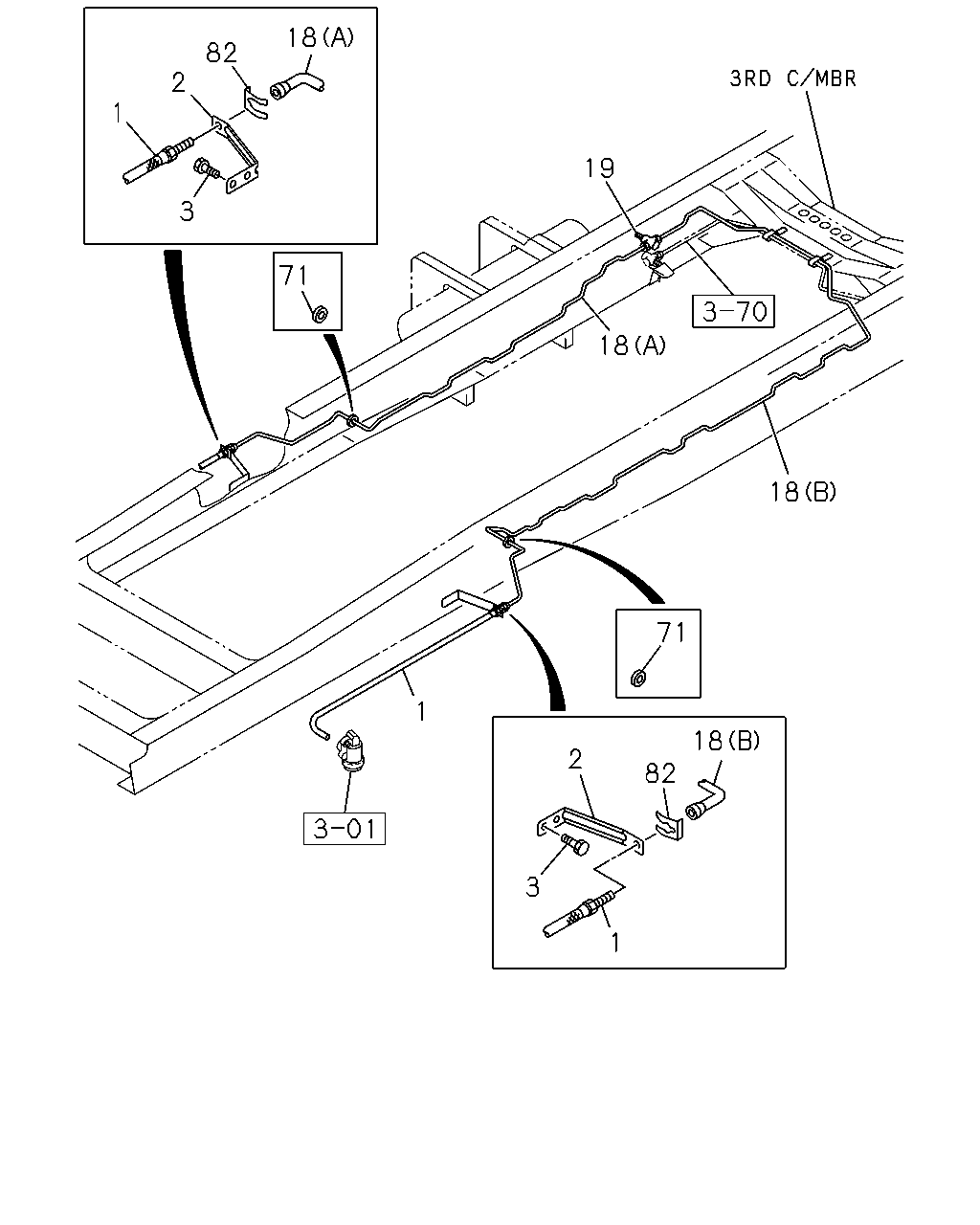

çizim 148061
18 82 2 1 19 3 71 18 18 71 1 18 2 82 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=480 		8-98172-789-0 02 1 1110-
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 1110-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=2984 		8-98189-677-0 01 1 1110-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1821 		8-98067-419-0 01 1 1110-
19 UNION; OIL PIPE 8-98113-738-0 01 1 1110-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1110-
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1110-
