1-35 — CHARGE AIR COOLER (#5701) — 46 parça

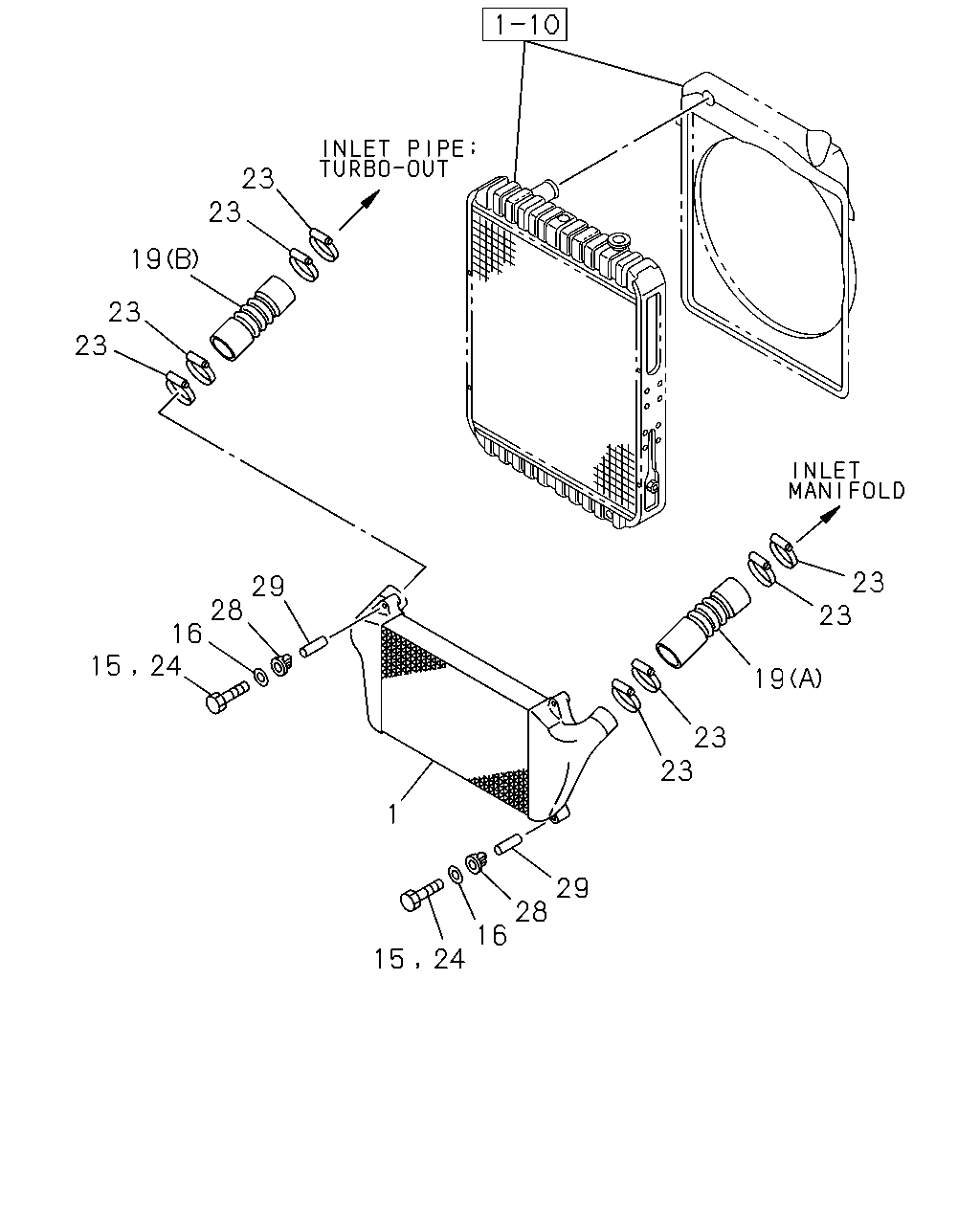

çizim 24618
23 23 19 23 23 23 23 29 28 16 24 15 19 23 23 1 29 28 16 15 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COOLER; CHARGE AIR 1-14431-041-1 01 1 9811-9906 ●
1 COOLER; CHARGE AIR 8-94392-923-0 01 1 9907-0610 ●
1 COOLER; CHARGE AIR 8-98047-633-0 01 1 0611- ● ●
15 BOLT; CHARGE AIR COOLER 1-21469-151-0 04 1 0611- ● ●
15 BOLT; CHARGE AIR COOLER
FVR MIDDLE CHASSIS(FV****) M8X35 FLANGE 		0-28080-835-0 04 1 9811-9906 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9811-9906 ● ●
16 WASHER; PL,CHARGE AIR COOLER
FRR MIDDLE CHASSIS(FR****) ID=10.5 OD=32 		9-09164-810-0 04 1 9907-0610 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-98012-935-1 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-98012-936-1 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FRR MIDDLE CHASSIS(FR****) (A) 		8-94395-022-0 01 1 9811-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94395-022-0 01 1 9907-0610 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-98017-223-2 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FRR MIDDLE CHASSIS(FR****) (B) 		8-94395-023-1 01 1 9811-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-94395-023-1 01 1 9907-0610 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-98017-224-1 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FVR MIDDLE CHASSIS(FV****) (B) 		8-94390-035-0 01 1 9811-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FVR MIDDLE CHASSIS(FV****) (A) 		8-94390-043-0 01 1 9811-9906 ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 08 1 9811-9906 ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 08 1 9907-0306 ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 08 1 0307-0610 ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 08 1 0611- ● ●
24 BOLT; COOLER TO RAD
FRR MIDDLE CHASSIS(FR****) M8X35 FLANGE 		0-28080-835-0 04 1 9811-9906 ●
24 BOLT; COOLER TO RAD
M8X35 FLANGE 		0-28080-835-0 04 1 9907-0610 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9811-9906 ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
FRR MIDDLE CHASSIS(FR****) 		1-21467-015-1 04 1 9907-0610 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9811-9906 ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
FRR MIDDLE CHASSIS(FR****) 		1-21469-100-0 04 1 9907-0610 ●

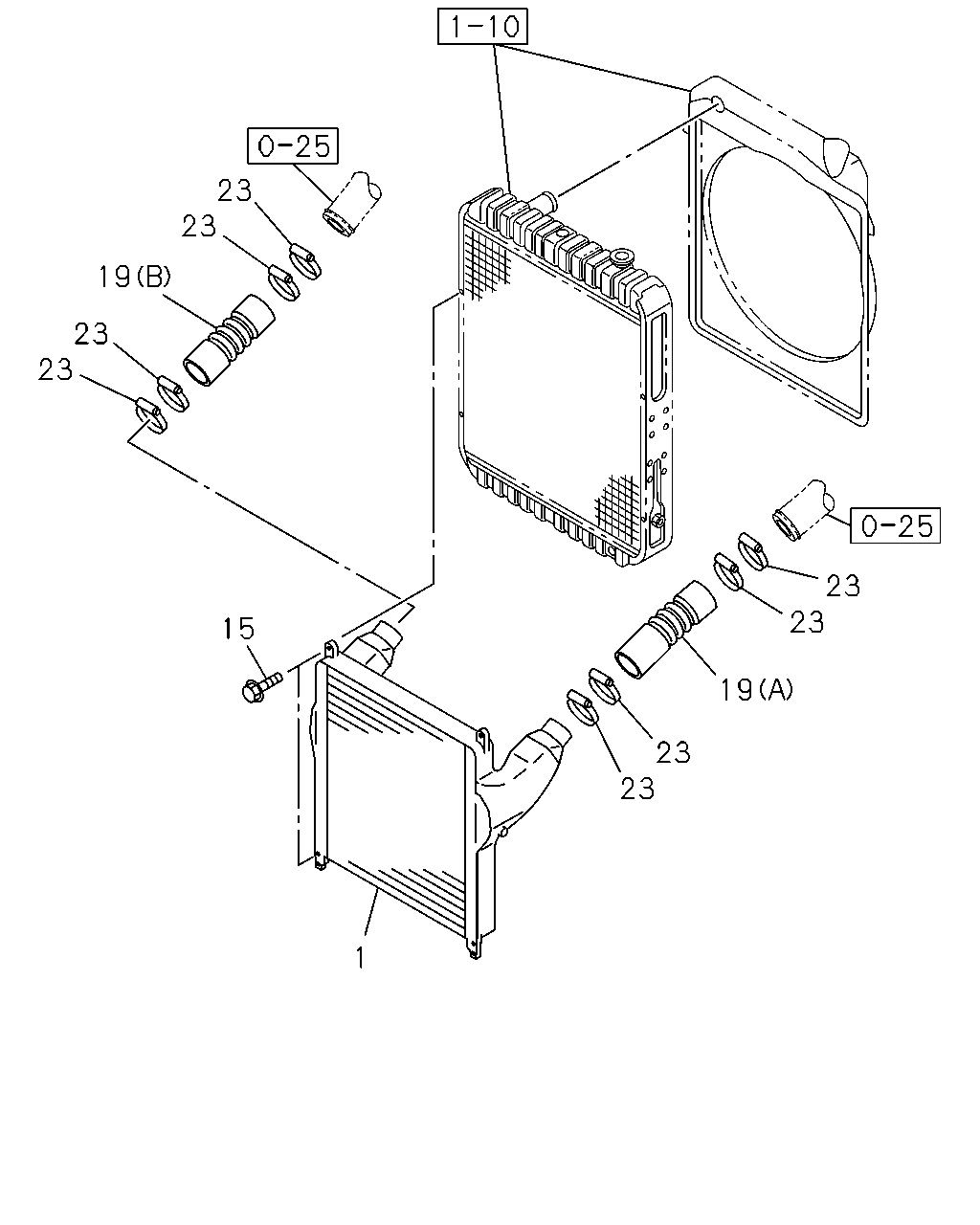

çizim 26331
23 23 19 23 23 23 23 15 19 23 23 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COOLER; CHARGE AIR 1-14431-041-1 01 1 9811-9906 ●
1 COOLER; CHARGE AIR 8-94392-923-0 01 1 9907-0610 ●
1 COOLER; CHARGE AIR 8-98047-633-0 01 1 0611- ● ●
15 BOLT; CHARGE AIR COOLER 1-21469-151-0 04 1 0611- ● ●
15 BOLT; CHARGE AIR COOLER
FVR MIDDLE CHASSIS(FV****) M8X35 FLANGE 		0-28080-835-0 04 1 9811-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-98012-935-1 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-98012-936-1 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FRR MIDDLE CHASSIS(FR****) (A) 		8-94395-022-0 01 1 9811-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-94395-022-0 01 1 9907-0610 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-98017-223-2 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FRR MIDDLE CHASSIS(FR****) (B) 		8-94395-023-1 01 1 9811-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		8-94395-023-1 01 1 9907-0610 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		8-98017-224-1 01 1 0611- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FVR MIDDLE CHASSIS(FV****) (B) 		8-94390-035-0 01 1 9811-9906 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
FVR MIDDLE CHASSIS(FV****) (A) 		8-94390-043-0 01 1 9811-9906 ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 08 1 9811-9906 ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 08 1 9907-0306 ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 08 1 0307-0610 ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 08 1 0611- ● ●
