Isuzu WW
▶
TRUCKS
▶
FRR
▶
11395 - FRR RHD EURO1
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#57006) — 22 parça
◀
[308A] NO.2 (2 parça)

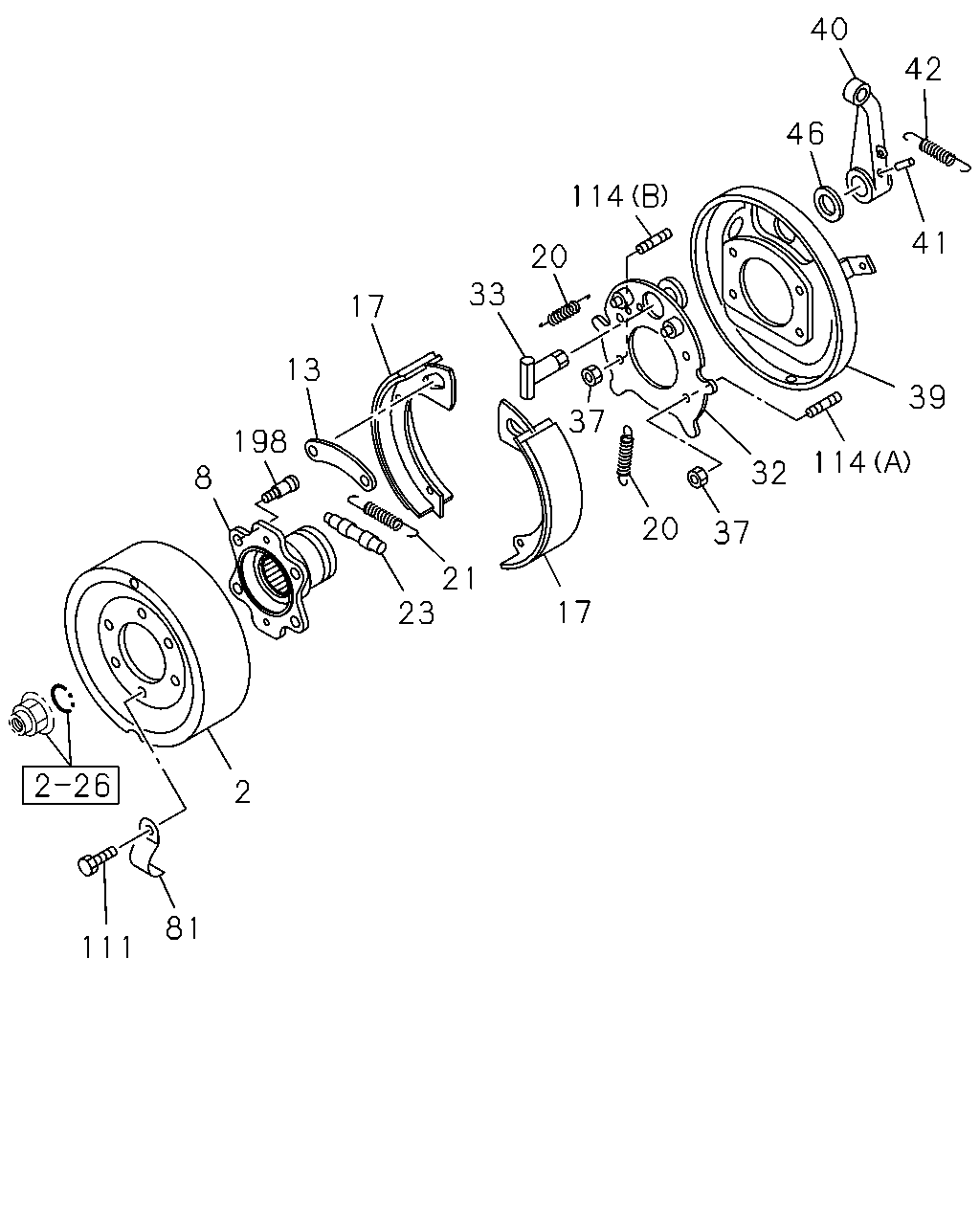

[308A] NO.1 (20 parça)
▶
130
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
1110-
197
BRACKET; CENTER BRAKE CABLE
8-98020-897-1
01
1
1110-
40
42
46
114
41
20
33
17
13
39
37
198
114
32
8
20
37
21
23
17
2
81
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-020-1
01
1
1110-
8
FLANGE; PARKING BRK
8-98153-194-0
01
1
1110-
13
BRACE; PARKING BRK
9-46239-003-0
01
1
1110-
17
SHOE; PARKING BRK
1-46220-029-0
02
1
1110-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-567-1
02
1
1110-
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-268-0
01
1
1110-
23
SCREW; ADJ,PARKING BRK SHOE
9-46240-008-0
01
1
1110-
32
PLATE; SUPPORT,PARKING BRK
1-46213-023-0
01
1
1110-
33
SHAFT; CAM,PARKING BRK
1-46251-070-0
01
1
1110-
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
1110-
39
COVER; DUST,PARKING BRK
1-46213-111-0
01
1
1110-
40
LEVER; CM/SHF,PARKING BRK
1-46252-052-0
01
1
1110-
41
PIN; KNOCK,LEVER
9-09878-594-0
01
1
1110-
42
SPRING; RETURN,LEVER
9-09942-592-0
01
1
1110-
46
WASHER; LEVER
9-09855-367-0
01
1
1110-
81
COVER; CHECK HOLE,PARKING BRK
1-46219-018-0
02
1
1110-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50740-820-0
02
1
1110-
114
STUD; SUPPORT PLATE
(A) M14X22 WO/DRY-ROCK
8-98014-137-0
03
1
1110-
114
STUD; SUPPORT PLATE
(B) M14X22 W/DRY-ROCK
8-98014-138-0
01
1
1110-
198
BOLT; KNURL
M14X43 KNURL
8-98014-003-0
04
1
1110-
