Isuzu WW
▶
TRUCKS
▶
FRR
▶
11395 - FRR RHD EURO1
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

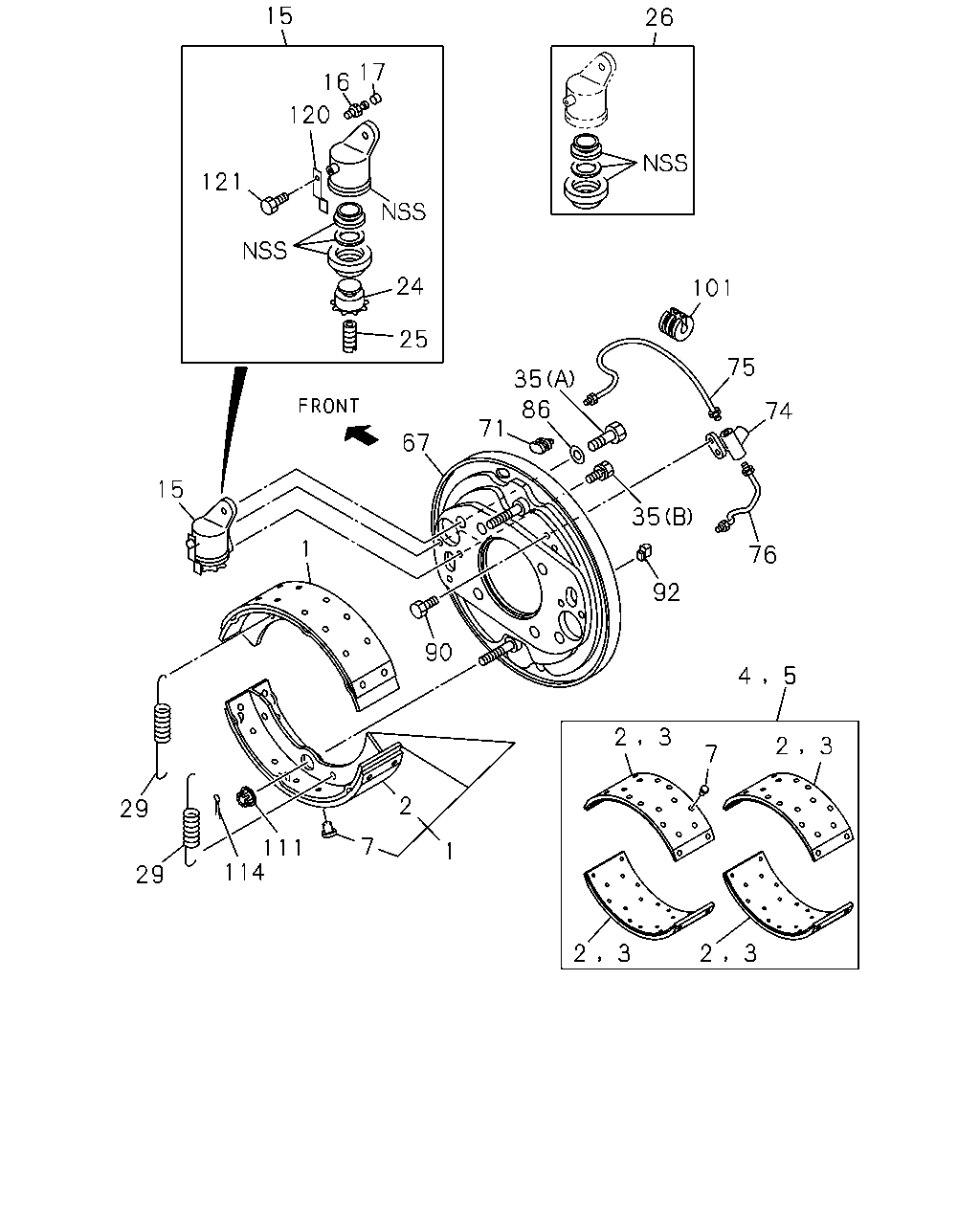

3-01 — FRONT WHEEL BRAKE
(#57004) — 35 parça
15
26
17
16
120
121
24
101
25
75
35
86
74
71
67
15
35
1
76
92
90
5
4
2
3
3
2
7
2
29
7
111
114
1
29
2
3
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
1-47120-624-0
04
1
1110-
2
LINING; FRT BRK SHOE,STANDARD
1-47125-801-0
04
1
1110-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47125-802-0
04
1
1110-
4
LINING SET; FRT BRK,STANDARD
1-88310-501-1
01
1
1110-
5
LINING SET; FRT BRK,OVER SIZE
1-88310-502-1
01
1
1110-
7
RIVET; LINING,FRT BRK
1-09732-029-0
56
1
1110-
15
CYLINDER; WHEEL,FRT BRK
1-47600-938-0
02
1
1110-
15
CYLINDER; WHEEL,FRT BRK
1-47600-939-0
02
1
1110-
16
SCREW; BLEEDER,FRT BRK
8-98050-476-0
04
1
1110-
17
CAP; BLEEDER,FRT WHEEL CYL
8-98050-479-0
04
1
1110-
24
PISTON; FRT WHEEL CYL
1-47624-318-0
02
1
1110-
24
PISTON; FRT WHEEL CYL
1-47624-319-0
02
1
1110-
25
SCREW; ADJ,FRT WHEEL CYL
LH THREAD
1-47622-020-0
02
1
1110-
25
SCREW; ADJ,FRT WHEEL CYL
RH THREAD
1-47622-021-0
02
1
1110-
26
CUP SET; FRT WHEEL CYL
1-87830-679-0
04
1
1110-
29
SPRING; RETURN,FRT BRK SHOE
1-09583-288-0
04
1
1110-
35
BOLT; FRT WHEEL CYL
(A) M14X30
1-09000-365-0
04
1
1110-
35
BOLT; FRT WHEEL CYL
(B) M8X22
9-09802-475-0
08
1
1110-
67
PLATE; BACK,FRT BRK
1-47150-375-0
01
1
1110-
67
PLATE; BACK,FRT BRK
1-47150-376-0
01
1
1110-
71
GROMMET; CHECK HOLE
1-09333-033-0
04
1
1110-
74
CONNECTOR; FRT BRK
1-47630-013-1
01
1
1110-
74
CONNECTOR; FRT BRK
1-47630-014-1
01
1
1110-
75
PIPE; OIL,FWD,FRT BRK
1-47414-237-0
01
1
1110-
75
PIPE; OIL,FWD,FRT BRK
1-47414-238-0
01
1
1110-
76
PIPE; OIL,BACKWARD,FRT BRK
1-47414-241-0
01
1
1110-
76
PIPE; OIL,BACKWARD,FRT BRK
1-47414-242-0
01
1
1110-
86
WASHER; LK,FRT WHEEL CYL
ID=14.2
0-91510-614-0
04
1
1110-
90
BOLT; CONNECTOR
5-09030-036-1
02
1
1110-
92
GROMMET; ADJ HOLE
9-09956-640-0
04
1
1110-
101
PROTECTOR; OIL PIPE,FRT BRK
9-47461-158-0
02
1
1110-
111
NUT; FLANGE,SHOE HOLD
1-09440-002-0
04
1
1110-
114
PIN; SPLIT,SHOE HOLD
9-09874-040-0
04
1
1110-
120
SPRING; LK,ADJ,FRT WHEEL CYL
1-47629-072-0
04
1
1110-
121
SCREW; LK SPR FRT WHEEL CYL
8-94128-727-0
04
1
1110-
