1-31 — AIR DUCT (#5700) — 188 parça

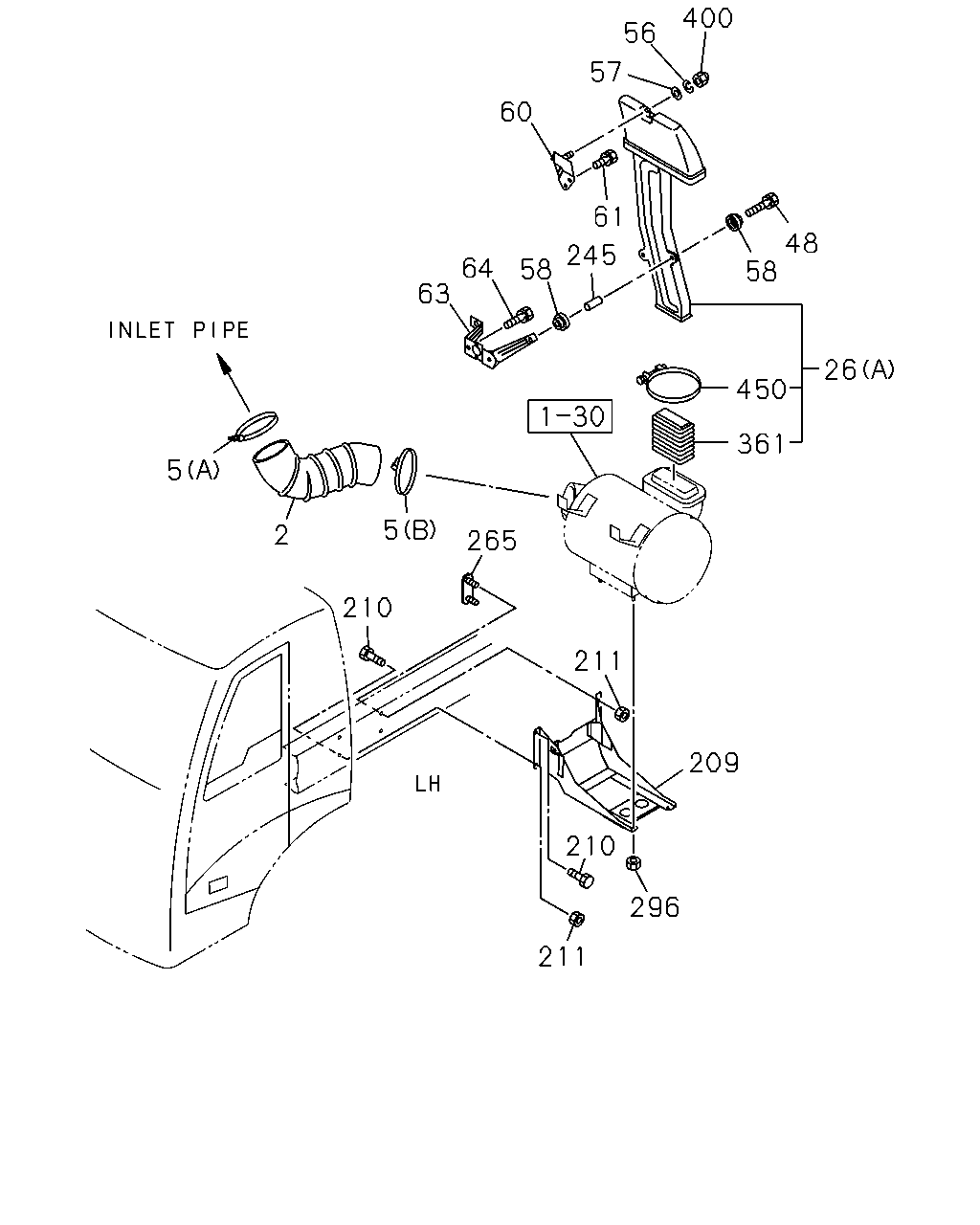

400 56 57 60 61 48 58 245 64 58 63 26 450 361 5 5 2 265 210 211 209 296 211 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL FRR MIDDLE CHASSIS(FR****)	1-14231-853-1	01	1	9811-9906	●
2	HOSE; ACL FRR MIDDLE CHASSIS(FR****)	1-14231-984-2	01	1	9907-0108		●
2	HOSE; ACL FRR MIDDLE CHASSIS(FR****)	1-14232-127-0	01	1	0109-0210		●
2	HOSE; ACL FRR MIDDLE CHASSIS(FR****)	1-14232-151-0	01	1	0211-0305		●
2	HOSE; ACL FRR MIDDLE CHASSIS(FR****)	1-14232-161-0	01	1	0306-0610		●
2	HOSE; ACL FVR MIDDLE CHASSIS(FV****)	1-14231-854-0	01	1	9811-9906	●
2	HOSE; ACL FVR MIDDLE CHASSIS(FV****)	1-14231-983-1	01	1	9907-0108		●
2	HOSE; ACL FVR MIDDLE CHASSIS(FV****)	1-14232-126-0	01	1	0109-0610		●
5	CLIP; AIR DUCT (C) ID=114	8-15178-030-0	01	1	0611-			●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9811-9906	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9907-0212		●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0610		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	03	1	0611-			●	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9811-9906	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9907-0212		●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0610		●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0611-			●	●
26	DUCT; AIR INT (B)	8-98030-608-3	01	1	0611-				●
26	DUCT; AIR INT (B)	8-98030-607-3	01	1	0611-			●
26	DUCT; AIR INT (A)	1-14230-173-0	01	1	9811-9906	●
26	DUCT; AIR INT (A)	1-14230-173-2	01	1	9907-0610		●
26	DUCT; AIR INT (A)	1-14230-173-2	01	1	0611-			●	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9811-9906	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9907-0610		●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	0611-			●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9811-9906	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9907-0610		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0611-			●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	01	1	9811-9906	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	01	1	9907-0610		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	01	1	0611-			●	●
58	SUPPORT; AIR INL DUCT TAI	8-97530-419-0	04	1	9811-9906	●
58	SUPPORT; AIR INL DUCT TAI	8-97530-419-0	04	1	9907-0610		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5 TAI	1-14119-267-0	04	1	0611-			●	●
60	BRACKET; AIR DUCT,UPR TAI	1-79998-748-2	01	1	9811-9906	●
60	BRACKET; AIR DUCT,UPR TAI	1-79998-748-2	01	1	9907-0610		●
60	BRACKET; AIR DUCT,UPR TAI	1-79998-748-2	01	1	0611-			●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9811-9906	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9907-0610		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	0611-			●	●
63	BRACKET; AIR DUCT,LWR TAI	1-79998-749-3	01	1	9811-9906	●
63	BRACKET; AIR DUCT,LWR TAI	1-79998-749-3	01	1	9907-0610		●
63	BRACKET; AIR DUCT,LWR TAI	1-79998-749-3	01	1	0611-			●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9811-9906	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9907-0610		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	0611-			●	●
209	BRACKET; ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-371-0	01	1	9811-9906	●
209	BRACKET; ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-371-0	01	1	9907-0610		●
209	BRACKET; ACL TAI	1-53497-478-2	01	1	0611-				●
209	BRACKET; ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-347-0	01	1	9811-9906	●
209	BRACKET; ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-347-0	01	1	9907-0610		●
209	BRACKET; ACL	1-53497-589-0	01	1	0611-			●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9811-9906	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9907-0512		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-0610		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0611-			●	●
211	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M12 FLANGE	0-91150-212-0	03	1	9811-9906	●
211	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M12 FLANGE	0-91150-212-0	03	1	9907-0602		●
211	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M12 FLANGE	0-91180-212-0	03	1	0603-0610		●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0611-				●
211	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M12 FLANGE	0-91150-212-0	04	1	9811-9906	●
211	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M12 FLANGE	0-91150-212-0	04	1	9907-0602		●
211	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M12 FLANGE	0-91180-212-0	04	1	0603-0610		●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0611-			●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9811-9906	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9907-0610		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0611-			●	●
265	BRACKET; STUD,ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-352-0	01	1	9811-9906	●
265	BRACKET; STUD,ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-352-0	01	1	9907-0610		●
265	BRACKET; STUD,ACL TAI	1-53497-477-0	01	1	0611-				●
265	BRACKET; STUD,ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-353-0	01	1	9811-9906	●
265	BRACKET; STUD,ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-353-0	01	1	9907-0610		●
265	BRACKET; STUD,ACL TAI	1-53497-454-1	01	1	0611-			●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0611-			●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9811-9906	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	9907-0610		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0611-			●	●
400	NUT; CAP,AIR DUCT M10 TAI	1-09984-145-0	01	1	9811-9906	●
400	NUT; CAP,AIR DUCT M10 TAI	1-09984-145-0	01	1	9907-0610		●
400	NUT; CAP,AIR DUCT M10 TAI	1-09984-145-0	01	1	0611-			●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9811-9906	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9907-0610		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0611-			●	●

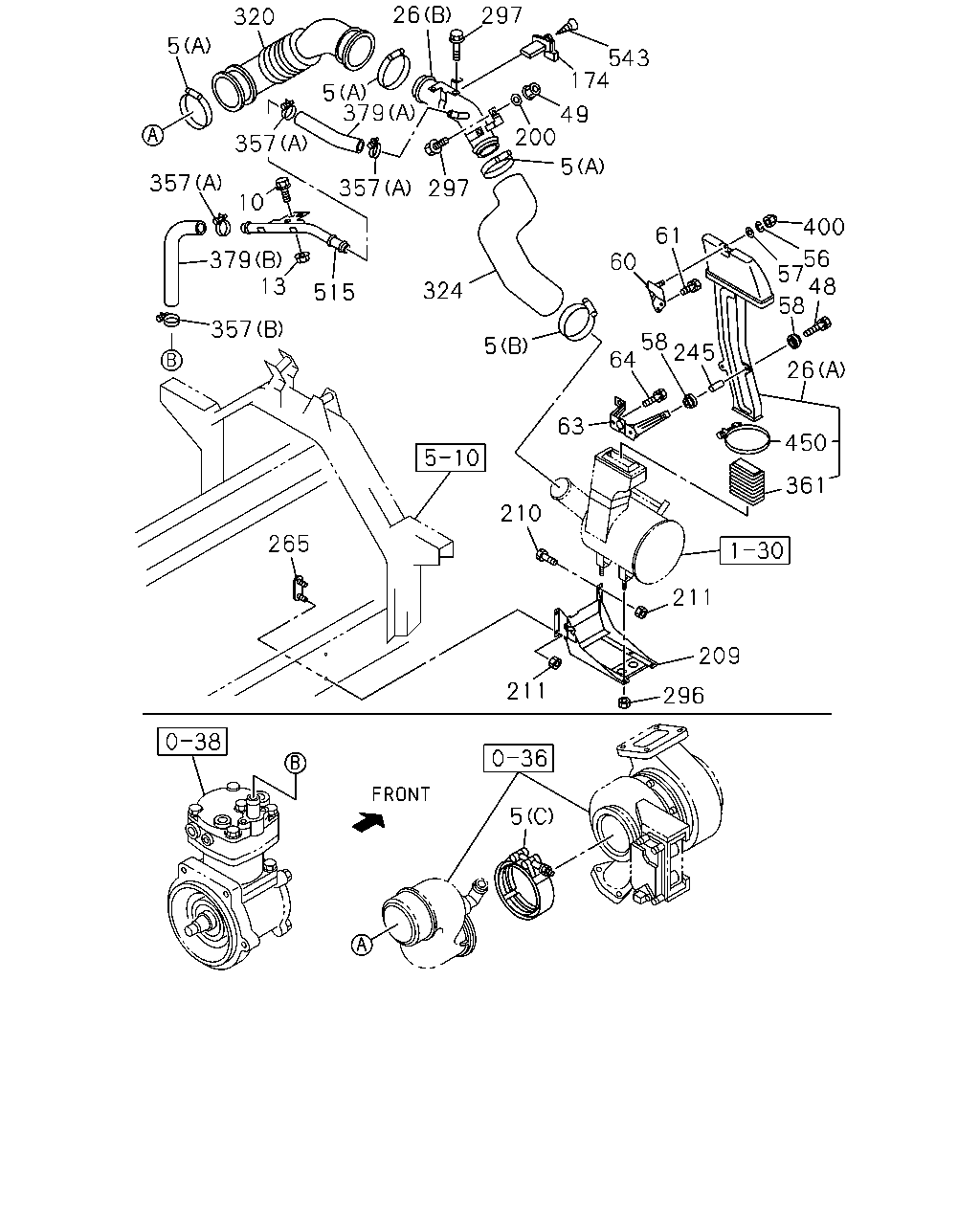

26 297 320 5 543 174 5 379 49 200 357 5 357 357 297 10 400 61 56 57 48 58 379 13 60 324 515 357 58 245 64 5 26 63 450 361 210 265 211 209 211 296 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	CLIP; AIR DUCT (C) ID=114	8-15178-030-0	01	1	0611-			●	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9811-9906	●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-114-0	01	1	9907-0212		●
5	CLIP; AIR DUCT (A) ID=77-95	1-09707-198-0	01	1	0301-0610		●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	03	1	0611-			●	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9811-9906	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	9907-0212		●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0610		●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0611-			●	●
10	BOLT; BRKT FIX M8X25 FLANGE	0-28060-825-0	02	1	0611-0701				●
10	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	02	1	0702-				●
10	BOLT; BRKT FIX M8X25 FLANGE	0-28060-825-0	01	1	0611-0701			●
10	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	0702-			●
13	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0611-			●	●
26	DUCT; AIR INT (B)	8-98030-608-3	01	1	0611-				●
26	DUCT; AIR INT (B)	8-98030-607-3	01	1	0611-			●
26	DUCT; AIR INT (A)	1-14230-173-0	01	1	9811-9906	●
26	DUCT; AIR INT (A)	1-14230-173-2	01	1	9907-0610		●
26	DUCT; AIR INT (A)	1-14230-173-2	01	1	0611-			●	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9811-9906	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9907-0610		●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	0611-			●	●
49	NUT; AIR DUCT M8 FLANGE	0-91180-108-0	03	1	0702-			●
49	NUT; AIR DUCT M8 FLANGE	0-91180-108-0	03	1	0611-0701			●	●
49	NUT; AIR DUCT M8 FLANGE	0-91180-108-0	02	1	0702-				●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9811-9906	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	9907-0610		●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0611-			●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	01	1	9811-9906	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	01	1	9907-0610		●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	01	1	0611-			●	●
58	SUPPORT; AIR INL DUCT TAI	8-97530-419-0	04	1	9811-9906	●
58	SUPPORT; AIR INL DUCT TAI	8-97530-419-0	04	1	9907-0610		●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5 TAI	1-14119-267-0	04	1	0611-			●	●
60	BRACKET; AIR DUCT,UPR TAI	1-79998-748-2	01	1	9811-9906	●
60	BRACKET; AIR DUCT,UPR TAI	1-79998-748-2	01	1	9907-0610		●
60	BRACKET; AIR DUCT,UPR TAI	1-79998-748-2	01	1	0611-			●	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9811-9906	●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9907-0610		●
61	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	0611-			●	●
63	BRACKET; AIR DUCT,LWR TAI	1-79998-749-3	01	1	9811-9906	●
63	BRACKET; AIR DUCT,LWR TAI	1-79998-749-3	01	1	9907-0610		●
63	BRACKET; AIR DUCT,LWR TAI	1-79998-749-3	01	1	0611-			●	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9811-9906	●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	9907-0610		●
64	BOLT; BRKT,AIR DUCT M8X25 W/LK&PL WASHER TAI	1-09980-526-0	02	1	0611-			●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0611-			●	●
200	WASHER; PL,CLAMP	8-97023-268-0	02	1	0611-			●	●
209	BRACKET; ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-371-0	01	1	9811-9906	●
209	BRACKET; ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-371-0	01	1	9907-0610		●
209	BRACKET; ACL TAI	1-53497-478-2	01	1	0611-				●
209	BRACKET; ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-347-0	01	1	9811-9906	●
209	BRACKET; ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-347-0	01	1	9907-0610		●
209	BRACKET; ACL	1-53497-589-0	01	1	0611-			●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9811-9906	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28681-240-0	02	1	9907-0512		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0601-0610		●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28651-240-0	02	1	0611-			●	●
211	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M12 FLANGE	0-91150-212-0	03	1	9811-9906	●
211	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M12 FLANGE	0-91150-212-0	03	1	9907-0602		●
211	NUT; BRKT FRR MIDDLE CHASSIS(FR****) M12 FLANGE	0-91180-212-0	03	1	0603-0610		●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0611-				●
211	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M12 FLANGE	0-91150-212-0	04	1	9811-9906	●
211	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M12 FLANGE	0-91150-212-0	04	1	9907-0602		●
211	NUT; BRKT FVR MIDDLE CHASSIS(FV****) M12 FLANGE	0-91180-212-0	04	1	0603-0610		●
211	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0611-			●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9811-9906	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	9907-0610		●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0611-			●	●
265	BRACKET; STUD,ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-352-0	01	1	9811-9906	●
265	BRACKET; STUD,ACL FRR MIDDLE CHASSIS(FR****) TAI	8-97530-352-0	01	1	9907-0610		●
265	BRACKET; STUD,ACL TAI	1-53497-477-0	01	1	0611-				●
265	BRACKET; STUD,ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-353-0	01	1	9811-9906	●
265	BRACKET; STUD,ACL FVR MIDDLE CHASSIS(FV****) TAI	8-97530-353-0	01	1	9907-0610		●
265	BRACKET; STUD,ACL TAI	1-53497-454-1	01	1	0611-			●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0611-			●	●
297	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	04	1	0702-			●
297	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	04	1	0611-0701			●	●
297	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	03	1	0702-				●
320	HOSE; CONN,ACL	8-98023-216-2	01	1	0611-				●
320	HOSE; CONN,ACL	8-98004-246-0	01	1	0611-			●
324	HOSE; INT,ACL	8-98023-217-0	01	1	0611-				●
324	HOSE; INT,ACL	8-98004-281-0	01	1	0611-			●
357	CLIP; RUBBER HOSE (A) ID=36	1-09704-094-0	03	1	0611-			●	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0611-			●	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-0	01	1	9811-9906	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	9907-0610		●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0611-			●	●
379	HOSE; RUBBER (B)	8-98041-307-0	01	1	0611-			●	●
379	HOSE; RUBBER (A)	8-98043-670-0	01	1	0611-			●	●
400	NUT; CAP,AIR DUCT M10 TAI	1-09984-145-0	01	1	9811-9906	●
400	NUT; CAP,AIR DUCT M10 TAI	1-09984-145-0	01	1	9907-0610		●
400	NUT; CAP,AIR DUCT M10 TAI	1-09984-145-0	01	1	0611-			●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9811-9906	●
450	CLAMP; HOSE	9-09915-504-1	01	1	9907-0610		●
450	CLAMP; HOSE	9-09915-504-1	01	1	0611-			●	●
515	PIPE; AIR,SUCTION	8-98043-370-0	01	1	0611-				●
515	PIPE; AIR,SUCTION	8-98043-368-1	01	1	0611-			●
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0611-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
