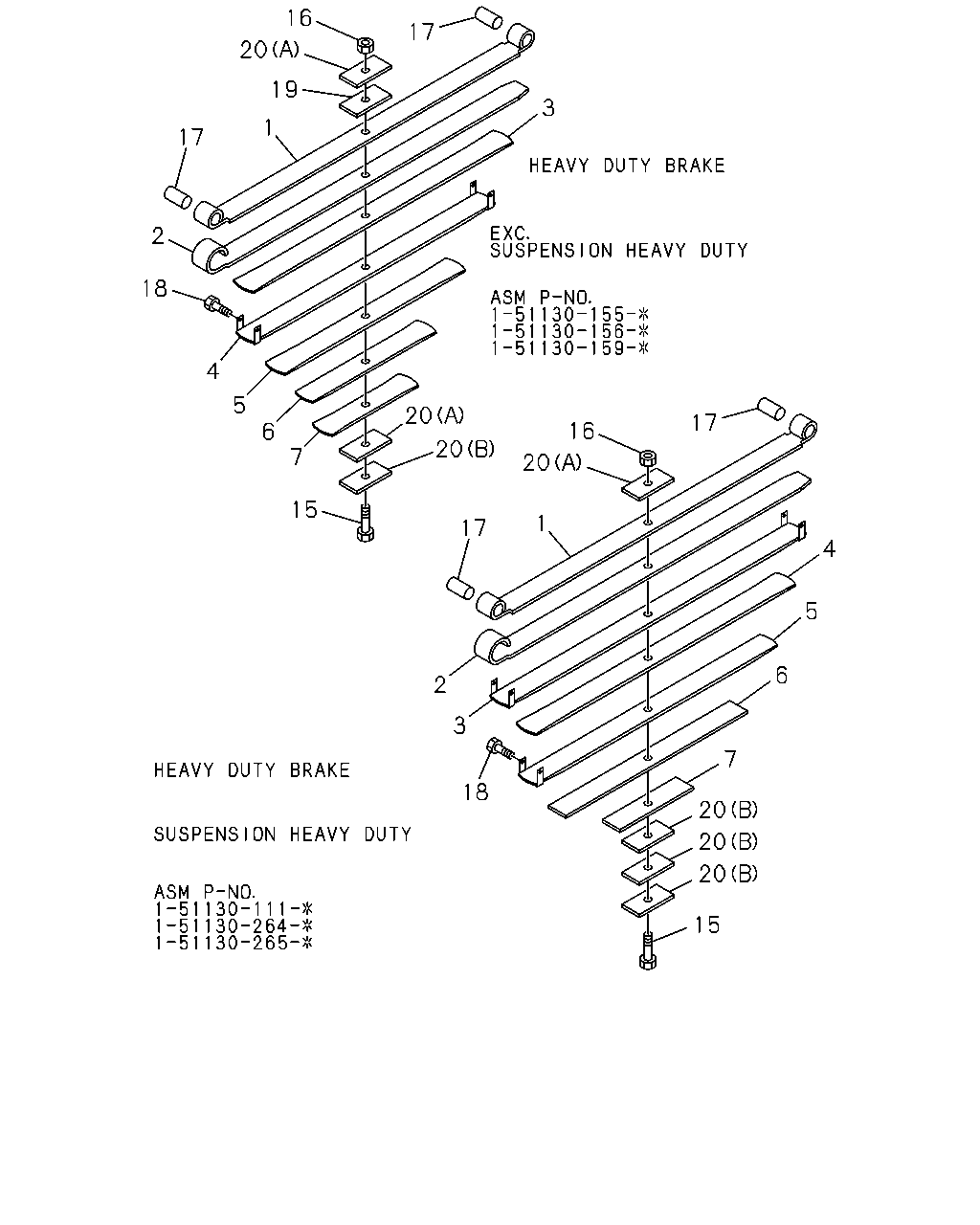

4-55 — FRONT LEAF SPRING (#57) — 163 parça

17 16 20 1 19 2 17 3 4 5 6 18 7 8 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-111-0	1-51131-111-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-155-1	1-51131-155-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-156-1	1-51131-156-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-159-1	1-51131-159-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51130-221-0	1-51131-221-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: F = 1-51130-264-0	1-51131-264-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 1-51130-265-0	1-51131-265-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 1-51130-266-0	1-51131-266-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: I = 1-51130-267-0	1-51131-267-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-111-0	1-51132-111-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-155-1	1-51132-155-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-156-1	1-51132-156-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-159-1	1-51132-159-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51130-221-0	1-51132-221-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: F = 1-51130-264-0	1-51132-264-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 1-51130-265-0	1-51132-265-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 1-51130-266-0	1-51132-266-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: I = 1-51130-267-0	1-51132-267-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-111-0	1-51133-111-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-155-1	1-51133-155-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-156-1	1-51133-156-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-159-1	1-51133-159-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 1-51130-221-0	1-51133-221-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: F = 1-51130-264-0	1-51133-264-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 1-51130-265-0	1-51133-265-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: H = 1-51130-266-0	1-51133-266-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: I = 1-51130-267-0	1-51133-267-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-111-0	1-51134-111-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-155-1	1-51134-155-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-156-1	1-51134-156-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-159-1	1-51134-159-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: E = 1-51130-221-0	1-51134-221-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: F = 1-51130-264-0	1-51134-264-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: G = 1-51130-265-0	1-51134-265-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: H = 1-51130-266-0	1-51134-266-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: I = 1-51130-267-0	1-51134-267-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-111-0	1-51135-111-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-155-1	1-51135-155-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-156-1	1-51135-156-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51130-159-1	1-51135-159-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: E = 1-51130-221-0	1-51135-221-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: F = 1-51130-264-0	1-51135-264-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: G = 1-51130-265-0	1-51135-265-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: H = 1-51130-266-0	1-51135-266-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: I = 1-51130-267-0	1-51135-267-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-111-0	1-51136-111-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-155-1	1-51136-155-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-156-1	1-51136-156-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-159-1	1-51136-159-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: E = 1-51130-221-0	1-51136-221-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: F = 1-51130-264-0	1-51136-264-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: G = 1-51130-265-0	1-51136-265-0	01	1	-
6	SPRING; LEAF,NO 6,FRT W/CLIP ASM PART: H = 1-51130-266-0	1-51136-266-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: I = 1-51130-267-0	1-51136-267-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-111-0	1-51137-111-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-155-1	1-51137-155-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-156-1	1-51137-156-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-159-1	1-51137-159-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: E = 1-51130-221-0	1-51137-221-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: F = 1-51130-264-0	1-51137-264-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: G = 1-51130-265-0	1-51137-265-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: H = 1-51130-266-0	1-51137-266-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: I = 1-51130-267-0	1-51137-267-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: E = 1-51130-221-0	1-51138-221-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: H = 1-51130-266-0	1-51138-266-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: I = 1-51130-267-0	1-51138-267-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-51156-264-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=105 ASM PART: E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-51156-323-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=120 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-51156-351-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1, E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: F = 1-51130-264-0, G = 1-51130-265-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51130-111-0	1-51351-090-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1, E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X87 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-09000-335-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X87 ASM PART: E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-09000-335-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1, E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-51177-263-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=7 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-51172-270-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=6 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-51177-262-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=6 ASM PART: E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-51177-262-0	01	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-51177-277-0	01	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-51177-278-0	03	1	-

16 17 20 19 3 1 17 2 18 4 5 20 17 16 6 20 7 20 15 1 17 4 5 6 2 3 7 18 20 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-111-0	1-51131-111-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-155-1	1-51131-155-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-156-1	1-51131-156-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-159-1	1-51131-159-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51130-221-0	1-51131-221-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: F = 1-51130-264-0	1-51131-264-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 1-51130-265-0	1-51131-265-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 1-51130-266-0	1-51131-266-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: I = 1-51130-267-0	1-51131-267-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-111-0	1-51132-111-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-155-1	1-51132-155-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-156-1	1-51132-156-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-159-1	1-51132-159-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51130-221-0	1-51132-221-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: F = 1-51130-264-0	1-51132-264-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 1-51130-265-0	1-51132-265-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 1-51130-266-0	1-51132-266-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: I = 1-51130-267-0	1-51132-267-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-111-0	1-51133-111-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-155-1	1-51133-155-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-156-1	1-51133-156-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-159-1	1-51133-159-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 1-51130-221-0	1-51133-221-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: F = 1-51130-264-0	1-51133-264-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 1-51130-265-0	1-51133-265-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: H = 1-51130-266-0	1-51133-266-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: I = 1-51130-267-0	1-51133-267-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-111-0	1-51134-111-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-155-1	1-51134-155-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-156-1	1-51134-156-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-159-1	1-51134-159-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: E = 1-51130-221-0	1-51134-221-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: F = 1-51130-264-0	1-51134-264-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: G = 1-51130-265-0	1-51134-265-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: H = 1-51130-266-0	1-51134-266-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: I = 1-51130-267-0	1-51134-267-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-111-0	1-51135-111-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-155-1	1-51135-155-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-156-1	1-51135-156-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 1-51130-159-1	1-51135-159-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: E = 1-51130-221-0	1-51135-221-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: F = 1-51130-264-0	1-51135-264-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: G = 1-51130-265-0	1-51135-265-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: H = 1-51130-266-0	1-51135-266-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: I = 1-51130-267-0	1-51135-267-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-111-0	1-51136-111-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-155-1	1-51136-155-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-156-1	1-51136-156-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-159-1	1-51136-159-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: E = 1-51130-221-0	1-51136-221-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: F = 1-51130-264-0	1-51136-264-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: G = 1-51130-265-0	1-51136-265-0	01	1	-
6	SPRING; LEAF,NO 6,FRT W/CLIP ASM PART: H = 1-51130-266-0	1-51136-266-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: I = 1-51130-267-0	1-51136-267-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-111-0	1-51137-111-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-155-1	1-51137-155-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-156-1	1-51137-156-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-159-1	1-51137-159-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: E = 1-51130-221-0	1-51137-221-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: F = 1-51130-264-0	1-51137-264-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: G = 1-51130-265-0	1-51137-265-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: H = 1-51130-266-0	1-51137-266-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: I = 1-51130-267-0	1-51137-267-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=145 ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-51156-264-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=105 ASM PART: E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-51156-323-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=120 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-51156-351-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1, E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: F = 1-51130-264-0, G = 1-51130-265-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51130-111-0	1-51351-090-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1, E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X87 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-09000-335-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M8X87 ASM PART: E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-09000-335-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1, E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-51177-263-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=7 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-51172-270-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=6 ASM PART: B = 1-51130-155-1, C = 1-51130-156-1, D = 1-51130-159-1	1-51177-262-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=6 ASM PART: E = 1-51130-221-0, H = 1-51130-266-0, I = 1-51130-267-0	1-51177-262-0	01	1	-
20	SEAT; LEAF SPR,FRT (A) ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-51177-277-0	01	1	-
20	SEAT; LEAF SPR,FRT (B) ASM PART: A = 1-51130-111-0, F = 1-51130-264-0, G = 1-51130-265-0	1-51177-278-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
