1-30 — AIR CLEANER (#5699) — 138 parça

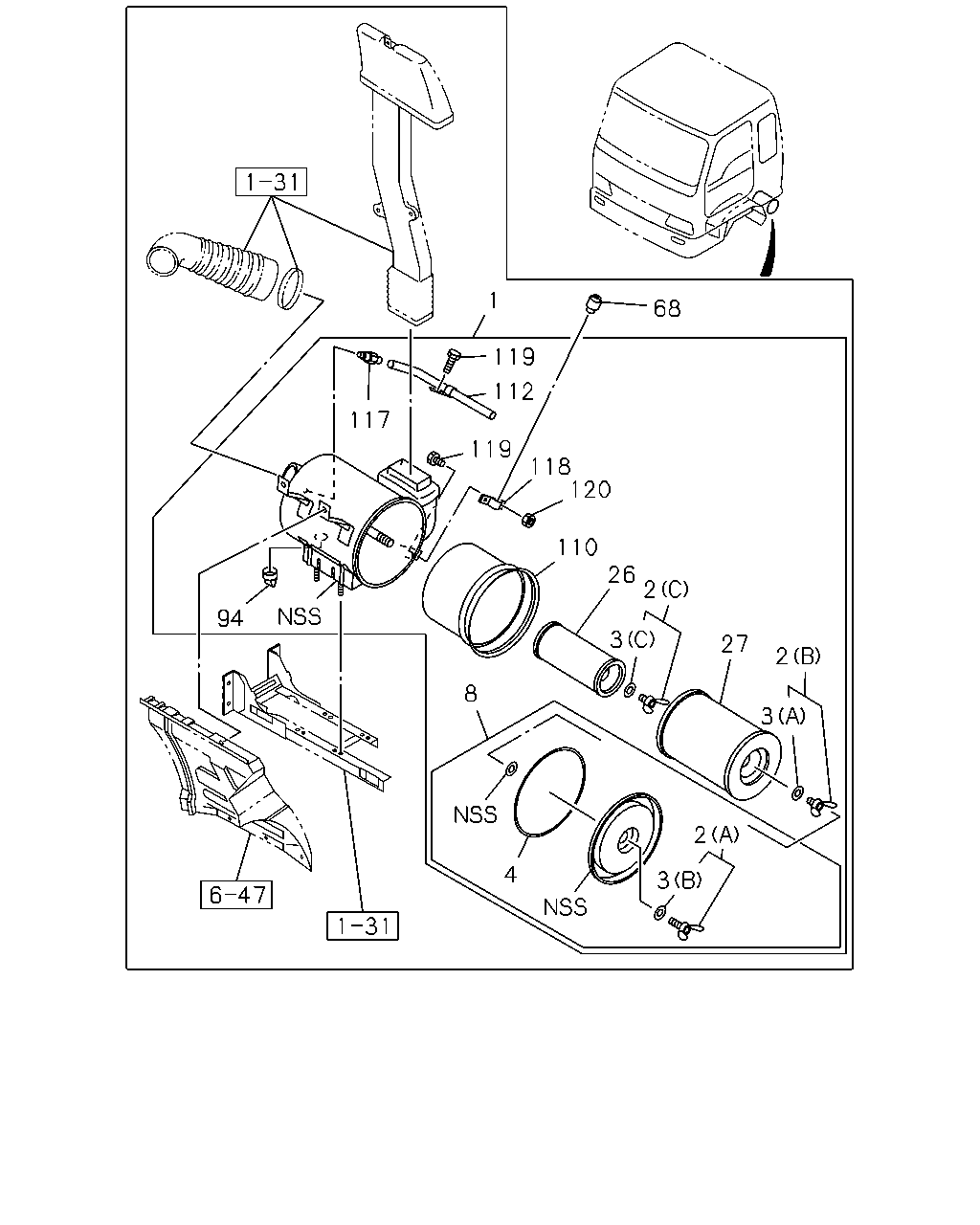

çizim 26031
1 68 119 112 117 119 118 120 110 26 2 94 3 27 2 8 3 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
FRR MIDDLE CHASSIS(FR****) 		1-14210-803-0 01 1 9811-9906 ●
1 CLEANER ASM; AIR
FRR MIDDLE CHASSIS(FR****) 		1-14210-820-1 01 1 9907-0610 ●
1 CLEANER ASM; AIR 1-14210-820-1 01 1 0611- ●
1 CLEANER ASM; AIR
FVR MIDDLE CHASSIS(FV****) 		1-14210-807-0 01 1 9811-9906 ●
1 CLEANER ASM; AIR
FVR MIDDLE CHASSIS(FV****) 		1-14210-807-1 01 1 9907-0610 ●
1 CLEANER ASM; AIR 1-14210-826-2 01 1 0611- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9811-9906 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9907-0610 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0611- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9811-9906 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9907-0610 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0611- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9811-9906 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9907-0610 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0611- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9811-9906 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9907-0610 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0611- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9811-9906 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9907-0610 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0611- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9811-9906 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9907-0610 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0611- ● ●
4 GASKET; COVER TO BODY
FRR MIDDLE CHASSIS(FR****) 		1-14218-128-0 01 1 9811-9906 ●
4 GASKET; COVER TO BODY
FRR MIDDLE CHASSIS(FR****) 		1-14218-128-0 01 1 9907-0610 ●
4 GASKET; COVER TO BODY 1-14218-128-0 01 1 0611- ●
4 GASKET; COVER TO BODY
FVR MIDDLE CHASSIS(FV****) 		1-14219-266-0 01 1 9811-9906 ●
4 GASKET; COVER TO BODY
FVR MIDDLE CHASSIS(FV****) 		1-14219-266-0 01 1 9907-0610 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0611- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9811-9906 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9907-0610 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0611- ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9811-9906 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9907-0610 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0611- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9811-9906 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9907-0610 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0611- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9811-9906 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9907-0610 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0611- ● ●
94 VALVE; VACUATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-129-0 01 1 9811-9906 ●
94 VALVE; VACUATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-129-0 01 1 9907-0610 ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 0611- ●
94 VALVE; VACUATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-192-0 01 1 9811-9906 ●
94 VALVE; VACUATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-192-0 01 1 9907-0610 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0611- ●
110 ADAPTER; ACL
FRR MIDDLE CHASSIS(FR****) 		1-14219-175-0 01 1 9811-9906 ●
110 ADAPTER; ACL
FRR MIDDLE CHASSIS(FR****) 		1-14219-175-0 01 1 9907-0610 ●
110 ADAPTER; ACL 1-14219-175-0 01 1 0611- ●
112 HOSE; INDICATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-260-0 01 1 9811-9906 ●
112 HOSE; INDICATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-260-0 01 1 9907-0610 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0611- ●
112 HOSE; INDICATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-259-0 01 1 9811-9906 ●
112 HOSE; INDICATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-259-0 01 1 9907-0610 ●
112 HOSE; INDICATOR 1-14219-273-0 01 1 0611- ●
117 JOINT; INDICATOR HOSE 1-14219-272-0 01 1 0611- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9811-9906 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9907-0610 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0611- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9811-9906 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9907-0610 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0611- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9811-9906 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9907-0610 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0611- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9811-9906 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9907-0610 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0611- ● ●

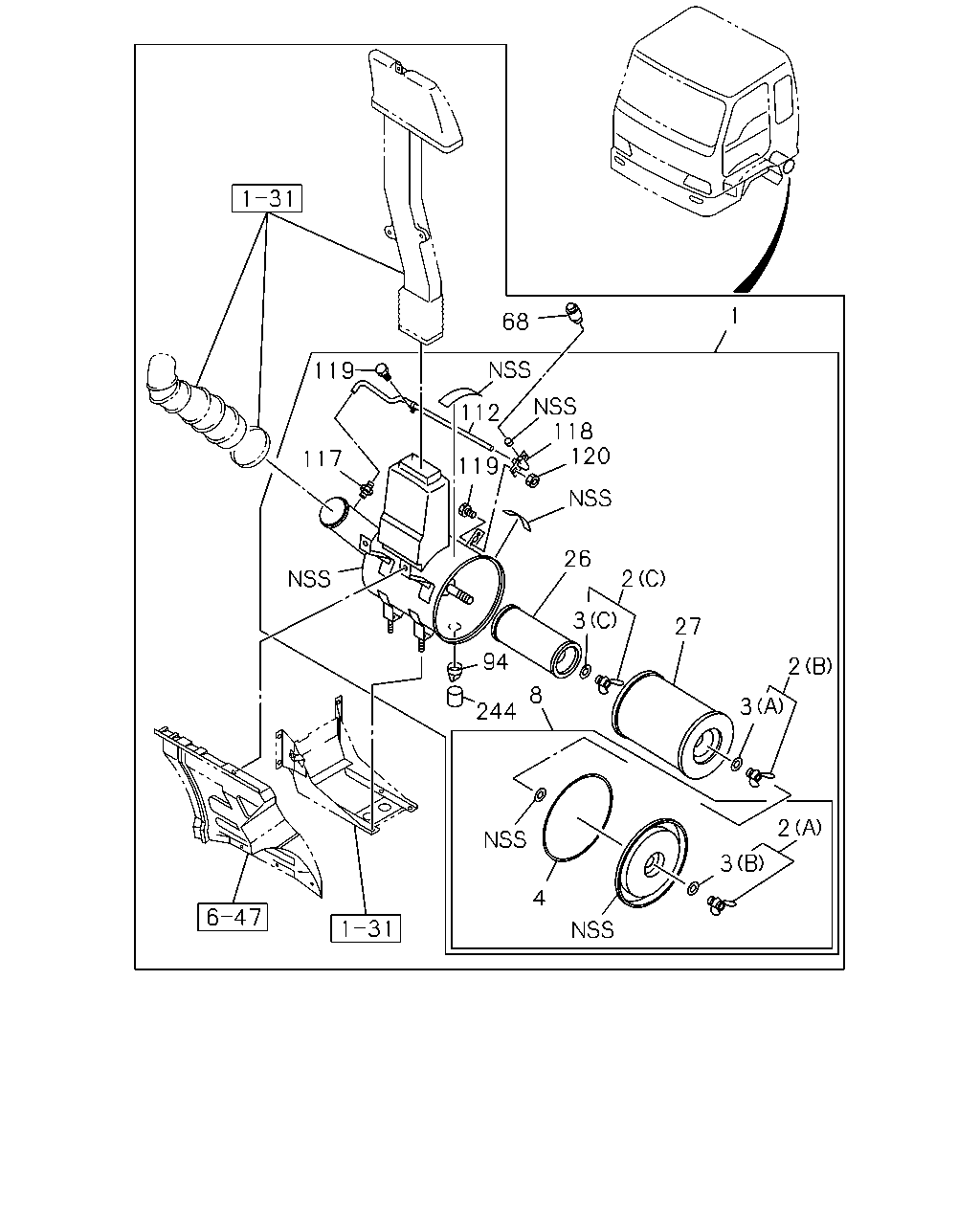

çizim 26206
1 68 119 118 120 112 117 119 26 2 3 27 94 2 8 3 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
FRR MIDDLE CHASSIS(FR****) 		1-14210-803-0 01 1 9811-9906 ●
1 CLEANER ASM; AIR
FRR MIDDLE CHASSIS(FR****) 		1-14210-820-1 01 1 9907-0610 ●
1 CLEANER ASM; AIR 1-14210-820-1 01 1 0611- ●
1 CLEANER ASM; AIR
FVR MIDDLE CHASSIS(FV****) 		1-14210-807-0 01 1 9811-9906 ●
1 CLEANER ASM; AIR
FVR MIDDLE CHASSIS(FV****) 		1-14210-807-1 01 1 9907-0610 ●
1 CLEANER ASM; AIR 1-14210-826-2 01 1 0611- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9811-9906 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 9907-0610 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0611- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9811-9906 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9907-0610 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0611- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9811-9906 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9907-0610 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0611- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9811-9906 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 9907-0610 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0611- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9811-9906 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9907-0610 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0611- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9811-9906 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9907-0610 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0611- ● ●
4 GASKET; COVER TO BODY
FRR MIDDLE CHASSIS(FR****) 		1-14218-128-0 01 1 9811-9906 ●
4 GASKET; COVER TO BODY
FRR MIDDLE CHASSIS(FR****) 		1-14218-128-0 01 1 9907-0610 ●
4 GASKET; COVER TO BODY 1-14218-128-0 01 1 0611- ●
4 GASKET; COVER TO BODY
FVR MIDDLE CHASSIS(FV****) 		1-14219-266-0 01 1 9811-9906 ●
4 GASKET; COVER TO BODY
FVR MIDDLE CHASSIS(FV****) 		1-14219-266-0 01 1 9907-0610 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0611- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9811-9906 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9907-0610 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0611- ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9811-9906 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9907-0610 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0611- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9811-9906 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9907-0610 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0611- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9811-9906 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9907-0610 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0611- ● ●
94 VALVE; VACUATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-129-0 01 1 9811-9906 ●
94 VALVE; VACUATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-129-0 01 1 9907-0610 ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 0611- ●
94 VALVE; VACUATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-192-0 01 1 9811-9906 ●
94 VALVE; VACUATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-192-0 01 1 9907-0610 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0611- ●
112 HOSE; INDICATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-260-0 01 1 9811-9906 ●
112 HOSE; INDICATOR
FRR MIDDLE CHASSIS(FR****) 		1-14219-260-0 01 1 9907-0610 ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0611- ●
112 HOSE; INDICATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-259-0 01 1 9811-9906 ●
112 HOSE; INDICATOR
FVR MIDDLE CHASSIS(FV****) 		1-14219-259-0 01 1 9907-0610 ●
112 HOSE; INDICATOR 1-14219-273-0 01 1 0611- ●
117 JOINT; INDICATOR HOSE 1-14219-272-0 01 1 0611- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9811-9906 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9907-0610 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0611- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9811-9906 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9907-0610 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0611- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9811-9906 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9907-0610 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0611- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9811-9906 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9907-0610 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0611- ● ●
244 COVER ASM; VALVE
FVR MIDDLE CHASSIS(FV****) 		1-14219-281-0 01 1 9907-0610 ●
