◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11395 - FRR RHD EURO1 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#56987) — 14 parça

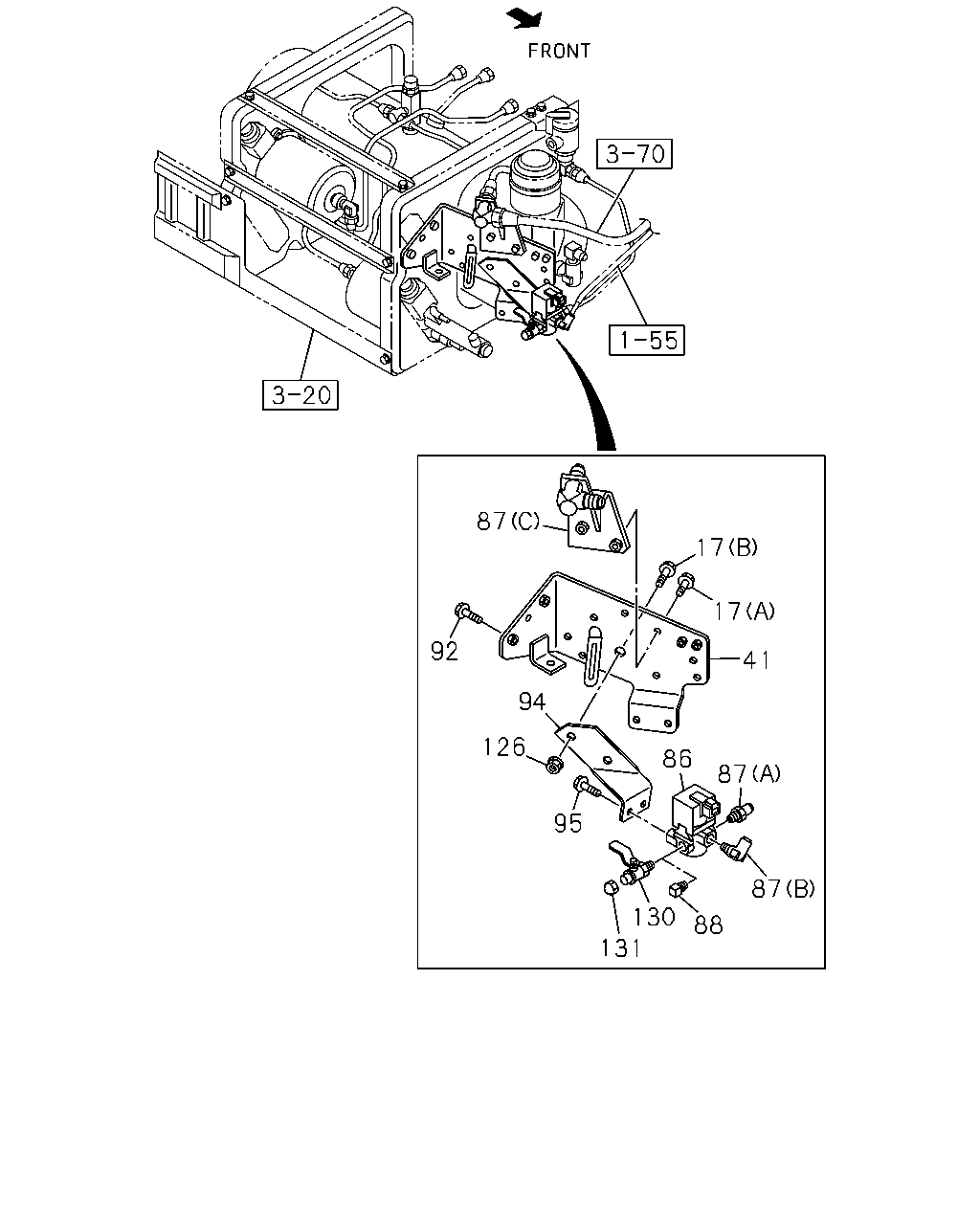

çizim 148296
87 17 17 92 41 94 126 86 87 95 87 130 88 131
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1110-
17 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1110-
41 BRACKET 8-98044-548-4 01 1 1110-
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1110-
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1110-
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1110-
87 CONNECTOR
(C) 		8-98135-407-0 01 1 1110-
88 PLUG
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 1110-
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 1110-
94 BRACKET; MAG VLV,EXH BRAKE 8-98178-485-0 01 1 1110-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1110-
126 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1110-
130 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1110-
131 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
