Isuzu WW
▶
TRUCKS
▶
FRR
▶
11395 - FRR RHD EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#56978) — 47 parça
◀

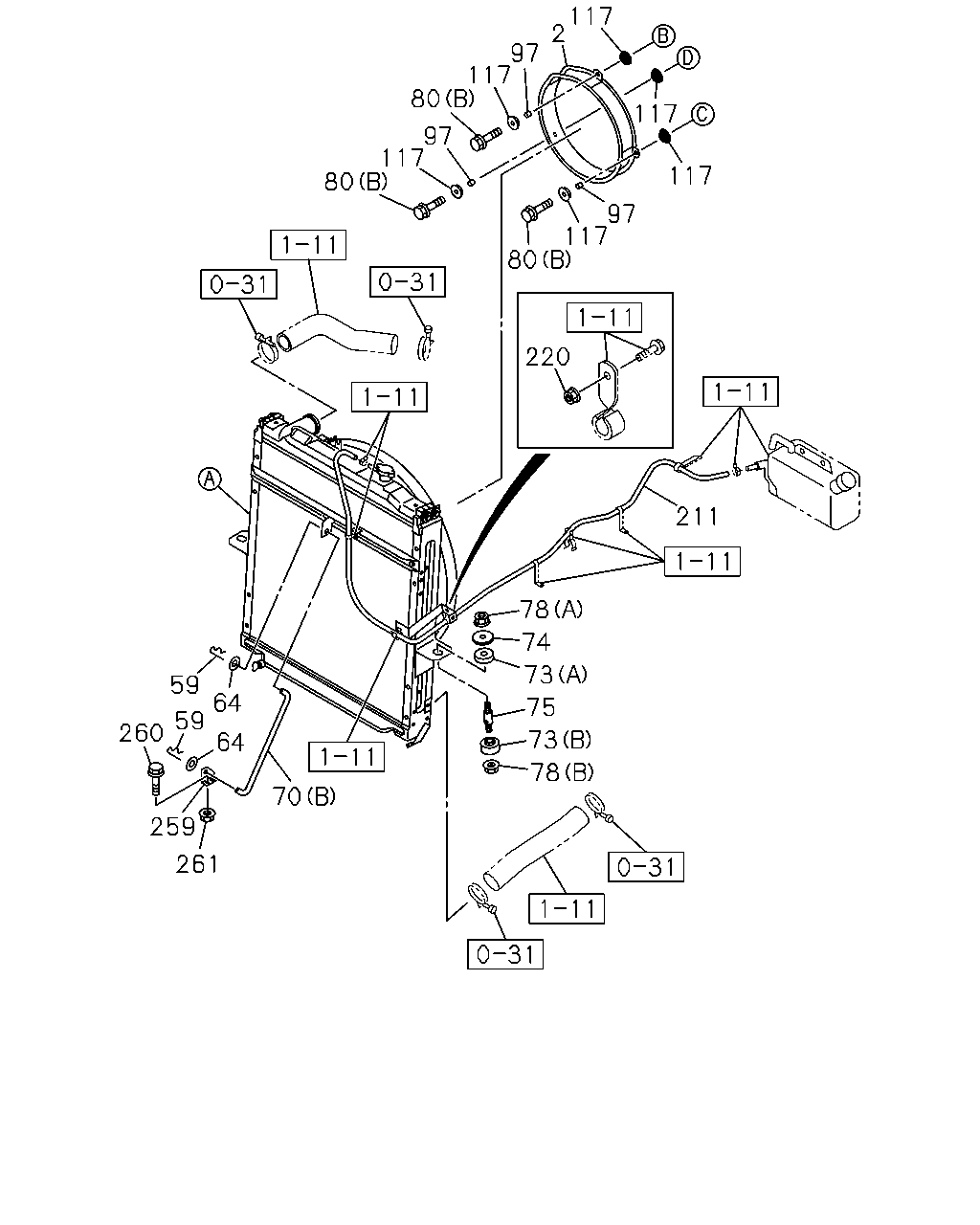

[110A] FIXING;ASM,HOSE AND OTHER PARTS (20 parça)

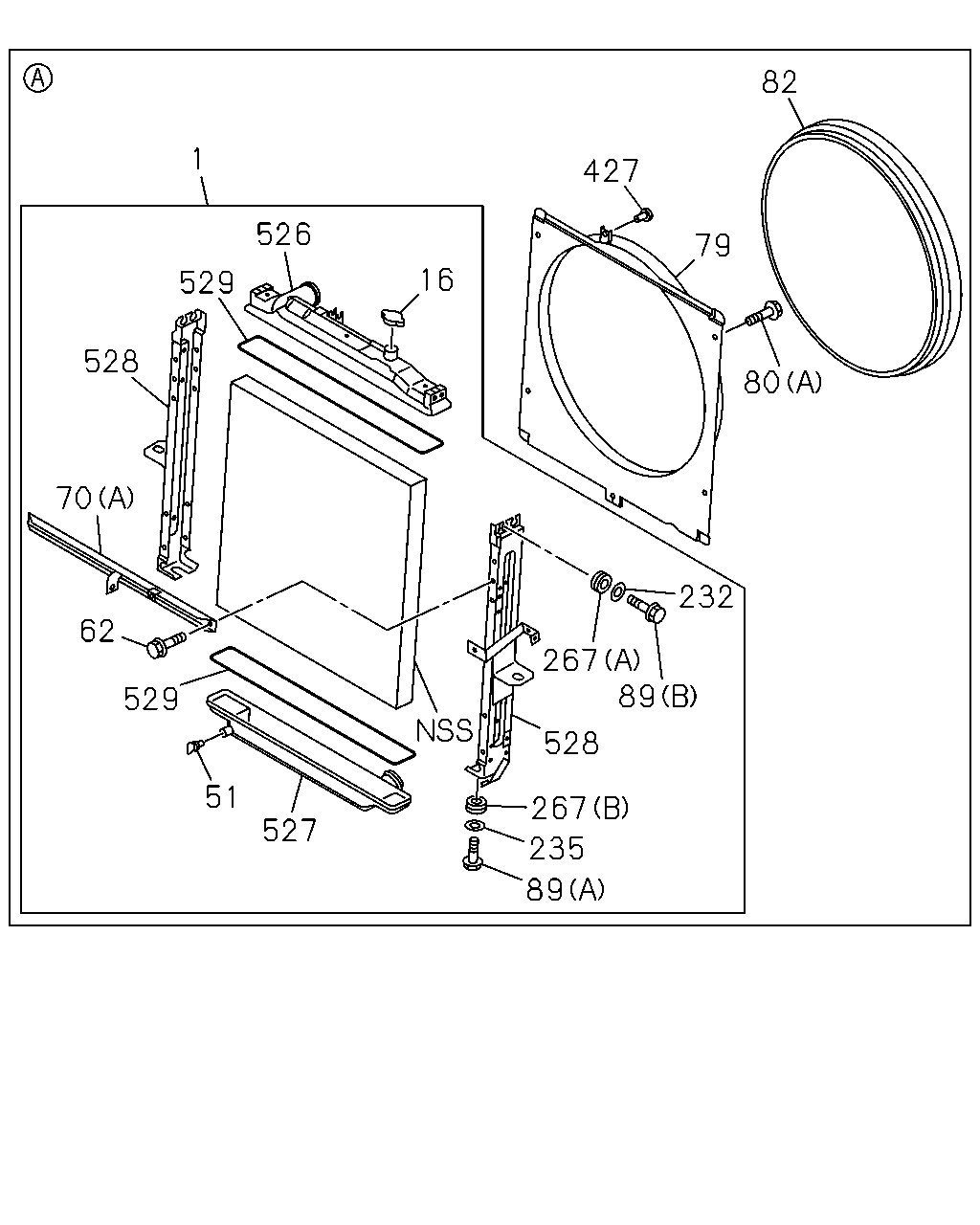

[110A] COMPONENT;RADIATOR (22 parça)
[110A] FAN GUIDE STAY (5 parça)
▶
117
2
97
117
80
117
97
117
80
117
97
117
80
220
211
78
74
73
59
64
59
75
260
73
64
78
70
259
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94394-808-2
01
1
1110-
59
PIN; SNAP,STAY
1-09987-158-1
02
1
1110-
64
WASHER; STAY TO RAD
ID=12.5 OD=22
0-91610-512-0
02
1
1110-
70
STAY; RAD
(B)
1-21522-069-0
01
1
1110-
70
STAY; RAD
(A)
8-98106-222-0
01
1
1110-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1110-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1110-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1110-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1110-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1110-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1110-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1110-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1110-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1110-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1110-
211
HOSE; RAD TO PIPE
8-98178-389-2
01
1
1110-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1110-
259
BRACKET; RAD STAY
1-21523-024-0
01
1
1110-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1110-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1110-
82
1
427
526
79
16
529
528
80
70
232
62
267
89
529
528
51
267
527
235
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98106-213-0
01
1
1110-
16
CAP; RAD
8-98105-898-0
01
1
1110-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1110-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1110-
70
STAY; RAD
(B)
1-21522-069-0
01
1
1110-
70
STAY; RAD
(A)
8-98106-222-0
01
1
1110-
79
GUIDE; FAN,RAD
8-98004-207-0
01
1
1110-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1110-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1110-
82
COVER; FAN,RAD
8-98105-359-0
01
1
1110-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1110-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1110-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1110-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1110-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1110-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1110-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1110-
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1110-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
1110-
528
PLATE; SIDE,RADIATOR CORE
8-98106-217-0
01
1
1110-
528
PLATE; SIDE,RADIATOR CORE
8-98106-218-0
01
1
1110-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1110-
87
96
87
96
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(A)
8-94391-012-0
01
1
1110-
87
STAY; FAN GUIDE
(B)
8-94396-496-1
01
1
1110-
87
STAY; FAN GUIDE
(C)
8-94397-395-1
01
1
1110-
96
BOLT; STAY FIX
(A) M8X16 FLANGE
0-28050-816-0
02
1
1110-
96
BOLT; STAY FIX
(B) M10X16 FLANGE
0-28151-016-0
02
1
1110-
