◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#5697) — 386 parça

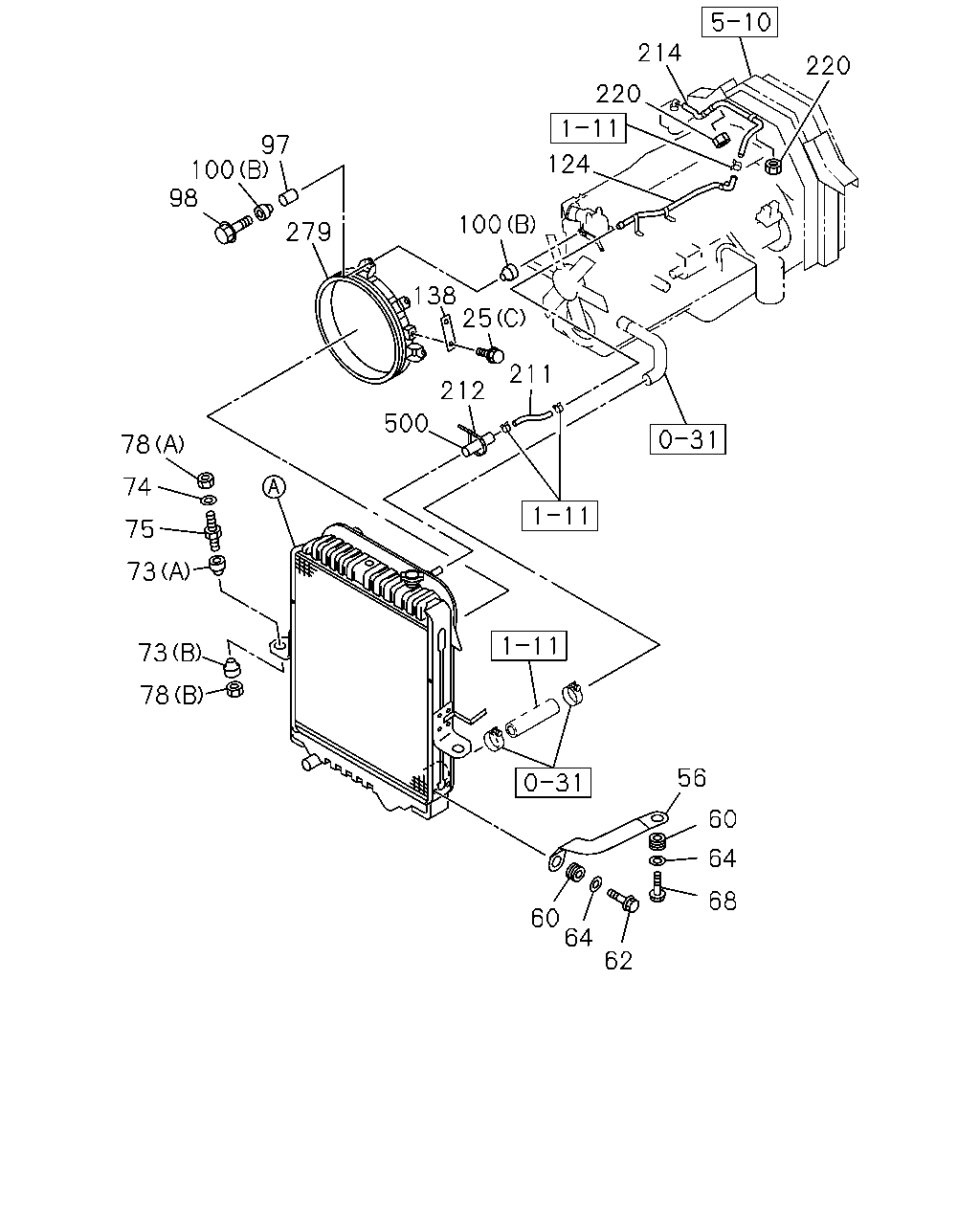

çizim 26203
214 220 220 97 100 98 124 100 279 138 25 211 212 500 78 74 75 73 73 78 56 60 64 68 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9811-0610 ● ●
25 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0610 ● ●
56 STAY; RAD
WB 5800MM(58W) 		1-21464-634-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5800MM(58W) 		1-21464-633-0 01 1 9907-0610 ●
56 STAY; RAD
FRR MIDDLE CHASSIS(FR****) 		1-21464-570-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5000MM(50W) 		8-98004-131-0 01 1 0611- ●
56 STAY; RAD 8-98004-131-0 01 1 0611- ●
56 STAY; RAD
FRR MIDDLE CHASSIS(FR****) 		1-21464-569-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5000MM(50W) 		8-98004-130-0 01 1 0611- ●
56 STAY; RAD 8-98004-130-0 01 1 0611- ●
56 STAY; RAD
FVR MIDDLE CHASSIS(FV****) WB 5000MM(50W),WB 5500MM(55W) 		1-21464-632-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5500MM(55W),WB 5800MM(58W) 		8-98004-135-0 01 1 0611- ●
56 STAY; RAD
FVR MIDDLE CHASSIS(FV****) WB 5000MM(50W),WB 5500MM(55W) 		1-21464-631-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5500MM(55W),WB 5800MM(58W) 		8-98004-134-0 01 1 0611- ●
60 GROMMET 1-09332-117-0 04 1 9907-0610 ●
60 GROMMET 1-09332-117-0 04 1 0611- ● ●
62 BOLT; STAY
M8X22 		1-09009-123-0 02 1 0611- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9811-9906 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9811-9906 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9907-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606-0610 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0611- ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 9907-0610 ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 0611- ● ●
68 BOLT; STAY TO BRKT
M8X22 		1-09009-123-0 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9811-9906 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0611- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 9811-9906 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 0611- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9811-9906 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9907-0610 ●
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-2 02 1 0611- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9811-9906 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 9907-0610 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0611- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9811-9906 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9907-0602 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-0610 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0611- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9811-9906 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9907-0610 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-110-0 02 1 0611- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9811-9906 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9907-0610 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0611- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28050-830-0 03 1 0611- ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9811-9906 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9907-0512 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0610 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0611- ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 9811-9906 ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 9907-0610 ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 0611- ● ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 9811-9906 ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 9907-0610 ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 0611- ● ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9811-9906 ●
124 PIPE; WATER,TANK TO RAD 8-97600-308-0 01 1 9907-0610 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0611- ● ●
138 BRACKET; CLIP 1-47476-881-0 01 1 0611- ● ●
211 HOSE; RAD TO PIPE
TAI 		8-97530-413-0 01 1 9811-9906 ●
211 HOSE; RAD TO PIPE
TAI 		8-97530-413-0 01 1 9907-9912 ●
211 HOSE; RAD TO PIPE
FRR MIDDLE CHASSIS(FR****) TAI 		8-97530-413-0 01 1 0001-0610 ●
211 HOSE; RAD TO PIPE 8-98035-009-0 01 1 0611- ● ●
211 HOSE; RAD TO PIPE
FVR MIDDLE CHASSIS(FV****) TAI 		8-97531-224-0 01 1 0001-0610 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 0611- ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 9811-9906 ●
212 CLIP; HOSE
L=250 TAI 		5-09707-030-1 01 1 9907-0610 ●
212 CLIP; HOSE
L=250 TAI 		5-09707-030-1 01 1 0611- ● ●
214 HOSE; PIPE TO RESERVE TANK
TAI 		8-97530-412-0 01 1 9811-9906 ●
214 HOSE; PIPE TO RESERVE TANK
TAI 		8-97531-001-0 01 1 9907-9910 ●
214 HOSE; PIPE TO RESERVE TANK
FRR MIDDLE CHASSIS(FR****) TAI 		8-97531-001-0 01 1 9911-0610 ●
214 HOSE; PIPE TO RESERVE TANK 8-98038-652-0 01 1 0611- ●
214 HOSE; PIPE TO RESERVE TANK
FVR MIDDLE CHASSIS(FV****) TAI 		8-97530-587-0 01 1 9911-0610 ●
214 HOSE; PIPE TO RESERVE TANK 1-21437-986-0 01 1 0611- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-9906 ●
220 NUT; CLIP
FRR MIDDLE CHASSIS(FR****) M8 FLANGE 		0-91150-108-0 02 1 9907-0602 ●
220 NUT; CLIP
FRR MIDDLE CHASSIS(FR****) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0611- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9811-9906 ●
220 NUT; CLIP
FVR MIDDLE CHASSIS(FV****) M8 FLANGE 		0-91150-108-0 04 1 9907-0602 ●
220 NUT; CLIP
FVR MIDDLE CHASSIS(FV****) M8 FLANGE 		0-91180-108-0 04 1 0603-0610 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
279 BELL MOUTH 8-94394-174-1 01 1 9811-9906 ●
279 BELL MOUTH 8-94393-779-1 01 1 9907-0610 ●
279 BELL MOUTH 8-97601-172-1 01 1 0611- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 9907-0610 ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0611- ● ●

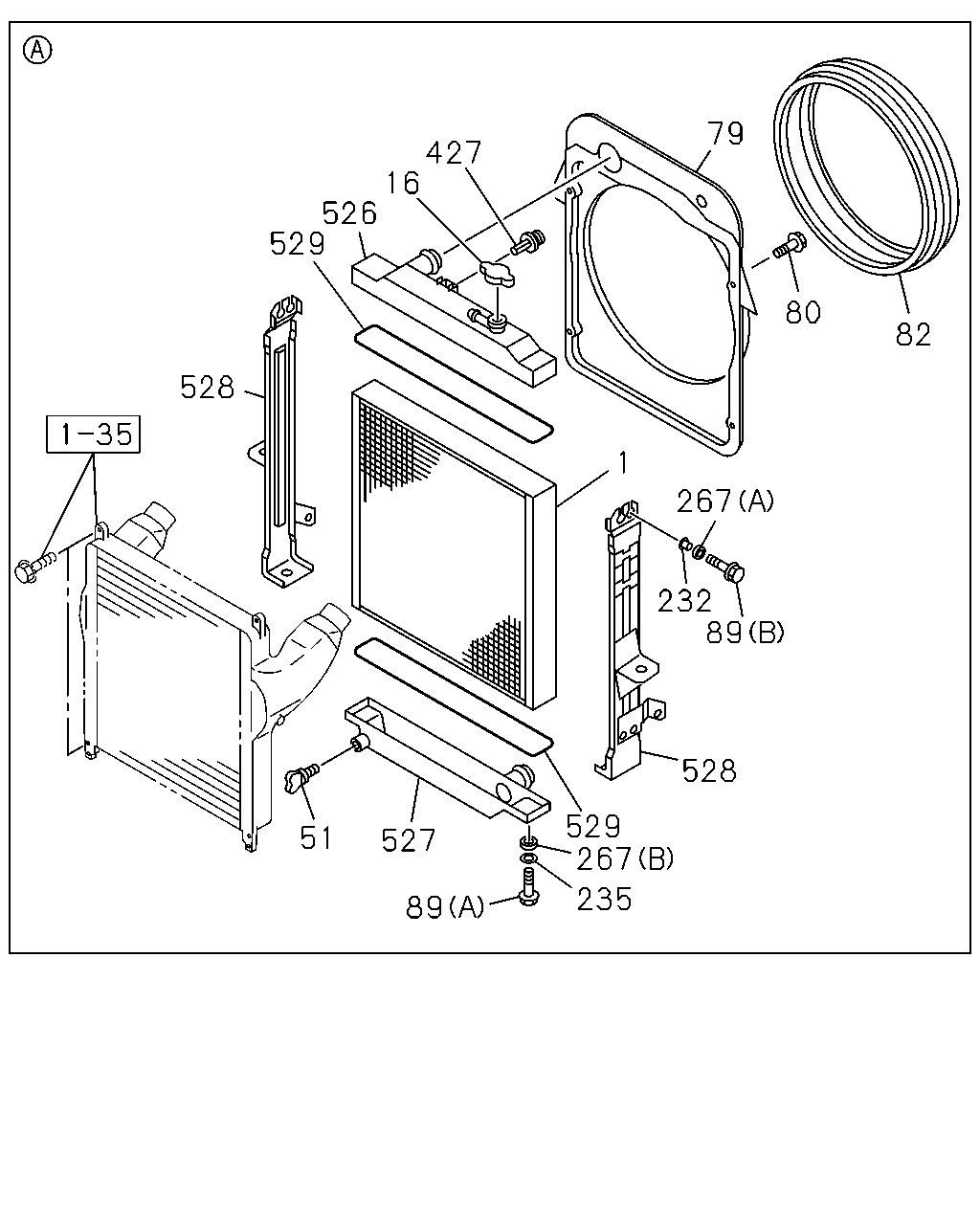

çizim 26204
79 427 16 526 529 80 82 528 1 267 232 89 528 529 267 51 527 235 89
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM
FRR MIDDLE CHASSIS(FR****) 		1-21410-675-1 01 1 9811-9906 ●
1 RADIATOR ASM
FVR MIDDLE CHASSIS(FV****) 		1-21410-711-1 01 1 9811-9906 ●
1 RADIATOR ASM
FVR MIDDLE CHASSIS(FV****) 		1-21410-819-0 01 1 9907-0610 ●
1 RADIATOR ASM 8-98004-201-2 01 1 0611- ●
1 RADIATOR ASM
FRR MIDDLE CHASSIS(FR****) 		1-21410-863-0 01 1 9907-0610 ●
1 RADIATOR ASM 8-98035-121-3 01 1 0611- ●
16 CAP; RAD 1-21450-053-1 01 1 9811-9906 ●
16 CAP; RAD 1-21450-097-2 01 1 9907-0610 ●
16 CAP; RAD 8-97239-187-0 01 1 0611- ● ●
51 PLUG; DRAIN
W/GASKET TAI 		1-09609-009-0 01 1 9811-0610 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0611- ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9811-9906 ●
79 GUIDE; FAN,RAD
FRR MIDDLE CHASSIS(FR****) 		1-21551-471-1 01 1 9907-0610 ●
79 GUIDE; FAN,RAD 8-98004-207-0 01 1 0611- ● ●
79 GUIDE; FAN,RAD
FVR MIDDLE CHASSIS(FV****) 		1-21551-468-1 01 1 9907-0610 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9811-9906 ●
80 BOLT; FAN GUIDE
FRR MIDDLE CHASSIS(FR****) M6X10 FLANGE 		0-28080-610-0 04 1 9907-0610 ●
80 BOLT; FAN GUIDE
M8X14 		8-98046-222-0 04 1 0611- ● ●
80 BOLT; FAN GUIDE
FVR MIDDLE CHASSIS(FV****) M6X10 FLANGE 		0-28080-610-0 08 1 9907-0610 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9811-9906 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9907-0610 ●
82 COVER; FAN,RAD 8-98004-211-0 01 1 0611- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0611- ● ●
89 BOLT
(B) M8X25 		1-21469-153-0 04 1 0611- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0611- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0611- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0611- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0611- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0611- ● ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0611- ● ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 0611- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 0611- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-118-3 01 1 0611- ●
528 PLATE; SIDE,RADIATOR CORE 8-98004-204-2 01 1 0611- ●
528 PLATE; SIDE,RADIATOR CORE 8-98004-205-2 01 1 0611- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0611- ● ●

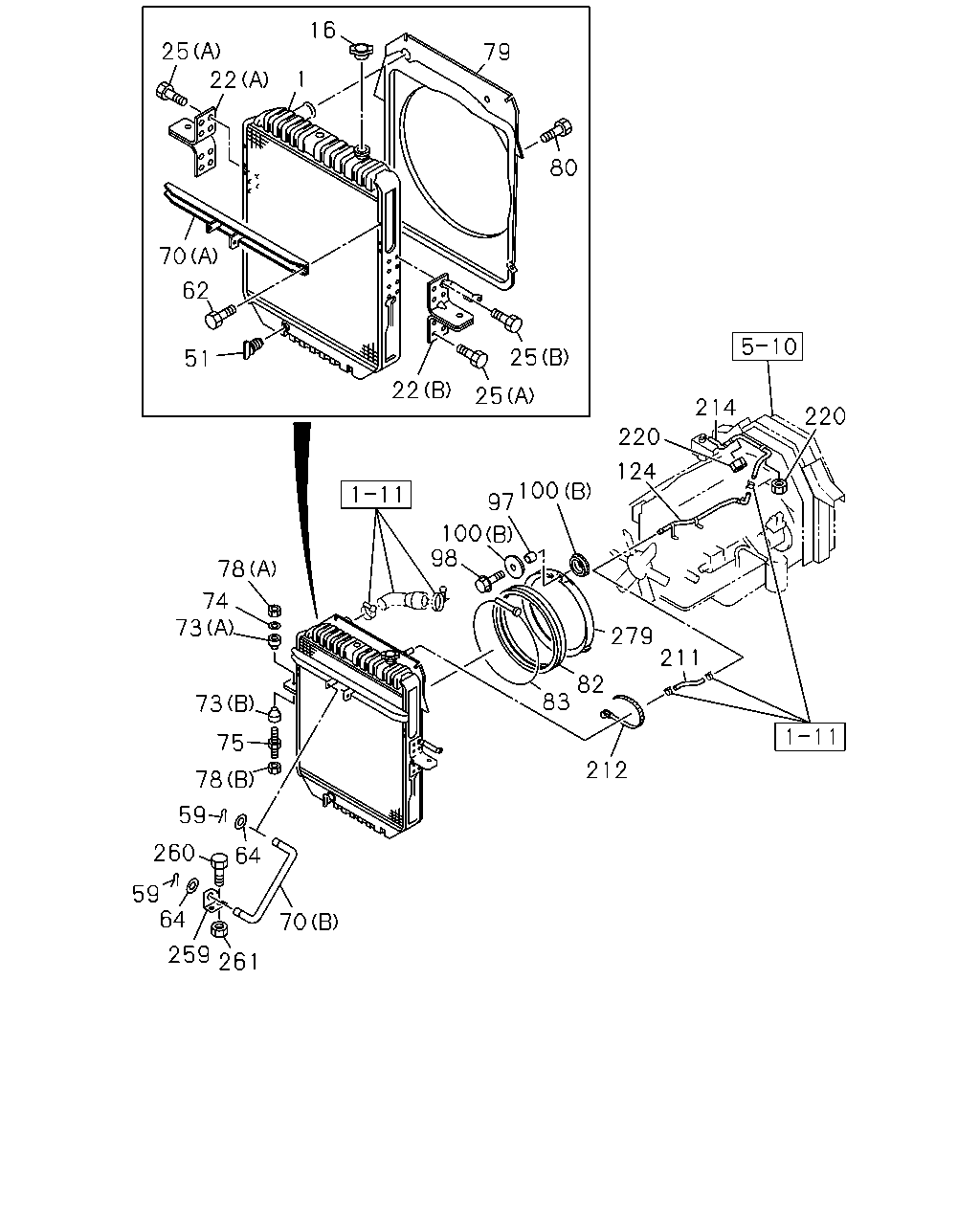

çizim 99398
16 25 22 79 1 80 70 62 25 51 22 25 214 220 220 124 97 98 78 74 73 279 211 82 83 73 75 212 78 59 260 64 59 64 70 259 261
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM
FRR MIDDLE CHASSIS(FR****) 		1-21410-675-1 01 1 9811-9906 ●
1 RADIATOR ASM
FVR MIDDLE CHASSIS(FV****) 		1-21410-711-1 01 1 9811-9906 ●
1 RADIATOR ASM
FVR MIDDLE CHASSIS(FV****) 		1-21410-819-0 01 1 9907-0610 ●
1 RADIATOR ASM 8-98004-201-2 01 1 0611- ●
1 RADIATOR ASM
FRR MIDDLE CHASSIS(FR****) 		1-21410-863-0 01 1 9907-0610 ●
1 RADIATOR ASM 8-98035-121-3 01 1 0611- ●
16 CAP; RAD 1-21450-053-1 01 1 9811-9906 ●
16 CAP; RAD 1-21450-097-2 01 1 9907-0610 ●
16 CAP; RAD 8-97239-187-0 01 1 0611- ● ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (A) 		1-21464-361-0 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (B) 		1-21464-548-0 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (A) 		1-21464-463-1 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (A) 		1-21464-667-0 01 1 9907-0305 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (A) 		1-21464-737-0 01 1 0306-0610 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (B) 		1-21464-546-0 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (B) 		1-21464-668-0 01 1 9907-0305 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (B) 		1-21464-750-0 01 1 0306-0610 ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (A) 		1-21464-646-0 01 1 9907-0610 ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (B) 		1-21464-654-0 01 1 9907-0610 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9811-0610 ● ●
25 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0610 ● ●
51 PLUG; DRAIN
W/GASKET TAI 		1-09609-009-0 01 1 9811-0610 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0611- ● ●
59 PIN; SNAP,STAY
TAI 		1-09987-158-1 02 1 9811-9906 ●
62 BOLT; STAY
M8X22 		1-09009-123-0 02 1 0611- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9811-9906 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9811-9906 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9907-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606-0610 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0611- ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9811-9906 ●
70 STAY; RAD
FRR MIDDLE CHASSIS(FR****) (B) 		1-21522-069-0 01 1 9811-9906 ●
70 STAY; RAD
FVR MIDDLE CHASSIS(FV****) (B) 		1-21522-070-0 01 1 9811-9906 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9811-9906 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0611- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 9811-9906 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 0611- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9811-9906 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9907-0610 ●
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-2 02 1 0611- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9811-9906 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 9907-0610 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0611- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9811-9906 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9907-0602 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-0610 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0611- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9811-9906 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9907-0610 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-110-0 02 1 0611- ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9811-9906 ●
79 GUIDE; FAN,RAD
FRR MIDDLE CHASSIS(FR****) 		1-21551-471-1 01 1 9907-0610 ●
79 GUIDE; FAN,RAD 8-98004-207-0 01 1 0611- ● ●
79 GUIDE; FAN,RAD
FVR MIDDLE CHASSIS(FV****) 		1-21551-468-1 01 1 9907-0610 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9811-9906 ●
80 BOLT; FAN GUIDE
FRR MIDDLE CHASSIS(FR****) M6X10 FLANGE 		0-28080-610-0 04 1 9907-0610 ●
80 BOLT; FAN GUIDE
M8X14 		8-98046-222-0 04 1 0611- ● ●
80 BOLT; FAN GUIDE
FVR MIDDLE CHASSIS(FV****) M6X10 FLANGE 		0-28080-610-0 08 1 9907-0610 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9811-9906 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9907-0610 ●
82 COVER; FAN,RAD 8-98004-211-0 01 1 0611- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9811-9906 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9907-0610 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9811-9906 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9907-0610 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0611- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28050-830-0 03 1 0611- ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9811-9906 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9907-0512 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0610 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0611- ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9811-9906 ●
124 PIPE; WATER,TANK TO RAD 8-97600-308-0 01 1 9907-0610 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0611- ● ●
211 HOSE; RAD TO PIPE
TAI 		8-97530-413-0 01 1 9811-9906 ●
211 HOSE; RAD TO PIPE
TAI 		8-97530-413-0 01 1 9907-9912 ●
211 HOSE; RAD TO PIPE
FRR MIDDLE CHASSIS(FR****) TAI 		8-97530-413-0 01 1 0001-0610 ●
211 HOSE; RAD TO PIPE 8-98035-009-0 01 1 0611- ● ●
211 HOSE; RAD TO PIPE
FVR MIDDLE CHASSIS(FV****) TAI 		8-97531-224-0 01 1 0001-0610 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 0611- ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 9811-9906 ●
212 CLIP; HOSE
L=250 TAI 		5-09707-030-1 01 1 9907-0610 ●
212 CLIP; HOSE
L=250 TAI 		5-09707-030-1 01 1 0611- ● ●
214 HOSE; PIPE TO RESERVE TANK
TAI 		8-97530-412-0 01 1 9811-9906 ●
214 HOSE; PIPE TO RESERVE TANK
TAI 		8-97531-001-0 01 1 9907-9910 ●
214 HOSE; PIPE TO RESERVE TANK
FRR MIDDLE CHASSIS(FR****) TAI 		8-97531-001-0 01 1 9911-0610 ●
214 HOSE; PIPE TO RESERVE TANK 8-98038-652-0 01 1 0611- ●
214 HOSE; PIPE TO RESERVE TANK
FVR MIDDLE CHASSIS(FV****) TAI 		8-97530-587-0 01 1 9911-0610 ●
214 HOSE; PIPE TO RESERVE TANK 1-21437-986-0 01 1 0611- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-9906 ●
220 NUT; CLIP
FRR MIDDLE CHASSIS(FR****) M8 FLANGE 		0-91150-108-0 02 1 9907-0602 ●
220 NUT; CLIP
FRR MIDDLE CHASSIS(FR****) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0611- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9811-9906 ●
220 NUT; CLIP
FVR MIDDLE CHASSIS(FV****) M8 FLANGE 		0-91150-108-0 04 1 9907-0602 ●
220 NUT; CLIP
FVR MIDDLE CHASSIS(FV****) M8 FLANGE 		0-91180-108-0 04 1 0603-0610 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
259 BRACKET; RAD STAY
FRR MIDDLE CHASSIS(FR****) 		1-21523-024-0 01 1 9811-9906 ●
259 BRACKET; RAD STAY
FVR MIDDLE CHASSIS(FV****) 		1-21523-025-0 01 1 9811-9906 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9811-9906 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9811-9906 ●
279 BELL MOUTH 8-94394-174-1 01 1 9811-9906 ●
279 BELL MOUTH 8-94393-779-1 01 1 9907-0610 ●
279 BELL MOUTH 8-97601-172-1 01 1 0611- ● ●

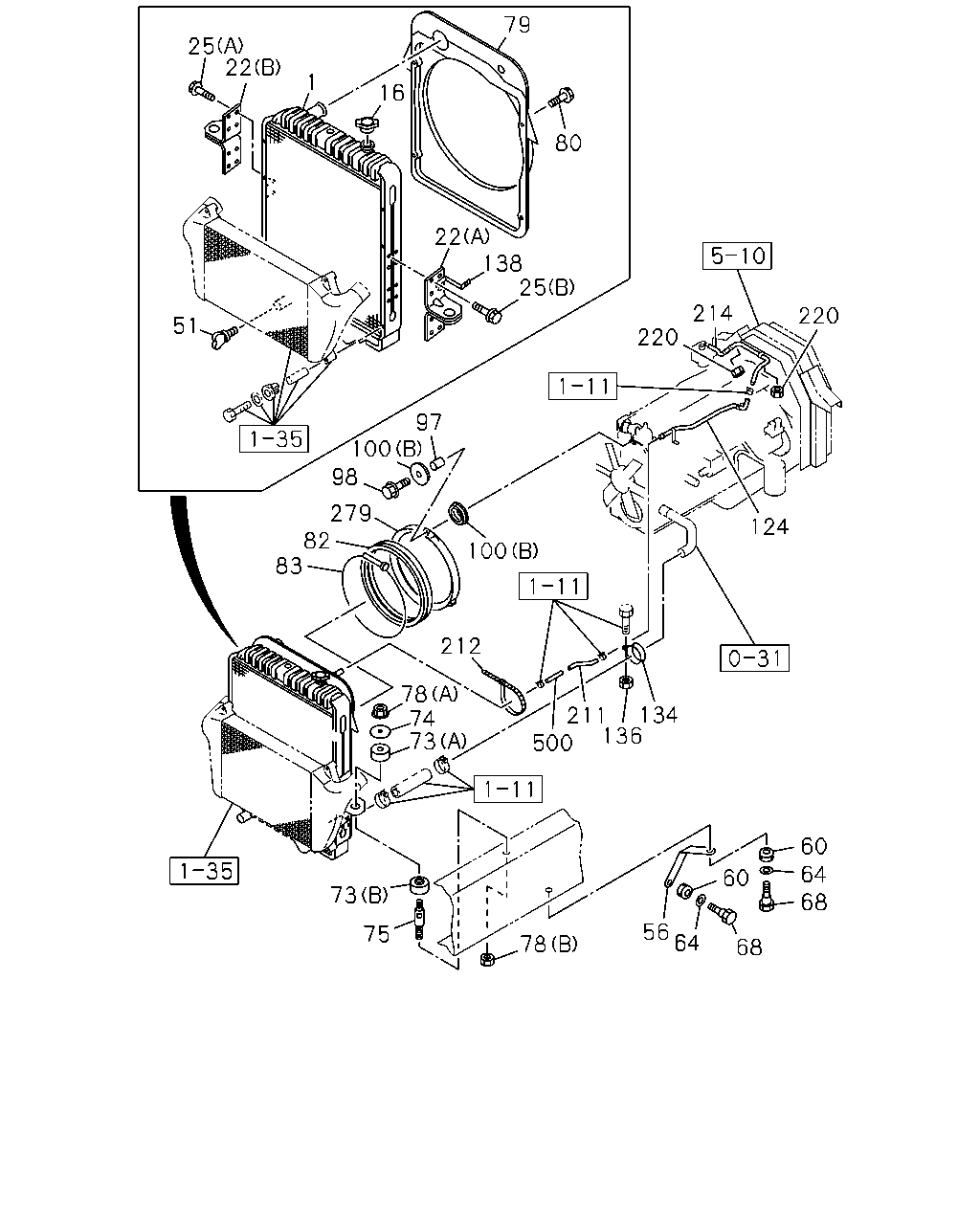

çizim 99400
79 25 22 1 16 80 22 138 25 214 220 1 220 97 100 98 279 82 83 124 100 212 78 74 73 211 134 136 500 60 64 68 60 73 78 56 64 75 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM
FRR MIDDLE CHASSIS(FR****) 		1-21410-675-1 01 1 9811-9906 ●
1 RADIATOR ASM
FVR MIDDLE CHASSIS(FV****) 		1-21410-711-1 01 1 9811-9906 ●
1 RADIATOR ASM
FVR MIDDLE CHASSIS(FV****) 		1-21410-819-0 01 1 9907-0610 ●
1 RADIATOR ASM 8-98004-201-2 01 1 0611- ●
1 RADIATOR ASM
FRR MIDDLE CHASSIS(FR****) 		1-21410-863-0 01 1 9907-0610 ●
1 RADIATOR ASM 8-98035-121-3 01 1 0611- ●
16 CAP; RAD 1-21450-053-1 01 1 9811-9906 ●
16 CAP; RAD 1-21450-097-2 01 1 9907-0610 ●
16 CAP; RAD 8-97239-187-0 01 1 0611- ● ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (A) 		1-21464-361-0 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (B) 		1-21464-548-0 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (A) 		1-21464-463-1 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (A) 		1-21464-667-0 01 1 9907-0305 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (A) 		1-21464-737-0 01 1 0306-0610 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (B) 		1-21464-546-0 01 1 9811-9906 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (B) 		1-21464-668-0 01 1 9907-0305 ●
22 BRACKET; RAD MTG
FVR MIDDLE CHASSIS(FV****) (B) 		1-21464-750-0 01 1 0306-0610 ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (A) 		1-21464-646-0 01 1 9907-0610 ●
22 BRACKET; RAD MTG
FRR MIDDLE CHASSIS(FR****) (B) 		1-21464-654-0 01 1 9907-0610 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9811-0610 ● ●
25 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0610 ● ●
56 STAY; RAD
WB 5800MM(58W) 		1-21464-634-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5800MM(58W) 		1-21464-633-0 01 1 9907-0610 ●
56 STAY; RAD
FRR MIDDLE CHASSIS(FR****) 		1-21464-570-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5000MM(50W) 		8-98004-131-0 01 1 0611- ●
56 STAY; RAD 8-98004-131-0 01 1 0611- ●
56 STAY; RAD
FRR MIDDLE CHASSIS(FR****) 		1-21464-569-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5000MM(50W) 		8-98004-130-0 01 1 0611- ●
56 STAY; RAD 8-98004-130-0 01 1 0611- ●
56 STAY; RAD
FVR MIDDLE CHASSIS(FV****) WB 5000MM(50W),WB 5500MM(55W) 		1-21464-632-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5500MM(55W),WB 5800MM(58W) 		8-98004-135-0 01 1 0611- ●
56 STAY; RAD
FVR MIDDLE CHASSIS(FV****) WB 5000MM(50W),WB 5500MM(55W) 		1-21464-631-0 01 1 9907-0610 ●
56 STAY; RAD
WB 5500MM(55W),WB 5800MM(58W) 		8-98004-134-0 01 1 0611- ●
60 GROMMET 1-09332-117-0 04 1 9907-0610 ●
60 GROMMET 1-09332-117-0 04 1 0611- ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9811-9906 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9907-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606-0610 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0611- ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 9907-0610 ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 0611- ● ●
68 BOLT; STAY TO BRKT
M8X22 		1-09009-123-0 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9811-9906 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0611- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 9811-9906 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 9907-0610 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 TAI 		1-21467-011-1 02 1 0611- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9811-9906 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9907-0610 ●
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-2 02 1 0611- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9811-9906 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 9907-0610 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0611- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9811-9906 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9907-0602 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-0610 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0611- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9811-9906 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9907-0610 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-110-0 02 1 0611- ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9811-9906 ●
79 GUIDE; FAN,RAD
FRR MIDDLE CHASSIS(FR****) 		1-21551-471-1 01 1 9907-0610 ●
79 GUIDE; FAN,RAD 8-98004-207-0 01 1 0611- ● ●
79 GUIDE; FAN,RAD
FVR MIDDLE CHASSIS(FV****) 		1-21551-468-1 01 1 9907-0610 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9811-9906 ●
80 BOLT; FAN GUIDE
FRR MIDDLE CHASSIS(FR****) M6X10 FLANGE 		0-28080-610-0 04 1 9907-0610 ●
80 BOLT; FAN GUIDE
M8X14 		8-98046-222-0 04 1 0611- ● ●
80 BOLT; FAN GUIDE
FVR MIDDLE CHASSIS(FV****) M6X10 FLANGE 		0-28080-610-0 08 1 9907-0610 ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9811-9906 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9907-0610 ●
82 COVER; FAN,RAD 8-98004-211-0 01 1 0611- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9811-9906 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9907-0610 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9811-9906 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9907-0610 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0611- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28050-830-0 03 1 0611- ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9811-9906 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9907-0512 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601-0610 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0611- ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 9811-9906 ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 9907-0610 ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 0611- ● ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 9811-9906 ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 9907-0610 ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 0611- ● ●
124 PIPE; WATER,TANK TO RAD 8-94394-422-0 01 1 9811-9906 ●
124 PIPE; WATER,TANK TO RAD 8-97600-308-0 01 1 9907-0610 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0611- ● ●
134 CLIP; OUTLET PIPE,RAD 1-09700-842-1 01 1 9907-0610 ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91150-108-0 01 1 9907-0602 ●
136 NUT; CLIP,OUTLET HOSE
M8 FLANGE 		0-91180-108-0 01 1 0603-0610 ●
138 BRACKET; CLIP 1-47476-881-0 01 1 0611- ● ●
211 HOSE; RAD TO PIPE
TAI 		8-97530-413-0 01 1 9811-9906 ●
211 HOSE; RAD TO PIPE
TAI 		8-97530-413-0 01 1 9907-9912 ●
211 HOSE; RAD TO PIPE
FRR MIDDLE CHASSIS(FR****) TAI 		8-97530-413-0 01 1 0001-0610 ●
211 HOSE; RAD TO PIPE 8-98035-009-0 01 1 0611- ● ●
211 HOSE; RAD TO PIPE
FVR MIDDLE CHASSIS(FV****) TAI 		8-97531-224-0 01 1 0001-0610 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 0611- ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 9811-9906 ●
212 CLIP; HOSE
L=250 TAI 		5-09707-030-1 01 1 9907-0610 ●
212 CLIP; HOSE
L=250 TAI 		5-09707-030-1 01 1 0611- ● ●
214 HOSE; PIPE TO RESERVE TANK
TAI 		8-97530-412-0 01 1 9811-9906 ●
214 HOSE; PIPE TO RESERVE TANK
TAI 		8-97531-001-0 01 1 9907-9910 ●
214 HOSE; PIPE TO RESERVE TANK
FRR MIDDLE CHASSIS(FR****) TAI 		8-97531-001-0 01 1 9911-0610 ●
214 HOSE; PIPE TO RESERVE TANK 8-98038-652-0 01 1 0611- ●
214 HOSE; PIPE TO RESERVE TANK
FVR MIDDLE CHASSIS(FV****) TAI 		8-97530-587-0 01 1 9911-0610 ●
214 HOSE; PIPE TO RESERVE TANK 1-21437-986-0 01 1 0611- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-9906 ●
220 NUT; CLIP
FRR MIDDLE CHASSIS(FR****) M8 FLANGE 		0-91150-108-0 02 1 9907-0602 ●
220 NUT; CLIP
FRR MIDDLE CHASSIS(FR****) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0611- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9811-9906 ●
220 NUT; CLIP
FVR MIDDLE CHASSIS(FV****) M8 FLANGE 		0-91150-108-0 04 1 9907-0602 ●
220 NUT; CLIP
FVR MIDDLE CHASSIS(FV****) M8 FLANGE 		0-91180-108-0 04 1 0603-0610 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0611- ●
279 BELL MOUTH 8-94394-174-1 01 1 9811-9906 ●
279 BELL MOUTH 8-94393-779-1 01 1 9907-0610 ●
279 BELL MOUTH 8-97601-172-1 01 1 0611- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 9907-0610 ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0611- ● ●

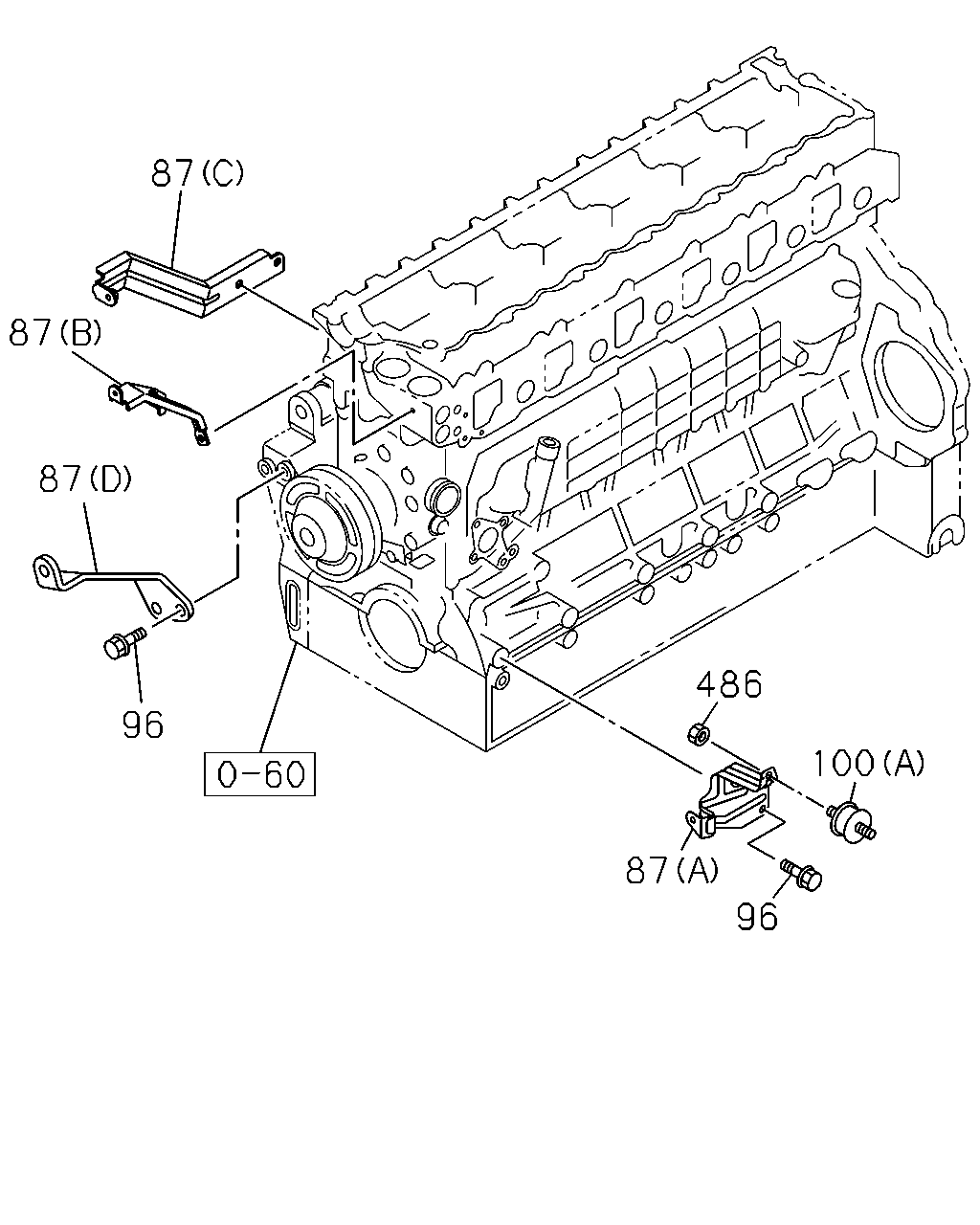

çizim 99401
87 87 87 486 96 100 87 96
BalonParca AdiParca NoAdetTipApplied Date A B C D
87 STAY; FAN GUIDE
(C) 		8-94393-119-2 01 1 9811-9906 ●
87 STAY; FAN GUIDE
(C) 		8-94391-022-1 01 1 9907-0610 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0611- ● ●
87 STAY; FAN GUIDE
(B) 		8-94393-726-0 01 1 9811-9906 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 9907-0610 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0611- ● ●
87 STAY; FAN GUIDE
(A) 		8-94394-263-2 01 1 9811-9906 ●
87 STAY; FAN GUIDE
(A) 		8-94393-777-1 01 1 9907-0012 ●
87 STAY; FAN GUIDE
(A) 		8-97601-850-0 01 1 0101-0610 ●
87 STAY; FAN GUIDE
(D) 		8-97602-988-0 01 1 0611- ● ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9811-9906 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9907-0512 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601-0610 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0611- ● ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28181-045-0 01 1 9907-0512 ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28151-045-0 01 1 0601-0610 ●
96 BOLT; STAY FIX
M10X75 FLANGE 		8-94399-669-1 01 1 9907-0610 ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 9811-9906 ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 9907-0610 ●
100 RUBBER; MTG
(A) 		8-94394-268-1 01 1 0611- ● ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 9811-9906 ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 9907-0610 ●
100 RUBBER; MTG
(B) 		8-94395-766-0 06 1 0611- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9811-9906 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9907-0602 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603-0610 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
