Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#5696) — 252 parça

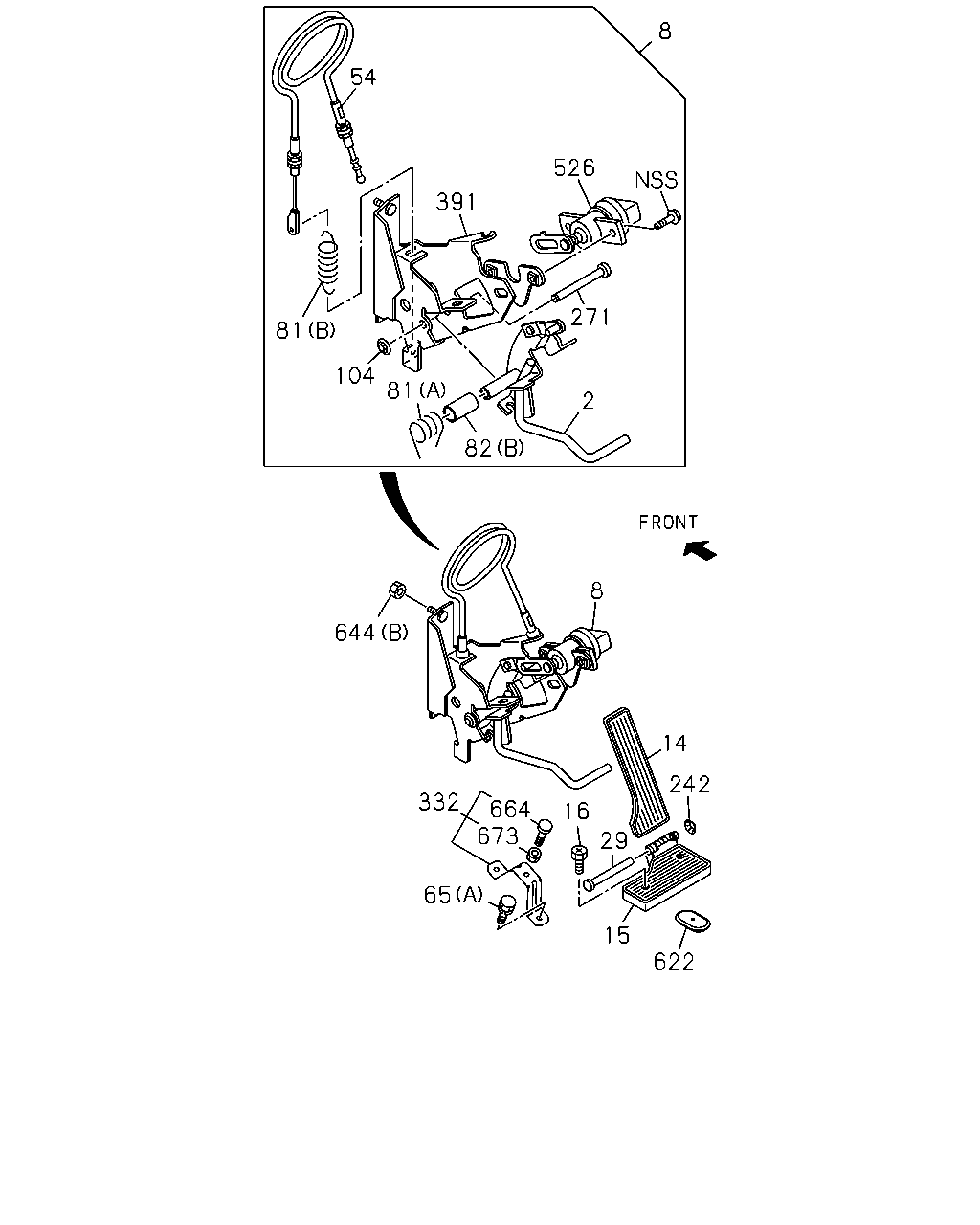

8 54 526 391 271 81 104 81 2 82 8 644 14 242 332 664 673 16 29 65 15 622

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT TAI	1-71907-210-2	01	1	9811-9906	●
2	LEVER; ENG CONT	1-71907-535-1	01	1	9907-0610		●
2	LEVER; ENG CONT	1-73996-596-1	01	1	0611-			●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9811-9906	●
8	LINK ASM; ENG CONT	8-97865-105-4	01	1	9907-0610		●
8	LINK ASM; ENG CONT	1-73996-594-2	01	1	0611-			●	●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	9811-9906	●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	9907-0610		●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	0611-			●	●
15	STAND; HEEL,ACCEL PEDAL TAI	1-73907-266-2	01	1	9811-9906	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	9907-0610		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0611-			●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9811-9902	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	9903-9906	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	9907-0610		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	0611-			●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	9811-9906	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	9907-0610		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	0611-			●	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0611-			●	●
54	CABLE; ENG CONT L=1659	1-73996-294-5	01	1	9811-9906	●
65	BOLT (C) M10X60	0-16861-060-0	01	1	0611-			●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0611-			●	●
65	BOLT (C) M10X60	0-16811-060-0	01	1	9811-9906	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9907-0610		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-			●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0611-			●	●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	9811-9906	●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	9907-0610		●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	0611-			●	●
82	BUSHING; ENG CONT LVR (A) TAI	1-71907-244-1	02	1	9811-9906	●
82	BUSHING; ENG CONT LVR (A) TAI	1-71907-244-1	02	1	9907-0610		●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	9907-0610		●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	0611-			●	●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	02	1	9811-9906	●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	01	1	9907-0610		●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	01	1	0611-			●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	9811-9906	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	9907-0610		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	0611-			●	●
271	SHAFT; ENG CONT OD=8.0 L=74 TAI	1-71907-212-1	01	1	9811-9906	●
271	SHAFT; ENG CONT OD=8.0 L=74 TAI	1-71907-212-1	01	1	9907-0610		●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0611-			●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0611-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9811-9906	●
332	BRACKET; ACCEL PEDAL STOPPER	8-97865-218-0	01	1	9907-0610		●
332	BRACKET; ACCEL PEDAL STOPPER	8-97865-218-1	01	1	0611-			●
391	BRACKET; ENG CONT	8-97865-118-2	01	1	9907-0610		●
391	BRACKET; ENG CONT	1-73996-595-0	01	1	0611-			●	●
526	SENSOR; ACCEL	8-94390-280-0	01	1	9907-0610		●
526	SENSOR; ACCEL	8-97602-416-0	01	1	0611-			●	●
622	GROMMET; ACCEL CONT CABLE OD=30	8-94107-655-0	01	1	9907-0610		●
622	GROMMET; ACCEL CONT CABLE OD=30	8-94107-655-0	01	1	0611-			●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	9811-9906	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	03	1	9811-9906	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	04	1	9907-0610		●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	04	1	0611-			●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0611-				●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9811-9906	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0611-				●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9811-9906	●

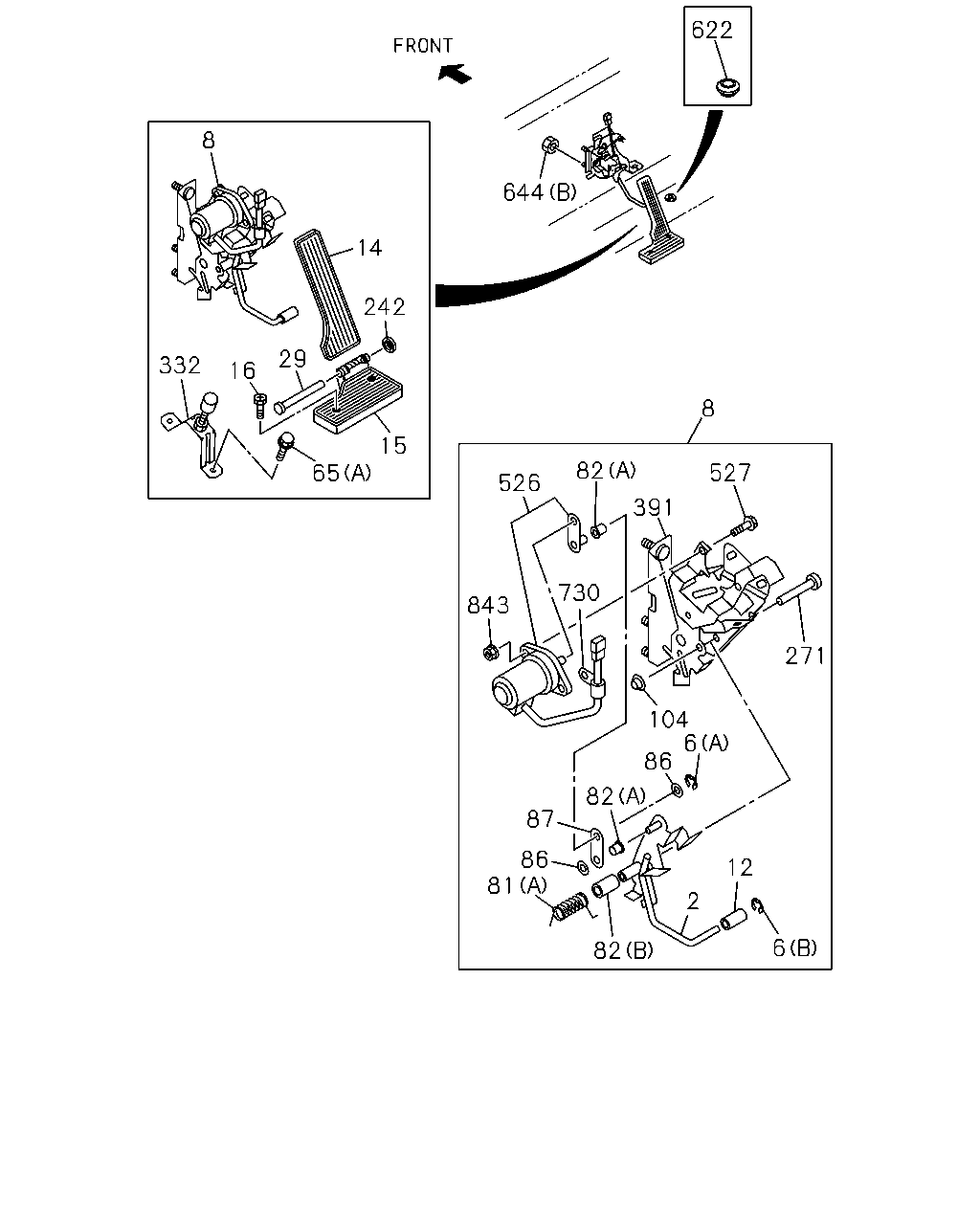

622 8 644 14 242 29 332 16 8 15 82 527 65 526 391 730 843 271 104 6 86 82 87 86 81 12 2 6 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT TAI	1-71907-210-2	01	1	9811-9906	●
2	LEVER; ENG CONT	1-71907-535-1	01	1	9907-0610		●
2	LEVER; ENG CONT	1-73996-596-1	01	1	0611-			●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9811-9906	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9907-0604		●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0605-0610		●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9907-0204		●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9811-9906	●
8	LINK ASM; ENG CONT	8-97865-105-4	01	1	9907-0610		●
8	LINK ASM; ENG CONT	1-73996-594-2	01	1	0611-			●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9907-0204		●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	9811-9906	●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	9907-0610		●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	0611-			●	●
15	STAND; HEEL,ACCEL PEDAL TAI	1-73907-266-2	01	1	9811-9906	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	9907-0610		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0611-			●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9811-9902	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	9903-9906	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	9907-0610		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	0611-			●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	9811-9906	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	9907-0610		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	0611-			●	●
65	BOLT (C) M10X60	0-16861-060-0	01	1	0611-			●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0611-			●	●
65	BOLT (C) M10X60	0-16811-060-0	01	1	9811-9906	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9907-0610		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-			●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0611-			●	●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	9811-9906	●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	9907-0610		●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	0611-			●	●
82	BUSHING; ENG CONT LVR (A) TAI	1-71907-244-1	02	1	9811-9906	●
82	BUSHING; ENG CONT LVR (A) TAI	1-71907-244-1	02	1	9907-0610		●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	9907-0610		●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	0611-			●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9811-9906	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9907-0610		●
87	LINK; ENG CONT TAI	1-71907-211-1	01	1	9811-9906	●
87	LINK; ENG CONT	8-97865-545-0	01	1	9907-0610		●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	02	1	9811-9906	●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	01	1	9907-0610		●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	01	1	0611-			●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	9811-9906	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	9907-0610		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	0611-			●	●
271	SHAFT; ENG CONT OD=8.0 L=74 TAI	1-71907-212-1	01	1	9811-9906	●
271	SHAFT; ENG CONT OD=8.0 L=74 TAI	1-71907-212-1	01	1	9907-0610		●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0611-			●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0611-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9811-9906	●
332	BRACKET; ACCEL PEDAL STOPPER	8-97865-218-0	01	1	9907-0610		●
332	BRACKET; ACCEL PEDAL STOPPER	8-97865-218-1	01	1	0611-			●
391	BRACKET; ENG CONT	8-97865-118-2	01	1	9907-0610		●
391	BRACKET; ENG CONT	1-73996-595-0	01	1	0611-			●	●
526	SENSOR; ACCEL	8-94390-280-0	01	1	9907-0610		●
526	SENSOR; ACCEL	8-97602-416-0	01	1	0611-			●	●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28680-625-0	02	1	9907-0512		●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28650-625-0	02	1	0601-0610		●
527	BOLT; ACCEL SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0611-			●	●
622	GROMMET; ACCEL CONT CABLE OD=30	8-94107-655-0	01	1	9907-0610		●
622	GROMMET; ACCEL CONT CABLE OD=30	8-94107-655-0	01	1	0611-			●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	9811-9906	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	03	1	9811-9906	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	04	1	9907-0610		●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	04	1	0611-			●	●
730	CLIP ID=11 L=20	9-09525-032-0	01	1	9907-0606		●
730	CLIP ID=11 L=20	0-95235-032-0	01	1	0607-0610		●
843	NUT M6 FLANGE	0-91150-106-0	02	1	9907-0602		●
843	NUT M6 FLANGE	0-91180-106-0	02	1	0603-0610		●

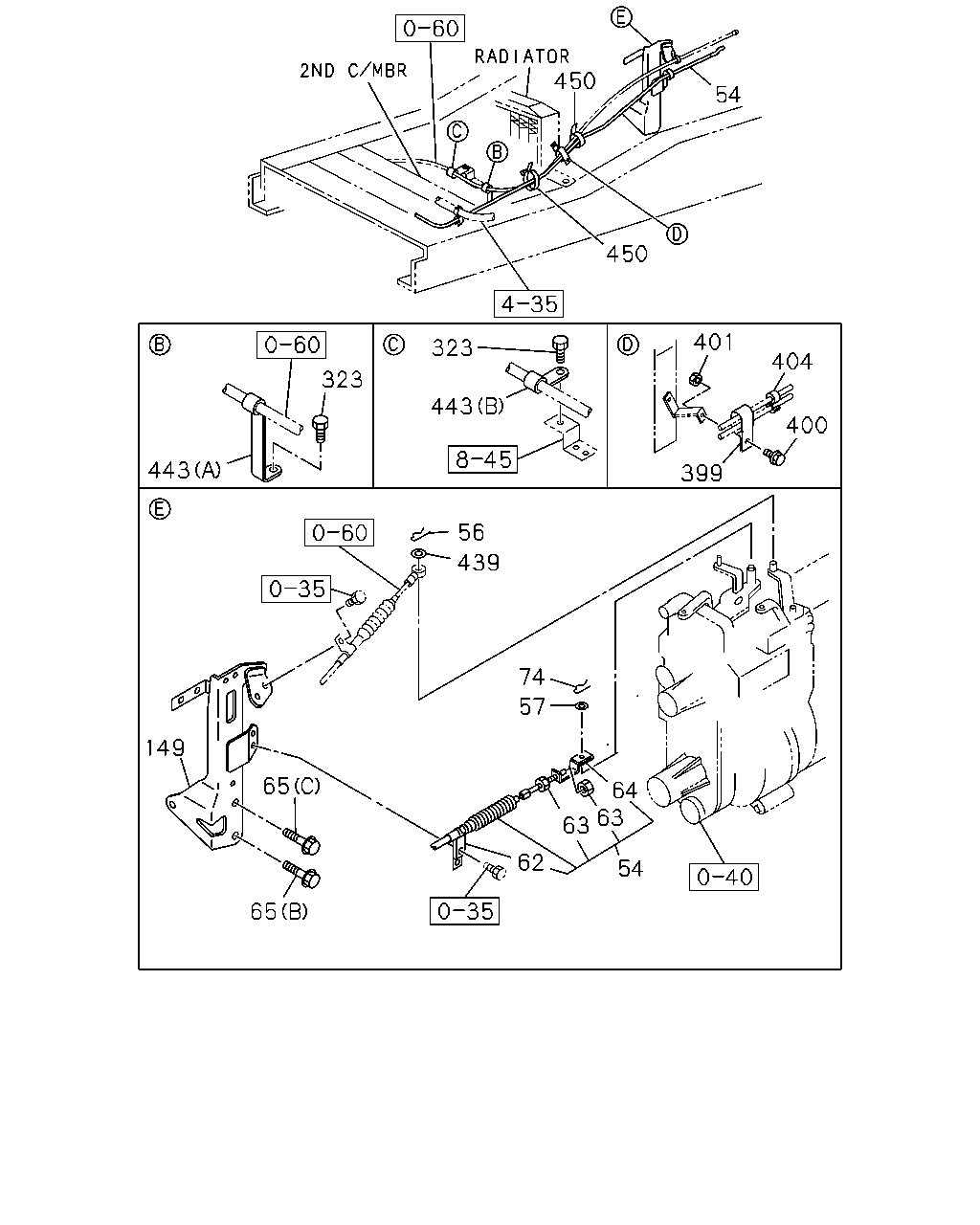

450 54 450 401 323 404 323 443 400 443 399 56 439 74 57 149 65 64 63 63 62 54 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0611-			●	●
54	CABLE; ENG CONT L=1659	1-73996-294-5	01	1	9811-9906	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9811-9906	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-9906	●
62	CLIP; ENG CONT CABLE TAI	8-94397-228-0	01	1	9811-9906	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9811-9906	●
64	BRACKET; ENG CONT CABLE TAI	1-23219-105-1	01	1	9811-9906	●
65	BOLT (C) M10X60	0-16861-060-0	01	1	0611-			●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0611-			●	●
65	BOLT (C) M10X60	0-16811-060-0	01	1	9811-9906	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9907-0610		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-			●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9811-9906	●
149	BRACKET; ENG CONT	8-98042-125-2	01	1	0611-			●	●
149	BRACKET; ENG CONT	8-94390-006-1	01	1	9811-9906	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9811-9906	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9811-9906	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9811-9906	●
404	CLIP; CABLE FRR MIDDLE CHASSIS(FR****) ID=10 & 10	1-09709-277-1	01	1	9811-9906	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9811-9906	●
443	CLIP; CABLE (A)	8-94107-647-0	01	1	9811-9906	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	01	1	9811-9906	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	9811-9906	●

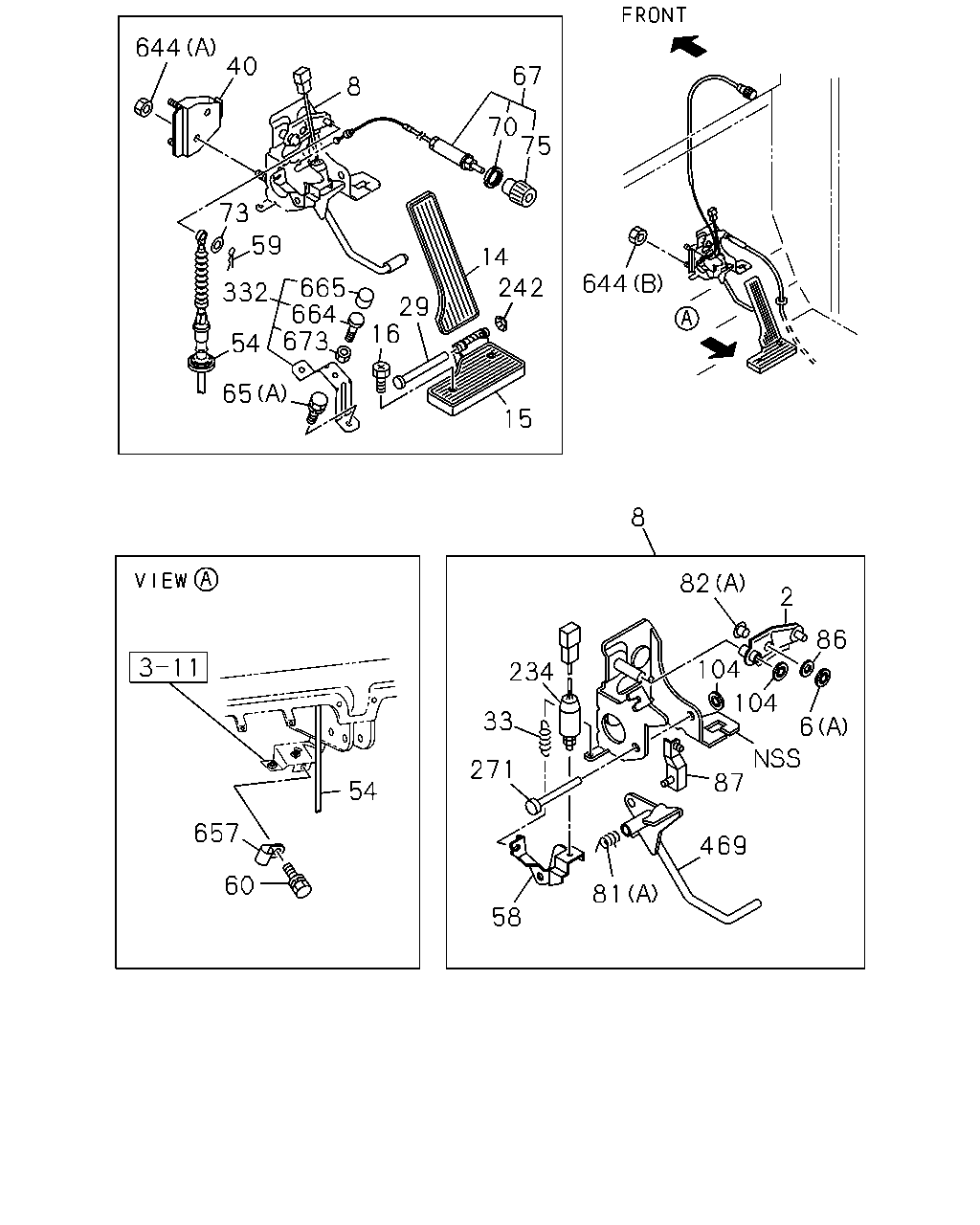

644 40 67 8 70 75 73 59 14 242 644 665 664 673 332 29 16 54 65 15 8 82 2 86 104 234 104 33 6 87 271 54 657 469 60 81 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT TAI	1-71907-210-2	01	1	9811-9906	●
2	LEVER; ENG CONT	1-71907-535-1	01	1	9907-0610		●
2	LEVER; ENG CONT	1-73996-596-1	01	1	0611-			●	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9811-9906	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9907-0604		●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0605-0610		●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9907-0204		●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9811-9906	●
8	LINK ASM; ENG CONT	8-97865-105-4	01	1	9907-0610		●
8	LINK ASM; ENG CONT	1-73996-594-2	01	1	0611-			●	●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	9811-9906	●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	9907-0610		●
14	PAD; PEDAL,ACCEL TAI	1-73907-563-0	01	1	0611-			●	●
15	STAND; HEEL,ACCEL PEDAL TAI	1-73907-266-2	01	1	9811-9906	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	9907-0610		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0611-			●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9811-9902	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	9903-9906	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	9907-0610		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER TAI	1-09980-543-0	02	1	0611-			●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	9811-9906	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	9907-0610		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74 TAI	1-71907-212-1	01	1	0611-			●	●
33	SPRING; IDLING CONT LEVER TAI	8-94414-815-0	01	1	9811-9906	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	9811-9906	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0611-			●	●
54	CABLE; ENG CONT L=1659	1-73996-294-5	01	1	9811-9906	●
58	LEVER; IDLING CONT TAI	1-71907-242-1	01	1	9811-9906	●
59	PIN; SNAP,ENG CONT CABLE L=27.7 USA	1-09747-005-0	01	1	9811-9906	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	01	1	9811-9906	●
65	BOLT (C) M10X60	0-16861-060-0	01	1	0611-			●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0611-			●	●
65	BOLT (C) M10X60	0-16811-060-0	01	1	9811-9906	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9907-0610		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-			●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9811-9906	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9811-9906	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-9906	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9811-9906	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0611-			●	●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	9811-9906	●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	9907-0610		●
81	SPRING; RETURN,ENG CONT LEVER (A) TAI	8-97853-205-1	01	1	0611-			●	●
82	BUSHING; ENG CONT LVR (A) TAI	1-71907-244-1	02	1	9811-9906	●
82	BUSHING; ENG CONT LVR (A) TAI	1-71907-244-1	02	1	9907-0610		●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	9907-0610		●
82	BUSHING; ENG CONT LVR (B) L=31.5	1-53459-627-0	01	1	0611-			●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9811-9906	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9907-0610		●
87	LINK; ENG CONT TAI	1-71907-211-1	01	1	9811-9906	●
87	LINK; ENG CONT	8-97865-545-0	01	1	9907-0610		●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	02	1	9811-9906	●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	01	1	9907-0610		●
104	NUT; ENG CONT D=17.5 TAI	8-94368-617-0	01	1	0611-			●	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9811-9906	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	9811-9906	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	9907-0610		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT TAI	8-97022-565-0	01	1	0611-			●	●
271	SHAFT; ENG CONT OD=8.0 L=74 TAI	1-71907-212-1	01	1	9811-9906	●
271	SHAFT; ENG CONT OD=8.0 L=74 TAI	1-71907-212-1	01	1	9907-0610		●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0611-			●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0611-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9811-9906	●
332	BRACKET; ACCEL PEDAL STOPPER	8-97865-218-0	01	1	9907-0610		●
332	BRACKET; ACCEL PEDAL STOPPER	8-97865-218-1	01	1	0611-			●
469	LEVER ASM	1-71907-209-5	01	1	9811-9906	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	9811-9906	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	03	1	9811-9906	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	04	1	9907-0610		●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER TAI	1-09984-176-0	04	1	0611-			●	●
657	CLIP; ENG CONT CABLE D=18 H=30	1-09701-028-0	01	1	9811-9906	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0611-				●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9811-9906	●
665	COVER; STOPPER RUBBER TAI	1-23249-009-0	01	1	9811-9906	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0611-				●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9811-9906	●

65 149 65 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
65	BOLT (C) M10X60	0-16861-060-0	01	1	0611-			●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0611-			●	●
65	BOLT (C) M10X60	0-16811-060-0	01	1	9811-9906	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9811-9906	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	9907-0610		●
65	BOLT (A) M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	02	1	0611-			●	●
149	BRACKET; ENG CONT	8-98042-125-2	01	1	0611-			●	●
149	BRACKET; ENG CONT	8-94390-006-1	01	1	9811-9906	●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28680-625-0	02	1	9907-0512		●
527	BOLT; ACCEL SENSOR M6X25 FLANGE	0-28650-625-0	02	1	0601-0610		●
527	BOLT; ACCEL SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0611-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
