Isuzu WW
▶
TRUCKS
▶
FRR
▶
11395 - FRR RHD EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

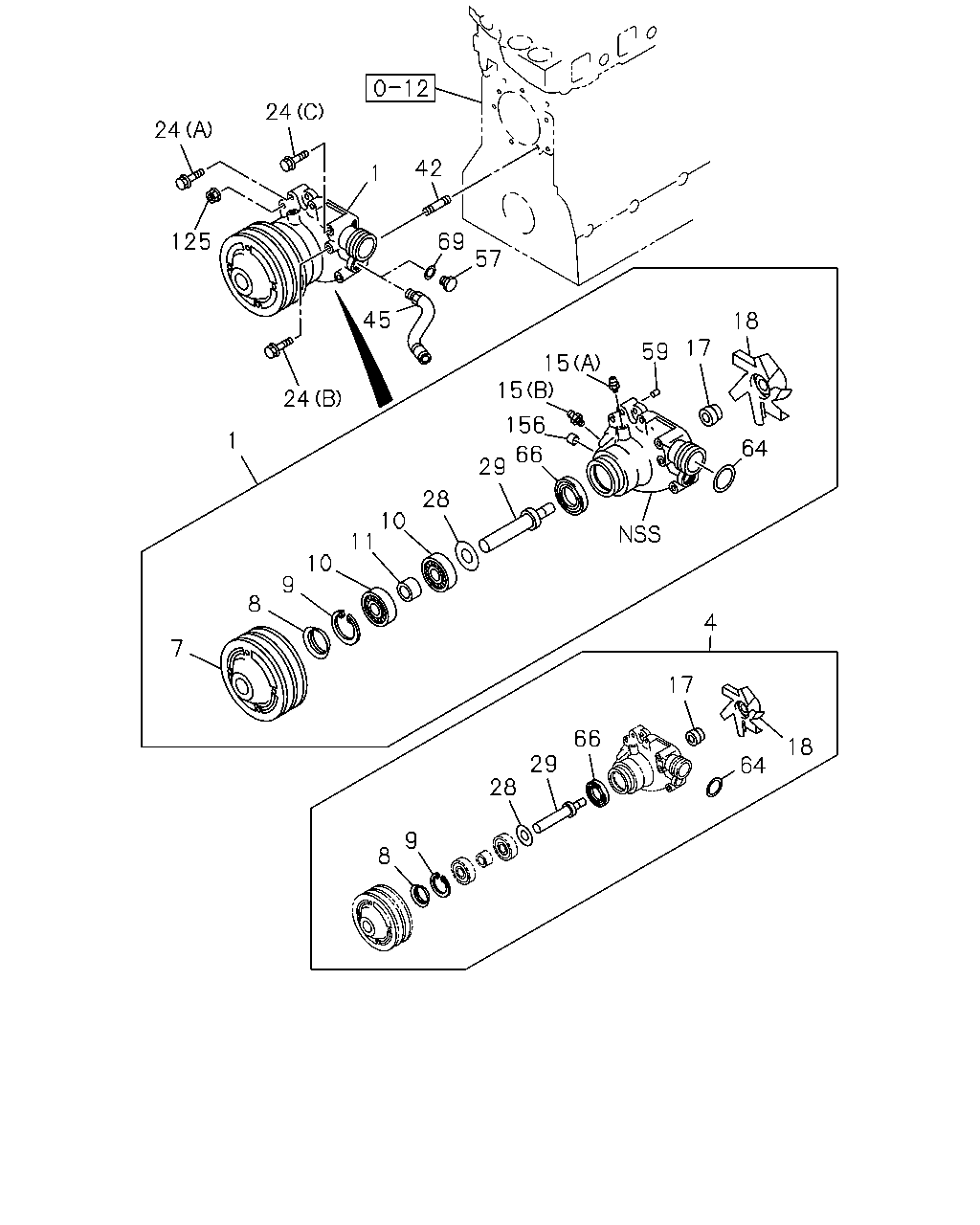

0-30 — WATER PUMP AND CORROSION RESISTOR
(#56954) — 34 parça
24
24
42
1
69
125
57
45
18
17
59
15
15
24
156
1
64
66
29
28
10
11
10
9
8
4
7
17
66
18
29
64
28
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
8-97627-355-1
01
1
1110-1208
1
PUMP ASM; WATER,W/GASKET
1-87310-837-0
01
1
1209-1312
1
PUMP ASM; WATER,W/GASKET
1-87310-906-0
01
1
1401-1405
1
PUMP ASM; WATER,W/GASKET
1-87310-978-0
01
1
1406-
4
REPAIR KIT; WATER PUMP
1-87814-165-0
01
1
1401-1405
4
REPAIR KIT; WATER PUMP
1-87814-605-0
01
1
1406-
4
REPAIR KIT; WATER PUMP
1-87813-358-0
01
1
1110-1208
4
REPAIR KIT; WATER PUMP
1-87813-947-0
01
1
1209-1312
7
PULLEY; WATER PUMP
2-GROOVE
8-94394-826-0
01
1
1110-
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
1110-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
1110-
10
BEARING; WATER PUMP
1-09800-011-0
02
1
1110-
11
SPACER; BRG,WATER PUMP
1-13634-025-0
01
1
1110-
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
1110-
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
1110-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1110-1208
17
SEAL UNIT; WATER PUMP
8-98221-159-0
01
1
1209-1312
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1401-1405
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1406-
18
IMPELLER; WATER PUMP
8-94392-922-0
01
1
1110-
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28050-880-0
01
1
1110-
24
BOLT; WATER PUMP
(A) M8X58 FLANGE
8-94130-055-1
03
1
1110-
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
1110-
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
1110-
29
SHAFT; WATER PUMP
8-94397-374-0
01
1
1110-
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
1110-
45
JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-94397-377-2
01
1
1110-
57
PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M20
9-99202-320-0
01
1
1110-
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
1110-
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
1110-
66
SEAL; SECONDARY
8-98084-780-0
01
1
1110-
69
GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20.5 OD=28.0
9-09571-420-0
01
1
1110-
125
NUT; WATER PUMP
M8 FLANGE
0-91180-108-0
04
1
1110-
156
CUP; SEALING
OD=25
1-09600-016-0
01
1
1110-
