Isuzu WW
▶
TRUCKS
▶
FSR
▶
11327 - FSR(AUST/NZ)EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

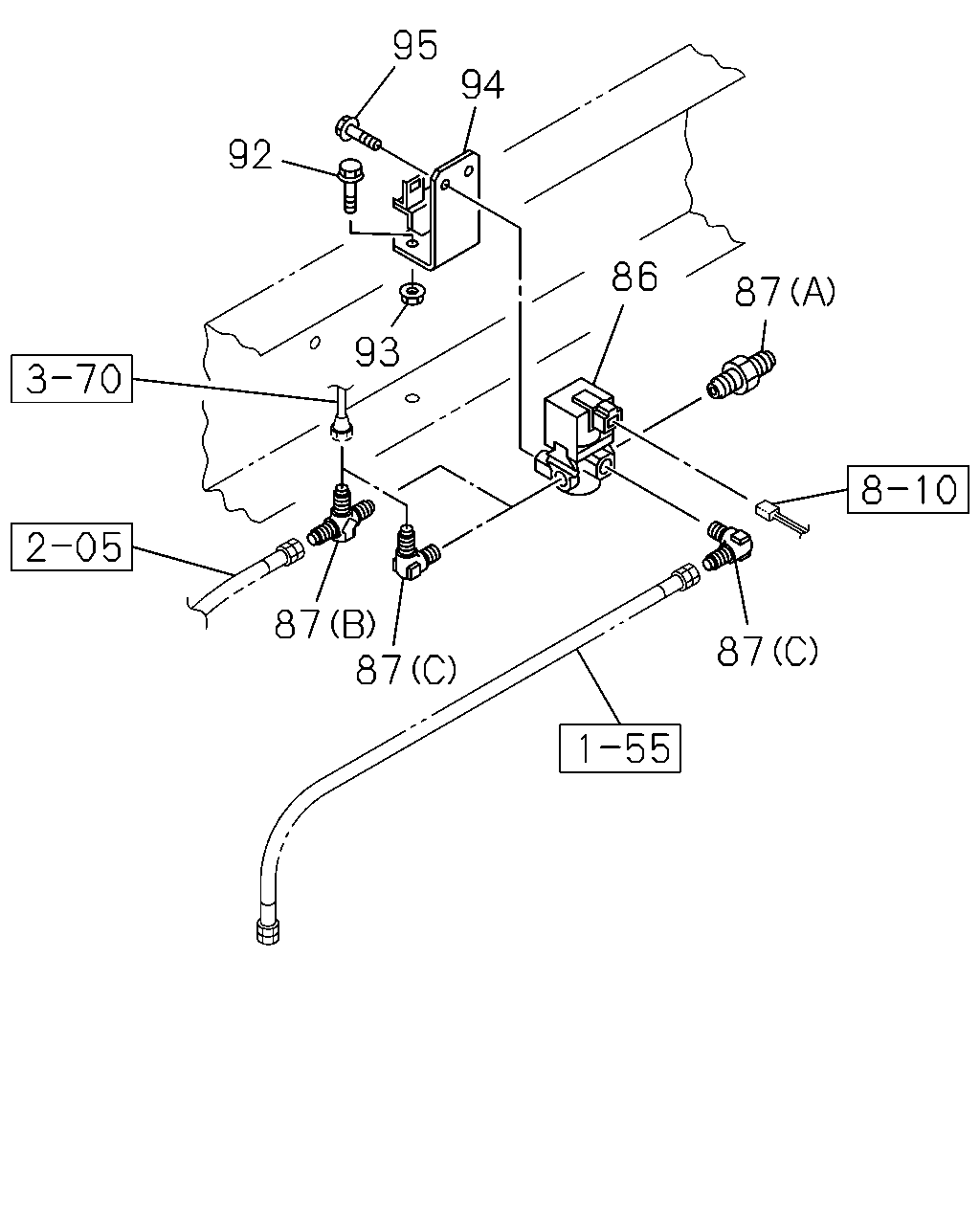

1-56 — EXHAUST BRAKE SYSTEM
(#56947) — 10 parça
95
94
92
86
87
93
87
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
1010-
87
CONNECTOR
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1010-
87
CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1010-
87
CONNECTOR
LCT2000 A/T ALLISON(Y4F) (C) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1010-
87
CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1010-
87
CONNECTOR
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1010-
92
BOLT; MAG VLV
M8X30 FLANGE
0-28650-830-0
02
1
1010-
93
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
1010-
94
BRACKET; MAG VLV,EXH BRAKE
8-98067-005-0
01
1
1010-
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28650-820-0
02
1
1010-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
