1-50 — EXHAUST PIPE AND SILENCER (#56945) — 245 parça

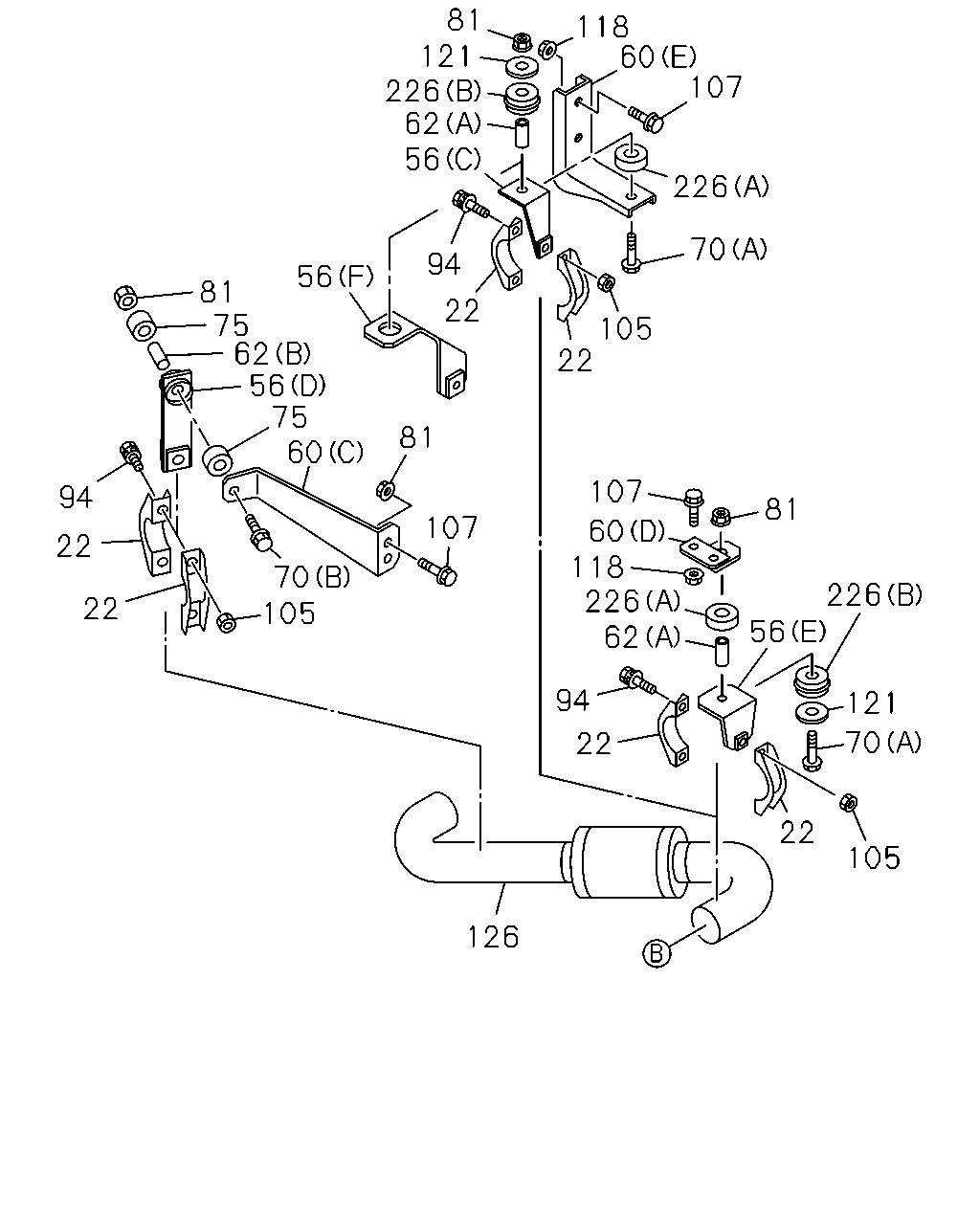

çizim 171561
226 121 81 118 107 226 60 70 105 22 22 94 56 62 56 81 62 75 56 60 81 107 70 22 22 94 105 107 118 94 22 226 60 81 62 56 22 105 70 226 121 126 75
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 04 1 1010-1301 ●
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=80-84 		1-22133-233-0 04 1 1010-1301 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1302- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1010-1301 ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W) ID=80-84 		1-22133-233-0 02 1 1010-1301 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-756-0 02 1 1010-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-98059-756-0 02 1 1010-1301 ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1010-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 1010- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 02 1 1010-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98059-753-1 02 1 1010-1301 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1010-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98059-763-0 01 1 1010-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98233-467-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1010-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 1010-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39 		8-98060-852-0 02 1 1010-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 1010-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1010- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1010-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1010-1301 ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1010-1301 ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1010-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 1010-1301 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 04 1 1010-1301 ●
94 BOLT; CLAMP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X40 FLANGE 		0-28651-040-0 04 1 1010-1301 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ● ●
94 BOLT; CLAMP
WHEEL BASE 5500MM(55W) M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1010-1301 ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) M10X40 FLANGE 		0-28651-040-0 02 1 1010-1301 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 04 1 1010-1301 ●
105 NUT; CLAMP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 04 1 1010-1301 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
105 NUT; CLAMP
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1010- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 1010- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 1010-1301 ●
126 PIPE; EXH,RR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98043-365-2 01 1 1010-1301 ●
126 PIPE; EXH,RR 8-98233-516-0 01 1 1302- ●
126 PIPE; EXH,RR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98233-516-0 01 1 1302- ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-629-2 01 1 1010-1301 ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		8-98234-295-0 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1010-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-94457-277-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1010-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-94457-278-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 1010-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 1010-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●

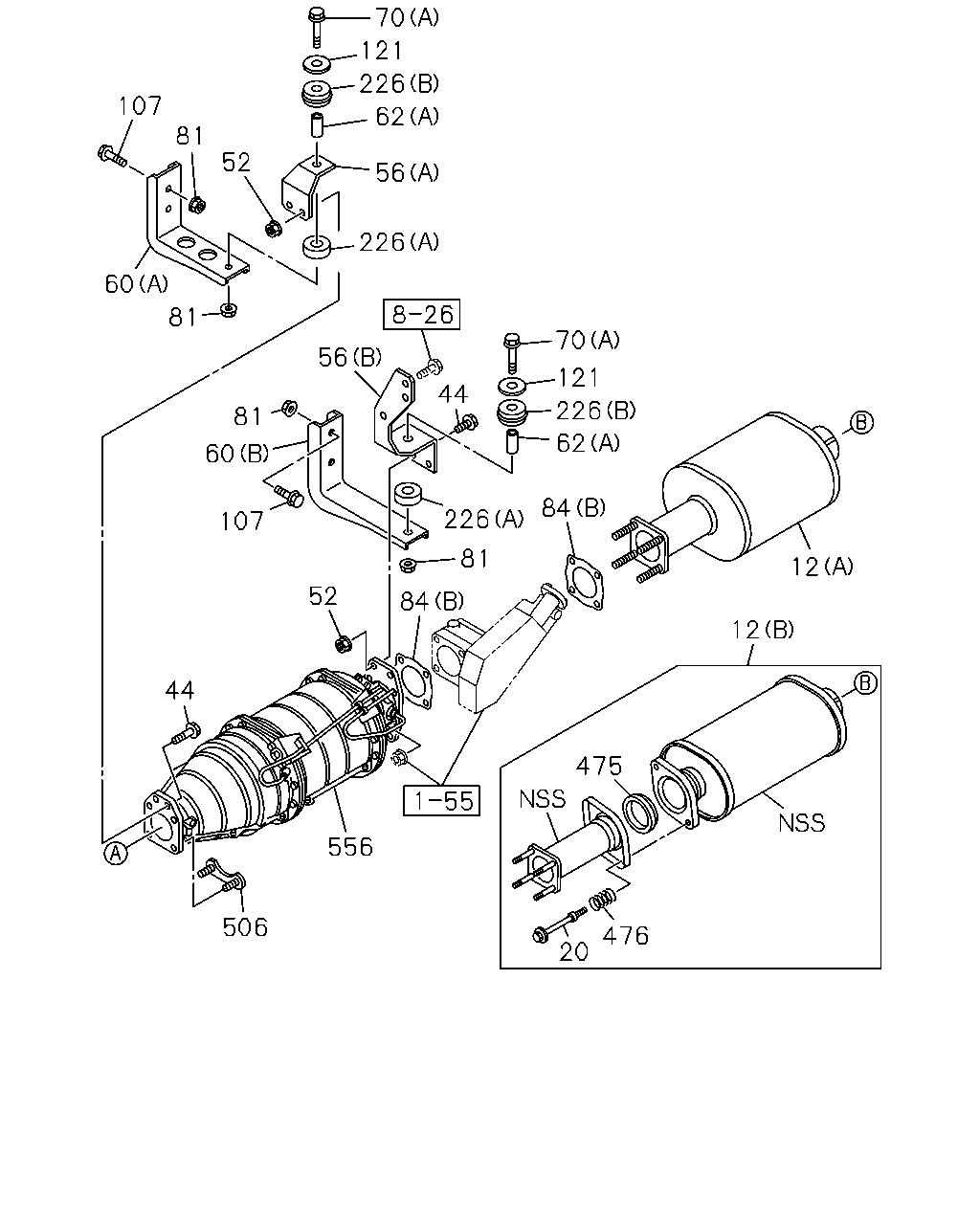

çizim 171566
70 121 226 56 62 226 107 52 81 60 81 56 81 60 107 52 44 70 226 121 62 226 84 81 84 44 506 556 475 476 20 12 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 1010-1301 ● ●
12 SILENCER ASM; EXH
(B) 		8-98234-507-0 01 1 1302- ● ●
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-756-0 02 1 1010-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-98059-756-0 02 1 1010-1301 ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 1010-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 1010- ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98059-753-1 02 1 1010-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98059-753-1 02 1 1010-1301 ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 1010-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98059-763-0 01 1 1010-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98233-467-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1010-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 1010-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39 		8-98060-852-0 02 1 1010-1301 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 1010-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1010- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1010-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1010-1301 ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1010-1301 ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1010-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1010-1301 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 1010-1301 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1010- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1010- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 1010- ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1010-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-94457-277-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1010-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-94457-278-1 02 1 1010-1301 ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 1010-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 1010-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302- ● ●
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1010-1203 ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1204- ●
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204- ●
556 DPD ASM 8-97613-331-6 01 1 1010-1010 ● ●
556 DPD ASM 8-97622-883-4 01 1 1011- ● ●

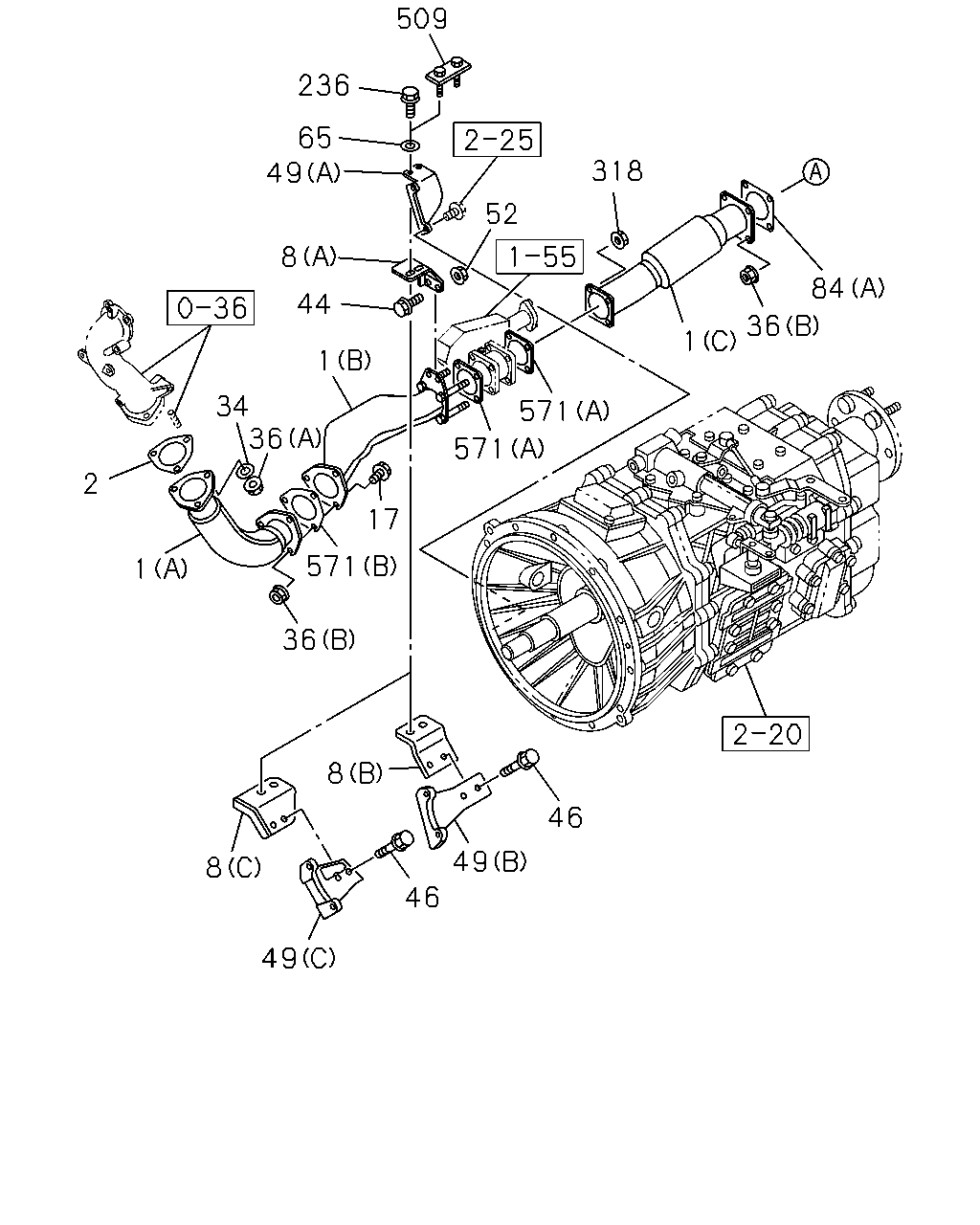

çizim 171574
509 236 65 318 52 49 8 44 1 1 84 36 571 571 34 2 36 1 17 571 36 8 8 49 46 46 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22123-885-1 01 1 1010- ● ●
1 PIPE; EXH
(B) 		8-98056-496-1 01 1 1010-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 1010-1209 ● ●
1 PIPE; EXH
(B) 		8-98215-407-1 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1010- ● ●
8 BRACKET; EXH PIPE
LCT2000 A/T ALLISON(Y4F) (C) 		8-98234-526-0 01 1 1302-1310 ●
8 BRACKET; EXH PIPE
LCT2000 A/T ALLISON(Y4F) (C) 		8-98259-876-0 01 1 1311- ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 1010-1301 ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1302-1310 ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311- ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A) 		8-98122-679-1 01 1 1010-1301 ●
8 BRACKET; EXH PIPE
(A) 		8-98122-679-1 01 1 1010-1301 ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A) 		8-98233-627-0 01 1 1302-1404 ●
8 BRACKET; EXH PIPE
(A) 		8-98233-627-0 01 1 1302-1404 ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A) 		8-98275-817-0 01 1 1405- ●
8 BRACKET; EXH PIPE
(A) 		8-98275-817-0 01 1 1405- ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1204- ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 1010- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1010- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 1010- ● ●
49 BRACKET; EXH PIPE TO TRANS
LCT2000 A/T ALLISON(Y4F) (A) 		8-98085-317-2 01 1 1010-1301 ●
49 BRACKET; EXH PIPE TO TRANS
LCT2000 A/T ALLISON(Y4F) (C) 		8-98234-528-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98122-673-0 01 1 1010- ● ●
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98122-671-0 01 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1010- ● ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 1010- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1010- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 1010-1301 ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311 ● ●
509 STUD; BRKT 8-98259-983-0 01 1 1312- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1010- ● ●

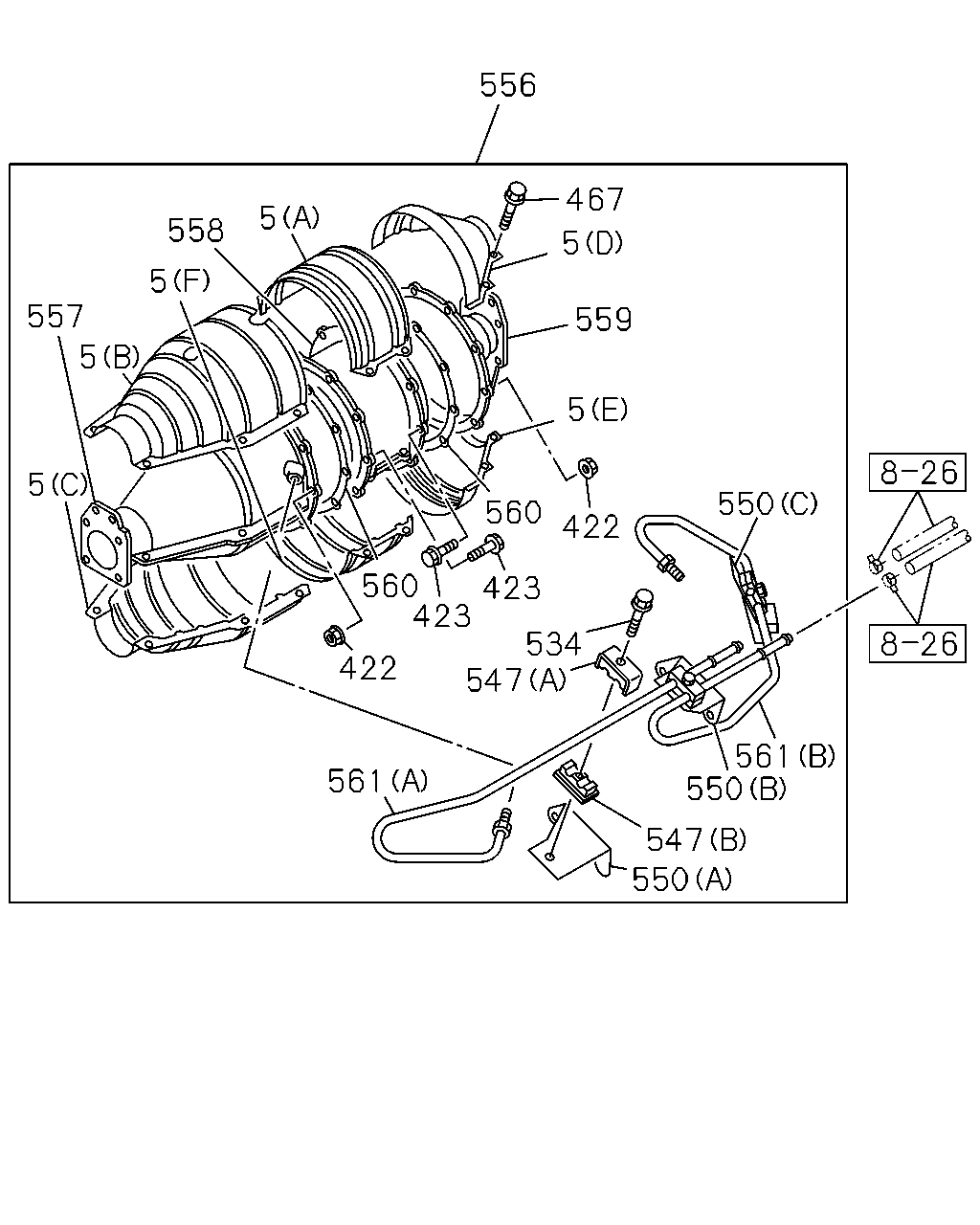

çizim 171575
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1010- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1010- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1010- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1010- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1010- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1010- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1010- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1010- ● ●
556 DPD ASM 8-97613-331-6 01 1 1010-1010 ● ●
556 DPD ASM 8-97622-883-4 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-8 01 1 1010- ● ●
558 FILTER ASM 8-97608-057-3 01 1 1010- ● ●
559 COVER; RR 8-97611-078-0 01 1 1010-1010 ● ●
559 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 1010- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 1010-1010 ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 1010-1010 ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
