1-41 — FUEL PIPING; CHASSIS (#56943) — 119 parça

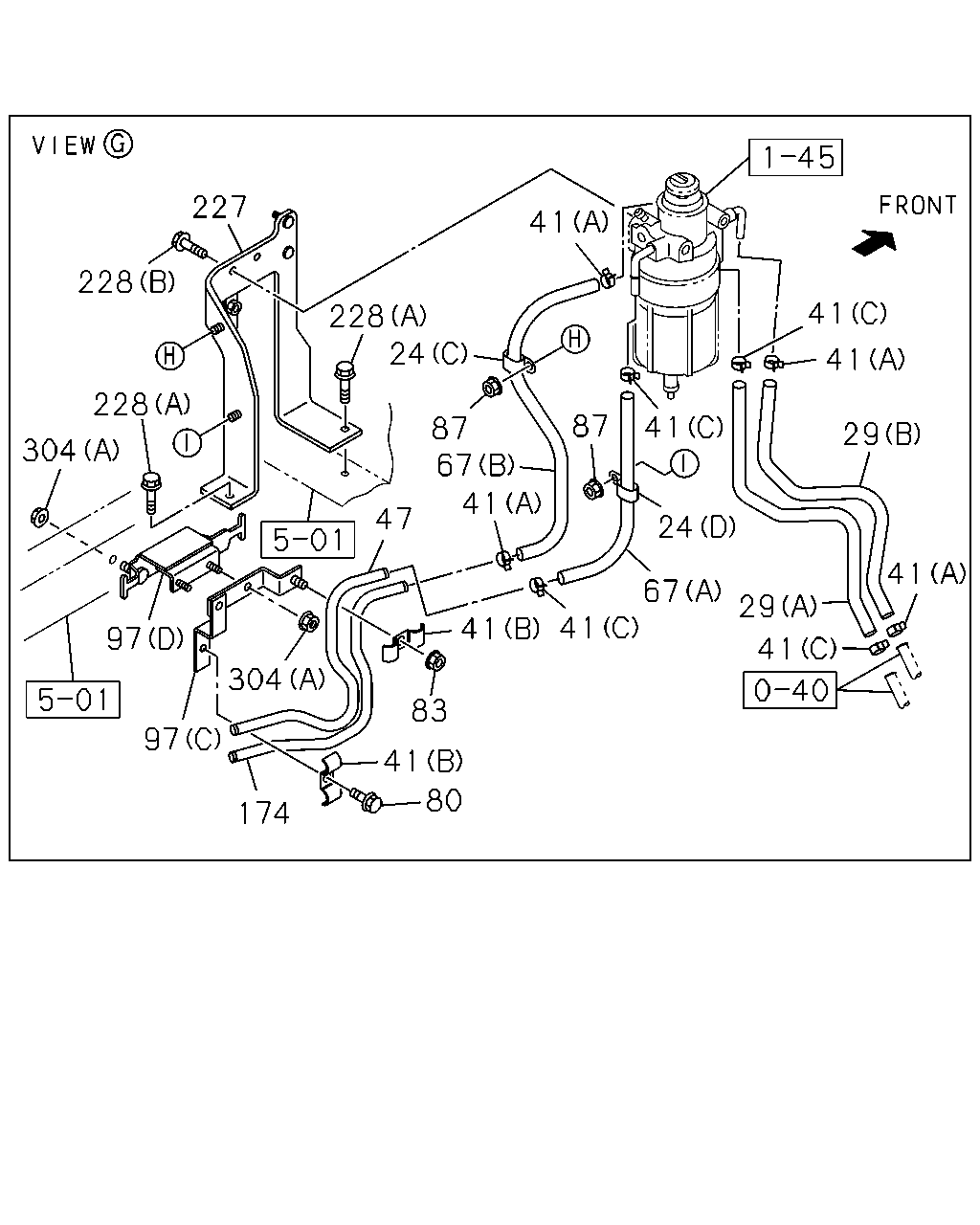

çizim 171560
227 228 228 304 97 97 174 80 41 83 41 47 228 24 87 67 41 41 41 87 41 41 41 29 24 67 29 41 41 304
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1010- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1010- ●
24 CLIP; FUEL HOSE
(B) ID=21 L=24 		8-98019-191-0 01 1 1010- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=21 L=24 		8-98019-191-0 01 1 1010- ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1010- ● ●
24 CLIP; FUEL HOSE
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1010- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1010- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=250 		5-09707-030-1 02 1 1010- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 04 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W) (E) L=250 		5-09707-030-1 01 1 1010- ●
47 PIPE; FUEL,RETURN
L=2304 		8-98170-453-0 01 1 1010- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2304 		8-98170-453-0 01 1 1010- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) L=1052 		8-98170-450-0 01 1 1010- ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01859-300-0 01 1 1010- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 04 1 1010- ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X50 FLANGE 		0-28050-850-0 04 1 1010- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 3700MM(37W) M8X50 FLANGE 		0-28050-850-0 01 1 1010- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 05 1 1010- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 05 1 1010- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1010- ●
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=55 		1-47476-177-0 01 1 1010- ●
97 BRACKET; CLIP
(B) 		8-98109-768-0 01 1 1010- ●
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98109-768-0 01 1 1010- ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1010- ● ●
97 BRACKET; CLIP
(D) 		8-98077-895-1 01 1 1010- ● ●
174 PIPE; FUEL,FEED,FRT 8-98179-133-0 01 1 1010- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98179-133-0 01 1 1010- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 3700MM(37W) 		8-98170-447-0 01 1 1010- ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1010- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1010- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●

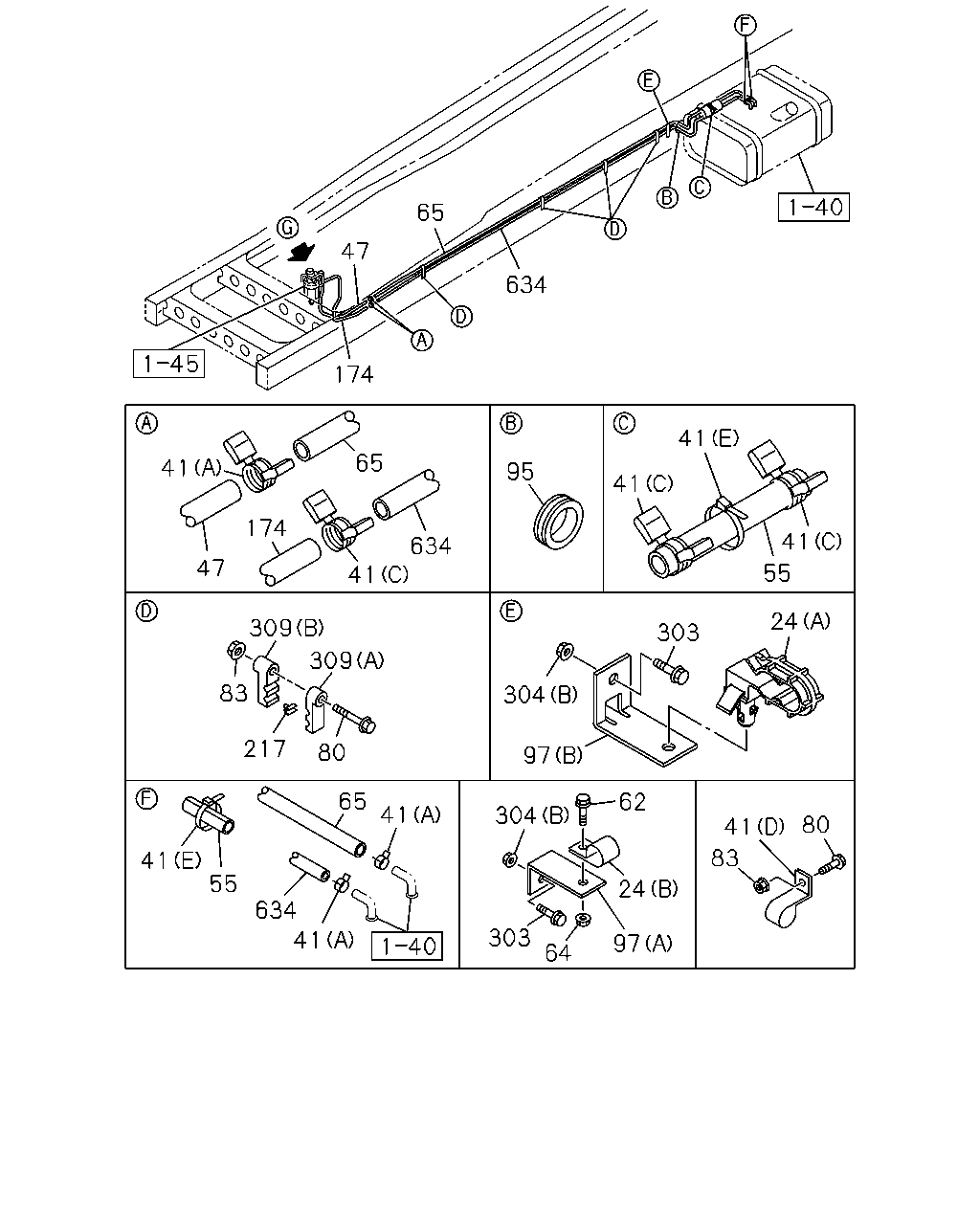

çizim 171572
65 47 634 174 41 65 41 95 41 174 41 634 41 47 55 24 309 303 309 83 304 217 80 97 65 62 41 304 80 41 83 41 55 24 634 303 41 97 64
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1010- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1010- ●
24 CLIP; FUEL HOSE
(B) ID=21 L=24 		8-98019-191-0 01 1 1010- ●
24 CLIP; FUEL HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=21 L=24 		8-98019-191-0 01 1 1010- ●
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1010- ● ●
24 CLIP; FUEL HOSE
(D) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1010- ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=250 		5-09707-030-1 02 1 1010- ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=8 H=20 L=20 		1-09700-604-0 01 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 04 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
WHEEL BASE 3700MM(37W) (E) L=250 		5-09707-030-1 01 1 1010- ●
47 PIPE; FUEL,RETURN
L=2304 		8-98170-453-0 01 1 1010- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2304 		8-98170-453-0 01 1 1010- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) L=1052 		8-98170-450-0 01 1 1010- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1010- ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
62 BOLT; CLIP FIX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
64 NUT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
65 HOSE; FUEL,DELIVERY PIPE 8-98170-531-0 01 1 1010-1107 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98170-531-0 01 1 1010-1107 ●
65 HOSE; FUEL,DELIVERY PIPE 8-98183-319-0 01 1 1108- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98183-319-0 01 1 1108- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) L=640 SERVICED BY L=3000 		0-01859-300-0 01 1 1010- ●
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 04 1 1010- ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X50 FLANGE 		0-28050-850-0 04 1 1010- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 3700MM(37W) M8X50 FLANGE 		0-28050-850-0 01 1 1010- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 05 1 1010- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 05 1 1010- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010- ● ●
95 BUSHING; PIPE,FUEL TANK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010- ● ●
95 BUSHING; PIPE,FUEL TANK
WHEEL BASE 3700MM(37W) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1010- ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1010- ●
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=55 		1-47476-177-0 01 1 1010- ●
97 BRACKET; CLIP
(B) 		8-98109-768-0 01 1 1010- ●
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98109-768-0 01 1 1010- ●
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1010- ● ●
97 BRACKET; CLIP
(D) 		8-98077-895-1 01 1 1010- ● ●
174 PIPE; FUEL,FEED,FRT 8-98179-133-0 01 1 1010- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98179-133-0 01 1 1010- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 3700MM(37W) 		8-98170-447-0 01 1 1010- ●
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 04 1 1010- ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=8 		1-47459-011-0 04 1 1010- ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 3700MM(37W) ID=8 		1-47459-011-0 01 1 1010- ●
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1010- ●
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1010- ●
303 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ●
303 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 04 1 1010- ●
309 CLIP; PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=10 & 10 		1-09709-241-0 04 1 1010- ●
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 04 1 1010- ●
309 CLIP; PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=10 & 10 		1-09709-243-0 04 1 1010- ●
309 CLIP; PIPE
WHEEL BASE 3700MM(37W) (A) ID=10 & 10 		1-09709-241-0 01 1 1010- ●
309 CLIP; PIPE
WHEEL BASE 3700MM(37W) (B) ID=10 & 10 		1-09709-243-0 01 1 1010- ●
634 HOSE; RUBBER RETURN
L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1010- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1010- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W) L=380 SERVICED BY L=3000 		0-01558-300-0 01 1 1010- ●
