1 |

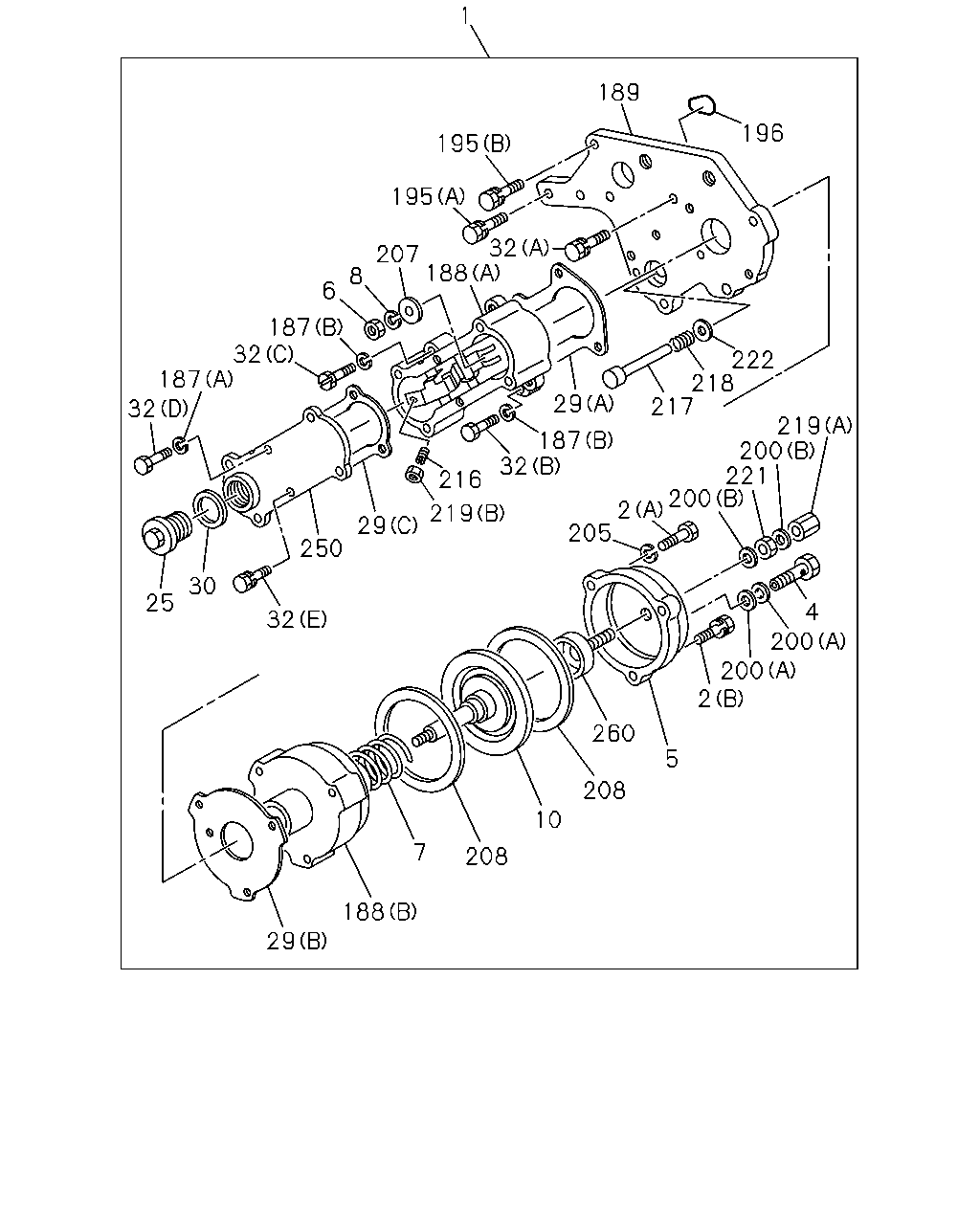

COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-94395-919-2
|
1-15728-094-1 |
01 |
1 |
- |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(A) ASM PART: A = 8-94395-919-2
|
1-15779-202-0 |
01 |
1 |
- |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: A = 8-94395-919-2
|
9-88410-094-0 |
02 |
1 |
- |
| |
4 |
BOLT; EYE,BOOST PIPE,COMPENSATOR
ASM PART: A = 8-94395-919-2
|
1-15729-325-0 |
01 |
1 |
- |
| |
5 |
COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-94395-919-2
|
1-15619-283-0 |
01 |
1 |
- |
| |
6 |
NUT; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
1-15729-249-0 |
01 |
1 |
- |
| |
7 |
SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
1-15723-483-0 |
01 |
1 |
- |
| |
8 |
WASHER; LK,DIAPH,BOOST COMPENSATOR
ID=6.1
ASM PART: A = 8-94395-919-2
|
9-09150-506-0 |
01 |
1 |
- |
| |
10 |
DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 8-94395-919-2
|
1-15712-006-0 |
01 |
1 |
- |
| |
25 |
PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
1-15779-124-1 |
01 |
1 |
- |
| |
29 |
GASKET; HSG,BOOST COMPENSATOR
(A) ASM PART: A = 8-94395-919-2
|
1-15779-122-0 |
01 |
1 |
- |
| |
29 |
GASKET; HSG,BOOST COMPENSATOR
(B) ASM PART: A = 8-94395-919-2
|
1-15779-123-0 |
01 |
1 |
- |
| |
29 |
GASKET; HSG,BOOST COMPENSATOR
(C) ASM PART: A = 8-94395-919-2
|
1-15779-126-0 |
01 |
1 |
- |
| |
30 |
GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
9-19139-024-0 |
01 |
1 |
- |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(B) ASM PART: A = 8-94395-919-2
|
1-15619-217-0 |
01 |
1 |
- |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(D) ASM PART: A = 8-94395-919-2
|
1-15729-413-0 |
01 |
1 |
- |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(C) ASM PART: A = 8-94395-919-2
|
1-15779-202-0 |
01 |
1 |
- |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(A) ASM PART: A = 8-94395-919-2
|
9-88410-094-0 |
05 |
1 |
- |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(E) ASM PART: A = 8-94395-919-2
|
9-92040-612-0 |
04 |
1 |
- |
| |
187 |
WASHER; LK,BOOST COMPENSATOR FIX
(A), ID=5
ASM PART: A = 8-94395-919-2
|
1-83539-044-0 |
05 |
1 |
- |
| |
187 |
WASHER; LK,BOOST COMPENSATOR FIX
(B), ID=6.1
ASM PART: A = 8-94395-919-2
|
9-09150-506-0 |
02 |
1 |
- |
| |
188 |
HOUSING; BOOST COMPENSATOR,INJ PUMP
(A) ASM PART: A = 8-94395-919-2
|
1-15721-279-0 |
01 |
1 |
- |
| |
188 |
HOUSING; BOOST COMPENSATOR,INJ PUMP
(B) ASM PART: A = 8-94395-919-2
|
1-15721-280-0 |
01 |
1 |
- |
| |
189 |
SPACER; BOOST COMPENSATOR HSG
ASM PART: A = 8-94395-919-2
|
1-15779-109-0 |
01 |
1 |
- |
| |
195 |
BOLT; SPACER FIX,BOOST COMPENSATOR
(B), M8X30
ASM PART: A = 8-94395-919-2
|
1-15729-243-0 |
01 |
1 |
- |
| |
195 |
BOLT; SPACER FIX,BOOST COMPENSATOR
(A), M6X20
ASM PART: A = 8-94395-919-2
|
9-81325-187-0 |
03 |
1 |
- |
| |
196 |
GASKET; SPACER,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
8-94424-220-0 |
01 |
1 |
- |
| |
200 |
GASKET; EYE BOLT,BOOST COMPENSATOR
(A) ASM PART: A = 8-94395-919-2
|
1-15729-849-0 |
02 |
1 |
- |
| |
200 |
GASKET; EYE BOLT,BOOST COMPENSATOR
(B) ASM PART: A = 8-94395-919-2
|
1-15729-868-0 |
02 |
1 |
- |
| |
205 |
WASHER; LK,COVER FIX,BOOST COMPENSATOR
ID=6.1
ASM PART: A = 8-94395-919-2
|
9-09150-506-0 |
01 |
1 |
- |
| |
207 |
DISC; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
1-15779-121-0 |
01 |
1 |
- |
| |
208 |
GASKET; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
1-15779-129-0 |
02 |
1 |
- |
| |
216 |
SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
8-94171-179-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=108.5
ASM PART: A = 8-94395-919-2
|
1-15779-110-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=109.5
ASM PART: A = 8-94395-919-2
|
1-15779-111-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=110.5
ASM PART: A = 8-94395-919-2
|
1-15779-112-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=111.5
ASM PART: A = 8-94395-919-2
|
1-15779-113-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=112.5
ASM PART: A = 8-94395-919-2
|
1-15779-114-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=113.5
ASM PART: A = 8-94395-919-2
|
1-15779-115-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=114.5
ASM PART: A = 8-94395-919-2
|
1-15779-116-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=115.5
ASM PART: A = 8-94395-919-2
|
1-15779-117-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=116.5
ASM PART: A = 8-94395-919-2
|
1-15779-118-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=117.5
ASM PART: A = 8-94395-919-2
|
1-15779-119-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=118.5
ASM PART: A = 8-94395-919-2
|
1-15779-120-0 |
01 |
1 |
- |
| |
217 |
ROD; PUSH,BOOST COMPENSATOR
L=119.5
ASM PART: A = 8-94395-919-2
|
8-94172-290-0 |
01 |
1 |
- |
| |
218 |
SPRING; PUSH ROD,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
8-94171-176-0 |
01 |
1 |
- |
| |
219 |
NUT; CAP,ADJ SCREW,BOOST COMPENSATOR
(A), CAP NUT
ASM PART: A = 8-94395-919-2
|
1-15729-093-0 |
01 |
1 |
- |
| |
219 |
NUT; CAP,ADJ SCREW,BOOST COMPENSATOR
(B) ASM PART: A = 8-94395-919-2
|
9-88410-525-0 |
01 |
1 |
- |
| |
221 |
NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
9-88410-525-0 |
01 |
1 |
- |
| |
222 |
WASHER; PUSH ROD,BOOST COMPENSATOR
ASM PART: A = 8-94395-919-2
|
1-83539-045-0 |
01 |
1 |
- |
| |
250 |
COVER; HSG
ASM PART: A = 8-94395-919-2
|
1-15721-281-0 |
01 |
1 |
- |
| |
260 |
SCREW; DIAPHRAGM
ASM PART: A = 8-94395-919-2
|
1-15729-386-0 |
01 |
1 |
- |
