◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#56904) — 122 parça

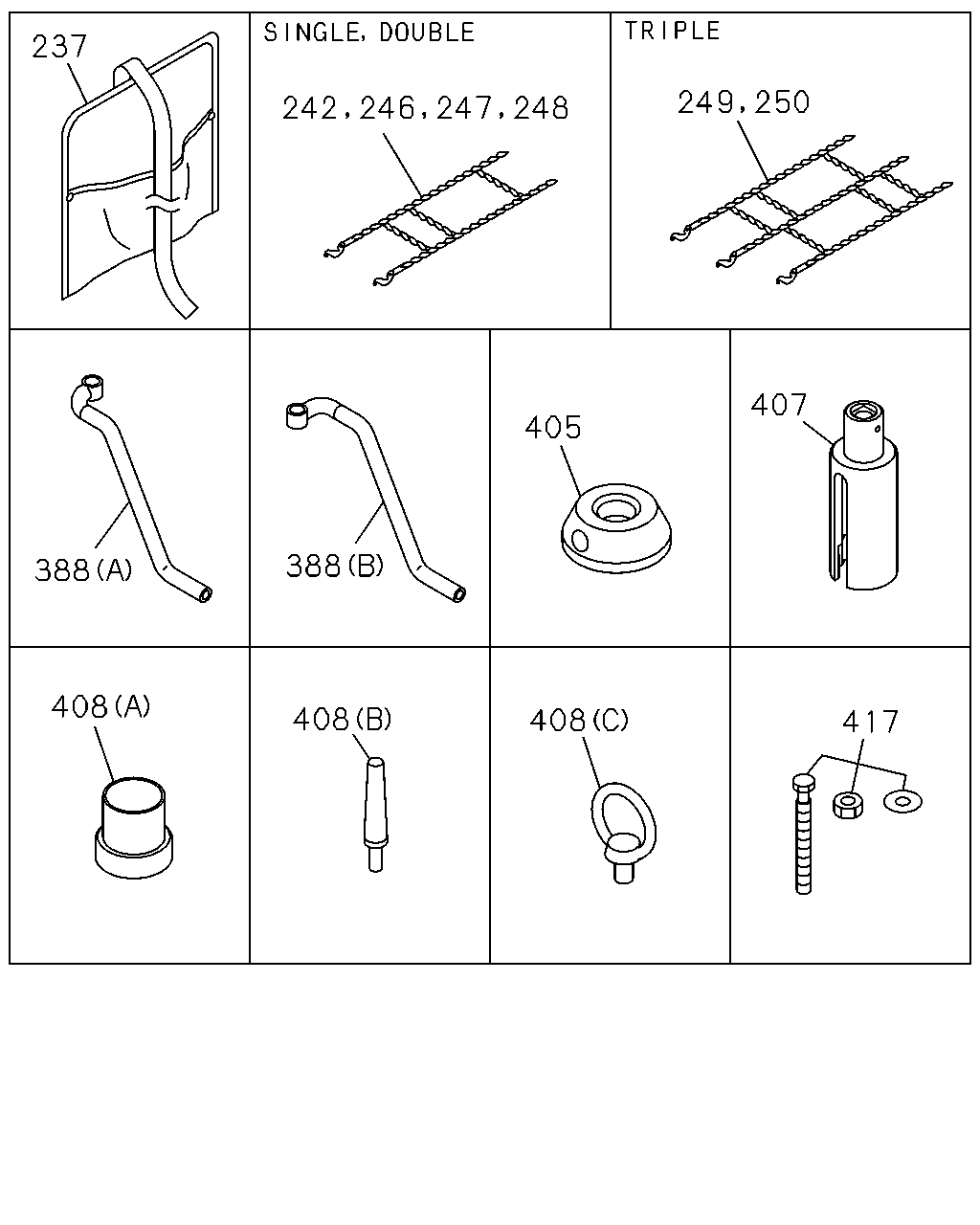

çizim 171256
417 408 408 408 388 388 405 407 249 250 248 247 246 242 237
BalonParca AdiParca NoAdetTipApplied Date
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 1008-1306
237 BAG; TOOL 8-97130-902-1 01 1 1307-
242 DRAWER ASM; ENG TRANS & DIFF
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 1008-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 1008-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 1008-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 1008-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 1008-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 1008-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 1008-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 1008-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 1008-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 1008-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 1008-
405 GUIDE; COUNTER 1-85221-264-0 01 1 1008-
407 SOCKET; SW 1-85221-267-1 01 1 1008-
408 TOOL; SETTING,SHIFT ASSISTER
(C) 		1-85221-262-0 02 1 1008-
408 TOOL; SETTING,SHIFT ASSISTER
(A) 		1-85221-268-0 01 1 1008-
408 TOOL; SETTING,SHIFT ASSISTER
(B) 		1-85221-269-0 01 1 1008-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 1008-
çizim 171258
162 162 167 169 171 172 180 182 193 208 192 189 186 227 230
BalonParca AdiParca NoAdetTipApplied Date
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 1008-1306
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 1008-1306
167 ALIGNER; CLU PILOT
L=300 OD=52.5 		1-85253-025-0 01 1 1008-
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1008-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1008-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1008-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 1008-1306
182 REMOVER ASM 1-85239-008-0 01 1 1008-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1008-
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 1008-1306
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 1307-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1008-
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 1008-1306
193 JACK ASM
15TON 		1-85510-019-2 01 1 1307-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 1008-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1008-
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 1008-1306
230 PUMP; GREASE 1-85556-007-5 01 1 1307-
çizim 171260
12 43 141 130 135 143 146 151 145 144 153 154 156 160 164 163 163
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 1008-1306
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1307-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> (A) 		1-85000-501-0 01 1 1008-1306
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 1307-
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 1008-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 1511-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 1008-1306
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 1008-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1008-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 1008-1306
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 1008-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 1008-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1008-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1008-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1008-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1008-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 02 1 1008-1306
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1307-
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 1307-
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 1008-
164 GUIDE; SNAP RING PILOT BRG 1-85176-001-0 01 1 1008-1306
çizim 171266
1 9 363 20 21 22 23 29 29 29 17 13 30 43 42 4 31 32 33 34 35
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 1008-
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 1008-1306
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 1307-
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 1008-1306
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1307-
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 1008-1306
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 1307-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 1008-1306
17 HAMMER 9-85121-406-0 01 1 1307-
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 1008-1306
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1307-
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 1008-1306
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1307-
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 1008-1306
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1307-
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 1008-1306
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1307-
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 1008-1306
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 1307-
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 1008-1306
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1307-
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 1008-1306
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 1307-
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 1008-1306
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 1307-
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 1008-1306
31 WRENCH; 12 1-85000-495-0 01 1 1307-
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 1008-1306
32 WRENCH; 14 1-85000-496-0 01 1 1307-
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 1008-1306
33 WRENCH; 17 1-85000-497-0 01 1 1307-
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 1008-1306
34 WRENCH; 19 1-85000-498-0 01 1 1307-
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 1008-1306
35 WRENCH; 22 1-85000-499-0 01 1 1307-
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 1008-1306
42 HANDLE; SLIDING 1-85000-500-0 01 1 1307-
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> (A) 		1-85000-501-0 01 1 1008-1306
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 1307-
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502-
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 1008-1306
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 1307-

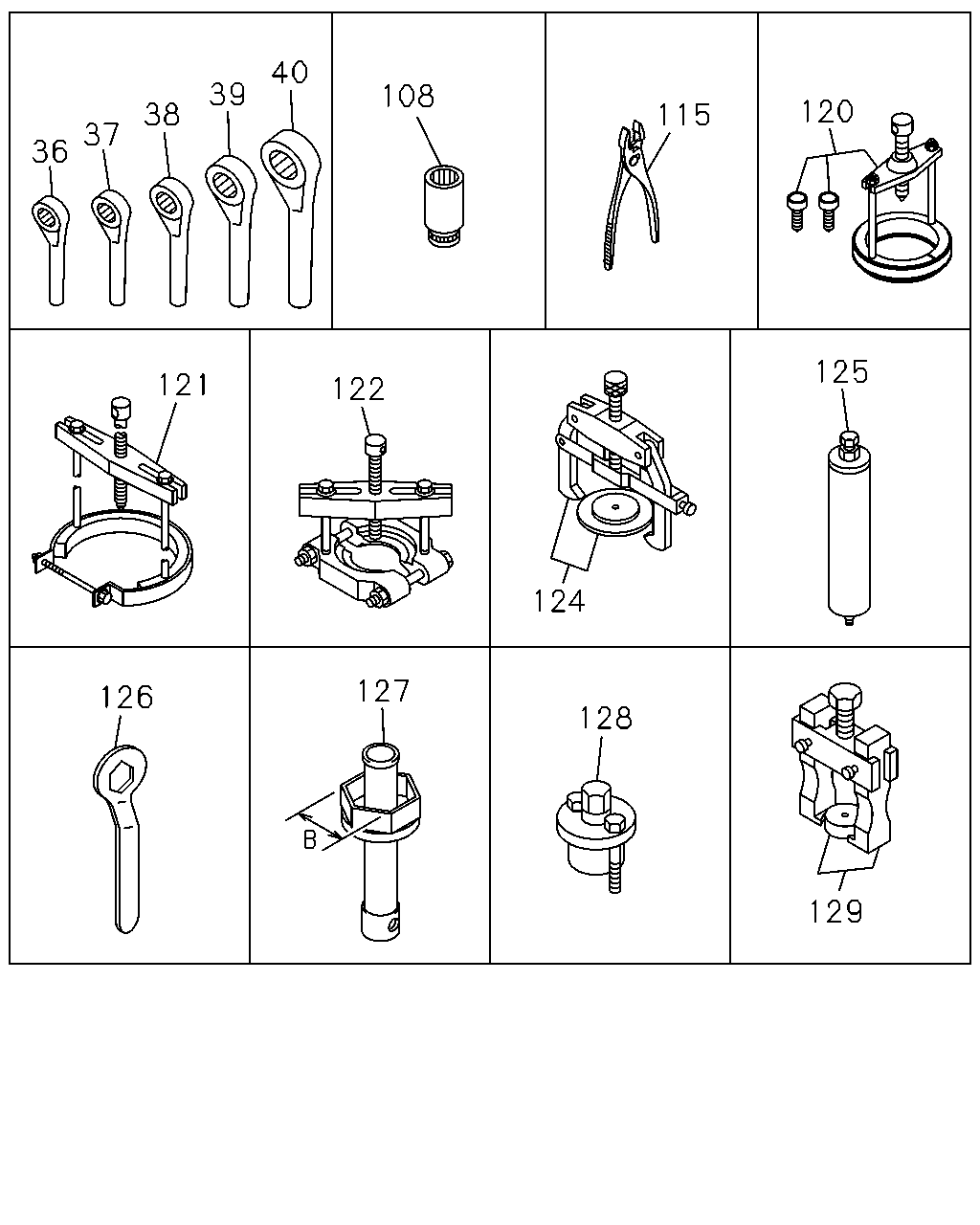

çizim 171285
108 115 120 125 129 128 124 127 122 121 126 36 37 38 39 40
BalonParca AdiParca NoAdetTipApplied Date
36 WRENCH; 24 9-85111-377-0 01 1 1008-
37 WRENCH; 27 9-85111-375-0 01 1 1008-
38 WRENCH; 32 9-85111-358-0 01 1 1008-
39 WRENCH; 36 9-85111-374-0 01 1 1008-
40 WRENCH; 41 9-85111-356-0 01 1 1008-
108 WRENCH; SOCKET 9-85113-132-0 01 1 1008-
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 1008-1306
115 PLIER 5-85171-002-0 01 1 1307-1410
115 PLIER 8-98282-845-0 01 1 1411-
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 1008-
121 PULLER ASM; COUNTER REAR 1-85210-069-0 01 1 1008-
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 1008-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1008-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1008-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1008-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1008-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 1008-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1008-
