◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#56899) — 114 parça

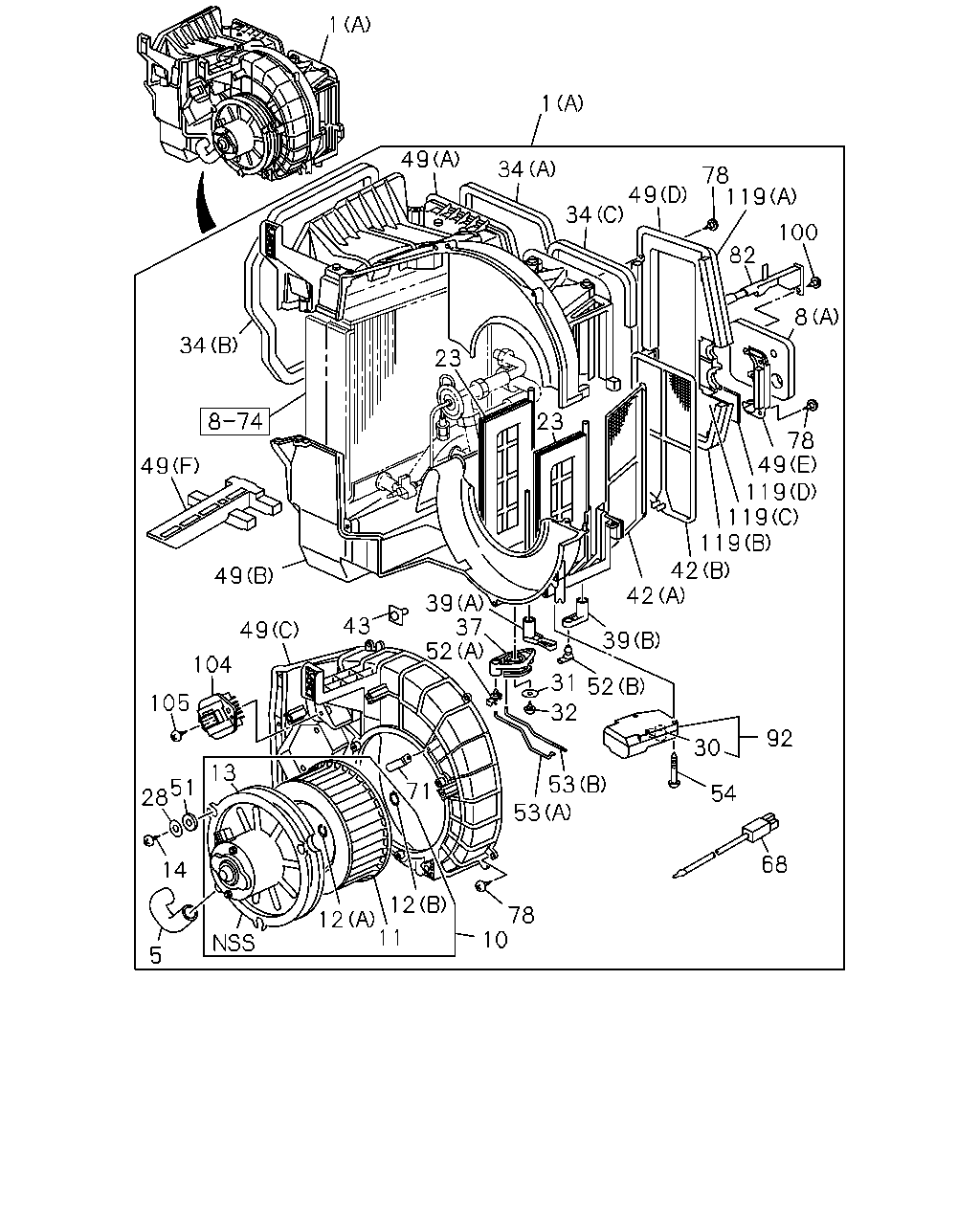

çizim 171273
1 1 34 49 49 34 78 100 82 119 8 78 119 49 119 119 42 42 39 52 32 31 37 39 43 49 49 49 34 104 105 28 14 51 5 13 12 11 10 12 78 53 54 30 68 92 53 23 23 71 52
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 1307-
1 BLOWER ASM
(A) 		1-83561-183-2 01 1 1008-1306
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83561-183-2 01 1 1307-
5 HOSE; AIR 1-83563-147-0 01 1 1008-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83579-801-1 01 1 1307-
8 SEAL; BLOWER UNIT
(A) 		1-83539-261-1 01 1 1008-1306
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-261-1 01 1 1307-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1008-
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1008-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1008-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1008-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1008-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1008-
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1008-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1008-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1008-
31 WASHER; LEVER 1-83579-095-0 01 1 1008-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1008-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1008-
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 1008-
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 1008-
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1008-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1008-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1008-
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1008-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1008-
43 BOLT; CASE 1-83579-657-2 04 1 1008-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 1307-
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 1008-
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1008-
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 1008-
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 1008-
49 CASE; BLOWER UNIT
(B) 		1-83564-378-0 01 1 1008-1306
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 1307-
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 1008-1306
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 1307-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1008-
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1008-
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1008-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1008-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1008-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1008-
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 1008-1306
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 1307-
71 CLIP; HARNESS 8-97096-145-0 01 1 1008-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1008-
82 BRACKET; BLOWER UNIT 1-83571-932-0 01 1 1008-1306
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-932-0 01 1 1307-
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1008-
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1008-1306
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1307-
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1008-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1008-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1008-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1008-
119 LINING; CASE
(D) 		1-83579-672-0 01 1 1008-1306
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 1307-
119 LINING; CASE
(C) 		1-83579-795-0 01 1 1008-1306
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 1307-

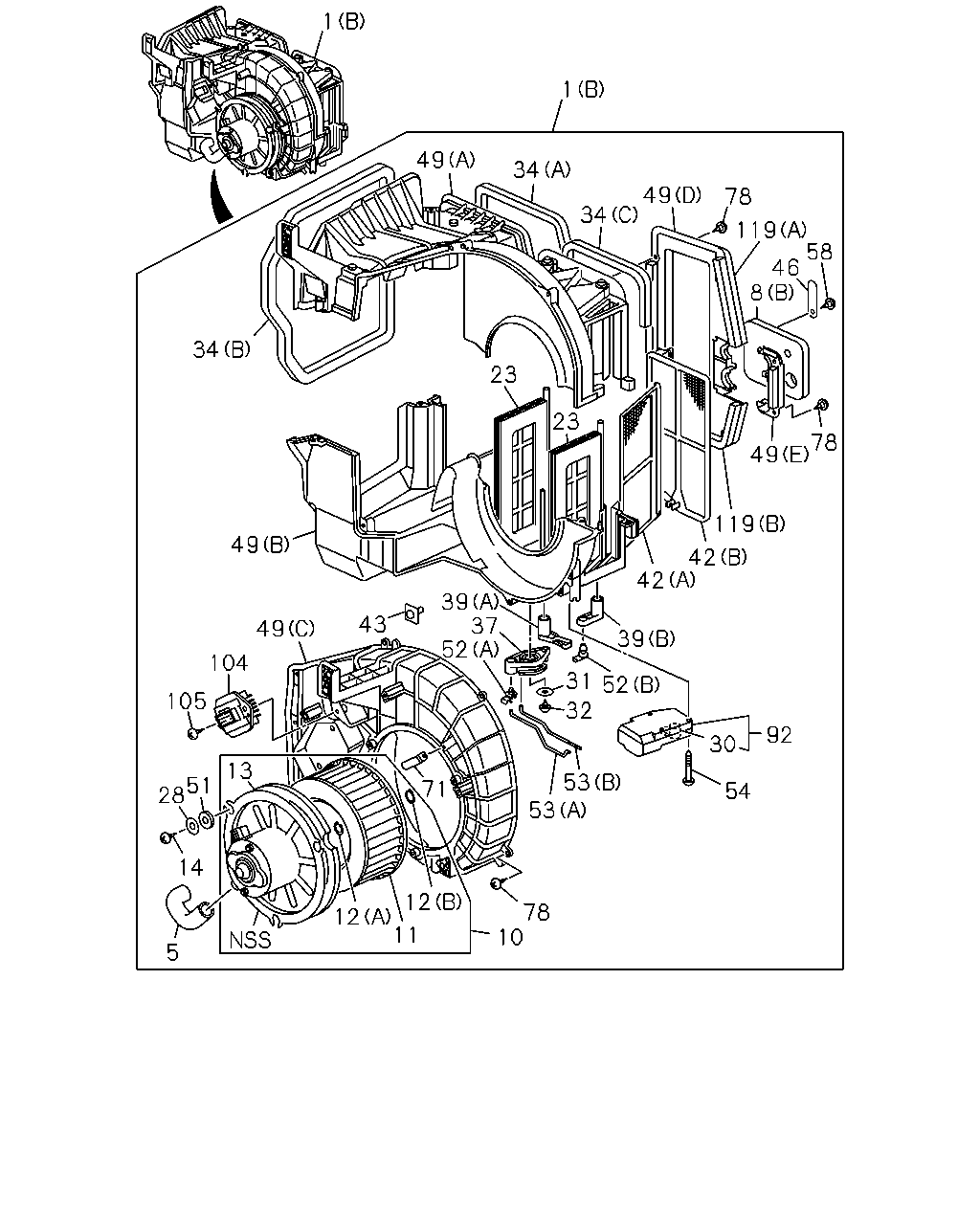

çizim 365657
1 49 1 34 34 49 78 119 58 46 8 49 78 119 42 42 39 92 30 54 53 32 31 52 52 39 37 53 78 10 12 11 12 71 43 49 104 49 105 51 28 13 14 34 23 23 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 1307-
1 BLOWER ASM
(A) 		1-83561-183-2 01 1 1008-1306
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83561-183-2 01 1 1307-
5 HOSE; AIR 1-83563-147-0 01 1 1008-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83579-801-1 01 1 1307-
8 SEAL; BLOWER UNIT
(A) 		1-83539-261-1 01 1 1008-1306
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-261-1 01 1 1307-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1008-
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1008-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1008-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1008-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1008-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1008-
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1008-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1008-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1008-
31 WASHER; LEVER 1-83579-095-0 01 1 1008-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1008-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1008-
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 1008-
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 1008-
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1008-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1008-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1008-
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1008-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1008-
43 BOLT; CASE 1-83579-657-2 04 1 1008-
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 1307-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 1307-
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 1008-
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1008-
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 1008-
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 1008-
49 CASE; BLOWER UNIT
(B) 		1-83564-378-0 01 1 1008-1306
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 1307-
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 1008-1306
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 1307-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1008-
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1008-
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1008-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1008-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1008-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1008-
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 1307-
71 CLIP; HARNESS 8-97096-145-0 01 1 1008-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1008-
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1008-
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1008-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1008-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1008-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1008-
119 LINING; CASE
(D) 		1-83579-672-0 01 1 1008-1306
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 1307-
119 LINING; CASE
(C) 		1-83579-795-0 01 1 1008-1306
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
