◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#56897) — 40 parça

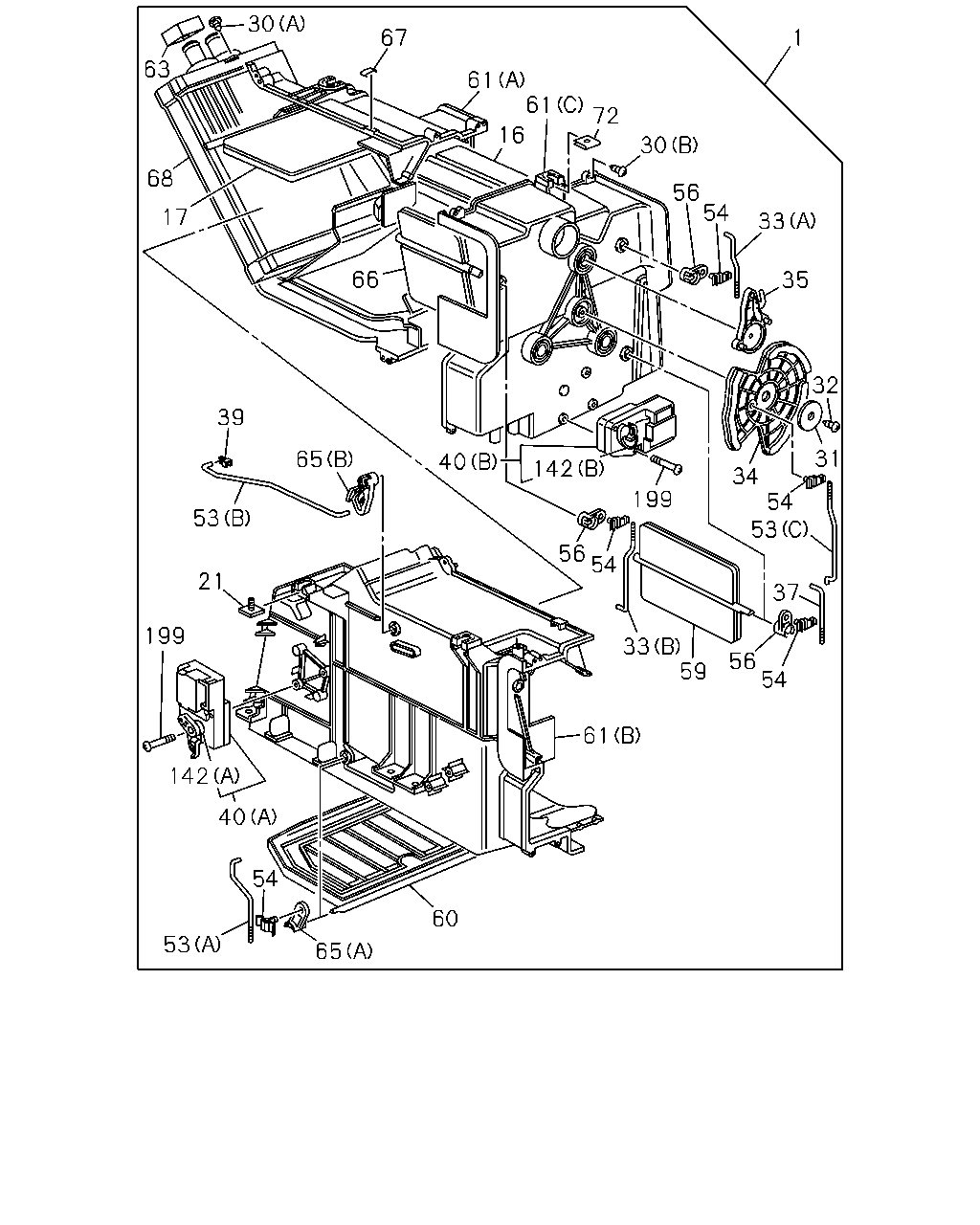

çizim 171255
65 60 53 54 61 142 40 199 21 53 33 59 56 54 37 53 54 199 54 56 65 39 40 142 34 31 32 35 66 17 68 63 30 67 61 61 16 72 30 56 54 33 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-137-4 01 1 1008-1409
1 HEATER UNIT 8-98238-491-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1008-
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1008-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1008-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1008-
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1008-1409
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1008-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1008-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1008-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1008-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1008-
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1008-
37 ROD; LEVER 1-83579-620-1 01 1 1008-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1008-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1008-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1008-
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1008-
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1008-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1008-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1008-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1008-
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1008-
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1008-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1008-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1008-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1008-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1008-
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1008-
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1008-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1008-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1008-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1008-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1008-
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1008-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1008-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1008-
