8-52 — PIPING; AIR CONDITIONING (#56896) — 175 parça

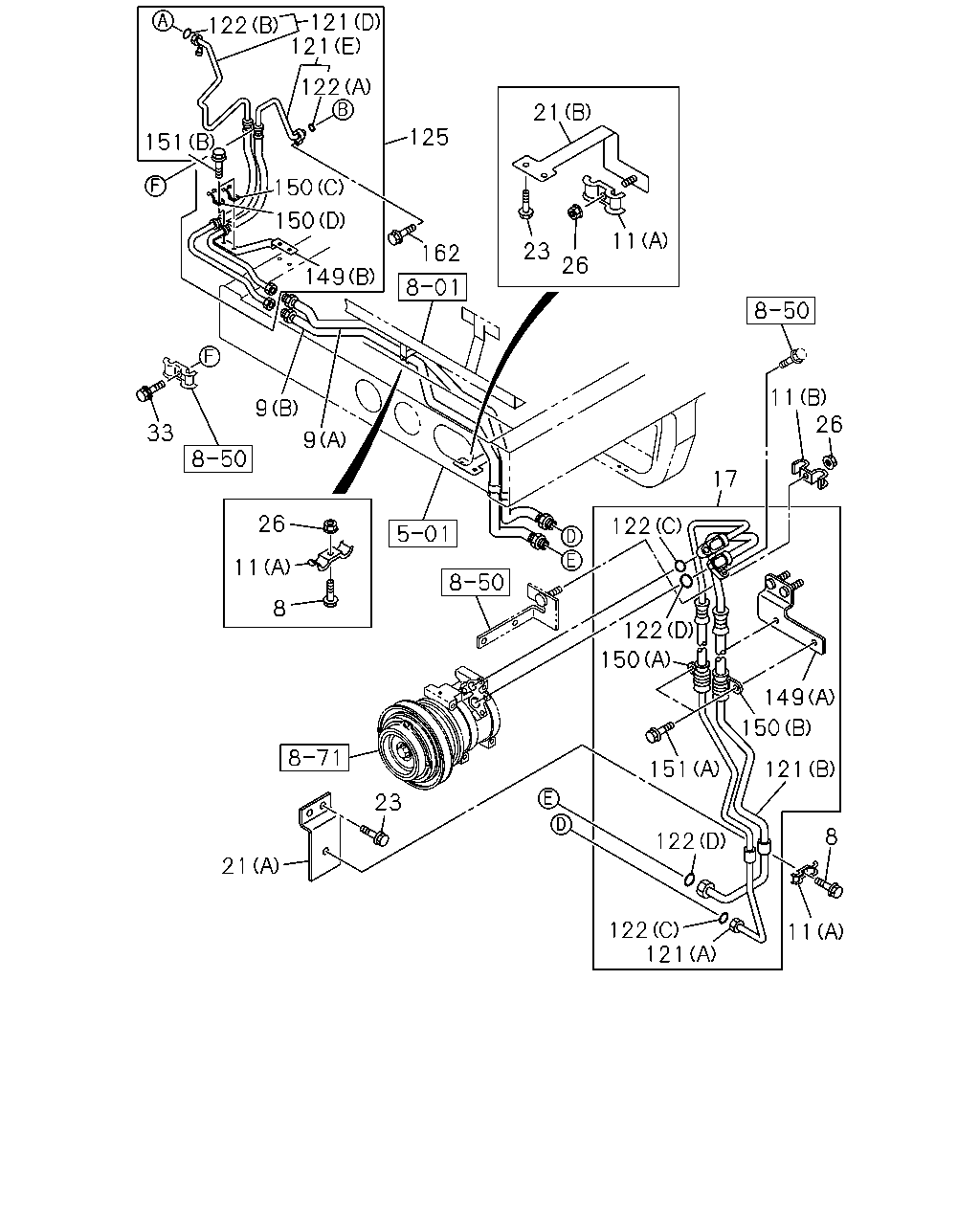

33 26 11 8 9 9 151 122 121 121 122 150 150 149 125 162 21 23 26 11 11 17 122 122 150 149 151 122 122 121 11 8 121 150 26 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
9	PIPE; COOLER,HOSE TO HOSE (A)	1-83577-059-0	01	1	1008-1306
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98233-443-0	01	1	1307-
9	PIPE; COOLER,HOSE TO HOSE (B)	1-83577-060-0	01	1	1008-1306
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98233-444-0	01	1	1307-
11	CLIP; COOLER PIPE (A) ID=20 & 20	1-83574-195-1	03	1	1008-1306
11	CLIP; COOLER PIPE (B) ID=12 & 14.5	1-83574-257-0	01	1	1008-1306
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5	1-83574-257-0	01	1	1307-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE>	8-98286-395-0	01	1	1411-
17	HOSE; FLEX,CMPR TO PIPE	1-83577-058-1	01	1	1008-1306
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98233-440-0	01	1	1307-1410
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-440-0	01	1	1411-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98239-925-0	01	1	1307-1410
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98239-925-0	01	1	1411-
21	BRACKET; COOLER HOSE (B)	1-83573-282-1	01	1	1008-1306
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98227-084-0	01	1	1307-
21	BRACKET; COOLER HOSE (A)	1-83573-295-0	01	1	1008-1306
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-463-0	01	1	1307-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 FLANGE	0-28650-825-0	01	1	1411-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1307-
23	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1008-1306
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X25 FLANGE	0-28651-025-0	02	1	1307-
23	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-1306
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	03	1	1307-1410
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1411-
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-1306
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1008-1306
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1307-
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-1306
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1307-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98290-738-0	01	1	1411-
121	HOSE; COOLER (C)	1-83567-795-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1307-
121	HOSE; COOLER (D)	1-83572-801-1	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98241-660-0	01	1	1307-
121	HOSE; COOLER (E)	1-83572-802-1	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98241-661-0	01	1	1307-
121	HOSE; COOLER (A)	1-83577-066-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98242-700-0	01	1	1307-1410
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98242-700-0	01	1	1411-
121	HOSE; COOLER (B)	1-83577-067-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-701-0	01	1	1307-
122	GASKET (A) ID=11.7	1-83539-317-0	02	1	1008-1306
122	GASKET (B) ID=14.5	1-83539-324-0	02	1	1008-1306
122	GASKET (C) ID=11.7	8-97095-907-0	02	1	1008-1306
122	GASKET (D) ID=14.5	8-97095-908-0	02	1	1008-1306
125	HOSE; FLEX,UNIT TO CMPR	1-83572-704-1	01	1	1008-1306
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98247-291-0	01	1	1307-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98243-874-0	01	1	1307-
149	BRACKET; COOLER HOSE (B)	1-83573-206-0	01	1	1008-1306
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	1307-
149	BRACKET; COOLER HOSE (A)	1-83573-255-0	01	1	1008-1306
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98232-117-0	01	1	1307-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (E) ID=20 & 20	1-83574-195-1	01	1	1411-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83574-288-0	01	1	1307-1410
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	1-83574-288-0	01	1	1411-
150	CLIP; HOSE (A)	1-83574-249-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1307-
150	CLIP; HOSE (C)	1-83574-254-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	1307-
150	CLIP; HOSE (D)	1-83574-255-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	1307-
150	CLIP; HOSE (B)	1-83574-264-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1307-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83575-098-0	02	1	1411-
151	BOLT; CLIP FIX,COOLER HOSE (B)	1-83539-336-0	02	1	1008-1306
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1307-
151	BOLT; CLIP FIX,COOLER HOSE (A)	1-83578-098-0	02	1	1008-1306
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	1307-1410
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83578-098-0	02	1	1411-
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	02	1	1008-1306
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1307-

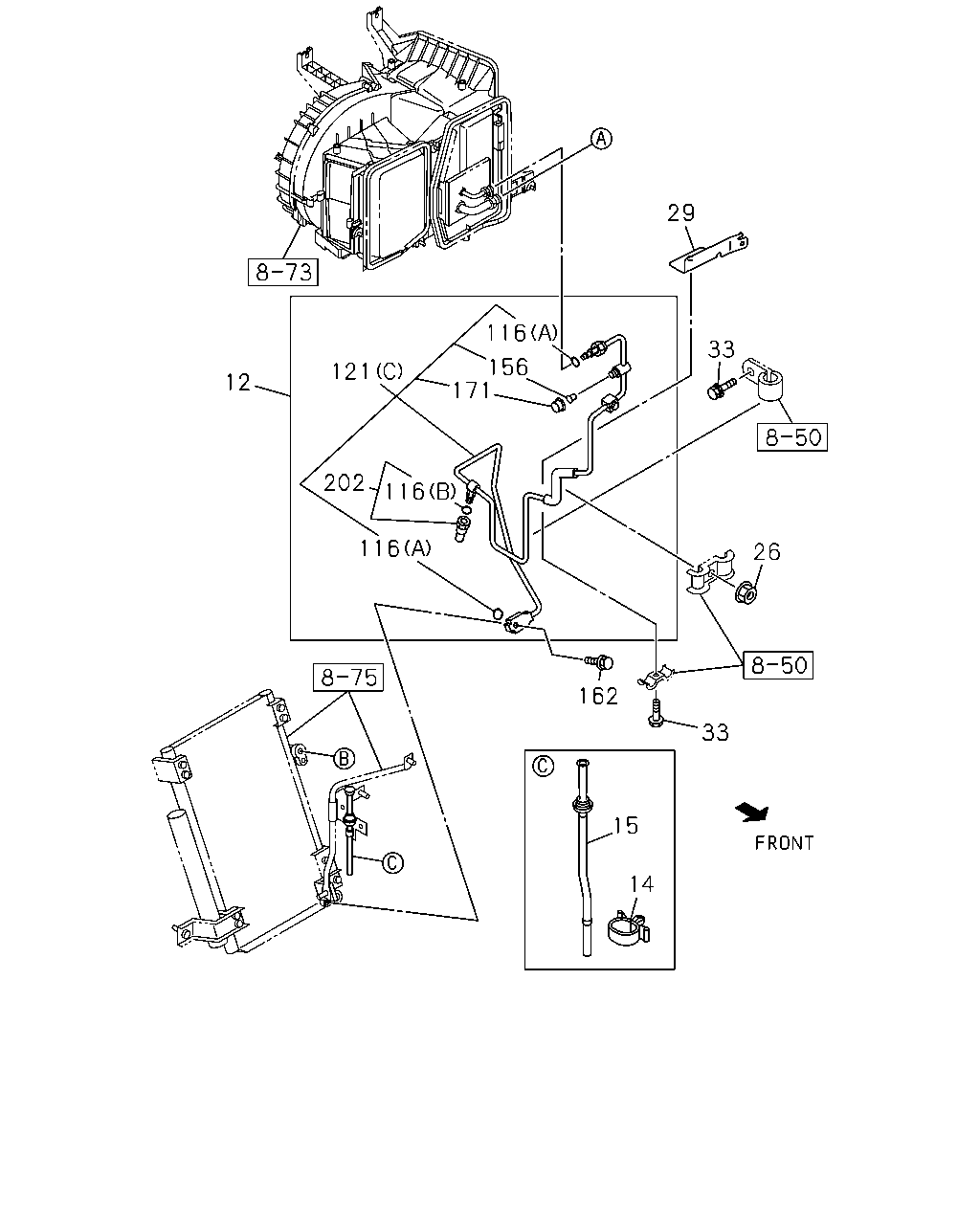

12 121 116 156 171 116 202 116 162 29 33 26 33 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK	1-83567-718-3	01	1	1008-1306
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-386-0	01	1	1307-
14	CLIP; BAND,EVAP DRAIN HOSE ID=20	8-94410-200-0	01	1	1008-1306
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	1307-
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	1307-
15	HOSE; DRAIN	1-83572-635-0	01	1	1008-1306
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	1307-
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-1306
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1008-1306
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-480-1	01	1	1307-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1307-
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-1306
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1307-
116	GASKET; PIPE (A) ID=7.4	8-97095-906-0	02	1	1008-1306
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1307-
116	GASKET; PIPE (B)	8-97178-772-0	01	1	1008-1306
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	1307-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98290-738-0	01	1	1411-
121	HOSE; COOLER (C)	1-83567-795-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1307-
121	HOSE; COOLER (D)	1-83572-801-1	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98241-660-0	01	1	1307-
121	HOSE; COOLER (E)	1-83572-802-1	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98241-661-0	01	1	1307-
121	HOSE; COOLER (A)	1-83577-066-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98242-700-0	01	1	1307-1410
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98242-700-0	01	1	1411-
121	HOSE; COOLER (B)	1-83577-067-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-701-0	01	1	1307-
156	VALVE; PIPE	8-97095-909-0	01	1	1008-1306
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1307-
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	02	1	1008-1306
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1307-
171	CAP; PIPE CAP MARK H	8-97095-911-0	01	1	1008-1306
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1307-
202	SWITCH; PRESSURE	1-83564-392-1	01	1	1008-1306
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	1307-

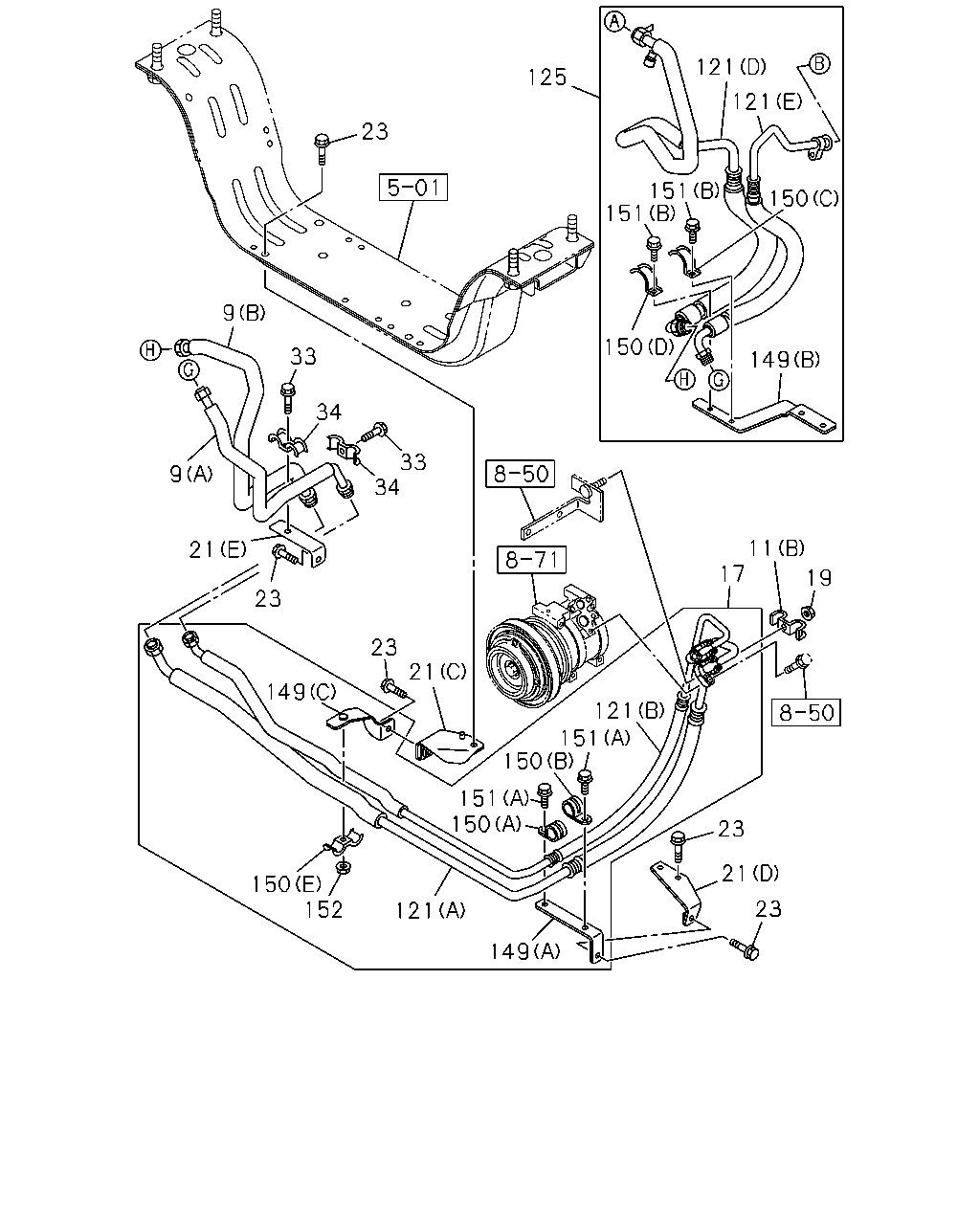

23 9 9 21 33 34 23 34 33 125 121 151 151 150 150 149 121 17 19 11 121 151 150 151 150 121 149 23 21 23 152 150 149 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; COOLER,HOSE TO HOSE (A)	1-83577-059-0	01	1	1008-1306
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98233-443-0	01	1	1307-
9	PIPE; COOLER,HOSE TO HOSE (B)	1-83577-060-0	01	1	1008-1306
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98233-444-0	01	1	1307-
11	CLIP; COOLER PIPE (A) ID=20 & 20	1-83574-195-1	03	1	1008-1306
11	CLIP; COOLER PIPE (B) ID=12 & 14.5	1-83574-257-0	01	1	1008-1306
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5	1-83574-257-0	01	1	1307-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE>	8-98286-395-0	01	1	1411-
17	HOSE; FLEX,CMPR TO PIPE	1-83577-058-1	01	1	1008-1306
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98233-440-0	01	1	1307-1410
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98233-440-0	01	1	1411-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1307-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98239-925-0	01	1	1307-1410
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98239-925-0	01	1	1411-
21	BRACKET; COOLER HOSE (B)	1-83573-282-1	01	1	1008-1306
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98227-084-0	01	1	1307-
21	BRACKET; COOLER HOSE (A)	1-83573-295-0	01	1	1008-1306
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-463-0	01	1	1307-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 FLANGE	0-28650-825-0	01	1	1411-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1307-
23	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1008-1306
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X25 FLANGE	0-28651-025-0	02	1	1307-
23	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-1306
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	03	1	1307-1410
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1411-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1307-
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-1306
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1307-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	02	1	1307-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98290-738-0	01	1	1411-
121	HOSE; COOLER (C)	1-83567-795-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1307-
121	HOSE; COOLER (D)	1-83572-801-1	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98241-660-0	01	1	1307-
121	HOSE; COOLER (E)	1-83572-802-1	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98241-661-0	01	1	1307-
121	HOSE; COOLER (A)	1-83577-066-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98242-700-0	01	1	1307-1410
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-98242-700-0	01	1	1411-
121	HOSE; COOLER (B)	1-83577-067-0	01	1	1008-1306
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98242-701-0	01	1	1307-
125	HOSE; FLEX,UNIT TO CMPR	1-83572-704-1	01	1	1008-1306
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98247-291-0	01	1	1307-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98243-874-0	01	1	1307-
149	BRACKET; COOLER HOSE (B)	1-83573-206-0	01	1	1008-1306
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	1307-
149	BRACKET; COOLER HOSE (A)	1-83573-255-0	01	1	1008-1306
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98232-117-0	01	1	1307-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (E) ID=20 & 20	1-83574-195-1	01	1	1411-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83574-288-0	01	1	1307-1410
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	1-83574-288-0	01	1	1411-
150	CLIP; HOSE (A)	1-83574-249-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1307-
150	CLIP; HOSE (C)	1-83574-254-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	1307-
150	CLIP; HOSE (D)	1-83574-255-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	1307-
150	CLIP; HOSE (B)	1-83574-264-0	01	1	1008-1306
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1307-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83575-098-0	02	1	1411-
151	BOLT; CLIP FIX,COOLER HOSE (B)	1-83539-336-0	02	1	1008-1306
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1307-
151	BOLT; CLIP FIX,COOLER HOSE (A)	1-83578-098-0	02	1	1008-1306
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	1307-1410
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83578-098-0	02	1	1411-
152	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	1-83539-319-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
