Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#56894) — 43 parça
◀

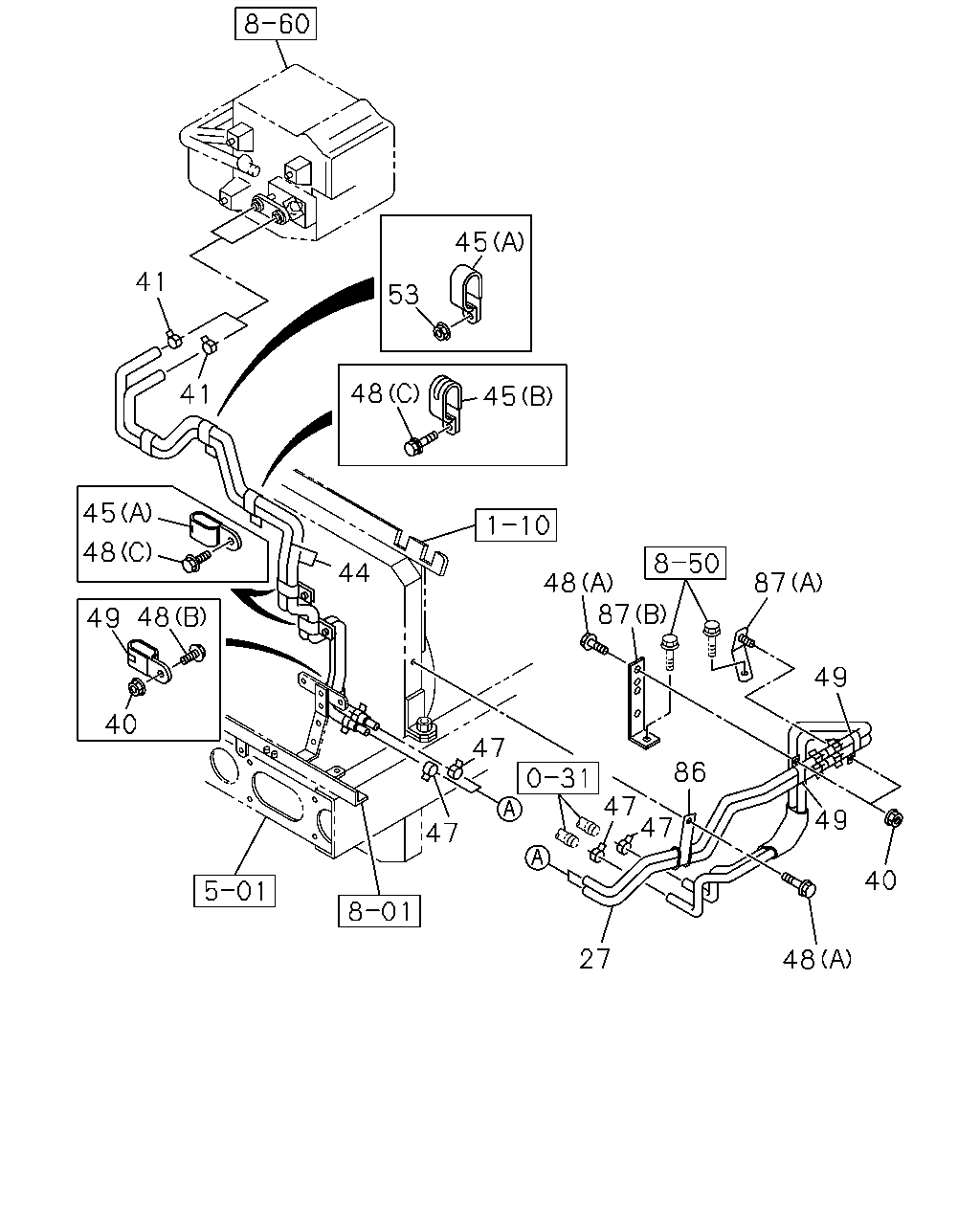

[845A] -'13/6 (22 parça)

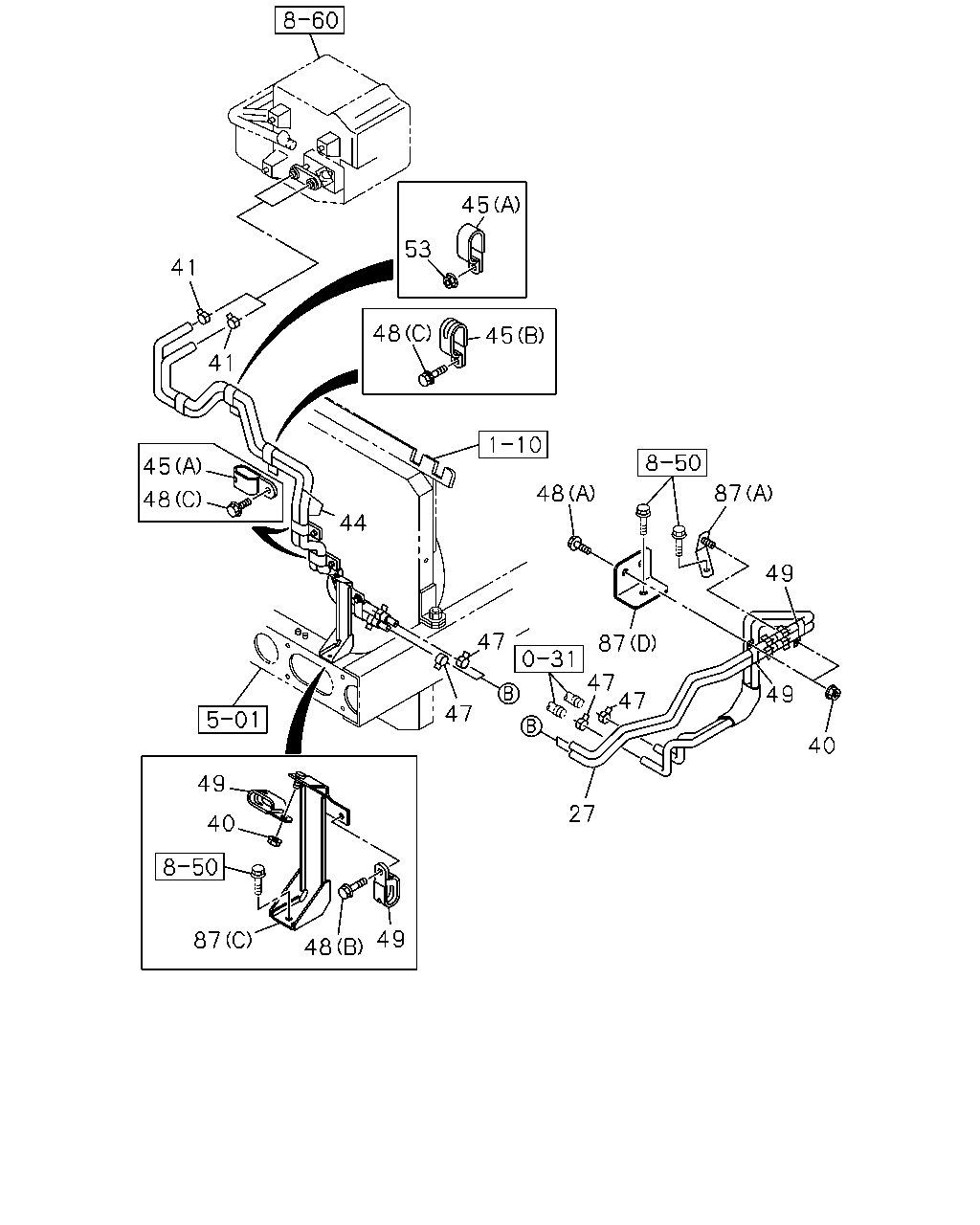

[845A] '13/7- (21 parça)
▶
41
41
45
48
49
48
40
44
47
47
48
87
87
49
40
49
48
47
47
86
27
48
45
45
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-802-3
01
1
1008-1306
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98223-223-1
01
1
1307-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1008-1306
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1008-
44
HOSE; WATER,HTR,INL
8-98052-676-2
01
1
1008-1306
44
HOSE; WATER,HTR,INL
8-98226-524-2
01
1
1307-
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
1008-
45
CLIP; WATER PIPE
(A)
1-09701-238-0
03
1
1008-1306
45
CLIP; WATER PIPE
(A)
1-09701-238-0
02
1
1307-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1008-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
1008-
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
01
1
1008-1306
48
BOLT; CLIP FIX
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1008-1306
48
BOLT; CLIP FIX
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1307-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
1008-1306
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
04
1
1307-
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
1008-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
1008-1306
87
BRACKET; HTR HOSE CLIP
(D)
8-98239-443-0
01
1
1307-
87
BRACKET; HTR HOSE CLIP
(B)
1-82698-358-0
01
1
1008-1306
87
BRACKET; HTR HOSE CLIP
(C)
8-98225-548-0
01
1
1307-
87
BRACKET; HTR HOSE CLIP
(A)
1-83573-251-1
01
1
1008-
41
41
45
48
44
49
40
87
48
49
27
47
40
49
47
47
47
87
49
87
48
45
48
53
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-802-3
01
1
1008-1306
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98223-223-1
01
1
1307-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1008-1306
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1008-
44
HOSE; WATER,HTR,INL
8-98052-676-2
01
1
1008-1306
44
HOSE; WATER,HTR,INL
8-98226-524-2
01
1
1307-
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
1008-
45
CLIP; WATER PIPE
(A)
1-09701-238-0
03
1
1008-1306
45
CLIP; WATER PIPE
(A)
1-09701-238-0
02
1
1307-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1008-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
1008-
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
01
1
1008-1306
48
BOLT; CLIP FIX
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1008-1306
48
BOLT; CLIP FIX
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1307-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
1008-1306
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
04
1
1307-
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
1008-
87
BRACKET; HTR HOSE CLIP
(D)
8-98239-443-0
01
1
1307-
87
BRACKET; HTR HOSE CLIP
(B)
1-82698-358-0
01
1
1008-1306
87
BRACKET; HTR HOSE CLIP
(C)
8-98225-548-0
01
1
1307-
87
BRACKET; HTR HOSE CLIP
(A)
1-83573-251-1
01
1
1008-
