◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#56892) — 104 parça

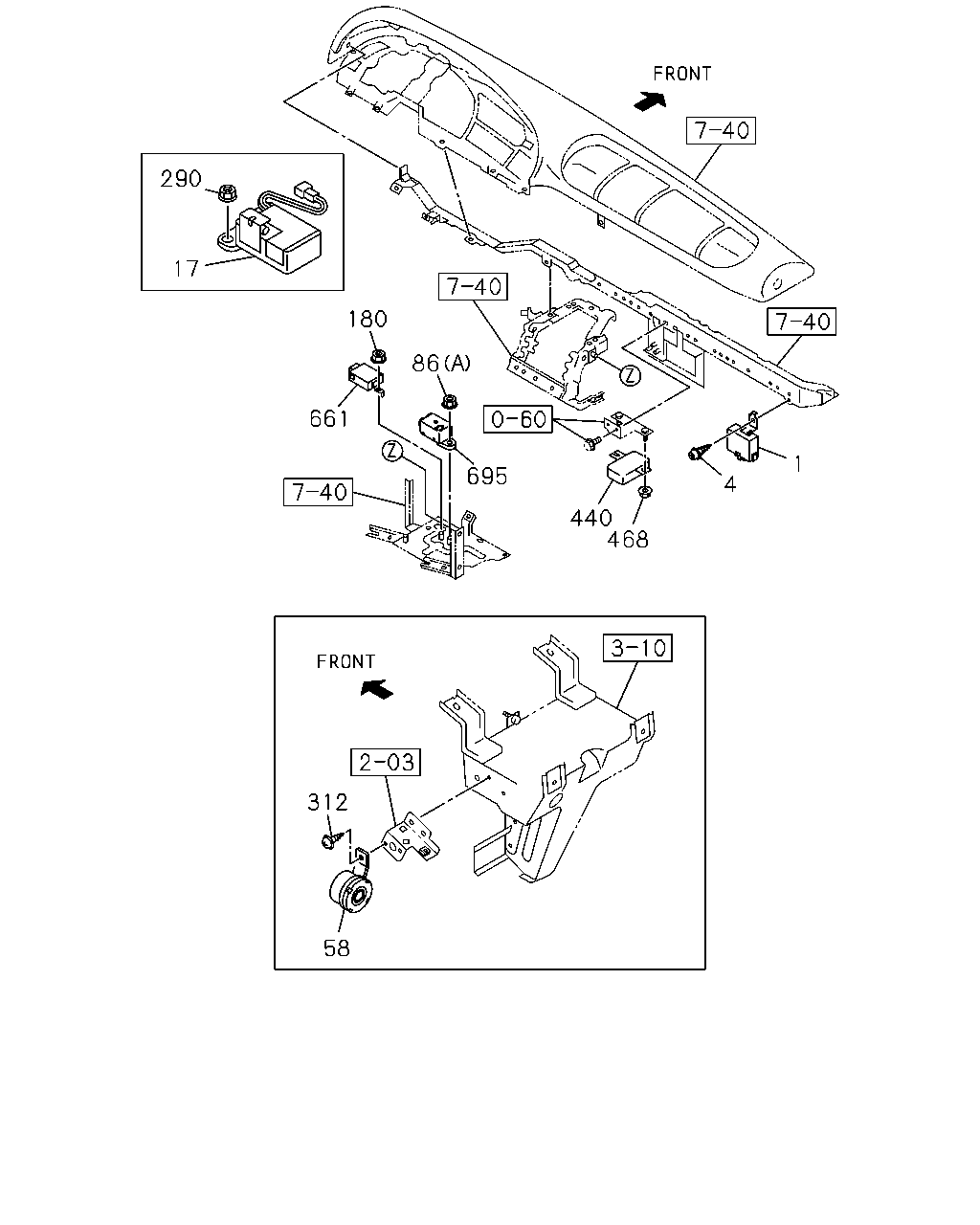

çizim 171222
440 468 4 1 695 86 180 661 17 312 58 290
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-97613-970-1 01 1 1008-
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 1008-
17 TIMER; SEAT BELT 1-82550-183-1 01 1 1008-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 1008-1306
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 1008-1306
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 1008-1306
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 1008-
290 NUT
M6 FLANGE 		0-91180-106-0 02 1 1008-
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-1306
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 1008-1306
468 NUT; MODULE
M6 FLANGE 		0-91180-106-0 02 1 1008-1306
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 1008-
695 ALARM; OVER HEAT 1-83460-051-1 01 1 1008-1306

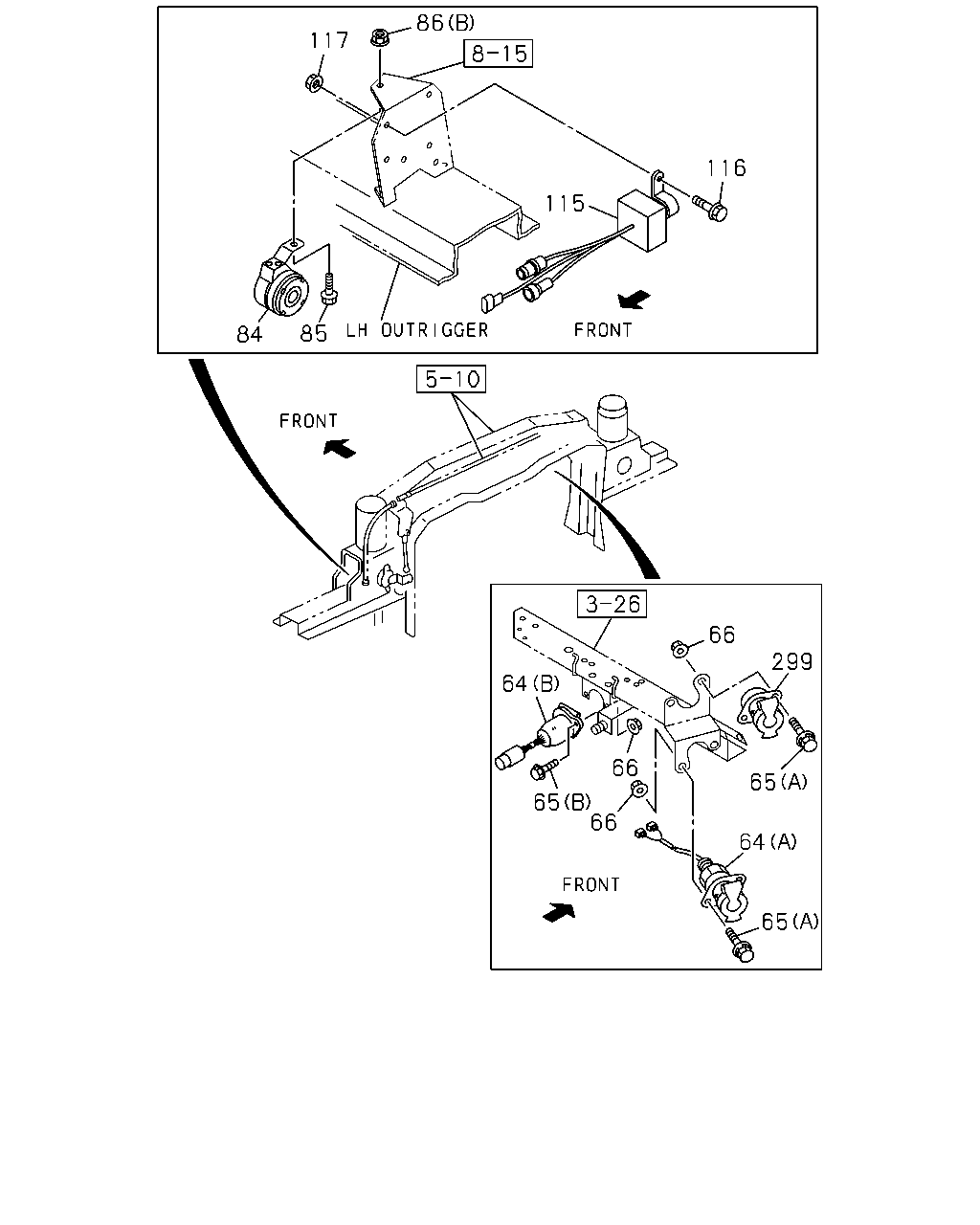

çizim 171224
65 64 65 299 66 66 65 66 64 85 84 117 86 115 116
BalonParca AdiParca NoAdetTipApplied Date
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 1008-
64 SOCKET; TRAILER
(A) L=860 		1-82699-449-2 01 1 1008-1008
64 SOCKET; TRAILER
(A) L=860 		8-98172-008-0 01 1 1009-
65 BOLT; SOCKET FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
65 BOLT; SOCKET FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 05 1 1008-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1008-1306
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1008-1306
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 1008-1306
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 1008-1306
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 1008-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 1008-1306
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1008-
299 SOCKET; PARKING 1-82699-396-2 01 1 1008-

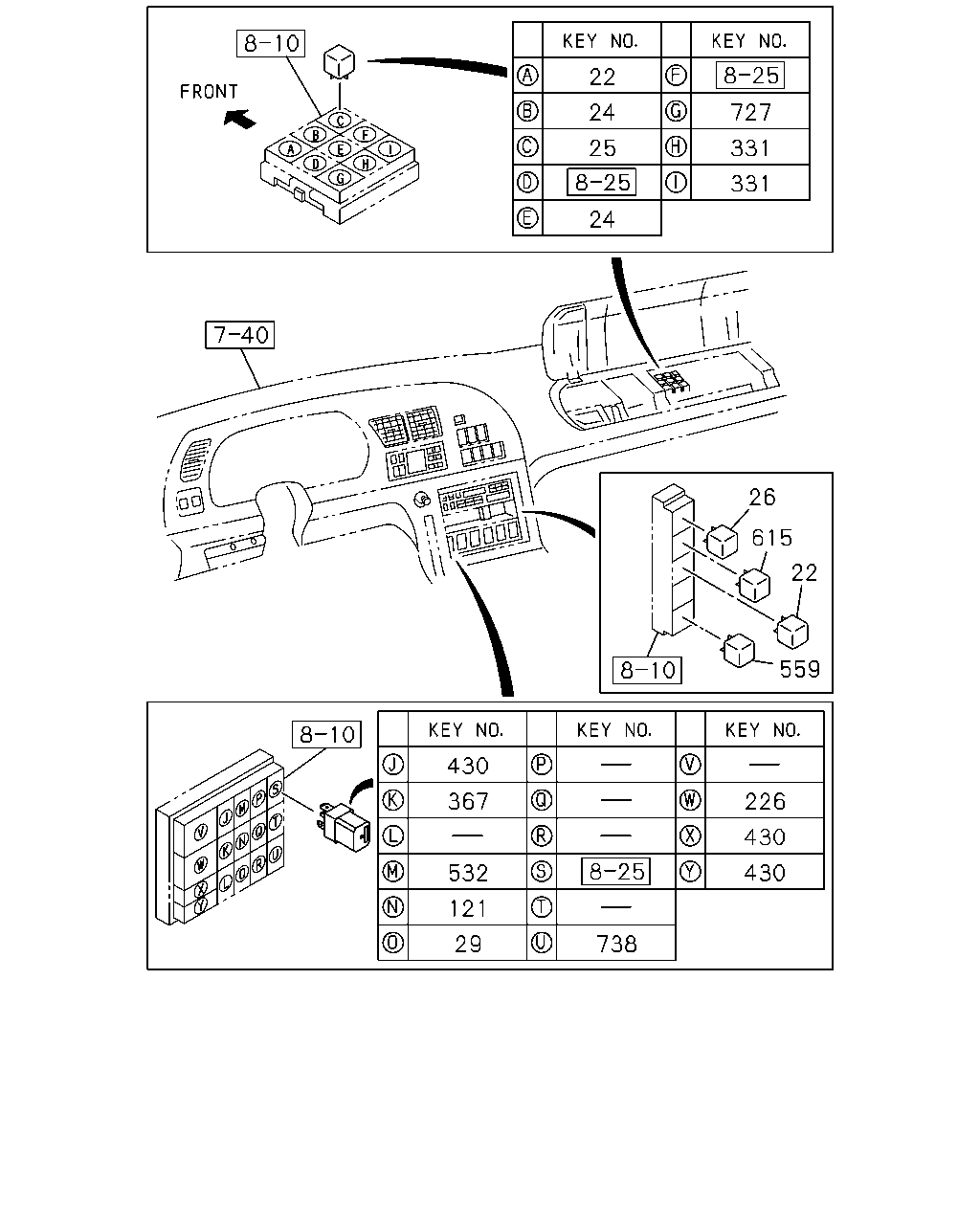

çizim 171248
22 727 24 25 331 24 331 26 22 615 559 226 430 430 430 367 532 121 29 738
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1008-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1008-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-
29 RELAY; HORN
24V 10A PANASONIC 		8-97173-035-1 01 1 1307-
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1008-
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-1306
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1008-1306
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1307-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 1008-
430 RELAY; RANGE
24V 10A PANASONIC 		8-97173-035-1 03 1 1307-
532 RELAY; SEAT BELT WARNING
24V 10A PANASONIC 		8-97173-035-1 01 1 1008-
559 RELAY; MAG VLV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-1306
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-1306
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-1306
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 1008-

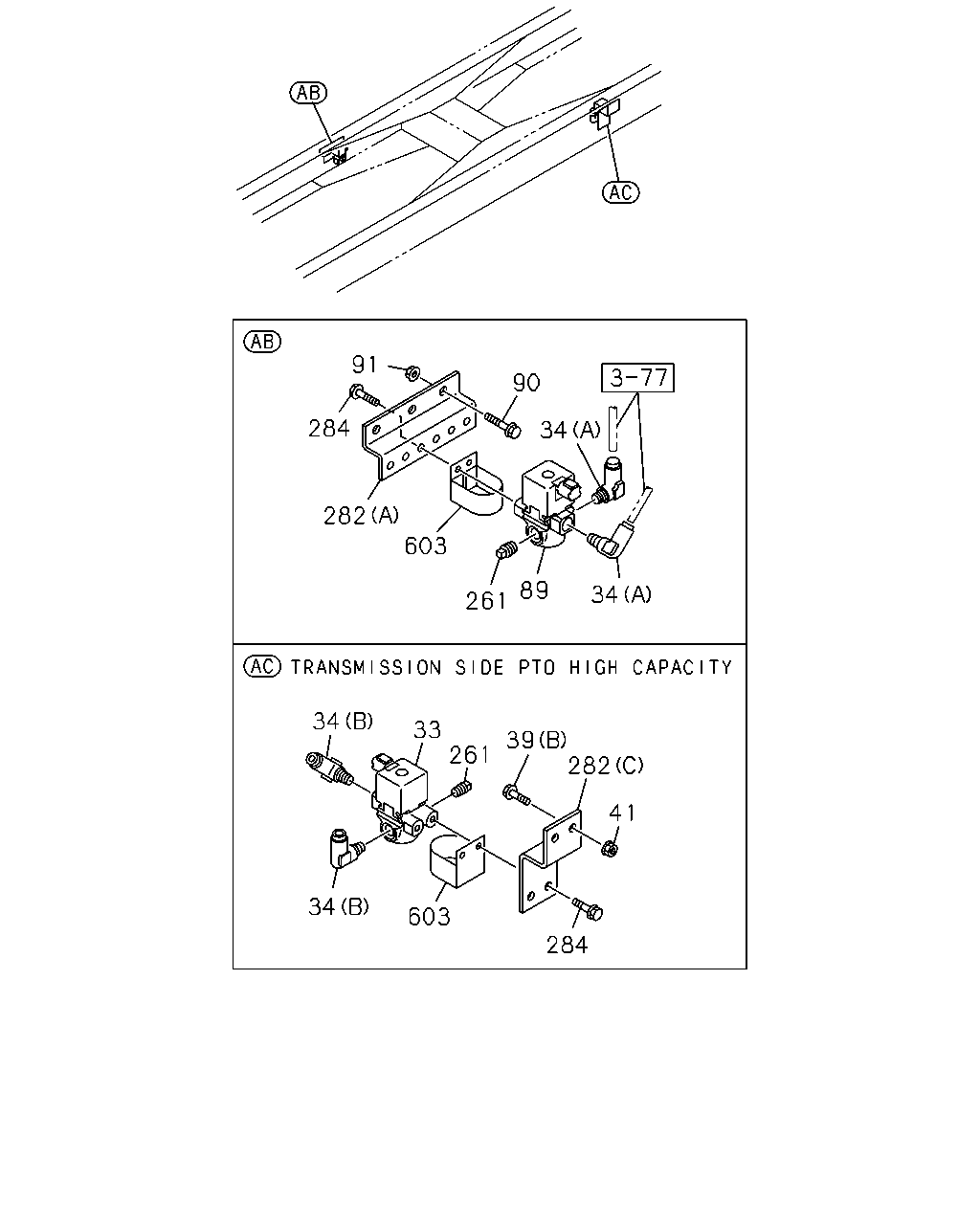

çizim 171262
34 90 91 284 282 603 261 89 34 34 33 261 282 41 284 603 34 39
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82563-871-2 01 1 1008-1306
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-82563-871-2 01 1 1307-
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1008-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1008-1306
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1307-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1306
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 02 1 1008-1306
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8 FLANGE 		0-91180-108-0 02 1 1307-
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 1008-1205
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206-
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1008-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1008-1306
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 1008-1306
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1008-1306
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1307-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4 		9-99204-513-0 01 1 1307-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1307-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 1008-
282 BRACKET; MAG VLV
(A) 		1-82569-421-0 01 1 1008-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		1-47471-175-0 01 1 1008-1306
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) 		1-47471-175-0 01 1 1307-
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 1307-
603 PROTECTOR; MAG VLV 1-47471-046-0 01 1 1008-1306
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-47471-046-0 01 1 1008-1306
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-47471-046-0 01 1 1307-
603 PROTECTOR; MAG VLV 1-47471-046-0 01 1 1307-

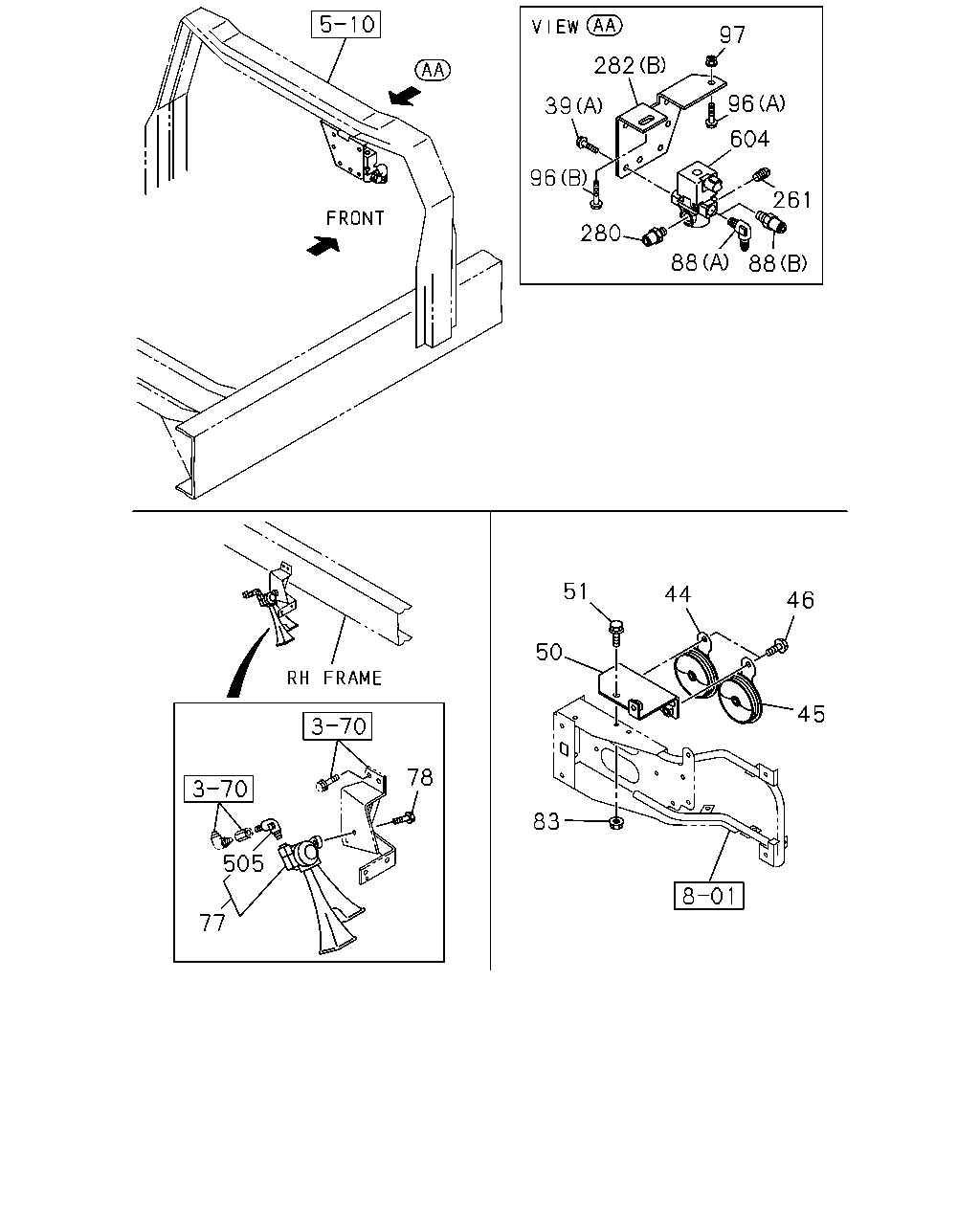

çizim 171279
97 96 604 261 88 88 280 96 39 282 78 505 77 45 46 44 51 50 83
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1306
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
44 HORN; HIGH NOTE 1-83410-061-1 01 1 1307-
45 HORN; LOW NOTE 1-83410-062-1 01 1 1307-
46 BOLT; HORN TO BODY
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1307-
50 BRACKET; HORN 8-98198-870-1 01 1 1307-
51 BOLT; HORN TO BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
77 HORN ASM 1-83430-043-0 01 1 1008-1306
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
83 NUT; BRKT,HORN
M8 FLANGE 		0-91180-108-0 02 1 1307-
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1008-1306
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307-
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
96 BOLT; BRKT FIX
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1008-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1008-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1008-1306
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 1008-1306
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1008-1306
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1307-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4 		9-99204-513-0 01 1 1307-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1307-
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 1008-
282 BRACKET; MAG VLV
(A) 		1-82569-421-0 01 1 1008-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		1-47471-175-0 01 1 1008-1306
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) 		1-47471-175-0 01 1 1307-
505 JOINT; AIR HORN 1-83439-006-0 01 1 1008-1306
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 1008-
